EE80-EGKDS (1985)

Toyota Corolla

Production May 1985 - Apr 1987
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8505- )2ELU

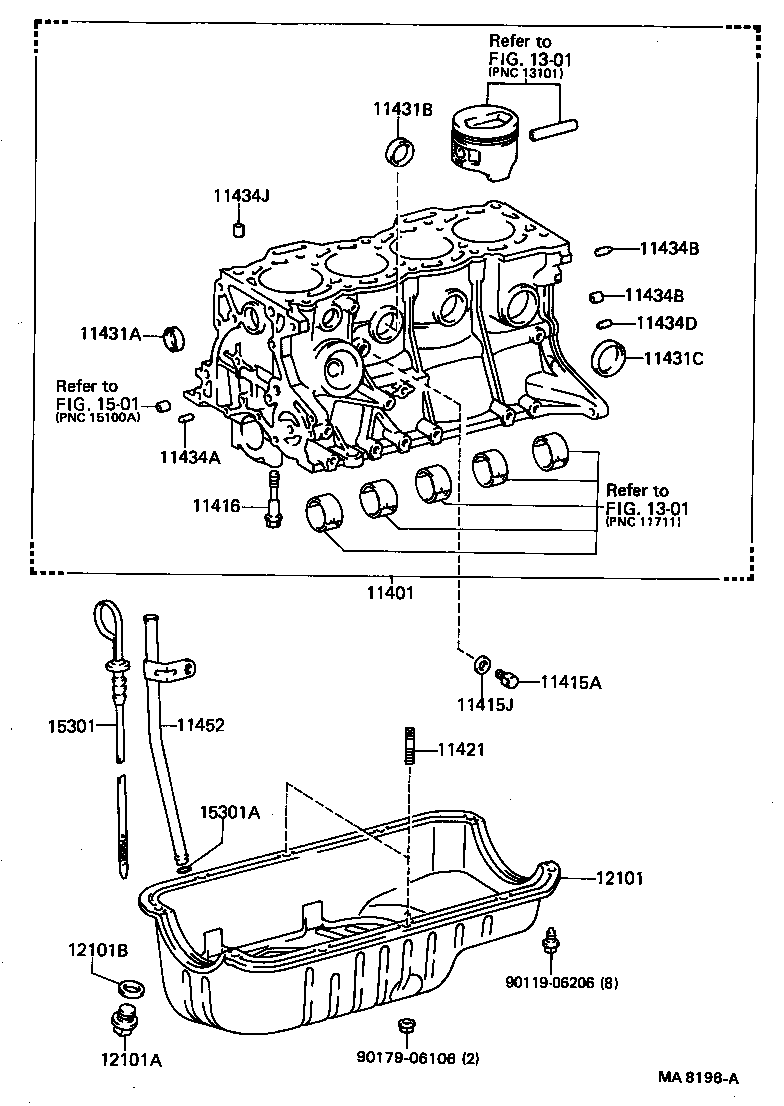

Click highlighted areas on diagram

diagram 11401 11415A 11415J 11416 11421 11431A 11431B 11431C 11434A 11434B 11434B 11434D 11434J 11452 12101 12101A 12101B 1301 1301 1501 15301 15301A 9011906206 9017906106
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19297

2ELU..EE80

 1
11401-19298

2ELU..EE80

 1
11401-19296

2ELU..EE80

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90341-12012

2ELU..EE80

 1
11415J - GASKET(FOR DRAIN COCK)
90430-13002

2ELU..EE80

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

2ELU..EE80

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

2ELU..EE80

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

2ELU..EE80

OD=25

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

2ELU..EE80

OD=30

 6
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

2ELU..EE80

OD=35

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06068

2ELU..EE80

長さ=11,外径=6

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10017

2ELU..EE80

長さ=20,外径=10,L=20,OD=8

 1
90253-15001

2ELU..EE80

長さ=14,外径=15,L=14,OD=15

 1
90250-10052

2ELU..EE80

長さ=20,外径=10,L=20,OD=10

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10017

2ELU..EE80

長さ=20,外径=10,L=20,OD=8

 1
90253-15001

2ELU..EE80

長さ=14,外径=15,L=14,OD=15

 1
90250-10052

2ELU..EE80

長さ=20,外径=10,L=20,OD=10

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

2ELU..EE80

長さ=11,外径=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-12001

2ELU..EE80

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-10010

2ELU..EE80

 1
12101 - PAN SUB-ASSY, OIL
12101-10010

2ELU..EE80

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019

2ELU..EE80

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-10021

2ELU..EE80

 1
15301-10020

2ELU..EE80

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96711-19010

2ELU..EE80

 1
Common parts
90119-06206
90179-06106
Linked diagrams
1301
1501
