EE80-EEKNS (1985)

Toyota Corolla

Production May 1985 - Apr 1987
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8505- )EE80

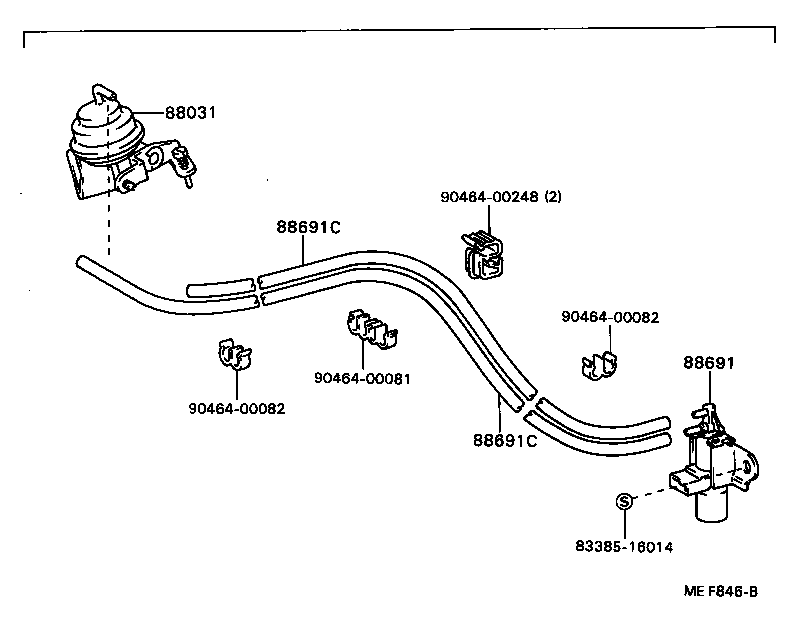

Click highlighted areas on diagram

diagram 8338516014 88031 88691 88691C 88691C 9046400081 9046400082 9046400082 9046400248
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-10020

EE80

 1
88031-10021

EE80

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-90K02

EE80

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19995

EE80

*H,L=950,ﾏｰｸ=#*

 1
95411-10095

EE80

*H,L=900,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19995

EE80

*H,L=950,ﾏｰｸ=#*

 1
95411-10095

EE80

*H,L=900,ﾏｰｸ=#0

 1
Common parts
83385-16014
90464-00081
90464-00082
90464-00248
