EE80-EEKDS (1985)

Toyota Corolla

Production May 1985 - Apr 1987
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8505- )2ELU

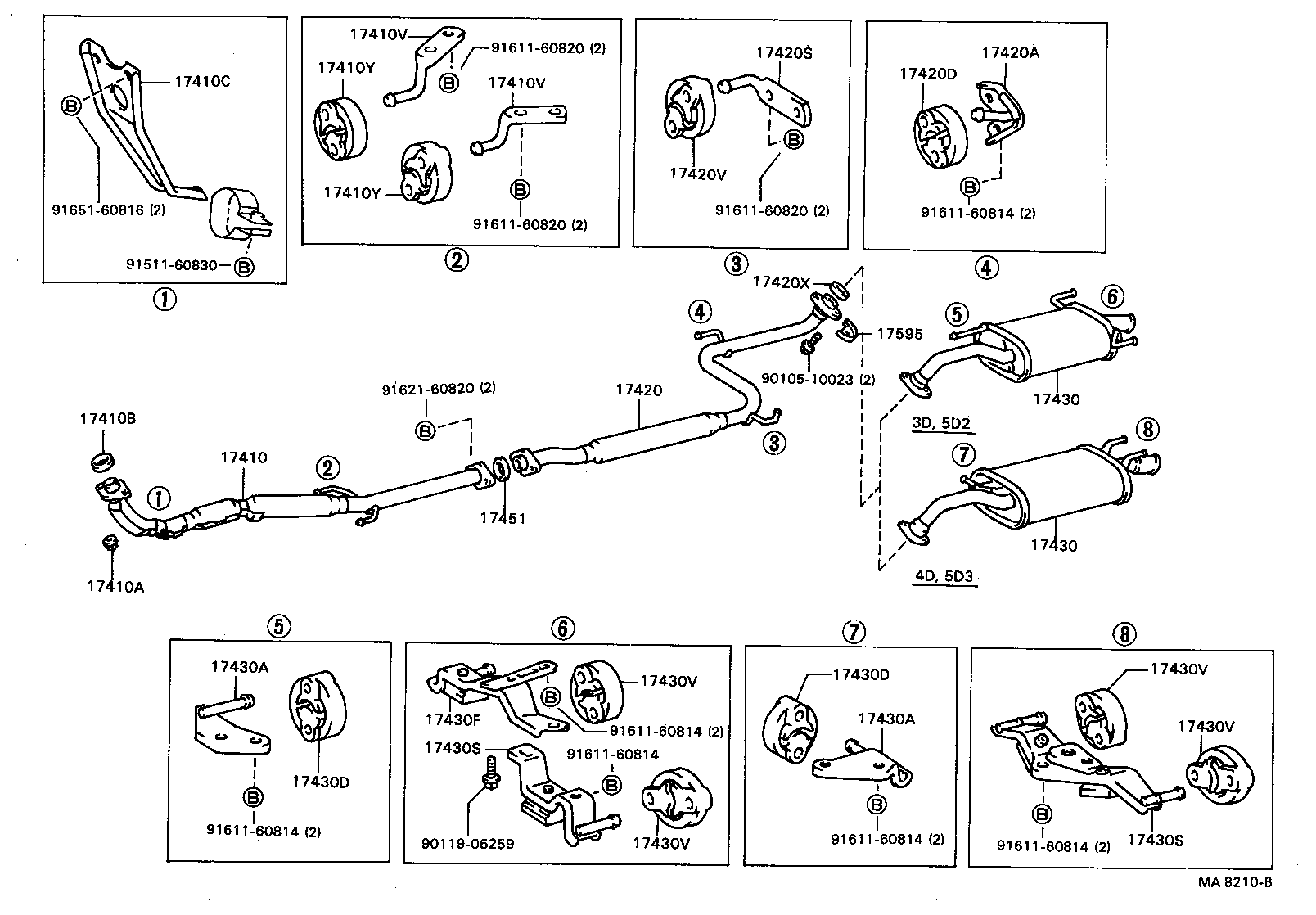

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410V 17410V 17410Y 17410Y 17420 17420A 17420D 17420S 17420V 17420X 17430 17430 17430A 17430A 17430D 17430D 17430F 17430S 17430S 17430V 17430V 17430V 17430V 17451 17595 9010510023 9011906259 9151160830 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160820 9161160820 9161160820 9162160820 9165160816
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11180

2ELU..EE80

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-11080

2ELU..EE80

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11020

2ELU..EE80

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-14010

2ALU,3ALU,4AELU,2ELU..AE8#,EE80..4D,5D3

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-14010

2ALU,3ALU,4AELU,2ELU..AE8#,EE80..4D,5D3

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-64020

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80..4D,5D3

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-64020

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80..4D,5D3

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-14010

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80..4D,5D3

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-14010

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80..4D,5D3

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

2ALU,3ALU,4AELU,1CL,2ELU..AE8#,CE80,EE80

 1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17597-14010

2ALU,3ALU,4A#,1CL,2ELU..AE8#,CE80,EE80

 1
Common parts
90105-10023
90119-06259
91511-60830
91611-60814
91611-60820
91621-60820
91651-60816
