EE80-EEHDS (1985)

Toyota Corolla

Production May 1985 - Apr 1987
Engine 2ELU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8505- )4D,5D3

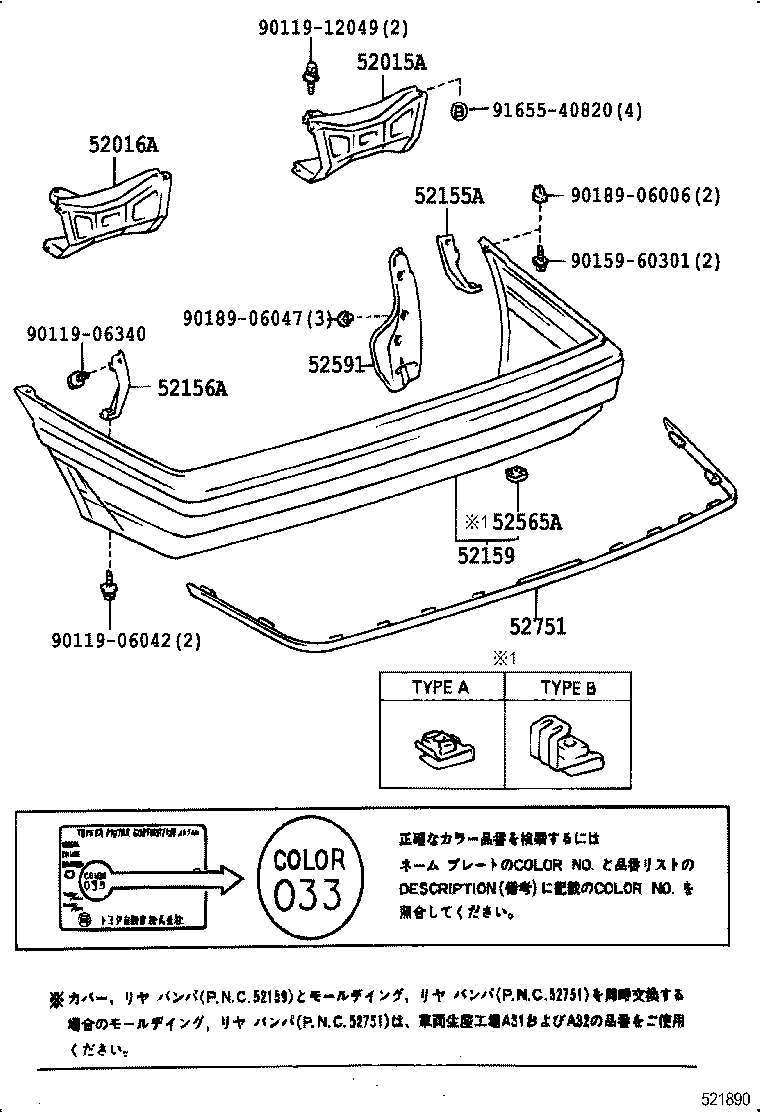

Click highlighted areas on diagram

diagram 52015A 52016A 52155A 52156A 52159 52565A 52591 52751 9011906042 9011906340 9011912049 9015960301 9018906006 9018906047 9165540820
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-12180

AE8#,CE80,EE80..4D,5D3

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-12170

AE8#,CE80,EE80..4D,5D3

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12140

AE8#,CE80,EE80..4D,5D3

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12120

AE8#,CE80,EE80..4D,5D3

 1
52159 - COVER, REAR BUMPER
52159-12500

AE81,CE80,EE80..4D..(CTD,DX,GL)

BLACK(4G5,6J4,8D4);BLACK(041,147,3E6,4D2)

 1
52159-12500

AE81,CE80,EE80..4D..(CTD,DX,GL)

BLACK(8D7);BLACK(041,164,3E6,4G8)

 1
52159-1251008

EE80..DX

DX ｻﾙ-ﾝ ｽﾍﾟｼﾔﾙ,WHITE,WHITE,041

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12040

AE8#,CE80,EE80..4D,5D3

 1
52751 - MOULDING, REAR BUMPER
52751-12060

AE81,CE80,EE80..4D..(CTD,DX,GL)

BLACK BUMPER

 1
52751-12100

AE8#,CE80,EE80..4D,5D3

BLACK BUMPER,PLANT.M11-M12

 1
52751-12030

AE8#,CE80,EE80..4D,5D3

COLOR BUMPER,PLANT.A31-A32

 1
52751-12110

AE8#,CE80,EE80..4D,5D3

COLOR BUMPER,PLANT.M11-M12

 1
52751-12060

AE8#,CE80,EE80..4D,5D3

BLACK BUMPER,PLANT.A31-A32

 1
Common parts
90119-06042
90119-06340
90119-12049
90159-60301
90189-06006
90189-06047
91655-40820
