Toyota Corolla EE111 RADIATOR & WATER OUTLET

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
99555-00200	4EFE..EE111 *H,L=190	05/1995 - 04/1997	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-11009	4EFE..EE111	05/1995 - 04/1997	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-11009	4EFE..EE111	05/1995 - 04/1997	2
16262 - HOSE, WATER INLET
16262-10011	4EFE..EE111..4F	05/1995 - 04/1997	1
16262A - CLIP(FOR WATER INLET HOSE)
90467-34003	4EFE..EE111	05/1995 - 04/1997	2
16262A - CLIP(FOR WATER INLET HOSE)
90467-34003	4EFE..EE111	05/1995 - 04/1997	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-11090	4EFE..EE111	05/1995 - 04/1997	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009	4EFE..EE111	05/1995 - 04/1997	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009	4EFE..EE111	05/1995 - 04/1997	2
16321 - INLET, WATER
16321-11011	4EFE..EE111	05/1995 - 04/1997	1
16322 - PIPE, WATER INLET
16322-11162	4EFE..EE111	05/1995 - 04/1997	1
16322A - RING, O(FOR WATER INLET)
96761-35028	4EFE..EE111	05/1995 - 04/1997	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63011	4EFE..EE111	05/1995 - 04/1997	1
16331A - THERMOSTAT
90916-03046	4EFE..EE111 *WAX 82−95	05/1995 - 04/1997	1
16333 - HOUSING, WATER OUTLET
16333-11120	4EFE..EE111	05/1995 - 04/1997	1
16361 - FAN
16361-11010	4EFE..EE111	05/1995 - 04/1997	1
16363 - MOTOR, COOLING FAN
16363-15120	4EFE..EE111	05/1995 - 04/1997	1
16381 - BAR, FAN BELT ADJUSTING
16381-11030	4EFE..EE111	05/1995 - 04/1997	1
16400 - RADIATOR ASSY
16400-15670	4EFE..EE111..4F	05/1995 - 04/1997	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-15090	4EFE..EE111	05/1995 - 04/1997	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078	4EFE..EE111 NO.2	05/1995 - 04/1997	1
16478-15090	4EFE..EE111 NO.1	05/1995 - 04/1997	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078	4EFE..EE111 NO.2	05/1995 - 04/1997	1
16478-15090	4EFE..EE111 NO.1	05/1995 - 04/1997	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	4EFE..EE111	05/1995 - 04/1997	2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	4EFE..EE111	05/1995 - 04/1997	2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-15100	4EFE..EE111	05/1995 - 04/1997	1
16533 - SUPPORT, RADIATOR, UPPER
16533-15120	4EFE..EE111 (J)	05/1995 - 04/1997	2
16533-02020	4EFE..EE111 (L)	05/1995 - 04/1997	2
16535 - SUPPORT, RADIATOR, LOWER
90916-04006	4EFE..EE111	05/1995 - 04/1997	2
16571 - HOSE, RADIATOR, INLET
16571-11130	4EFE..EE111	05/1995 - 04/1997	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-31003	4EFE..EE111 ｴﾝｼﾞﾝ側	05/1995 - 04/1997	1
90467-34003	4EFE..EE111 ﾗｼﾞｴｰﾀ側	05/1995 - 04/1997	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-31003	4EFE..EE111 ｴﾝｼﾞﾝ側	05/1995 - 04/1997	1
90467-34003	4EFE..EE111 ﾗｼﾞｴｰﾀ側	05/1995 - 04/1997	1
16572 - HOSE, RADIATOR, OUTLET
16572-11220	4EFE..EE111..4F	05/1995 - 04/1997	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-31003	4EFE..EE111 ｴﾝｼﾞﾝ側	05/1995 - 04/1997	1
90467-34003	4EFE..EE111 ﾗｼﾞｴｰﾀ側	05/1995 - 04/1997	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-31003	4EFE..EE111 ｴﾝｼﾞﾝ側	05/1995 - 04/1997	1
90467-34003	4EFE..EE111 ﾗｼﾞｴｰﾀ側	05/1995 - 04/1997	1
16701 - SHROUD SUB-ASSY, FAN
16711-16221	4EFE..EE111	05/1995 - 04/1997	1
Common parts
82711-10380
82711-1E360
90099-04117
90099-05164
90099-35025
90116-08239
90119-08053
90179-06106
90179-06307
90179-08054
91611-60835
91621-40814
91635-60820
91651-60612
91651-60616
92122-60616
92122-60640
92122-60835
Linked diagrams
1601
2211
8401
8716

EE111-AEKNK (1995)

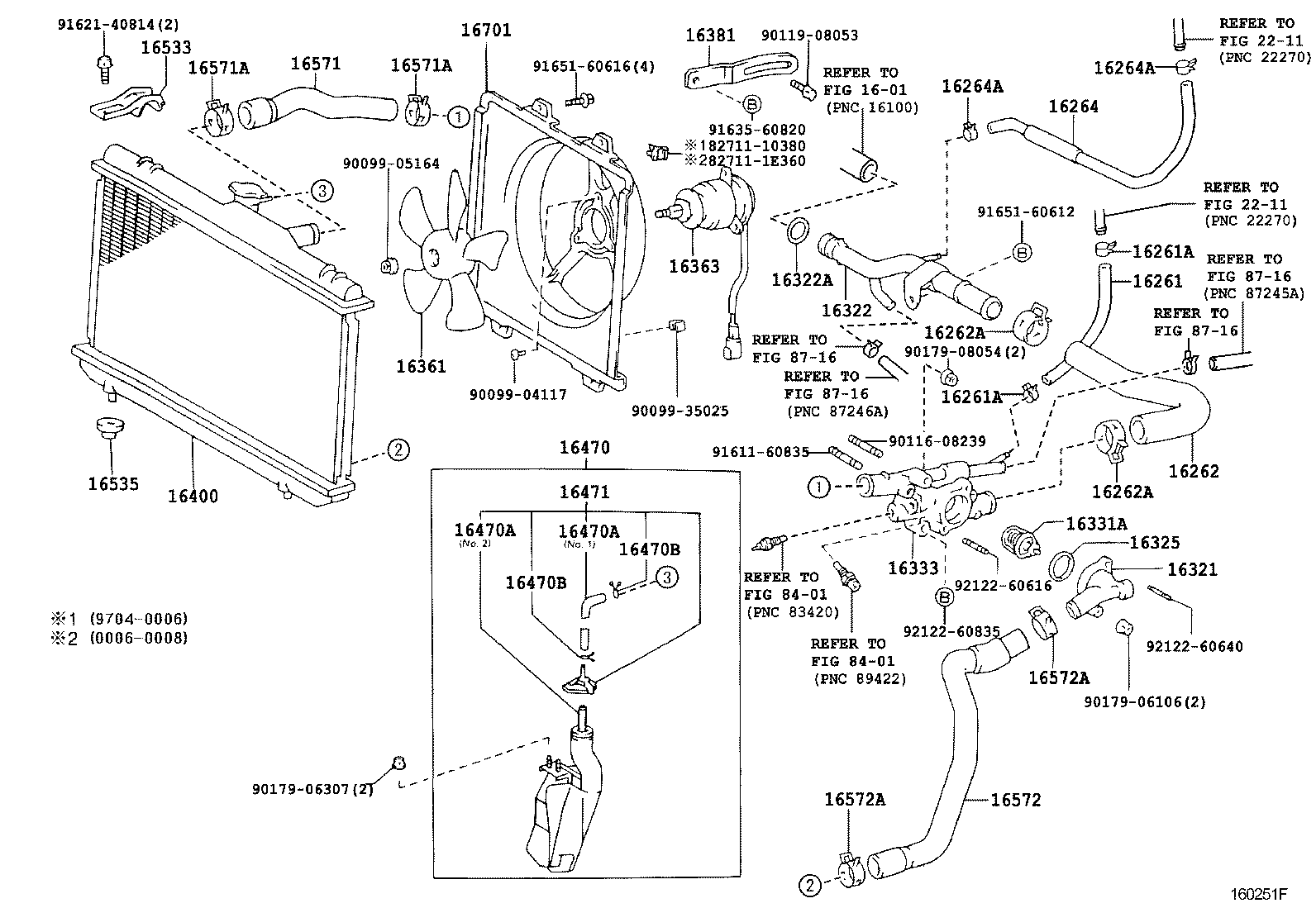

ILLUST NO. 1 OF 2(9505- )4EFE

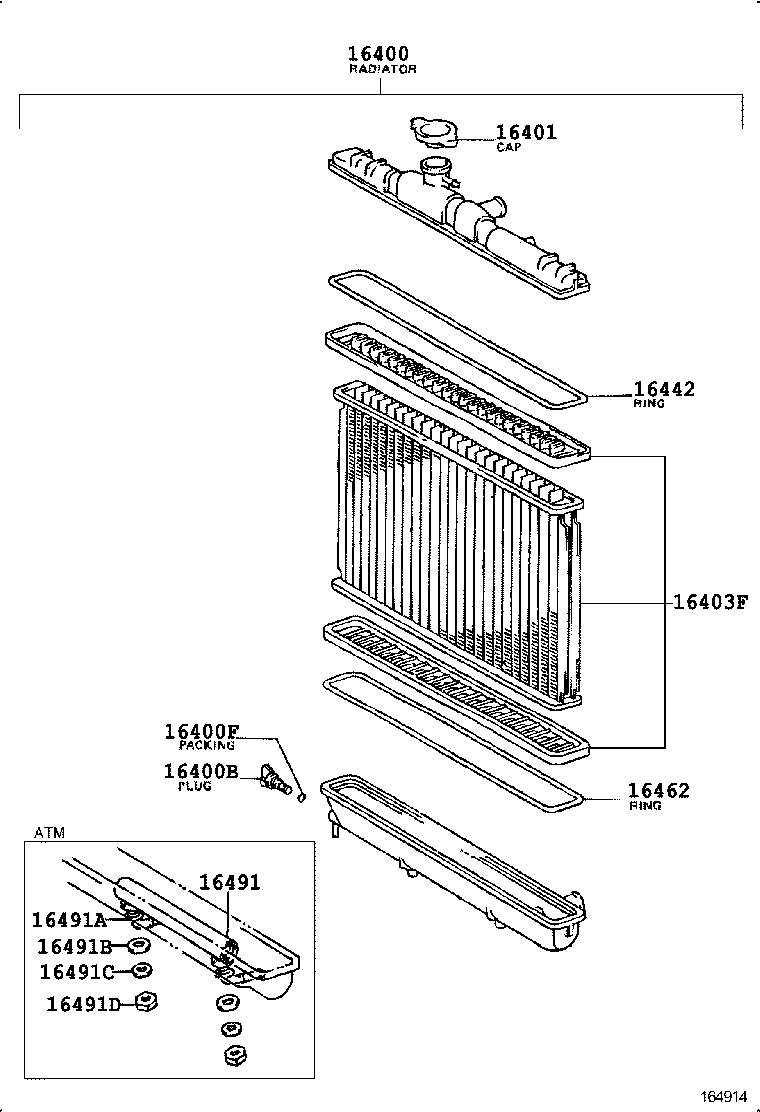

ILLUST NO. 2 OF 2(9505- )4EFE
