EE111-AEHDK (1995)
Toyota Corolla
ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15001 |
AE11#,CE11#,EE111 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15005 |
AE11#,CE11#,EE111 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15004 |
AE11#,CE11#,EE111 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
AE11#,CE11#,EE111 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
AE11#,CE11#,EE111 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
AE11#,CE11#,EE111 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15005 |
AE11#,CE11#,EE111 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15004 |
AE11#,CE11#,EE111 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15006 |
AE11#,CE11#,EE111 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15004 |
AE11#,CE11#,EE111 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
AE11#,CE11#,EE111 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15004 |
AE11#,CE11#,EE111 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
AE11#,CE11#,EE111 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15005 |
AE11#,CE11#,EE111 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15005 |
AE11#,CE11#,EE111 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
AE11#,CE11#,EE111 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||

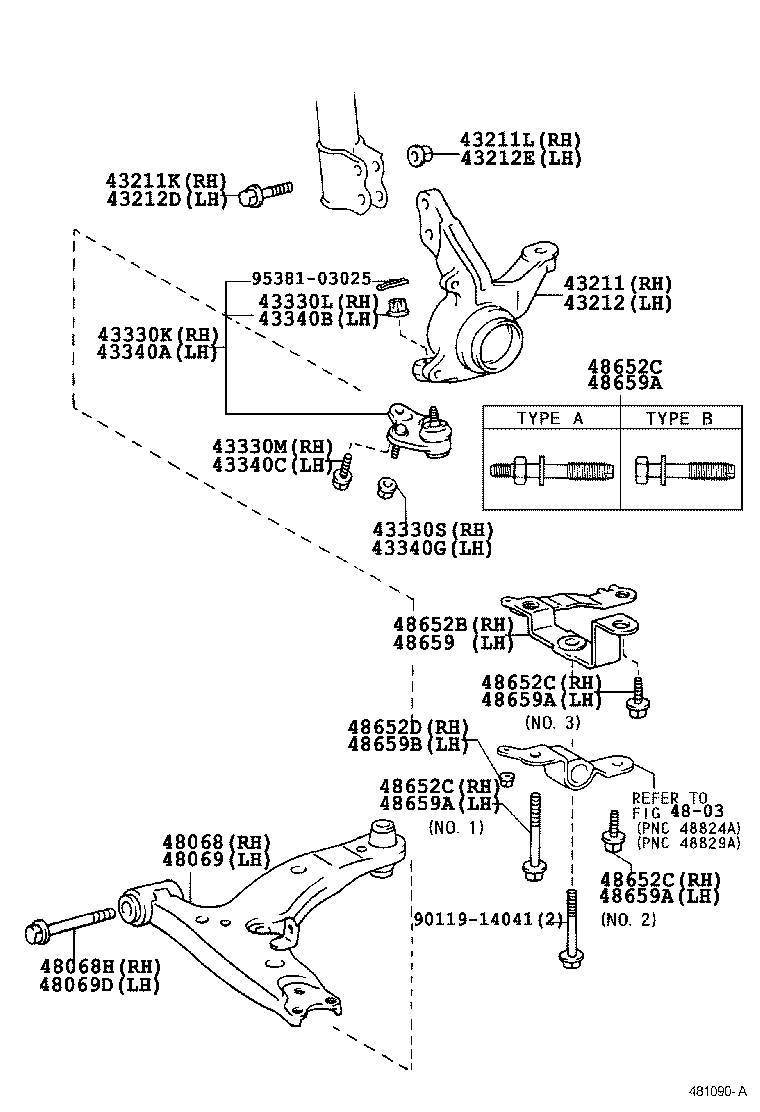

ILLUST NO. 1 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-12290 |
AE110,111,CE110,EE111 |
1 | ||
| 43211-12290 |
AE110,EE111..DX,LX;CE110..5F..(DX,LX);CE110..4FC..(DX,LX,SESAL) |
1 | ||
| 43211-12300 |
AE110,CE110..LX,SESAL,XESAL;EE111..(3FC,4F)..(LX,XESAL) ｱﾘ(ABS) |
1 | ||
| 43211-12300 |
AE110,111,CE110,EE111..LX,SCRU,SESAL,XESAL ｱﾘ(ABS) |
1 | ||
| 43211-12290 |
EE111..4F;CE110..5F..(DX,LX);CE110..4FC..(DX,LX,SESAL);AE110,EE111..(3FC,4FC,5F)..(DX,LX) |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15001 |
AE11#,CE11#,EE111 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15005 |
AE11#,CE11#,EE111 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15004 |
AE11#,CE11#,EE111 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
AE11#,CE11#,EE111 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
AE11#,CE11#,EE111 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
AE11#,CE11#,EE111 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15005 |
AE11#,CE11#,EE111 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15004 |
AE11#,CE11#,EE111 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15001 |
AE11#,CE11#,EE111 |
2 | ||
| 90179-15001 |
AE11#,CE11#,EE111 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-12250 |
AE110,EE111..DX,LX;CE110..5F..(DX,LX);CE110..4FC..(DX,LX,SESAL) |
1 | ||
| 43212-12260 |
AE110,111,CE110,EE111..LX,SCRU,SESAL,XESAL ｱﾘ(ABS) |
1 | ||
| 43212-12250 |
AE110,111,CE110,EE111 |
1 | ||
| 43212-12250 |
EE111..4F;CE110..5F..(DX,LX);CE110..4FC..(DX,LX,SESAL);AE110,EE111..(3FC,4FC,5F)..(DX,LX) |
1 | ||
| 43212-12260 |
AE110,CE110..LX,SESAL,XESAL;EE111..(3FC,4F)..(LX,XESAL) ｱﾘ(ABS) |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15006 |
AE11#,CE11#,EE111 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15004 |
AE11#,CE11#,EE111 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
AE11#,CE11#,EE111 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15004 |
AE11#,CE11#,EE111 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
AE11#,CE11#,EE111 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15005 |
AE11#,CE11#,EE111 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15005 |
AE11#,CE11#,EE111 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
AE11#,CE11#,EE111 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15001 |
AE11#,CE11#,EE111 |
2 | ||
| 90179-15001 |
AE11#,CE11#,EE111 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-19115 |
AE11#,CE11#,EE111 |
1 | ||
| 43330-19115 |
AE11#,CE11#,EE111 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
AE11#,CE11#,EE111 |
1 | ||
| 90171-14003 |
AE11#,CE11#,EE111 |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12156 |
AE11#,CE11#,EE111 |
1 | ||
| 90105-12156 |
AE11#,CE11#,EE111 |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90179-12070 |
AE11#,CE11#,EE111 |
2 | ||
| 90179-12070 |
AE11#,CE11#,EE111 |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-19115 |
AE11#,CE11#,EE111 |
1 | ||
| 43330-19115 |
AE11#,CE11#,EE111 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
AE11#,CE11#,EE111 |
1 | ||
| 90171-14003 |
AE11#,CE11#,EE111 |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12156 |
AE11#,CE11#,EE111 |
1 | ||
| 90105-12156 |
AE11#,CE11#,EE111 |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90179-12070 |
AE11#,CE11#,EE111 |
2 | ||
| 90179-12070 |
AE11#,CE11#,EE111 |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-12160 |
AE110,114,CE11#,EE111 |
1 | ||
| 48068-12160 |
AE110,114,CE11#,EE111 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-14023 |
AE11#,CE11#,EE111 |
1 | ||
| 90119-14023 |
AE11#,CE11#,EE111 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-12160 |
AE110,114,CE11#,EE111 |
1 | ||
| 48069-12160 |
AE110,114,CE11#,EE111 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-14023 |
AE11#,CE11#,EE111 |
1 | ||
| 90119-14023 |
AE11#,CE11#,EE111 |
1 | ||
| 48652B - BRACKET, FRONT LOWER ARM, RH | ||||
| 48652-12060 |
AE110,114,CE11#,EE111 |
1 | ||
| 48652-12100 |
AE110,114,CE11#,EE111 |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE11#,CE11#,EE111 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE11#,CE11#,EE111 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-10692 |
EE111..3FC,4F;AE11#,CE110,114 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12238 |
AE11#,CE11#,EE111 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-12238 |
EE111..3FC,4F;AE110,114,CE110,114 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-12125 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90109-10168 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX75−38,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE11#,CE11#,EE111 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE11#,CE11#,EE111 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-10692 |
EE111..3FC,4F;AE11#,CE110,114 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12238 |
AE11#,CE11#,EE111 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-12238 |
EE111..3FC,4F;AE110,114,CE110,114 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-12125 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90109-10168 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX75−38,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE11#,CE11#,EE111 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE11#,CE11#,EE111 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-10692 |
EE111..3FC,4F;AE11#,CE110,114 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12238 |
AE11#,CE11#,EE111 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-12238 |
EE111..3FC,4F;AE110,114,CE110,114 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-12125 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90109-10168 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX75−38,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90119-10692 |
AE11#,CE11#,EE111 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE11#,CE11#,EE111 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-10692 |
EE111..3FC,4F;AE11#,CE110,114 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12238 |
AE11#,CE11#,EE111 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-12238 |
EE111..3FC,4F;AE110,114,CE110,114 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-12125 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90109-10168 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX75−38,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 48652D - NUT(FOR FRONT LOWER ARM BRACKET RH) | ||||
| 90179-08145 |
AE11#,CE11#,EE111 |
1 | ||
| 90179-08145 |
AE11#,CE11#,EE111 |
1 | ||
| 48659 - BRACKET, FRONT LOWER ARM, LH | ||||
| 48659-12060 |
AE110,114,CE11#,EE111 |
1 | ||
| 48659-12100 |
AE110,114,CE11#,EE111 |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-10692 |
AE11#,CE11#,EE111 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE11#,CE11#,EE111 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
EE111..3FC,4F;AE110,114,CE110,114 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-10692 |
EE111..3FC,4F;AE11#,CE110,114 *10−1.25PX29−23,NO.2 |
1 | ||
| 90109-10168 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX75−38,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-12125 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE11#,CE11#,EE111 *12−1.25PX75−38,NO.1 |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-10692 |
AE11#,CE11#,EE111 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE11#,CE11#,EE111 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
EE111..3FC,4F;AE110,114,CE110,114 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-10692 |
EE111..3FC,4F;AE11#,CE110,114 *10−1.25PX29−23,NO.2 |
1 | ||
| 90109-10168 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX75−38,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-12125 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE11#,CE11#,EE111 *12−1.25PX75−38,NO.1 |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-10692 |
AE11#,CE11#,EE111 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE11#,CE11#,EE111 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
EE111..3FC,4F;AE110,114,CE110,114 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-10692 |
EE111..3FC,4F;AE11#,CE110,114 *10−1.25PX29−23,NO.2 |
1 | ||
| 90109-10168 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX75−38,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-12125 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE11#,CE11#,EE111 *12−1.25PX75−38,NO.1 |
1 | ||
| 48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90119-10692 |
AE11#,CE11#,EE111 *10−1.25PX29−23,NO.2 |
1 | ||
| 90119-12125 |
AE11#,CE11#,EE111 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
EE111..3FC,4F;AE110,114,CE110,114 *12−1.25PX75−38,NO.1 |
1 | ||
| 90119-10692 |
EE111..3FC,4F;AE11#,CE110,114 *10−1.25PX29−23,NO.2 |
1 | ||
| 90109-10168 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX75−38,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 90119-12125 |
EE111..3FC,4F;AE11#,CE110,114 *12−1.25PX31−25.3,NO.3 |
1 | ||
| 90119-12238 |
AE11#,CE11#,EE111 *12−1.25PX75−38,NO.1 |
1 | ||
| 48659B - NUT(FOR FRONT LOWER ARM BRACKET LH) | ||||
| 90179-08145 |
AE11#,CE11#,EE111 |
1 | ||
| 90179-08145 |
AE11#,CE11#,EE111 |
1 | ||
| Common parts | ||||
| 90119-14041 | ||||
| 95381-03025 | ||||
| Linked diagrams | ||||
| 4803 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
