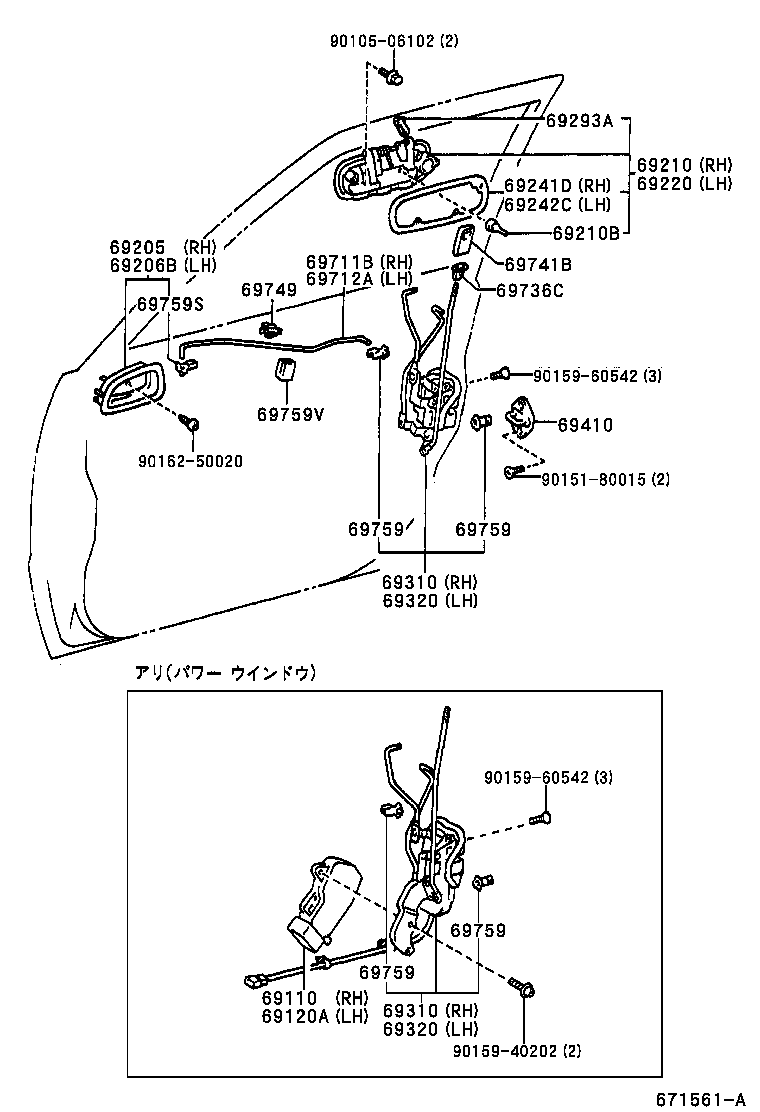

EE111-AEHBK (1995)
Toyota Corolla
(9505-9704)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-12160B0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
1 | ||
| 69205-12160B1 |
AE110,114,CE11#,EE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 69205-12160B2 |
AE110,114,CE11#,EE111..DX,LX MD.GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-12160B0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
1 | ||
| 69206-12160B2 |
AE110,114,CE11#,EE111..DX,LX MD.GRAY,TRIM1# |
1 | ||
| 69206-12160B1 |
AE110,114,CE11#,EE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12190 |
AE11#,CE11#,EE111..DX,LX,SCRU |
1 | ||
| 69210-12200D0 |
AE11#,CE11#,EE111 RED MM,3K4 |
1 | ||
| 69210-12190 |
AE110,114,CE11#,EE111..DX,LX |
1 | ||
| 69210-12200B1 |
AE11#,CE11#,EE111 WARM GRAY PEARL ME.,1A5 |
1 | ||
| 69210-12200B3 |
AE11#,CE11#,EE111 SILVER ME,199 |
1 | ||
| 69210-12200J1 |
AE11#,CE11#,EE111 DK.BLUE M.M.,8L2 |
1 | ||
| 69210-12280 |
AE110,114,CE11#,EE111..DX,LX |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
AE11#,CE11#,EE111 |
4 | ||
| 90541-04018 |
AE11#,CE11#,EE111 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-12180 |
AE11#,CE11#,EE111..DX,LX,SCRU |
1 | ||
| 69220-12180 |
AE110,114,CE11#,EE111..DX,LX |
1 | ||
| 69220-12190D0 |
AE11#,CE11#,EE111 RED MM,3K4 |
1 | ||
| 69220-12190B1 |
AE11#,CE11#,EE111 WARM GRAY PEARL ME.,1A5 |
1 | ||
| 69220-12190J1 |
AE11#,CE11#,EE111 DK.BLUE M.M.,8L2 |
1 | ||
| 69220-12190B3 |
AE11#,CE11#,EE111 SILVER ME,199 |
1 | ||
| 69220-12280 |
AE110,114,CE11#,EE111..DX,LX |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-12100 |
AE11#,CE11#,EE111 |
1 | ||
| 69241-12100 |
AE11#,CE11#,EE111 |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 69242-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 69293-12030 |
AE11#,CE11#,EE111 右側 |
1 | ||
| 69293-12040 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 69293-12030 |
AE11#,CE11#,EE111 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12530 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69310-12580 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69310-12520 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12530 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69320-12580 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69320-12540 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE11#,CE11#,EE111 |
2 | ||
| 69410-87001 |
AE11#,CE11#,EE111 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-12170 |
AE11#,CE11#,EE111 |
1 | ||
| 69711-12170 |
AE11#,CE11#,EE111 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-12180 |
AE11#,CE11#,EE111 |
1 | ||
| 69712-12180 |
AE11#,CE11#,EE111 |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-12121 |
AE11#,CE11#,EE111 |
2 | ||
| 69736-12120 |
AE11#,CE11#,EE111 |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-12040B0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
2 | ||
| 69741-12040B4 |
AE110,114,CE11#,EE111..DX,LX MD.GRAY,TRIM1# |
2 | ||
| 69741-12040B3 |
AE110,114,CE11#,EE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12070 |
AE11#,CE11#,EE111 |
2 | ||
| 69749-12070 |
AE11#,CE11#,EE111 |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AE110,114,CE11#,EE111..DX,LX ﾌﾞﾙｰ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AE110,114,CE11#,EE111..DX,LX ﾌﾞﾙｰ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AE110,114,CE11#,EE111..DX,LX ﾌﾞﾙｰ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AE110,114,CE11#,EE111..DX,LX ﾌﾞﾙｰ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-22040 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 69759-22040 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 69759-22050 |
AE11#,CE11#,EE111 右側 |
1 | ||
| 69759-22050 |
AE11#,CE11#,EE111 右側 |
1 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-14010 |
AE11#,CE11#,EE111 80 X 40 |
2 | ||
| 69759-20390 |
AE11#,CE11#,EE111 60 X 40 |
2 | ||
| 69759-14010 |
AE11#,CE11#,EE111 80 X 40 |
2 | ||
| 69759-20390 |
AE11#,CE11#,EE111 60 X 40 |
2 | ||
| Common parts | ||||
| 90105-06102 | ||||
| 90151-80015 | ||||
| 90159-60542 | ||||
| 90162-50020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-12160B0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
1 | ||
| 69205-12160B1 |
AE110,114,CE11#,EE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 69205-12160B2 |
AE110,114,CE11#,EE111..DX,LX MD.GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-12160B0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
1 | ||
| 69206-12160B2 |
AE110,114,CE11#,EE111..DX,LX MD.GRAY,TRIM1# |
1 | ||
| 69206-12160B1 |
AE110,114,CE11#,EE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12190 |
AE11#,CE11#,EE111..DX,LX,SCRU |
1 | ||
| 69210-12200D0 |
AE11#,CE11#,EE111 RED MM,3K4 |
1 | ||
| 69210-12190 |
AE110,114,CE11#,EE111..DX,LX |
1 | ||
| 69210-12200B1 |
AE11#,CE11#,EE111 WARM GRAY PEARL ME.,1A5 |
1 | ||
| 69210-12200B3 |
AE11#,CE11#,EE111 SILVER ME,199 |
1 | ||
| 69210-12200J1 |
AE11#,CE11#,EE111 DK.BLUE M.M.,8L2 |
1 | ||
| 69210-12280 |
AE110,114,CE11#,EE111..DX,LX |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
AE11#,CE11#,EE111 |
4 | ||
| 90541-04018 |
AE11#,CE11#,EE111 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-12180 |
AE11#,CE11#,EE111..DX,LX,SCRU |
1 | ||
| 69220-12180 |
AE110,114,CE11#,EE111..DX,LX |
1 | ||
| 69220-12190D0 |
AE11#,CE11#,EE111 RED MM,3K4 |
1 | ||
| 69220-12190B1 |
AE11#,CE11#,EE111 WARM GRAY PEARL ME.,1A5 |
1 | ||
| 69220-12190J1 |
AE11#,CE11#,EE111 DK.BLUE M.M.,8L2 |
1 | ||
| 69220-12190B3 |
AE11#,CE11#,EE111 SILVER ME,199 |
1 | ||
| 69220-12280 |
AE110,114,CE11#,EE111..DX,LX |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-12100 |
AE11#,CE11#,EE111 |
1 | ||
| 69241-12100 |
AE11#,CE11#,EE111 |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 69242-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 69293-12030 |
AE11#,CE11#,EE111 右側 |
1 | ||
| 69293-12040 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 69293-12030 |
AE11#,CE11#,EE111 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12530 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69310-12580 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69310-12520 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12530 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69310-12580 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69310-12520 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12530 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69320-12580 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69320-12540 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12530 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69320-12580 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69320-12540 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE11#,CE11#,EE111 |
2 | ||
| 69410-87001 |
AE11#,CE11#,EE111 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-12170 |
AE11#,CE11#,EE111 |
1 | ||
| 69711-12170 |
AE11#,CE11#,EE111 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-12180 |
AE11#,CE11#,EE111 |
1 | ||
| 69712-12180 |
AE11#,CE11#,EE111 |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-12121 |
AE11#,CE11#,EE111 |
2 | ||
| 69736-12120 |
AE11#,CE11#,EE111 |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-12040B0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
2 | ||
| 69741-12040B4 |
AE110,114,CE11#,EE111..DX,LX MD.GRAY,TRIM1# |
2 | ||
| 69741-12040B3 |
AE110,114,CE11#,EE111 MD.CHARCOAL,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12070 |
AE11#,CE11#,EE111 |
2 | ||
| 69749-12070 |
AE11#,CE11#,EE111 |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AE110,114,CE11#,EE111..DX,LX ﾌﾞﾙｰ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AE110,114,CE11#,EE111..DX,LX ﾌﾞﾙｰ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AE110,114,CE11#,EE111..DX,LX ﾌﾞﾙｰ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AE110,114,CE11#,EE111..DX,LX ﾌﾞﾙｰ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20050 |
AE11#,CE11#,EE111 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-24010 |
AE11#,CE11#,EE111 ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11#,CE11#,EE111 ﾌﾞﾙｰ |
2 | ||
| 69759-20040 |
AE11#,CE11#,EE111 ｲｴﾛｰ |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-22040 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 69759-22040 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 69759-22050 |
AE11#,CE11#,EE111 右側 |
1 | ||
| 69759-22050 |
AE11#,CE11#,EE111 右側 |
1 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-14010 |
AE11#,CE11#,EE111 80 X 40 |
2 | ||
| 69759-20390 |
AE11#,CE11#,EE111 60 X 40 |
2 | ||
| 69759-14010 |
AE11#,CE11#,EE111 80 X 40 |
2 | ||
| 69759-20390 |
AE11#,CE11#,EE111 60 X 40 |
2 | ||
| Common parts | ||||
| 90105-06102 | ||||
| 90151-80015 | ||||
| 90159-40202 | ||||
| 90159-60542 | ||||
| 90162-50020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
