EE107V-AXKDS (1991)
Toyota Corolla

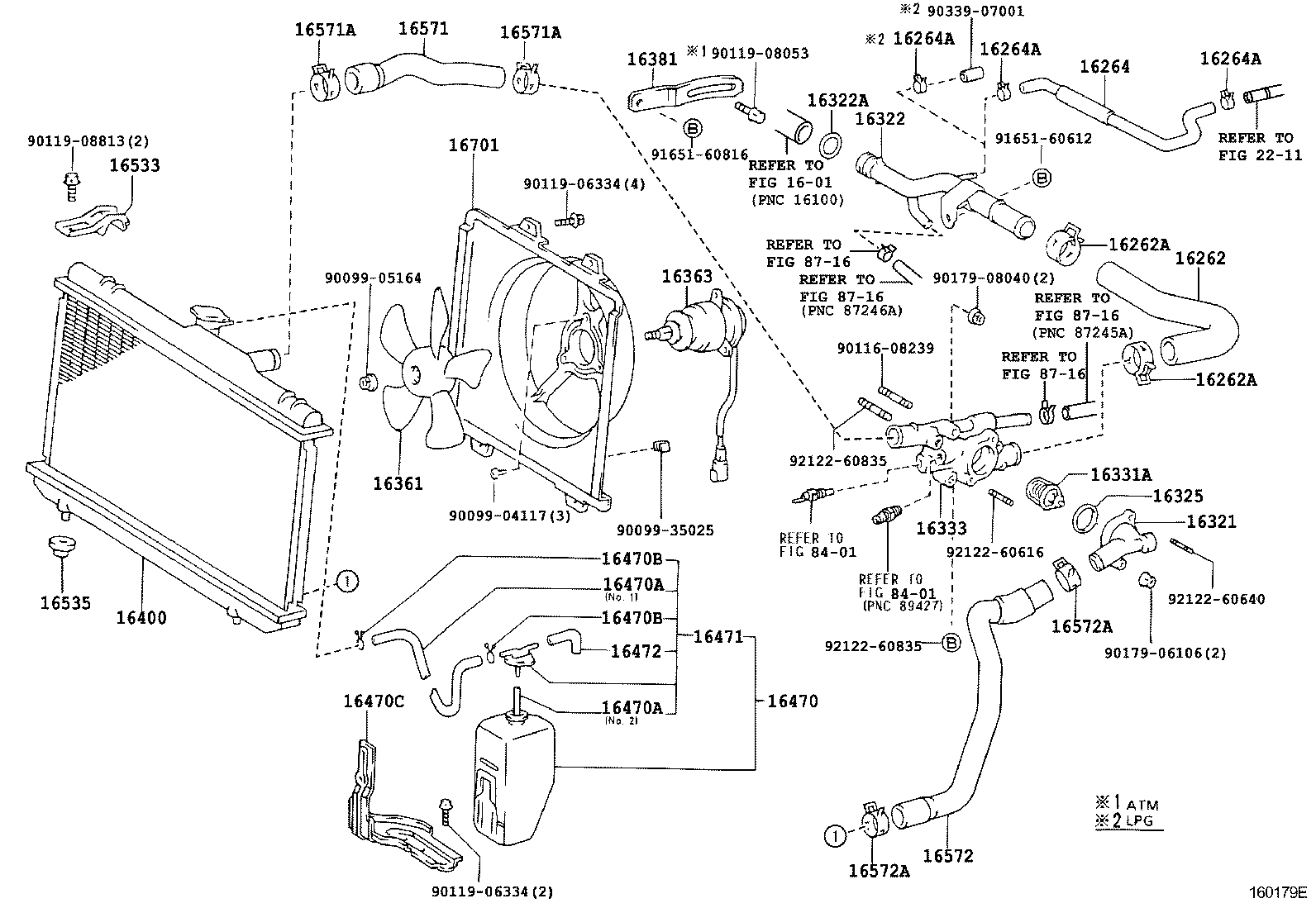

ILLUST NO. 1 OF 2(9109-9401)2E,3E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 16262-10010 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
2E,3E,4EFE,5EFE..EE10# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
2E,3E,4EFE,5EFE..EE10# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 90910-05208 |
3E..EE107,108 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
2E,3E..EE106,107,108 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
2E,3E..EE106,107,108 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
2E,3E..EE106,107,108 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-11011 |
2E,3E,4EFE,5EFE..EE10# |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-11080 |
2E,3E..EE106,107,108 |
1 | ||
| 16322-11081 |
2E,3E..EE106,107,108 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96711-35028 |
2E,3E,4EFE,5EFE..EE10# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
2E,3E,4EFE..EE10# |
1 | ||
| 16325-63011 |
2E,3E,4EFE,5EFE..EE10# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2E,3E,4EFE,5EFE..EE10# *WAX 82−95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-11050 |
2E,3E..EE106,107,108 |
1 | ||
| 16333-11190 |
2E,3E..EE106,107,108 |
1 | ||
| 16361 - FAN | ||||
| 16361-11020 |
5EFE..EE103;3E..EE107..MTM;3E,4EFE,5EFE..EE101,102,104,108..3FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74020 |
5EFE..EE103;3E..EE107..MTM;3E,4EFE,5EFE..EE101,102,104,108..3FC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-11020 |
2E,3E..EE106,107,108..MTM |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15520 |
2E,3E,4EFE..EE10#..MTM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15080 |
2E,3E,4EFE..EE10# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16471-15080 |
2E,3E,4EFE,5EFE..EE10# NO.1 |
1 | ||
| 90445-12078 |
2E,3E,4EFE,5EFE..EE10# *H,L=170,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16471-15080 |
2E,3E,4EFE,5EFE..EE10# NO.1 |
1 | ||
| 90445-12078 |
2E,3E,4EFE,5EFE..EE10# *H,L=170,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2E,3E,4EFE,5EFE..EE10# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2E,3E,4EFE,5EFE..EE10# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-15020 |
2E,3E,4EFE,5EFE..EE10# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15090 |
2E,3E,4EFE..EE10# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16477-15080 |
2E,3E,4EFE,5EFE..EE10# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15120 |
2E,3E,4EFE,5EFE..EE10# (J) |
2 | ||
| 16533-02020 |
2E,3E,4EFE,5EFE..EE10# (L) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74010 |
4EFE..EE101;2E,3E,4EFE,5EFE..EE102,103,104,106,107,108..MTM |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-11150 |
5EFE..EE103,104;3E..EE107,108..MTM |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31003 |
2E,3E,4EFE,5EFE..EE10# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-34003 |
2E,3E,4EFE,5EFE..EE10# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31003 |
2E,3E,4EFE,5EFE..EE10# ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-34003 |
2E,3E,4EFE,5EFE..EE10# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-11220 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
2E,3E,4EFE,5EFE..EE10# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-31003 |
2E,3E,4EFE,5EFE..EE10# ｴﾝｼﾞﾝ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
2E,3E,4EFE,5EFE..EE10# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-31003 |
2E,3E,4EFE,5EFE..EE10# ｴﾝｼﾞﾝ側 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-16230 |
3E..EE107..MTM;3E,4EFE..EE101,108..3FC |
1 | ||
| 16711-16231 |
5EFE..EE103;3E..EE107..MTM;3E,4EFE,5EFE..EE101,102,104,108..3FC |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90116-08239 | ||||
| 90119-06334 | ||||
| 90119-08053 | ||||
| 90119-08813 | ||||
| 90179-06106 | ||||
| 90179-08040 | ||||
| 90339-07001 | ||||
| 91651-60612 | ||||
| 91651-60816 | ||||
| 92122-60616 | ||||
| 92122-60640 | ||||
| 92122-60835 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 2211 | ||||
| 8401 | ||||
| 8716 | ||||
