EE107V-AXKDS (1991)

Toyota Corolla

Production Sep 1991 - Jan 1994
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109-9401)2E,3E

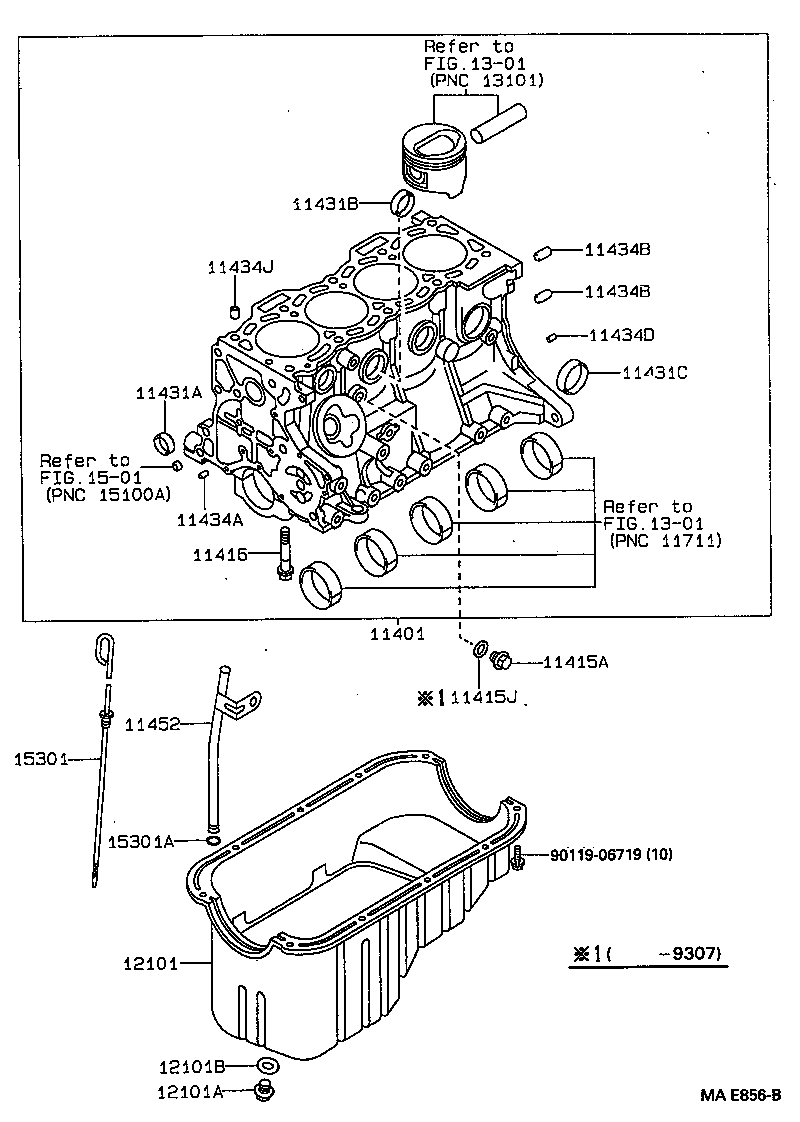

Click highlighted areas on diagram

diagram 11401 11415A 11415J 11416 11431A 11431B 11431C 11434A 11434B 11434B 11434D 11434J 11452 12101 12101A 12101B 1301 1301 1501 15301 15301A 9011906719
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19379

3E..EE107,108

 1
11401-19378

3E..EE107,108

 1
11401-19377

3E..EE107,108

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90341-12026

2E,3E,4EFE..EE10#

 1
90345-52001

2E,3E,4EFE,5EFE..EE10#

 1
11415J - GASKET(FOR DRAIN COCK)
90430-13002

2E,3E,4EFE..EE10#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10007

3E,5EFE..EE103,104,107,108

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

2E,3E,4EFE,5EFE..EE10#

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

2E,3E,4EFE,5EFE..EE10#

 6
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

2E,3E,4EFE,5EFE..EE10#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06068

2E,3E,4EFE,5EFE..EE10#

長さ=11,外径=6

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10017

2E,3E,4EFE,5EFE..EE10#

長さ=20,外径=10

 1
90253-15003

2E,3E,4EFE,5EFE..EE10#

長さ=17,外径=15

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10017

2E,3E,4EFE,5EFE..EE10#

長さ=20,外径=10

 1
90253-15003

2E,3E,4EFE,5EFE..EE10#

長さ=17,外径=15

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

2E,3E,4EFE,5EFE..EE10#

長さ=11,外径=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-12001

2E,3E,4EFE,5EFE..EE10#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-10010

3E..EE107,108

 1
12101 - PAN SUB-ASSY, OIL
12101-11010

2E,3E,4EFE..EE10#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

2E,3E,4EFE,5EFE..EE10#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2E,3E,4EFE,5EFE..EE10#

 1
90430-12027

2E,3E,4EFE..EE10#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-11021

3E..EE107,108

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96711-19010

2E,3E,4EFE,5EFE..EE10#

 1
Common parts
90119-06719
Linked diagrams
1301
1501
