EE107V-AXHNS (1991)

Toyota Corolla

Production Sep 1991 - Jan 1994
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

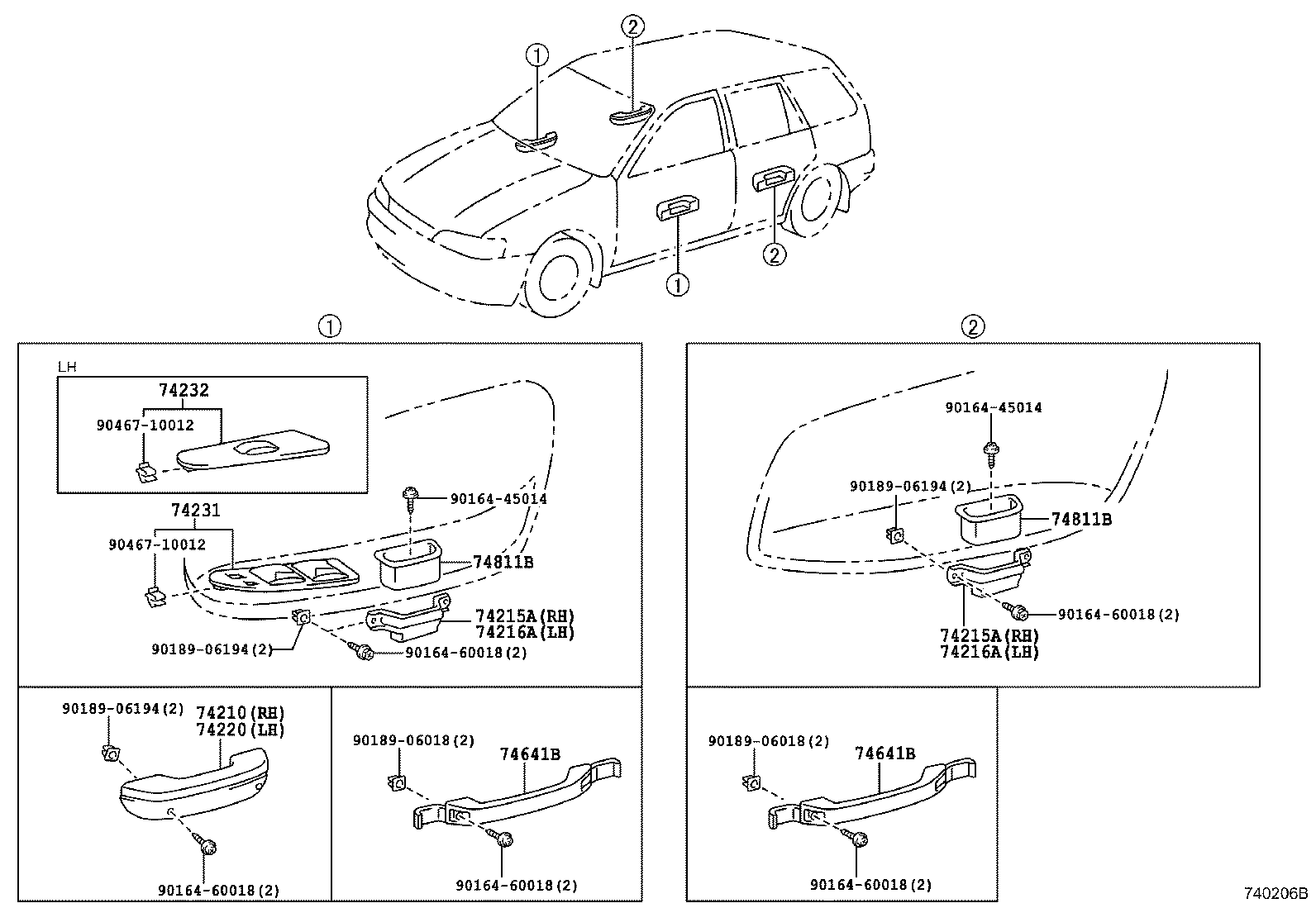

ILLUST NO. 1 OF 2(9109- )V,WG

Click highlighted areas on diagram

diagram 74210 74215A 74215A 74216A 74216A 74220 74231 74232 74641B 74641B 74811B 74811B 9016445014 9016445014 9016460018 9016460018 9016460018 9016460018 9016460018 9018906018 9018906018 9018906194 9018906194 9018906194 9046710012 9046710012
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-16060P0

AE100,104,109,CE100,102,104,105,106,107,108,109,EE10#..DX,GL,L,LX

SHADOW GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-16060P0

AE100,104,109,CE100,102,104,105,106,107,108,109,EE10#..DX,GL,L,LX

SHADOW GRAY,TRIM1#

 1
Common parts
90164-45014
90164-60018
90189-06018
90189-06194
90467-10012
