EE107V-AXHNS (1991)
Toyota Corolla
Production
Sep 1991
-
Jan 1994
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9109-9401)CE106,108,109,EE106,107,108 ; (9401-)AE109,CE102,105,106,107,108,109

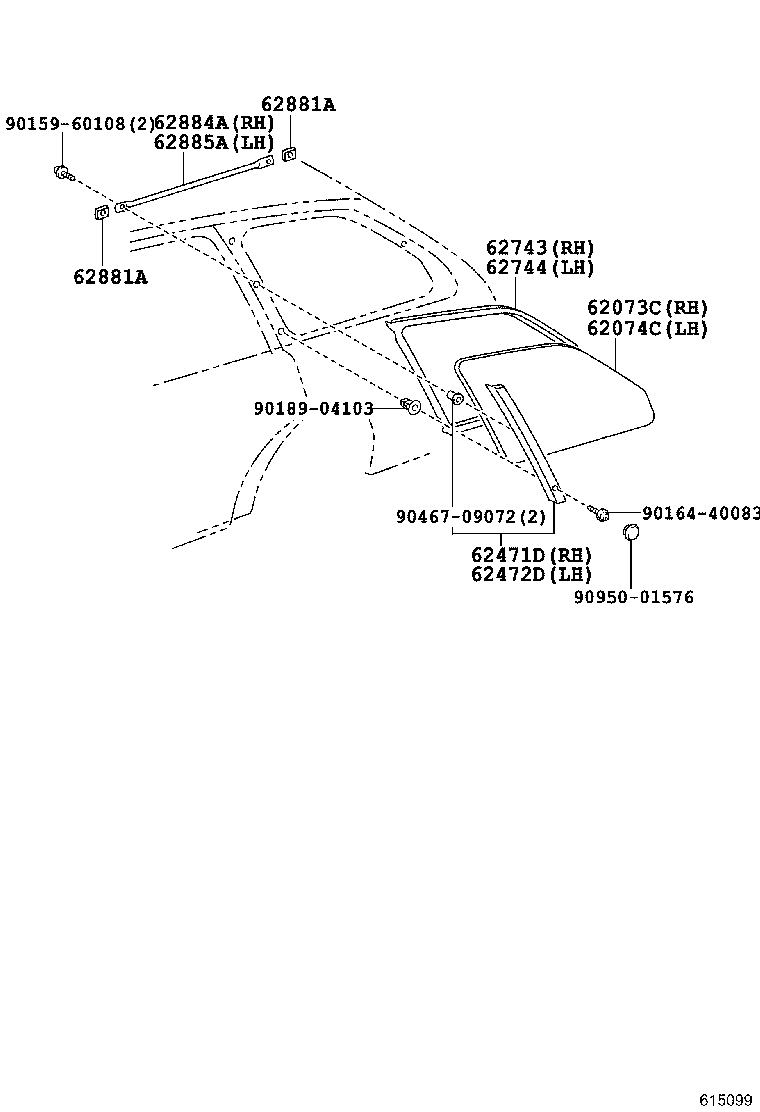

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-13030 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 62743 - WEATHERSTRIP, QUARTER WINDOW, REAR RH | ||||
| 62743-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 62744 - WEATHERSTRIP, QUARTER WINDOW, REAR LH | ||||
| 62744-13070 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 62881A - BRACKET, QUARTER WINDOW GUARD | ||||
| 62881-13040 |
CE106,109,EE106,107 |
4 | ||
| 62881A - BRACKET, QUARTER WINDOW GUARD | ||||
| 62881-13040 |
CE106,109,EE106,107 |
4 | ||
| 62884A - GUARD, QUARTER WINDOW, RH | ||||
| 62884-13090 |
AE109,CE105,106,107,109,EE102,103,106,107 |
1 | ||
| 62885A - GUARD, QUARTER WINDOW, LH | ||||
| 62885-13030 |
AE109,CE105,106,107,109,EE102,103,106,107 |
1 | ||
| Common parts | ||||
| 90159-60108 | ||||
| 90164-40083 | ||||
| 90189-04103 | ||||
| 90467-09072 | ||||
| 90950-01576 | ||||
