EE107V-AXHNS (1991)
Toyota Corolla
(9109-9401)2E,3E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-11840 |
2E,3E..EE106,107,108 |
1 | ||
| 21192 - BREAKER | ||||
| 21192-11631 |
2E,3E..EE106,107,108 NO.1 |
1 | ||
| 21192-11650 |
3E..EE107,108 NO.2 |
1 | ||
| 21192 - BREAKER | ||||
| 21192-11631 |
2E,3E..EE106,107,108 NO.1 |
1 | ||
| 21192-11650 |
3E..EE107,108 NO.2 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-11700 |
2E,3E..EE106,107,108 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-11780 |
2E,3E..EE106,107,108 |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21235-11840 |
2E,3E..EE106,107,108 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41103 |
2E,3E..EE106,107,108 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42168 |
2E,3E..EE106,107,108 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-11700 |
2E,3E..EE106,107,108 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-24231 |
2E,3E..EE106,107,108 |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21275-11630 |
2E,3E..EE106,107,108 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
2E,3E..EE106,107,108 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-11620 |
2E,3E..EE106,107,108 |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
2E,3E..EE106,107,108 |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
2E,3E..EE106,107,108 |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-11840 |
2E,3E..EE106,107,108 |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-11610 |
2E,3E..EE106,107,108 |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
2E,3E..EE106,107,108 |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21575-11730 |
2E,3E..EE106,107,108 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2E,3E..EE106,107,108 |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2E,3E..EE106,107,108 |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-24580 |
2E,3E..EE106,107,108 1ST |
1 | ||
| 21614-13430 |
2E,3E..EE106,107,108 2ND |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-24580 |
2E,3E..EE106,107,108 1ST |
1 | ||
| 21614-13430 |
2E,3E..EE106,107,108 2ND |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2E,3E..EE106,107,108 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2E,3E..EE106,107,108 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2E,3E..EE106,107,108 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2E,3E..EE106,107,108 |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-13430 |
2E,3E..EE106,107,108 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-11611 |
2E,3E..EE106,107,108 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2E,3E..EE106,107,108 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28090 |
2E,3E..EE106,107,108 |
1 | ||
| 21655 - RING, O(FOR LIFTER ROD) | ||||
| 21655-44101 |
2E,3E..EE106,107,108 |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-11611 |
2E,3E..EE106,107,108 |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-11650 |
2E,3E..EE106,107,108 |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
2E,3E..EE106,107,108 |
1 | ||
| 21699B - BOOT(FOR COMPENSATOR) | ||||
| 21699-41010 |
2E,3E..EE106,107,108 |
1 | ||
| 21712 - BUSH, SLIDING ROD | ||||
| 21712-38010 |
2E,3E..EE106,107,108 |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2E,3E..EE106,107,108 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2E,3E..EE106,107,108 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21864-24010 |
2E,3E..EE106,107,108 NO.2 |
1 | ||
| 21723-38010 |
2E,3E..EE106,107,108 NO.3 |
1 | ||
| 21864-24230 |
2E,3E..EE106,107,108 NO.1 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21864-24010 |
2E,3E..EE106,107,108 NO.2 |
1 | ||
| 21723-38010 |
2E,3E..EE106,107,108 NO.3 |
1 | ||
| 21864-24230 |
2E,3E..EE106,107,108 NO.1 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21864-24010 |
2E,3E..EE106,107,108 NO.2 |
1 | ||
| 21723-38010 |
2E,3E..EE106,107,108 NO.3 |
1 | ||
| 21864-24230 |
2E,3E..EE106,107,108 NO.1 |
1 | ||
| 21732 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-38310 |
2E,3E..EE106,107,108 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-11610 |
2E,3E..EE106,107,108 |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-22010 |
2E,3E..EE106,107,108 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-10050 |
2E,3E..EE106,107,108 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
2E,3E..EE106,107,108 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2E,3E..EE106,107,108 |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2E,3E..EE106,107,108 |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2E,3E..EE106,107,108 NO.1(ｲｴﾛｰ) |
4 | ||
| 21791-13011 |
2E,3E..EE106,107,108 NO.2(ｸﾞﾘｰﾝ) |
4 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2E,3E..EE106,107,108 NO.1(ｲｴﾛｰ) |
4 | ||
| 21791-13011 |
2E,3E..EE106,107,108 NO.2(ｸﾞﾘｰﾝ) |
4 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21794-40070 |
2E,3E..EE106,107,108 |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
2E,3E..EE106,107,108 |
1 | ||
| 21832 - SCREW(FOR CHOKE LEVER ADAPTER SET) | ||||
| 21832-15320 |
2E,3E..EE106,107,108 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21835-40010 |
2E,3E..EE106,107,108 |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
2E,3E..EE106,107,108 |
2 | ||
| 21850 - SCREW, THROTTLE SWITCH ADJUSTING | ||||
| 21272-71010 |
2E,3E..EE106,107,108 |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2E,3E..EE106,107,108 |
1 | ||
| 21864A - SPRING(FOR PUMP DISCHARGE WEIGHT) | ||||
| 21864-11730 |
2E,3E..EE106,107,108 |
1 | ||
| 21869 - SPRING(FOR MAIN JET) | ||||
| 21869-11840 |
2E,3E..EE106,107,108 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2E,3E..EE106,107,108 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-11810 |
2E,3E..EE106,107,108..3FC |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2E,3E..EE106,107,108 |
1 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
2E,3E..EE106,107,108 |
1 | ||
| Common parts | ||||
| 21795-30010 | ||||
| 21821-13080 | ||||
| 21821-15010 | ||||
| 21821-15060 | ||||
| 21821-15320 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21821-34370 | ||||
| 21821-34380 | ||||
| 21842-11611 | ||||
| 21842-33010 | ||||
| 21885-26040 | ||||
| 21887-38010 | ||||
| 90079-21001 | ||||
| 90339-03002 | ||||
| 90523-07014 | ||||
| 90999-43100 | ||||
| 90999-92002 | ||||
| 93119-13010 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||

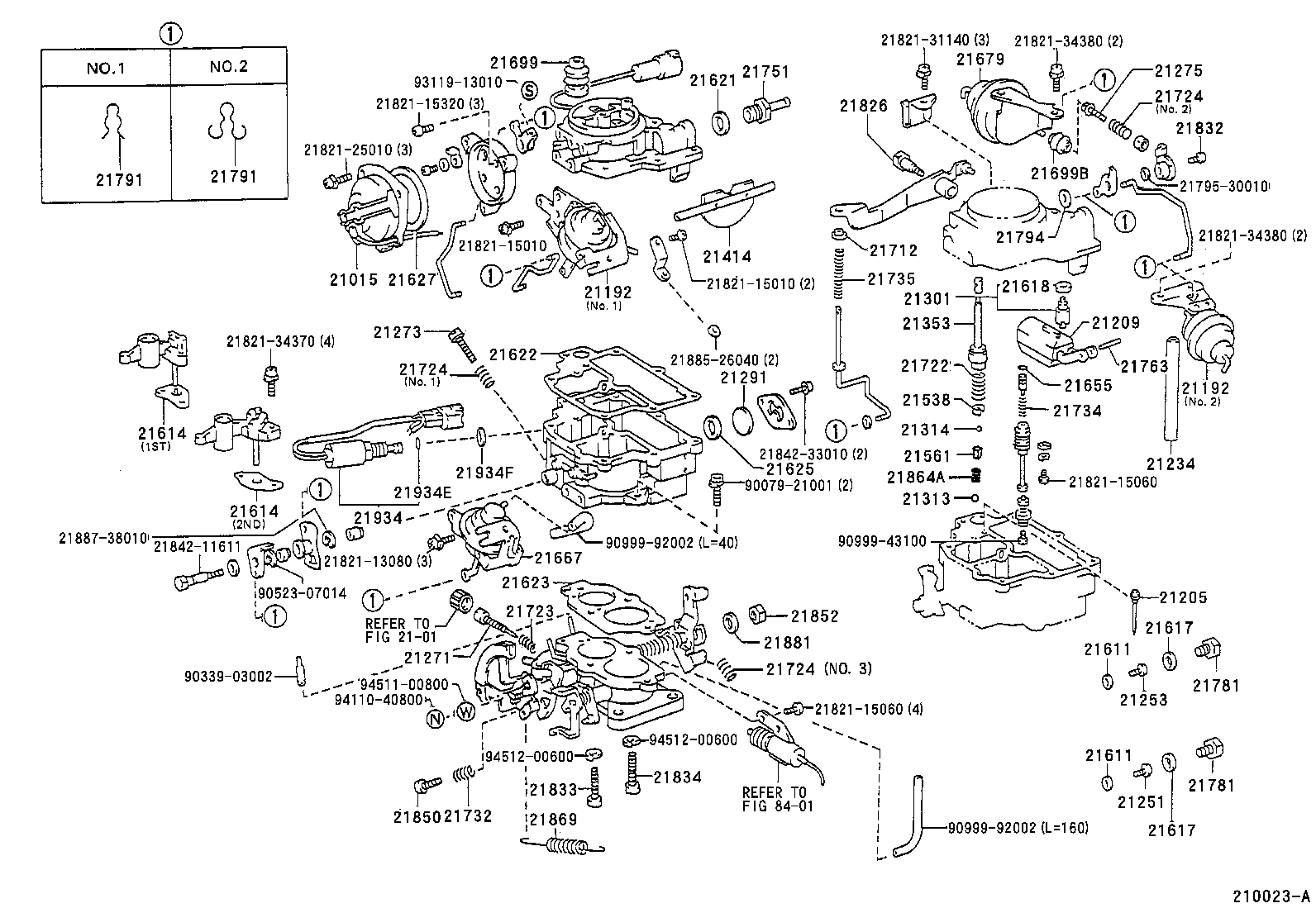

| Linked diagrams | ||||
| 2101 | ||||
| 8401 | ||||
