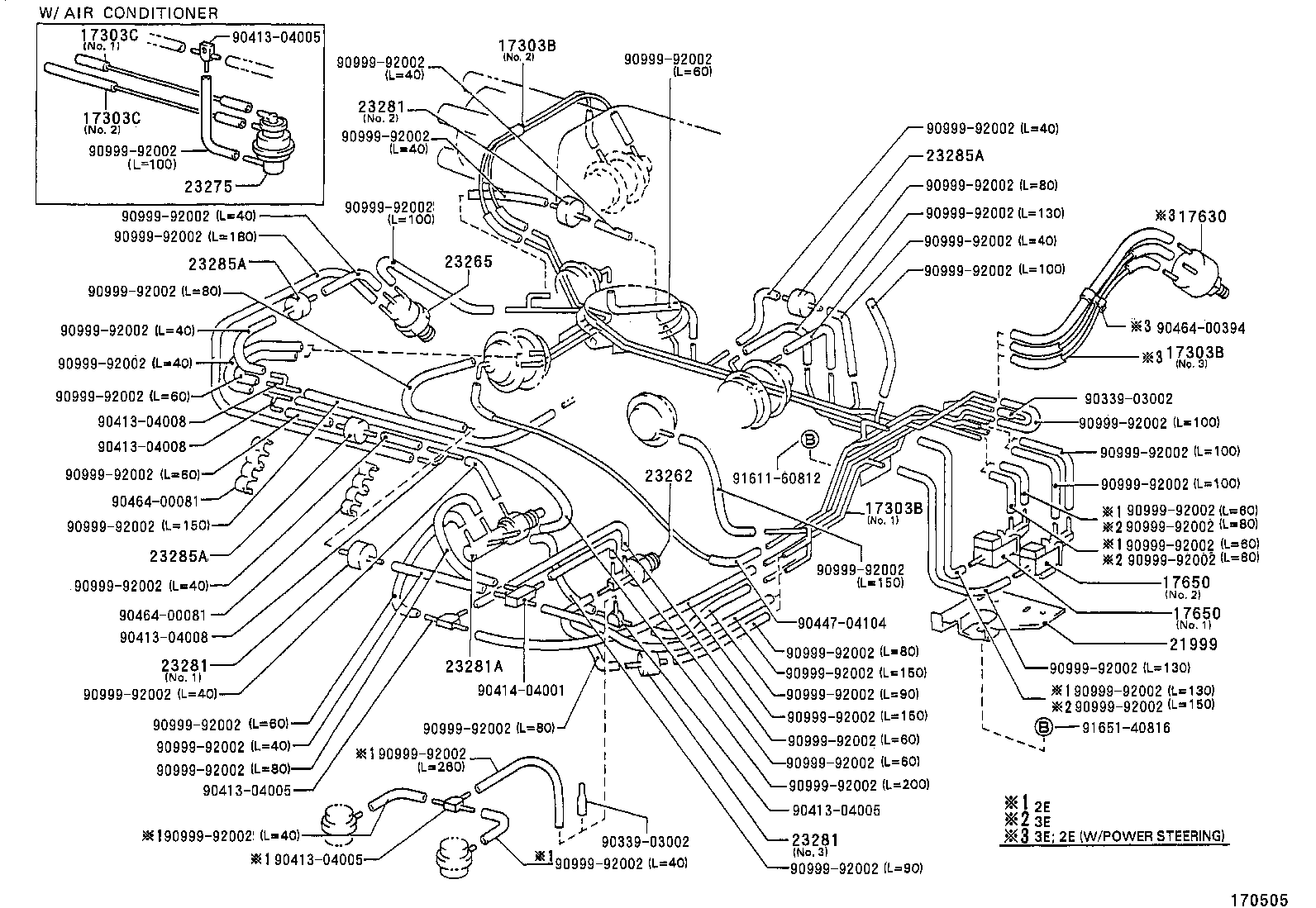

Toyota Corolla EE107 VACUUM PIPING

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11350	2E,3E..EE106,107,108 NO.2	09/1991 - 01/1994	1
17303-11310	3E..EE107,108 NO.3	09/1991 - 01/1994	1
17303-11510	2E,3E..EE106,107,108 NO.1	09/1991 - 01/1994	1
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11350	2E,3E..EE106,107,108 NO.2	09/1991 - 01/1994	1
17303-11310	3E..EE107,108 NO.3	09/1991 - 01/1994	1
17303-11510	2E,3E..EE106,107,108 NO.1	09/1991 - 01/1994	1
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11350	2E,3E..EE106,107,108 NO.2	09/1991 - 01/1994	1
17303-11310	3E..EE107,108 NO.3	09/1991 - 01/1994	1
17303-11510	2E,3E..EE106,107,108 NO.1	09/1991 - 01/1994	1
17303C - PIPE SUB-ASSY, AIR, NO.2
17303-11770	2E,3E..EE106,107,108 NO.2	09/1991 - 01/1994	1
17303-11680	2E,3E..EE106,107,108 NO.1	09/1991 - 01/1994	1
17303C - PIPE SUB-ASSY, AIR, NO.2
17303-11770	2E,3E..EE106,107,108 NO.2	09/1991 - 01/1994	1
17303-11680	2E,3E..EE106,107,108 NO.1	09/1991 - 01/1994	1
17630 - VALVE ASSY, AIR CONTROL
17630-28020	2E,3E..EE106,107,108	09/1991 - 01/1994	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12109	2E,3E..EE106,107,108 NO.2	09/1991 - 01/1994	1
90910-12047	2E,3E..EE106,107,108 NO.1	09/1991 - 01/1994	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12109	2E,3E..EE106,107,108 NO.2	09/1991 - 01/1994	1
90910-12047	2E,3E..EE106,107,108 NO.1	09/1991 - 01/1994	1
21999 - BRACKET, VACUUM SWITCHING VALVE
21999-11120	2E,3E..EE106,107,108	09/1991 - 01/1994	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25820-11040	2E,3E..EE106,107,108	09/1991 - 01/1994	1
23265 - FILTER, GAS, NO.1
90917-11027	2E,3E..EE106,107,108	09/1991 - 01/1994	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03173	2E,3E..EE106,107,108..3FC	09/1991 - 01/1994	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01091	2E,3E..EE106,107,108..3FC NO.1	09/1991 - 01/1994	1
90925-01100	2E,3E..EE106,107,108..3FC NO.2	09/1991 - 01/1994	1
90925-01101	2E,3E..EE106,107,108..3FC NO.3	09/1991 - 01/1994	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01091	2E,3E..EE106,107,108..3FC NO.1	09/1991 - 01/1994	1
90925-01100	2E,3E..EE106,107,108..3FC NO.2	09/1991 - 01/1994	1
90925-01101	2E,3E..EE106,107,108..3FC NO.3	09/1991 - 01/1994	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01091	2E,3E..EE106,107,108..3FC NO.1	09/1991 - 01/1994	1
90925-01100	2E,3E..EE106,107,108..3FC NO.2	09/1991 - 01/1994	1
90925-01101	2E,3E..EE106,107,108..3FC NO.3	09/1991 - 01/1994	1
23281A - VALVE, VACUUM TRANSMITTING, NO.2
90925-02088	2E,3E..EE106,107,108	09/1991 - 01/1994	1
23285A - VALVE, CHECK, NO.1
90917-10049	2E,3E..EE106,107,108	09/1991 - 01/1994	3
23285A - VALVE, CHECK, NO.1
90917-10049	2E,3E..EE106,107,108	09/1991 - 01/1994	3
23285A - VALVE, CHECK, NO.1
90917-10049	2E,3E..EE106,107,108	09/1991 - 01/1994	3
Common parts
90339-03002
90413-04005
90413-04008
90414-04001
90447-04104
90464-00081
90464-00394
90999-92002
91611-60812
91651-40816

EE107V-AXHNS (1991)

(9109-9401)2E,3E..3FC
