EE106V-AXKBS (1991)
Toyota Corolla
ILLUST NO. 2 OF 2(9109-9401)EE106,107,108
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-13140 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77251-12590 |
EE106,107,108 |
1 | ||
| 77251-12530 |
CE100,101,102,106,107,108 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12100 |
EE106,107,108 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
EE106,107,108 *H,L=130 |
1 | ||
| 95333-06020 |
EE106,107,108 *H,L=130 |
1 | ||
| 95333-08020 |
CE100,104,106,108 *H,L=130,内径=7.6 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12530 |
EE106,107,108 |
1 | ||
| 77255-12470 |
CE100,101,102,106,107,108 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
CE100,101,102,104,106,107,108 *H,L=130 |
1 | ||
| 95333-04020 |
EE106,107,108 *H,L=130 |
1 | ||
| 95334-04013 |
EE106,107,108 長さ=130 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12310 |
EE106,107,108 |
1 | ||
| 77261-12240 |
CE100,101,102,106,107,108 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12170 |
EE106,107,108 |
1 | ||
| 95333-06020 |
AE100,101,104,CE100,101,102,104,106,107,108,EE101,102,103,104 *H,L=160 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE100,101,109,CE100,101,102,106,107,108,EE10# *H,L=160 |
1 | ||
| 95333-06020 |
AE100,101,CE100,106,108,EE10# *H,L=120 |
1 | ||
| 95333-06020 |
AE100,101,CE100,106,108,EE10# *H,L=150 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12080 |
AE10#,CE10#,EE10# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12100 |
AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-64160 |
CE100,106,108,109 |
1 | ||
| 23273-11010 |
EE106,107,108 長さ=400 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-12020 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77285-12030 |
EE106,107,108 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12030 |
EE106,107,108 |
1 | ||
| 77286-12020 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12030 |
EE106,107,108 |
1 | ||
| 77286-12020 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-12010 |
CE100,101,102,104,106,107,108 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
CE100,104,106,108 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-12361 |
EE106,107,108 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-12210 |
EE106,107,108 |
1 | ||
| 77758 - CAP, CHARCOAL CANISTER | ||||
| 77758-12050 |
EE106,107,108 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-12070 |
EE106,107,108 |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 77791-12111 |
EE106,107,108 |
1 | ||
| 77791-12110 |
EE106,107,108 |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06635 | ||||
| 90447-04137 | ||||
| 90464-00578 | ||||
| 90467-11073 | ||||
| 90467-13063 | ||||
| 90480-01607 | ||||
| 90959-01445 | ||||
| 90959-01446 | ||||
| 90959-01447 | ||||
| 90959-01449 | ||||
| 90959-01452 | ||||
| 91645-80616 | ||||
| 91651-40612 | ||||
| 96132-30800 | ||||
| 96132-41000 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 8401 | ||||

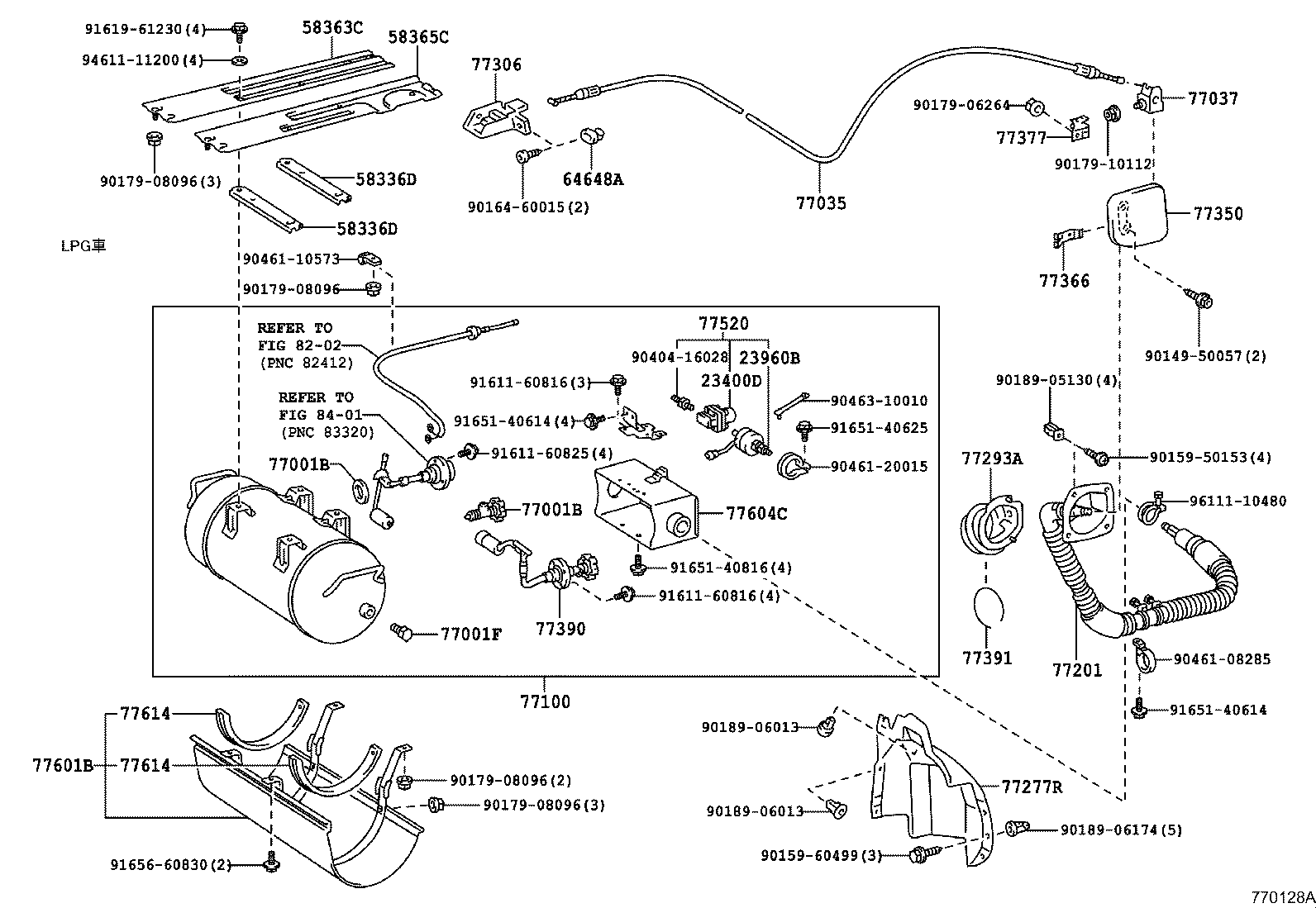

ILLUST NO. 1 OF 2(9109- )EE106
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23400D - FILTER ASSY, LPG | ||||
| 23400-40024 |
2E..EE106..4F ｱﾘ(LPG) |
1 | ||
| 23960B - VALVE ASSY, SOLENOID LPG | ||||
| 23960-11010 |
2E..EE106..4F ｱﾘ(LPG) |
1 | ||
| 58336D - REINFORCEMENT, REAR FLOOR PAN, NO.1 | ||||
| 58336-13050 |
EE106..4F ｱﾘ(LPG) |
2 | ||
| 58336D - REINFORCEMENT, REAR FLOOR PAN, NO.1 | ||||
| 58336-13050 |
EE106..4F ｱﾘ(LPG) |
2 | ||
| 58363C - REINFORCEMENT, FUEL TANK MOUNTING, RH | ||||
| 58363-13020 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 58365C - REINFORCEMENT, FUEL TANK MOUNTING, LH | ||||
| 58365-13020 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77001B - VALVE (FOR LPG TANK) | ||||
| 90977-01024 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77001B - VALVE (FOR LPG TANK) | ||||
| 90977-01024 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77001F - PLUG, LPG TANK | ||||
| 90345-26001 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12931 |
CE100,106,108,EE106,107,108 |
1 | ||
| 77100-13440 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-13190 |
EE106..4F..CTD ｱﾘ(LPG) |
1 | ||
| 77201-13160 |
CE102,106,107,108,EE102,103,104,106,107,108 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-13040 |
CE106,108,109,EE106,107,108 |
1 | ||
| 77277-13041 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12050 |
CE106,107,EE102,106..CTD,DXJ |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-13050 |
CE106,107,EE102,106..CTD,DXJ |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12040 |
AE10#,CE10#,EE10# |
1 | ||
| 77390 - VALVE ASSY, FUEL TANK INLET | ||||
| 77390-13010 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE10#,CE10#,EE10# |
1 | ||
| 77520 - VALVE ASSY, SOLENOID LPG EMERGENCY | ||||
| 77520-13010 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-13050 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77601-13040 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77604C - COVER SUB-ASSY, FUEL TANK VALVE | ||||
| 77604-13011 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77651-13030 |
EE106..4F ｱﾘ(LPG) |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77651-13030 |
EE106..4F ｱﾘ(LPG) |
2 | ||
| Common parts | ||||
| 90149-50057 | ||||
| 90159-50153 | ||||
| 90159-60499 | ||||
| 90164-60015 | ||||
| 90179-06264 | ||||
| 90179-08096 | ||||
| 90179-10112 | ||||
| 90189-05130 | ||||
| 90189-06013 | ||||
| 90189-06174 | ||||
| 90404-16028 | ||||
| 90461-08285 | ||||
| 90461-10573 | ||||
| 90461-20015 | ||||
| 90463-10010 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 91619-61230 | ||||
| 91651-40614 | ||||
| 91651-40625 | ||||
| 91651-40816 | ||||
| 91656-60830 | ||||
| 94611-11200 | ||||
| 96111-10480 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

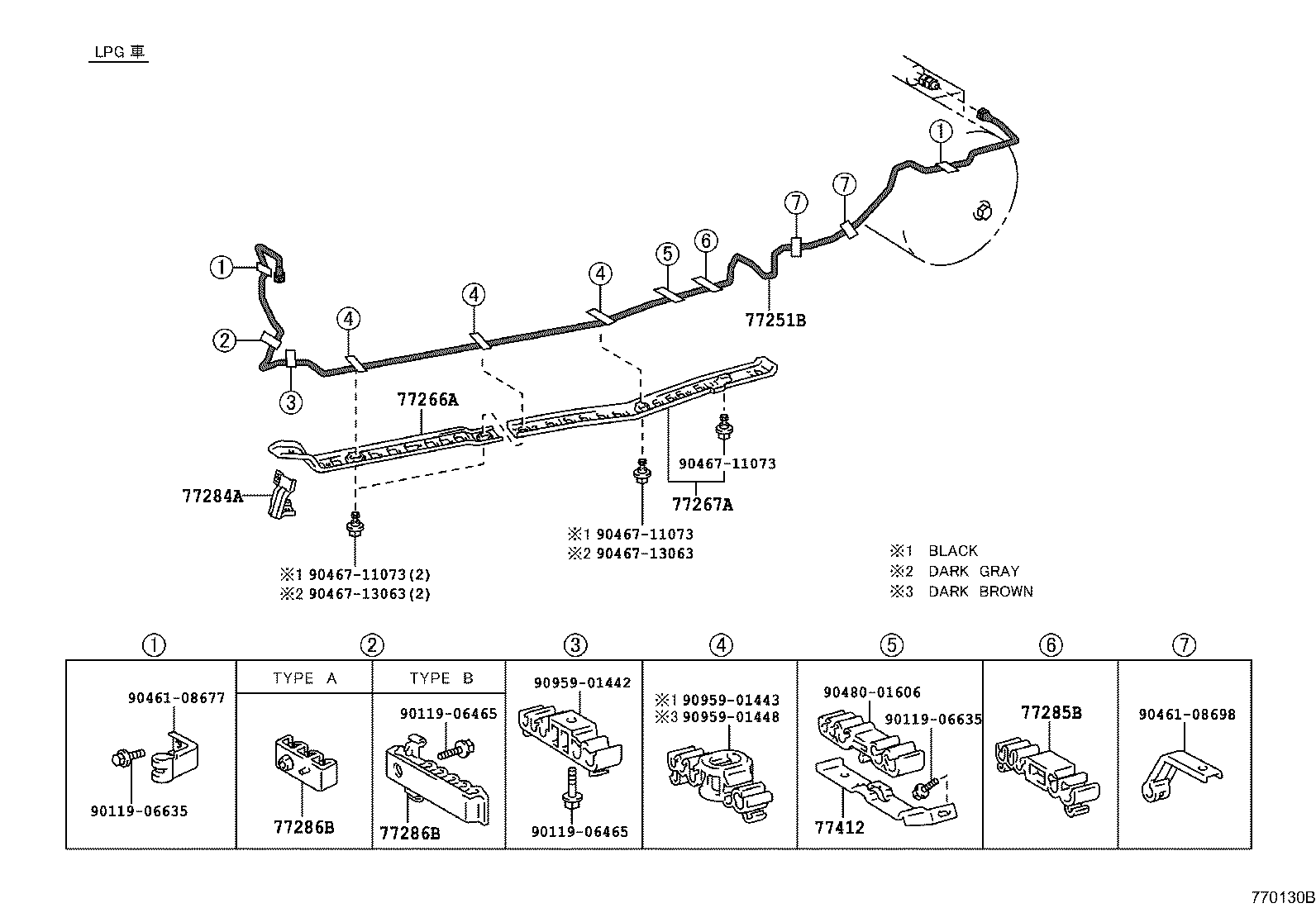

ILLUST NO. 2 OF 2(9106-9505)CE100,106,108 ; (9505- )CE102,106,107,108
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-13140 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77251-12590 |
EE106,107,108 |
1 | ||
| 77251-12530 |
CE100,101,102,106,107,108 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-13140 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77251-12590 |
EE106,107,108 |
1 | ||
| 77251-12530 |
CE100,101,102,106,107,108 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12100 |
EE106,107,108 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
EE106,107,108 *H,L=130 |
1 | ||
| 95333-06020 |
EE106,107,108 *H,L=130 |
1 | ||
| 95333-08020 |
CE100,104,106,108 *H,L=130,内径=7.6 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12530 |
EE106,107,108 |
1 | ||
| 77255-12470 |
CE100,101,102,106,107,108 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12530 |
EE106,107,108 |
1 | ||
| 77255-12470 |
CE100,101,102,106,107,108 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
CE100,101,102,104,106,107,108 *H,L=130 |
1 | ||
| 95333-04020 |
EE106,107,108 *H,L=130 |
1 | ||
| 95334-04013 |
EE106,107,108 長さ=130 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12310 |
EE106,107,108 |
1 | ||
| 77261-12240 |
CE100,101,102,106,107,108 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12310 |
EE106,107,108 |
1 | ||
| 77261-12240 |
CE100,101,102,106,107,108 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12170 |
EE106,107,108 |
1 | ||
| 95333-06020 |
AE100,101,104,CE100,101,102,104,106,107,108,EE101,102,103,104 *H,L=160 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE100,101,109,CE100,101,102,106,107,108,EE10# *H,L=160 |
1 | ||
| 95333-06020 |
AE100,101,CE100,106,108,EE10# *H,L=120 |
1 | ||
| 95333-06020 |
AE100,101,CE100,106,108,EE10# *H,L=150 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12080 |
AE10#,CE10#,EE10# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12100 |
AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-64160 |
CE100,106,108,109 |
1 | ||
| 23273-11010 |
EE106,107,108 長さ=400 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12030 |
EE106,107,108 |
1 | ||
| 77286-12020 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12030 |
EE106,107,108 |
1 | ||
| 77286-12020 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-12010 |
CE100,101,102,104,106,107,108 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
CE100,104,106,108 |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06635 | ||||
| 90467-11073 | ||||
| 90467-12039 | ||||
| 90467-13063 | ||||
| 90480-01606 | ||||
| 90959-01442 | ||||
| 90959-01443 | ||||
| 90959-01444 | ||||
| 90959-01448 | ||||
| 90959-01450 | ||||
| 90959-01451 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
| 96135-41100 | ||||
ILLUST NO. 2 OF 2(9109-9401)EE106
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-13140 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77251-12590 |
EE106,107,108 |
1 | ||
| 77251-12530 |
CE100,101,102,106,107,108 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12080 |
AE10#,CE10#,EE10# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12100 |
AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-12020 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77285-12030 |
EE106,107,108 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12030 |
EE106,107,108 |
1 | ||
| 77286-12020 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12030 |
EE106,107,108 |
1 | ||
| 77286-12020 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-12020 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06635 | ||||
| 90461-08677 | ||||
| 90461-08698 | ||||
| 90467-11073 | ||||
| 90467-13063 | ||||
| 90480-01606 | ||||
| 90959-01442 | ||||
| 90959-01443 | ||||
| 90959-01448 | ||||
ILLUST NO. 1 OF 2(9109-9401)CE106,108,EE106,107,108 ; (9401- )CE102,106,107,108,EE102,103,104
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12090 |
AE100,101,CE100,101,102,106,107,108,EE10# |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12070 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 77012-12080 |
AE100,101,CE100,106,108,EE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-12450 |
EE106,107,108 |
1 | ||
| 77017-12470 |
CE100,106,108..CTD,DX,GL,L,LX,SEL,XE |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-12450 |
EE106,107,108 |
1 | ||
| 77017-12470 |
CE100,106,108..CTD,DX,GL,L,LX,SEL,XE |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-10010 |
EE106,107,108 |
1 | ||
| 77023-32040 |
CE100,101,102,105,106,107,108,109 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-10010 |
EE106,107,108 |
1 | ||
| 77023-32040 |
CE100,101,102,105,106,107,108,109 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12931 |
CE100,106,108,EE106,107,108 |
1 | ||
| 77100-13440 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
CE100,106,108,109 |
1 | ||
| 90341-20004 |
AE100,101,EE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90341-20004 |
EE106,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
CE100,106,108,109 |
1 | ||
| 90430-20007 |
EE106,107,108 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90430-42255 |
EE106..4F ｱﾘ(LPG) |
2 | ||
| 90430-20007 |
AE100,101,EE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-12030 |
CE100,101,102,106,107,108,EE106,107,108 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-12030 |
CE100,101,102,106,107,108,EE106,107,108 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-12030 |
CE100,101,102,106,107,108,EE106,107,108 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AE10#,CE10#,EE10# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
AE100,101,109,CE100,101,102,105,106,107,108,109,EE10# |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
AE100,101,109,CE100,101,102,105,106,107,108,109,EE10# |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-13190 |
EE106..4F..CTD ｱﾘ(LPG) |
1 | ||
| 77201-13160 |
CE102,106,107,108,EE102,103,104,106,107,108 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-13030 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-13010 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
CE100,101,102,106,107,108 *H,L=120,内径=7.6 |
1 | ||
| 95333-06020 |
EE106,107,108 *H,L=110 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
CE100,101,102,106,107,108 *H,L=120,内径=7.6 |
1 | ||
| 95333-06020 |
EE106,107,108 *H,L=110 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
CE100,101,102,106,107,108 *H,L=120,内径=7.6 |
1 | ||
| 95333-06020 |
EE106,107,108 *H,L=110 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-13040 |
CE106,108,109,EE106,107,108 |
1 | ||
| 77277-13041 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-04011 |
EE106,107,108 *H,L=110 |
1 | ||
| 95333-06020 |
CE100,101,102,106,107,108 *H,L=110 |
1 | ||
| 95333-04020 |
EE106,107,108 *H,L=110 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-04011 |
EE106,107,108 *H,L=110 |
1 | ||
| 95333-06020 |
CE100,101,102,106,107,108 *H,L=110 |
1 | ||
| 95333-04020 |
EE106,107,108 *H,L=110 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-12040 |
CE106,107,EE102,106..CTD,DXJ |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12050 |
CE106,107,EE102,106..CTD,DXJ |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AE10#,EE10# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE10#,CE10#,EE10# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-13050 |
CE106,107,EE102,106..CTD,DXJ |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12040 |
AE10#,CE10#,EE10# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
AE100,101,109,CE100,101,102,105,106,107,108,109,EE10# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE10#,CE10#,EE10# |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
AE100,101,109,CE100,101,102,105,106,107,108,109,EE10# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-13050 |
EE106..4F ｱﾘ(LPG) |
1 | ||
| 77601-13040 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-13020 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CE100..4DS;AE100,101,CE106,108,EE10#..CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE 60X60 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CE100..4DS;AE100,101,CE106,108,EE10#..CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE 60X60 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CE100..4DS;AE100,101,CE106,108,EE10#..CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE 60X60 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CE100..4DS;AE100,101,CE106,108,EE10#..CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE 60X60 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE100,101,104,CE100,104,106,108,EE10# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE100,101,104,CE100,104,106,108,EE10# |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-12030 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77682-12030 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32070 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 77681-12030 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77682-12020 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06398 | ||||
| 90119-10252 | ||||
| 90119-10700 | ||||
| 90149-50057 | ||||
| 90159-50153 | ||||
| 90159-50219 | ||||
| 90159-60500 | ||||
| 90164-60015 | ||||
| 90179-06264 | ||||
| 90179-10186 | ||||
| 90189-05130 | ||||
| 90189-06013 | ||||
| 90189-06174 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90460-55003 | ||||
| 90467-07130 | ||||
| 90467-10049 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 91651-40616 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
