EE106V-AXKBS (1991)

Toyota Corolla

Production Sep 1991 - Jan 1994
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

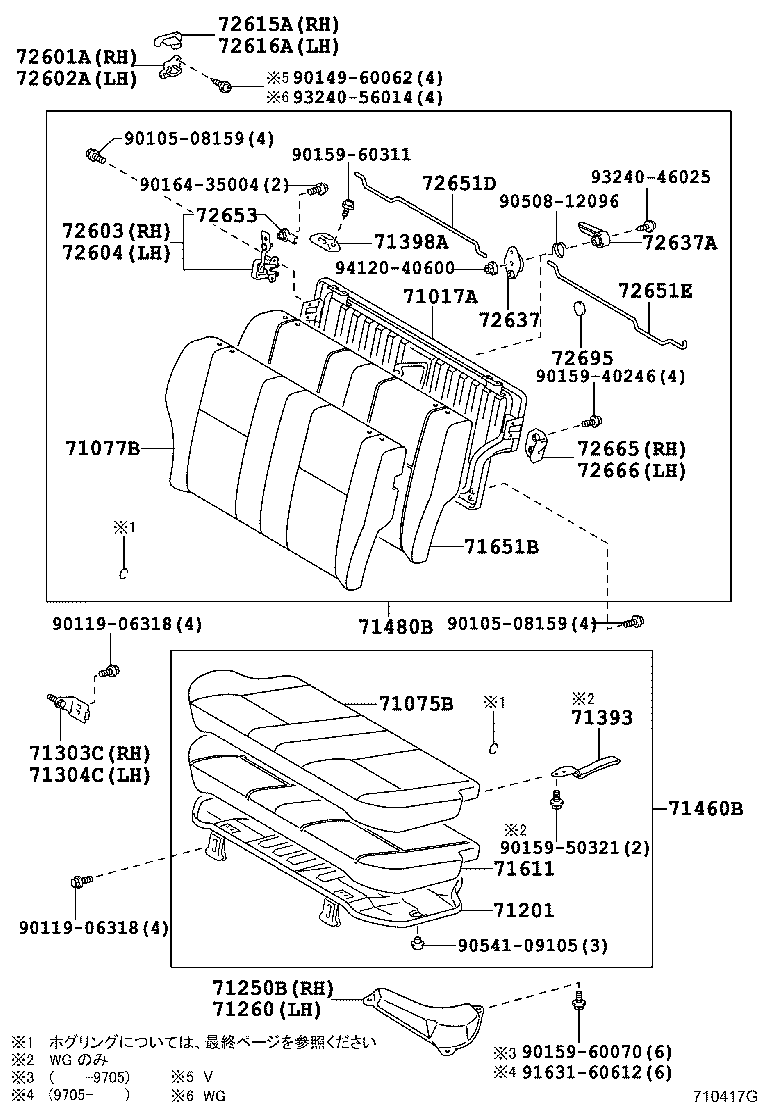

Click highlighted areas on diagram

diagram 71017A 71075B 71077B 71201 71250B 71260 71303C 71304C 71393 71398A 71460B 71480B 71611 71651B 72601A 72602A 72603 72604 72615A 72616A 72637 72637A 72651D 72651E 72653 72665 72666 72695 9010508159 9010508159 9011906318 9011906318 9014960062 9015940246 9015950321 9015960070 9015960311 9016435004 9050812096 9054109105 9163160612 9324046025 9324056014 9412040600
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-13140

CE106,EE106..CTD..05S

 1
71017-13120

EE106..4F..CTD..05S

LPG ﾊﾞﾝ

 1
71017-13130

CE108,EE108;CE106,EE106..CTD..05S

 1
71017-13120

EE106..4F..CTD..05S

LPG ﾊﾞﾝ & ｶｽﾀﾑDX

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-13430B0

CE106,EE106..CTD..05S

SHADOW GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-13490B0

CE106,EE106..CTD..05S

SHADOW GRAY,TRIM1#

 1
71077-13570B0

CE106,EE106..CTD..05S

ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ),SHADOW GRAY,TRIM1#

 1
71201 - PANEL SUB-ASSY, REAR SEAT CUSHION
71201-13180

CE106,107,EE102,103,106,107..05S

 1
71250B - BRACKET ASSY, SEAT, OUTER RH
58215-13030

CE106,107,EE102,106..05S;AE109,CE102,105,108,109,EE103,104,107,108

 1
71260 - BRACKET ASSY, SEAT, OUTER LH
58216-13030

CE106,107,EE102,106..05S;AE109,CE102,105,108,109,EE103,104,107,108

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-13030

CE106,107,EE102,106..05S;AE109,CE102,105,108,109,EE103,104,107,108

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-13030

CE106,107,EE102,106..05S;AE109,CE102,105,108,109,EE103,104,107,108

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-13700B0

CE106,EE106..CTD..05S

***,SHADOW GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-13830B1

CE106,EE106..CTD..05S

***,ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ),SHADOW GRAY,TRIM1#

 1
71480-13780B0

CE106,EE106..CTD..05S

***,SHADOW GRAY,TRIM1#

 1
71480-13870B1

EE106..4F..CTD..05S

***,LPG ﾊﾞﾝ,SHADOW GRAY,TRIM1#

 1
71480-13890B1

EE106..4F..CTD..05S

***,ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ) & LPG ﾊﾞﾝ,SHADOW GRAY,TRIM1#

 1
71480-1F120B1

CE106,EE106..CTD..05S

***,ｶｽﾀﾑDX,SHADOW GRAY,TRIM1#

 1
71480-1F130B1

CE106,EE106..CTD..05S

***,ｶｽﾀﾑDX & ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ),SHADOW GRAY,TRIM1#

 1
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-13060

CE106,107,EE102,106..05S;AE109,CE102,105,108,109,EE103,104,107,108

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72602-13030

CE106,107,EE102,106..05S;AE109,CE102,105,108,109,EE103,104,107,108

 1
72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH
72615-13030B0

CE106,EE106..05S;CE108,109,EE107,108

SHADOW GRAY,TRIM1#

 1
72615-13030C0

CE106,EE106..05S;CE108,109,EE107,108

BLACK,TRIM1#

 1
72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH
72616-13020C0

CE106,EE106..05S;CE108,109,EE107,108

BLACK,TRIM1#

 1
72616-13020B0

CE106,EE106..05S;CE108,109,EE107,108

SHADOW GRAY,TRIM1#

 1
72637A - HANDLE, REAR SEAT LOCK
72637-13040B0

CE106,EE106..05S;CE108,109,EE107,108

SHADOW GRAY,TRIM1#

 1
72651D - ROD, REAR SEAT BACK LOCK, RH
72651-13040

CE106,107,EE102,106..05S;AE109,CE102,105,108,109,EE103,104,107,108

 1
72651E - ROD, REAR SEAT BACK LOCK, LH
72652-13040

CE106,107,EE102,106..05S;AE109,CE102,105,108,109,EE103,104,107,108

 1
72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD
72695-13020

CE106,EE106..05S;CE108,109,EE107,108

 2
Common parts
90105-08159
90119-06318
90149-60062
90159-40246
90159-50321
90159-60070
90159-60311
90164-35004
90508-12096
90541-09105
91631-60612
93240-46025
93240-56014
94120-40600
