EE106V-AXHDS (1991)

Toyota Corolla

Production Sep 1991 - Jan 1994
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

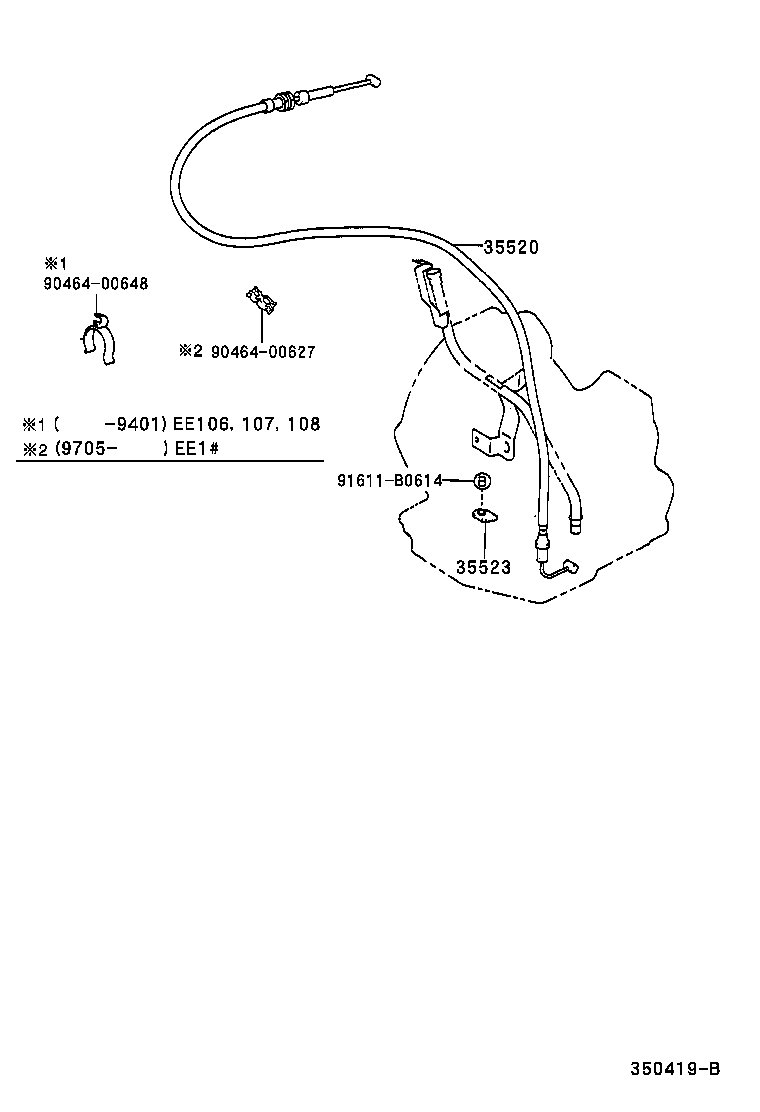

ILLUST NO. 2 OF 2(9109- )EE102,103,104,106,107,108..3FC

Click highlighted areas on diagram

A132L

diagram 35520 35523 9046400627 9046400648 91611B0614
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-12340

EE106,107,108..3FC

 1
35523 - CLAMP, THROTTLE CABLE
35523-32010

EE10#..3FC

 1
35523-12080

AE10#,CE100,106,108..ATM

 1
Common parts
90464-00627
90464-00648
91611-B0614
