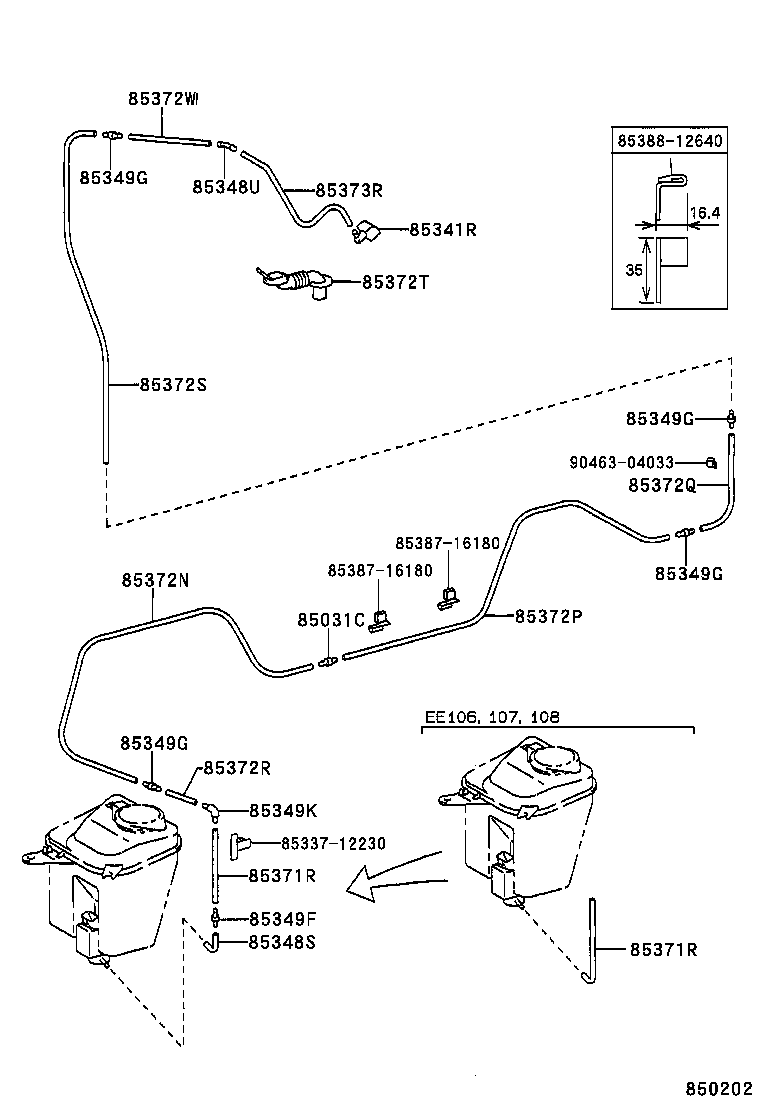

Toyota Corolla EE106 REAR WASHER

Part #	Description	Period	Qty
85031C - VALVE SUB-ASSY, WASHER
85031-30010	AE100,CE106,108,109,EE106,107,108..V,WG	09/1991 - 04/1992	1
85031-30010	AE100,CE106,108,109,EE106,107,108..(V,WG)..(CTD,DX,G,GL,L)	04/1992 - 05/1992	1
85341R - NOZZLE ASSY, WASHER
85395-13010	AE100,CE106,108,109,EE106,107,108..V,WG	09/1991 - 04/1992	1
85395-13010	CE106,108,109,EE106,107,108	04/1992 - 05/1992	1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85336-12230	AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104..3DS,V,WG	09/1991 - 12/2999	1
85348U - JOINT, REAR WASHER HOSE, NO.3
85355-20080	CE106,108,109,EE106,107,108	04/1992 - 05/1992	1
85355-20080	AE100,CE106,108,109,EE106,107,108..V,WG	09/1991 - 04/1992	1
85355-20080	AE100,101,CE106,108,109,EE106,107,108..3DS,V,WG	05/1992 - 12/1993	1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-10260	AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104..3DS,V,WG	09/1991 - 12/2999	1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122	CE109,EE106,107;AE100,CE106,108,EE108..CTD,G,GL,L,LT	09/1991 - 04/1992	1
85349-89122	CE106,108,EE108..CTD,L;CE109,EE106,107..CTD,DX	04/1992 - 05/1992	1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122	CE109,EE106,107;AE100,CE106,108,EE108..CTD,G,GL,L,LT	09/1991 - 04/1992	1
85349-89122	CE106,108,EE108..CTD,L;CE109,EE106,107..CTD,DX	04/1992 - 05/1992	1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122	CE109,EE106,107;AE100,CE106,108,EE108..CTD,G,GL,L,LT	09/1991 - 04/1992	1
85349-89122	CE106,108,EE108..CTD,L;CE109,EE106,107..CTD,DX	04/1992 - 05/1992	1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122	CE109,EE106,107;AE100,CE106,108,EE108..CTD,G,GL,L,LT	09/1991 - 04/1992	1
85349-89122	CE106,108,EE108..CTD,L;CE109,EE106,107..CTD,DX	04/1992 - 05/1992	1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85317-12230	AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..3DS,V,WG	09/1991 - 12/2999	1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001	EE106,107,108 *H,L=150	09/1991 - 01/1994	2
90446-07001	AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104..3DS,V,WG *H,L=130	09/1991 - 12/2999	1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001	EE106,107,108 *H,L=150	09/1991 - 01/1994	2
90446-07001	AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104..3DS,V,WG *H,L=130	09/1991 - 12/2999	1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001	AE100,CE106,108,109,EE106,107,108..V,WG *H,L=1540	09/1991 - 04/1992	1
90446-07001	AE100,CE106,108,109,EE106,107,108..(V,WG)..(CTD,DX,G,GL,L) *H,L=1440	04/1992 - 05/1992	1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-59060	CE106,108,109,EE106,107,108 長さ=2800	09/1991 - 04/1992	1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33299	AE100,CE106,108,109,EE106,107,108..V,WG *H,L=50	09/1991 - 04/1992	1
90099-33299	AE100,CE106,108,109,EE106,107,108..(V,WG)..(CTD,DX,G,GL,L) *H,L=50	04/1992 - 05/1992	1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299	AE100,CE106,108,109,EE106,107,108..V,WG *H,L=50	09/1991 - 05/1992	1
90099-33080	AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..3DS,V,WG *H,L=70	05/1992 - 12/2999	1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-07001	CE106,108,109,EE106,107,108 長さ=880	04/1992 - 05/1992	1
90446-07001	AE100,CE106,108,109,EE106,107,108..V,WG 長さ=880	09/1991 - 04/1992	1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33080	AE100,CE106,108,109,EE106,107,108..V,WG L=1450	09/1991 - 04/1992	1
90099-33080	CE106,108,109,EE106,107,108 *H,L=140	04/1992 - 07/1992	1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299	AE100,CE106,108,109,EE106,107,108..V,WG *H,L=410	09/1991 - 04/1992	1
90099-33299	CE106,108,109,EE106,107,108 *H,L=410	04/1992 - 05/1992	1
Common parts
85337-12230
85387-16180
85388-12640
90463-04033

EE106V-AXHBS (1991)

(9109- )V,WG
