EE106V-AUKBS (1991)
Toyota Corolla
(9106-9704)2E,3E,4EFE,5EFE
12V 1.0KW,ｶﾝﾚｲﾁ,ﾕｷｸﾞﾆｼﾖｳ OR LPGﾊﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28011-10030 |
2E,3E..EE106,107,108 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-10030 |
2E,3E..EE106,107,108 12V 0.8KW |
1 | ||
| 28100-10040 |
2E..EE106..4F 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-10040 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28110-10030 |
2E,3E..EE106,107,108 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15010 |
2E,3E..EE106,107,108 |
1 | ||
| 28120-26071 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-10040 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28130-10050 |
2E,3E..EE106,107,108 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28140-15010 |
2E,3E..EE106,107,108 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-37011 |
2E,3E..EE106,107,108 |
1 | ||
| 28150-34080 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ, ﾕｷｸﾞﾆ ｼﾖｳ OR LPG ﾊﾞﾝ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15010 |
2E,3E..EE106,107,108 |
1 | ||
| 28160-26071 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
2E..EE106..4F NO.2 |
1 | ||
| 28253-45020 |
2E..EE106..4F NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
2E..EE106..4F NO.2 |
1 | ||
| 28253-45020 |
2E..EE106..4F NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2E..EE106..4F ｶﾝﾚｲﾁ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPG ﾊﾞﾝ |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ, ﾕｷｸﾞﾆ ｼﾖｳ OR LPG ﾊﾞﾝ |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ, ﾕｷｸﾞﾆ ｼﾖｳ OR LPG ﾊﾞﾝ |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
2E..EE106..4F |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE10#,EE10# |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2E..EE106..4F ｶﾝﾚｲﾁ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPG ﾊﾞﾝ |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ, ﾕｷｸﾞﾆ ｼﾖｳ OR LPG ﾊﾞﾝ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
2E..EE106..4F ｶﾝﾚｲﾁ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPG ﾊﾞﾝ |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91612-61060 | ||||

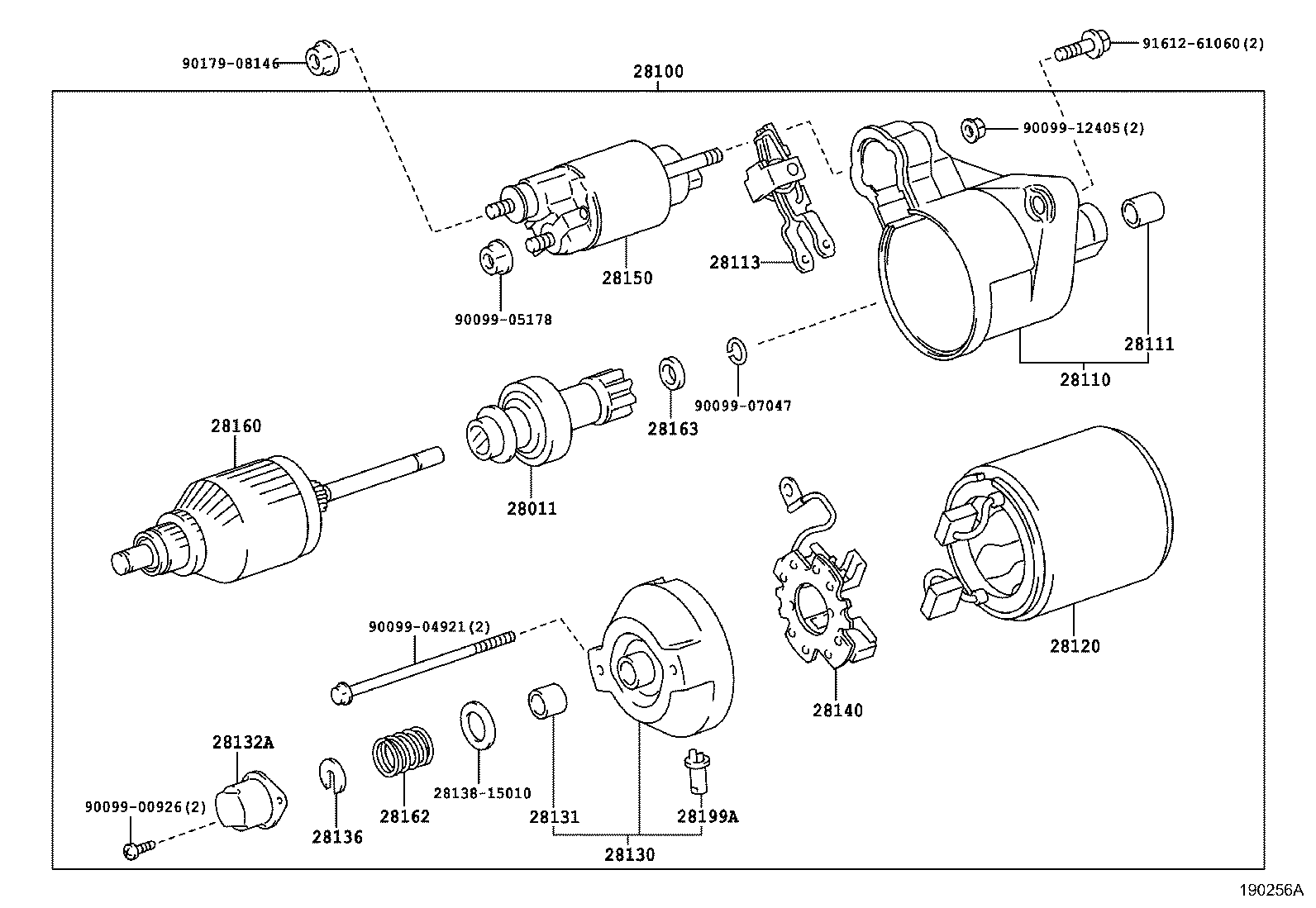

(9109- )2E,3E
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28011-10030 |
2E,3E..EE106,107,108 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-10030 |
2E,3E..EE106,107,108 12V 0.8KW |
1 | ||
| 28100-10040 |
2E..EE106..4F 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-10040 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28110-10030 |
2E,3E..EE106,107,108 |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 90099-10200 |
2E,3E..EE106,107,108 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
2E,3E..EE106,107,108 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15010 |
2E,3E..EE106,107,108 |
1 | ||
| 28120-26071 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-10040 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28130-10050 |
2E,3E..EE106,107,108 |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10134 |
2E,3E..EE106,107,108 |
1 | ||
| 28132A - COVER, STARTER COMMUTATOR END FRAME | ||||
| 28132-15010 |
2E,3E..EE106,107,108 |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-15010 |
2E,3E..EE106,107,108 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28140-15010 |
2E,3E..EE106,107,108 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-37011 |
2E,3E..EE106,107,108 |
1 | ||
| 28150-34080 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15010 |
2E,3E..EE106,107,108 |
1 | ||
| 28160-26071 |
2E..EE106..4F ｶﾝﾚｲﾁ ｼﾖｳ,ﾕｷｸﾞﾆ ｼﾖｳ OR LPGﾊﾞﾝ |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
2E,3E..EE106,107,108 |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
2E,3E..EE106,107,108 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-64150 |
2E,3E..EE106,107,108 |
1 | ||
| Common parts | ||||
| 28138-15010 | ||||
| 90099-00926 | ||||
| 90099-04921 | ||||
| 90099-05178 | ||||
| 90099-07047 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 91612-61060 | ||||
