EE104G-AWMDK (1994)
Toyota Corolla

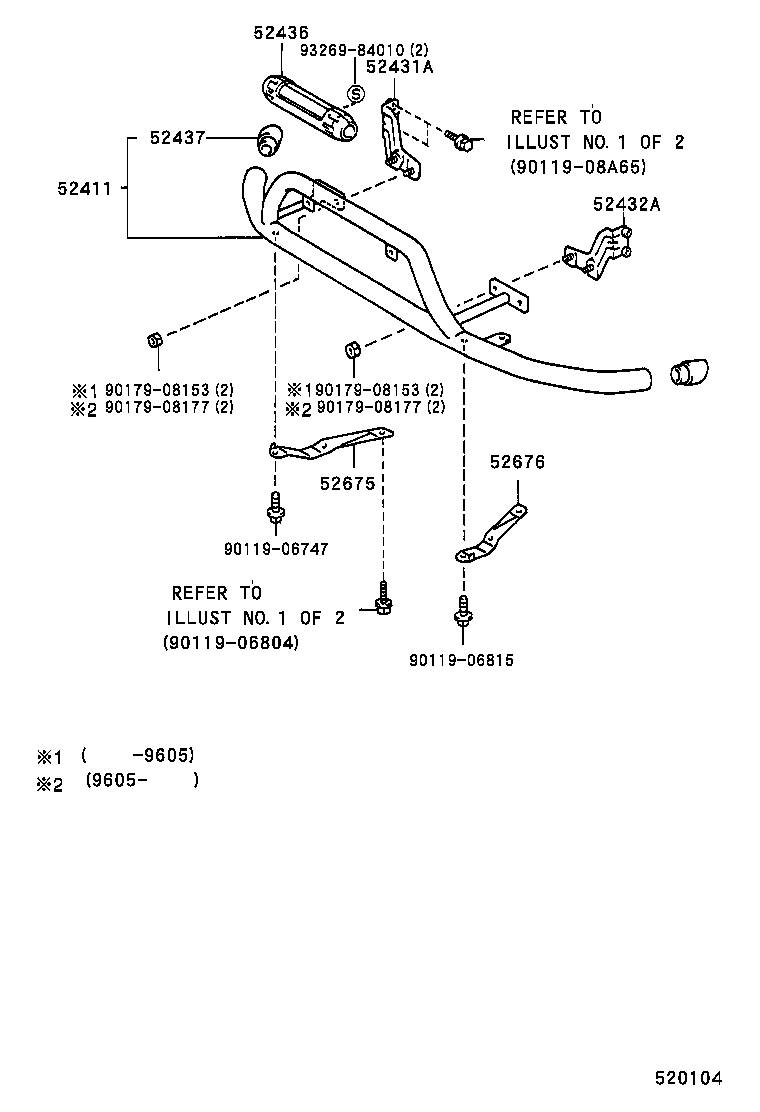

ILLUST NO. 2 OF 2(9505-9705)AE100,101,104,CE100
ｱﾘ(ﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52411 - GUARD, FRONT BUMPER | ||||
| 52401-13110A0 |
AE100,101,104,CE101 SUPER WHITE 2,040 |
1 | ||
| 52401-13050 |
AE100,101,104,CE100 |
1 | ||
| 52401-13110B2 |
AE100,104,CE101 SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52401-13110B0 |
AE100,104,CE101 GRAY,3L3 ,8L5 |
1 | ||
| 52401-13110B1 |
AE100,104,CE101 GRAY M.M,2CK |
1 | ||
| 52401-13080 |
AE100,101,104,CE100 |
1 | ||
| 52431A - BRACKET, FRONT BUMPER GUARD, RH | ||||
| 52431-13021 |
AE100,101,104,CE100 |
1 | ||
| 52432A - BRACKET, FRONT BUMPER GUARD, LH | ||||
| 52432-13021 |
AE100,101,104,CE100 |
1 | ||
| 52436 - PROTECTOR, FRONT BUMPER GUARD | ||||
| 52436-13040 |
AE100,104,CE100 |
1 | ||
| 52437 - COVER, FRONT BUMPER GUARD, RH | ||||
| 52437-13030 |
AE100,101,104,CE100 |
2 | ||
| 52675 - SUPPORT, FRONT BUMPER LOWER SIDE, RH | ||||
| 52675-13010 |
AE100,101,104,CE100 |
1 | ||
| 52676 - SUPPORT, FRONT BUMPER LOWER SIDE, LH | ||||
| 52676-13010 |
AE100,101,104,CE100 |
1 | ||
| Common parts | ||||
| 90119-06747 | ||||
| 90119-06815 | ||||
| 90179-08153 | ||||
| 90179-08177 | ||||
| 93269-84010 | ||||
ILLUST NO. 1 OF 2(9705- )AE100,101,104,CE100,101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-12010 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 52029-13010 |
AE10#,CE10#,EE10# |
1 | ||
| 52029-12010 |
AE100,101,104,CE108,EE104 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12340 |
AE10#,CE10#,EE10# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-12270 |
AE10#,CE10#,EE10# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-13150J1 |
AE100,104,CE101 BLUE M.M.,8L5 |
1 | ||
| 52119-1E010 |
AE100,CE100,106,108,109,EE10#..CTD,DX,GL,L |
1 | ||
| 52119-1E270B0 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,DARK BLUEISH GRAY M,183 |
1 | ||
| 52119-1E270C0 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER MICA M,24T |
1 | ||
| 52119-1E260 |
AE10#,CE100,106,108,109,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT |
1 | ||
| 52119-1E270B3 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER PEARL M,2AK |
1 | ||
| 52119-1E270B2 |
AE100,104,CE100 BLUISH GRAY METALLIC,182 |
1 | ||
| 52119-1E270B4 |
AE100,104,CE100 SILVER ME,199 ,2CA ,2CB ,2CC |
1 | ||
| 52119-1E270G1 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,MD GRAISHGREEN MC.GR,6N1 |
1 | ||
| 52119-13060A0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
1 | ||
| 52119-1E270B4 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER ME,2CC |
1 | ||
| 52119-13060G0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),MD GRAISHGREEN MC.GR,6N1 |
1 | ||
| 52119-1E270B5 |
AE100,104..G Gﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ *(K),LIGHT WARM GRAY ME.,2DV |
1 | ||
| 52119-13060B3 |
AE100,101,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 ,2CA ,2CB ,2CC |
1 | ||
| 52119-1E270B4 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER ME,2DD |
1 | ||
| 52119-13060B0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),BLUISH GRAY METALLIC,182 |
1 | ||
| 52119-1E270B3 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER PEARL M,1A7 |
1 | ||
| 52119-13150J0 |
AE100,104,CE100 DK.BLUE MC.,8K8 |
1 | ||
| 52119-13160B1 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 ,2DD |
1 | ||
| 52119-1E260 |
AE10#,CE106,108,109,EE10# |
1 | ||
| 52119-13160J0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),DK.BLUE MC.,8K8 |
1 | ||
| 52119-13170B0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),GRAY M.M.,2CK ,2DC |
1 | ||
| 52119-13150B1 |
AE100,104,CE100 SILVER ME,199 ,2DD |
1 | ||
| 52119-13180B1 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 ,2DD |
1 | ||
| 52119-13160B0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),GRAY M.M.,2CK ,2DC |
1 | ||
| 52119-13170J0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),DK.BLUE MC.,8K8 |
1 | ||
| 52119-13150B0 |
AE100,104,CE100 GRAY M.M.,2CK ,2DC |
1 | ||
| 52119-13180J0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),DK.BLUE MC.,8K8 |
1 | ||
| 52119-13170B1 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SILVER ME,199 ,2DD |
1 | ||
| 52119-13180A0 |
AE100,101,104,CE100,101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
1 | ||
| 52119-13180B0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),GRAY M.M.,2CK ,2DC |
1 | ||
| 52119-1E260 |
CE102,108,EE104 L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 52119-13170A0 |
AE100,101,104,CE100,101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SUPER WHITE 2,040 |
1 | ||
| 52119-13160A0 |
AE100,104,CE100,101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
1 | ||
| 52119-13150A0 |
AE100,104,CE100,101 SUPER WHITE 2,040 |
1 | ||
| 52119-13160B0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),GRAY M.M.,2CK |
1 | ||
| 52119-13170B0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),GRAY M.M.,2CK |
1 | ||
| 52119-13150B1 |
AE100,104,CE101 SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52119-13180B0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),GRAY M.M.,2CK |
1 | ||
| 52119-1E260 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 52119-13150B0 |
AE100,104,CE101 GRAY M.M.,2CK |
1 | ||
| 52119-13160D0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),MAGENTA MC.,3L3 |
1 | ||
| 52119-13150D0 |
AE100,104,CE101 MAGENTA MC.,3L3 |
1 | ||
| 52119-13170J1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),BLUE M.M.,8L5 |
1 | ||
| 52119-13180B1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52119-13160J1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),BLUE M.M.,8L5 |
1 | ||
| 52119-13170B1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52119-13160B1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52119-13170D0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),MAGENTA MC.,3L3 |
1 | ||
| 52119-13180J1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),BLUE M.M.,8L5 |
1 | ||
| 52119-1E270B2 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,BLUISH GRAY METALLIC,182 |
1 | ||
| 52119-13180D0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),MAGENTA MC.,3L3 |
1 | ||
| 52119-1E260 |
AE109,CE105,107,EE10# |
1 | ||
| 52119-1E270G4 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,DK.GREEN M.M.,6P2 |
1 | ||
| 52119-1E270A0 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 52119-1E270B4 |
EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER ME,199 ,2EY |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-12180 |
AE100,101,104,CE100,101 |
1 | ||
| 52131-13020 |
AE109,CE10#,EE10# 右側 |
1 | ||
| 52132-13010 |
AE109,CE10#,EE10# 左側 |
1 | ||
| 52143A - ARM, FRONT BUMPER, INNER RH | ||||
| 52143-12330 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 52143-12300 |
AE10#,CE10#,EE10# |
1 | ||
| 52143-13020 |
AE100,101,104,CE100,101 |
1 | ||
| 52144A - ARM, FRONT BUMPER, INNER LH | ||||
| 52143-12300 |
AE10#,CE10#,EE10# |
1 | ||
| 52143-12330 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 52143-13020 |
AE100,101,104,CE100,101 |
1 | ||
| 52147A - BRACKET, FRONT BUMPER STAY, RH | ||||
| 52147-16080 |
AE10#,CE10#,EE10# |
1 | ||
| 52147-12170 |
AE10#,CE10#,EE10# |
1 | ||
| 52147E - BRACKET, FRONT BUMPER MOUNTING, RH | ||||
| 52148-12130 |
AE10#,CE10#,EE10# |
1 | ||
| 52148A - BRACKET, FRONT BUMPER STAY, LH | ||||
| 52147-16080 |
AE10#,CE10#,EE10# |
1 | ||
| 52147-12170 |
AE10#,CE10#,EE10# |
1 | ||
| 52148E - BRACKET, FRONT BUMPER MOUNTING, LH | ||||
| 52148-12130 |
AE10#,CE10#,EE10# |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-13020C0 |
AE100,104,CE100 BLACK,040 ,199 ,2CK ,2DC ,2DD ,8K8 |
4 | ||
| 53141-13020C0 |
AE100,104,CE101 BLACK,040 ,199 ,2CK ,2EX ,2EY ,3L3 ,8L5 |
4 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90119-06355 | ||||
| 90119-08665 | ||||
| 90159-60431 | ||||
| 90159-60450 | ||||
| 90179-06127 | ||||
| 90179-06264 | ||||
| 90179-08241 | ||||
| 90189-06006 | ||||
| 91626-A0616 | ||||
ILLUST NO. 2 OF 2(9705- )AE100,101,104,CE100,101
ｱﾘ(ﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52411 - GUARD, FRONT BUMPER | ||||
| 52401-13110A0 |
AE100,101,104,CE101 SUPER WHITE 2,040 |
1 | ||
| 52401-13050 |
AE100,101,104,CE100 |
1 | ||
| 52401-13110B2 |
AE100,104,CE101 SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52401-13110B0 |
AE100,104,CE101 GRAY,3L3 ,8L5 |
1 | ||
| 52401-13110B1 |
AE100,104,CE101 GRAY M.M,2CK |
1 | ||
| 52401-13080 |
AE100,101,104,CE100 |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52401-13110A0 |
AE100,101,104,CE101 SUPER WHITE 2,040 |
1 | ||
| 52401-13050 |
AE100,101,104,CE100 |
1 | ||
| 52401-13110B2 |
AE100,104,CE101 SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52401-13110B0 |
AE100,104,CE101 GRAY,3L3 ,8L5 |
1 | ||
| 52401-13110B1 |
AE100,104,CE101 GRAY M.M,2CK |
1 | ||
| 52401-13080 |
AE100,101,104,CE100 |
1 | ||
| 52437B - COVER, FRONT BUMPER GUARD BASE | ||||
| 52437-13040 |
AE100,101,104,CE101 |
1 | ||
| 75972F - STRIPE, FRONT BUMPER | ||||
| 75972-13030 |
AE100,104,CE100,101 |
1 | ||
| Common parts | ||||
| 90109-06315 | ||||
| 90179-06319 | ||||
| 90183-07003 | ||||
ILLUST NO. 1 OF 2(9106-9505)4DS,V,WG ; (9505-9705)AE100,101,104,CE100 ; (9505- )AE109,CE102,105,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-12010 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 52029-13010 |
AE10#,CE10#,EE10# |
1 | ||
| 52029-12010 |
AE100,101,104,CE108,EE104 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12340 |
AE10#,CE10#,EE10# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-12270 |
AE10#,CE10#,EE10# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-1E010 |
AE100,CE100,106,108,109,EE10#..CTD,DX,GL,L |
1 | ||
| 52119-1E270B0 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,DARK BLUEISH GRAY M,183 |
1 | ||
| 52119-1E270C0 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER MICA M,24T |
1 | ||
| 52119-1E260 |
AE10#,CE100,106,108,109,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT |
1 | ||
| 52119-1E270B3 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER PEARL M,2AK |
1 | ||
| 52119-1E270B2 |
AE100,104,CE100 BLUISH GRAY METALLIC,182 |
1 | ||
| 52119-1E270B4 |
AE100,104,CE100 SILVER ME,199 ,2CA ,2CB ,2CC |
1 | ||
| 52119-1E270G1 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,MD GRAISHGREEN MC.GR,6N1 |
1 | ||
| 52119-13060A0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
1 | ||
| 52119-1E270B4 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER ME,2CC |
1 | ||
| 52119-13060G0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),MD GRAISHGREEN MC.GR,6N1 |
1 | ||
| 52119-1E270B5 |
AE100,104..G Gﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ *(K),LIGHT WARM GRAY ME.,2DV |
1 | ||
| 52119-13060B3 |
AE100,101,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 ,2CA ,2CB ,2CC |
1 | ||
| 52119-1E270B4 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER ME,2DD |
1 | ||
| 52119-13060B0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),BLUISH GRAY METALLIC,182 |
1 | ||
| 52119-1E270B3 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER PEARL M,1A7 |
1 | ||
| 52119-13150J0 |
AE100,104,CE100 DK.BLUE MC.,8K8 |
1 | ||
| 52119-13160B1 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 ,2DD |
1 | ||
| 52119-1E260 |
AE10#,CE106,108,109,EE10# |
1 | ||
| 52119-13160J0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),DK.BLUE MC.,8K8 |
1 | ||
| 52119-13170B0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),GRAY M.M.,2CK ,2DC |
1 | ||
| 52119-13150B1 |
AE100,104,CE100 SILVER ME,199 ,2DD |
1 | ||
| 52119-13180B1 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 ,2DD |
1 | ||
| 52119-13160B0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),GRAY M.M.,2CK ,2DC |
1 | ||
| 52119-13170J0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),DK.BLUE MC.,8K8 |
1 | ||
| 52119-13150B0 |
AE100,104,CE100 GRAY M.M.,2CK ,2DC |
1 | ||
| 52119-13180J0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),DK.BLUE MC.,8K8 |
1 | ||
| 52119-13170B1 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SILVER ME,199 ,2DD |
1 | ||
| 52119-13180A0 |
AE100,101,104,CE100,101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
1 | ||
| 52119-13180B0 |
AE100,104,CE100 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),GRAY M.M.,2CK ,2DC |
1 | ||
| 52119-1E260 |
CE102,108,EE104 L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 52119-13170A0 |
AE100,101,104,CE100,101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SUPER WHITE 2,040 |
1 | ||
| 52119-13150J1 |
AE100,104,CE101 BLUE M.M.,8L5 |
1 | ||
| 52119-13160A0 |
AE100,104,CE100,101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
1 | ||
| 52119-13150A0 |
AE100,104,CE100,101 SUPER WHITE 2,040 |
1 | ||
| 52119-13160B0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),GRAY M.M.,2CK |
1 | ||
| 52119-13170B0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),GRAY M.M.,2CK |
1 | ||
| 52119-13150B1 |
AE100,104,CE101 SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52119-13180B0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),GRAY M.M.,2CK |
1 | ||
| 52119-1E260 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 52119-13150B0 |
AE100,104,CE101 GRAY M.M.,2CK |
1 | ||
| 52119-13160D0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),MAGENTA MC.,3L3 |
1 | ||
| 52119-13150D0 |
AE100,104,CE101 MAGENTA MC.,3L3 |
1 | ||
| 52119-13170J1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),BLUE M.M.,8L5 |
1 | ||
| 52119-13180B1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52119-13160J1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),BLUE M.M.,8L5 |
1 | ||
| 52119-13170B1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52119-13160B1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 ,2EX ,2EY |
1 | ||
| 52119-13170D0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),MAGENTA MC.,3L3 |
1 | ||
| 52119-13180J1 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),BLUE M.M.,8L5 |
1 | ||
| 52119-1E270B2 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,BLUISH GRAY METALLIC,182 |
1 | ||
| 52119-13180D0 |
AE100,104,CE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),MAGENTA MC.,3L3 |
1 | ||
| 52119-1E260 |
AE109,CE105,107,EE10# |
1 | ||
| 52119-1E270G4 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,DK.GREEN M.M.,6P2 |
1 | ||
| 52119-1E270A0 |
CE108,EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 52119-1E270B4 |
EE104 LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER ME,199 ,2EY |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-12180 |
AE100,101,104,CE100,101 |
1 | ||
| 52131-13020 |
AE109,CE10#,EE10# 右側 |
1 | ||
| 52132-13010 |
AE109,CE10#,EE10# 左側 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-12180 |
AE100,101,104,CE100,101 |
1 | ||
| 52131-13020 |
AE109,CE10#,EE10# 右側 |
1 | ||
| 52132-13010 |
AE109,CE10#,EE10# 左側 |
1 | ||
| 52143A - ARM, FRONT BUMPER, INNER RH | ||||
| 52143-12330 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 52143-12300 |
AE10#,CE10#,EE10# |
1 | ||
| 52143-13020 |
AE100,101,104,CE100,101 |
1 | ||
| 52144A - ARM, FRONT BUMPER, INNER LH | ||||
| 52143-12300 |
AE10#,CE10#,EE10# |
1 | ||
| 52143-12330 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 52143-13020 |
AE100,101,104,CE100,101 |
1 | ||
| 52147A - BRACKET, FRONT BUMPER STAY, RH | ||||
| 52147-16080 |
AE10#,CE10#,EE10# |
1 | ||
| 52147-12170 |
AE10#,CE10#,EE10# |
1 | ||
| 52147E - BRACKET, FRONT BUMPER MOUNTING, RH | ||||
| 52148-12130 |
AE10#,CE10#,EE10# |
1 | ||
| 52148A - BRACKET, FRONT BUMPER STAY, LH | ||||
| 52147-16080 |
AE10#,CE10#,EE10# |
1 | ||
| 52147-12170 |
AE10#,CE10#,EE10# |
1 | ||
| 52148E - BRACKET, FRONT BUMPER MOUNTING, LH | ||||
| 52148-12130 |
AE10#,CE10#,EE10# |
1 | ||
| 52187D - GUIDE, FRONT BUMPER LOCATION, RH | ||||
| 52187-12140 |
AE10#,CE10#,EE10# |
1 | ||
| 52188C - GUIDE, FRONT BUMPER LOCATION, LH | ||||
| 52187-12140 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90119-06355 | ||||
| 90119-06804 | ||||
| 90119-08917 | ||||
| 90119-08A65 | ||||
| 90159-60431 | ||||
| 90159-60450 | ||||
| 90179-06127 | ||||
| 90179-06264 | ||||
| 90179-08241 | ||||
| 90189-05132 | ||||
| 90189-06006 | ||||
| 91626-A0616 | ||||
| Linked diagrams | ||||
| 8101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
