EE104G-AWHDK (1994)
Toyota Corolla

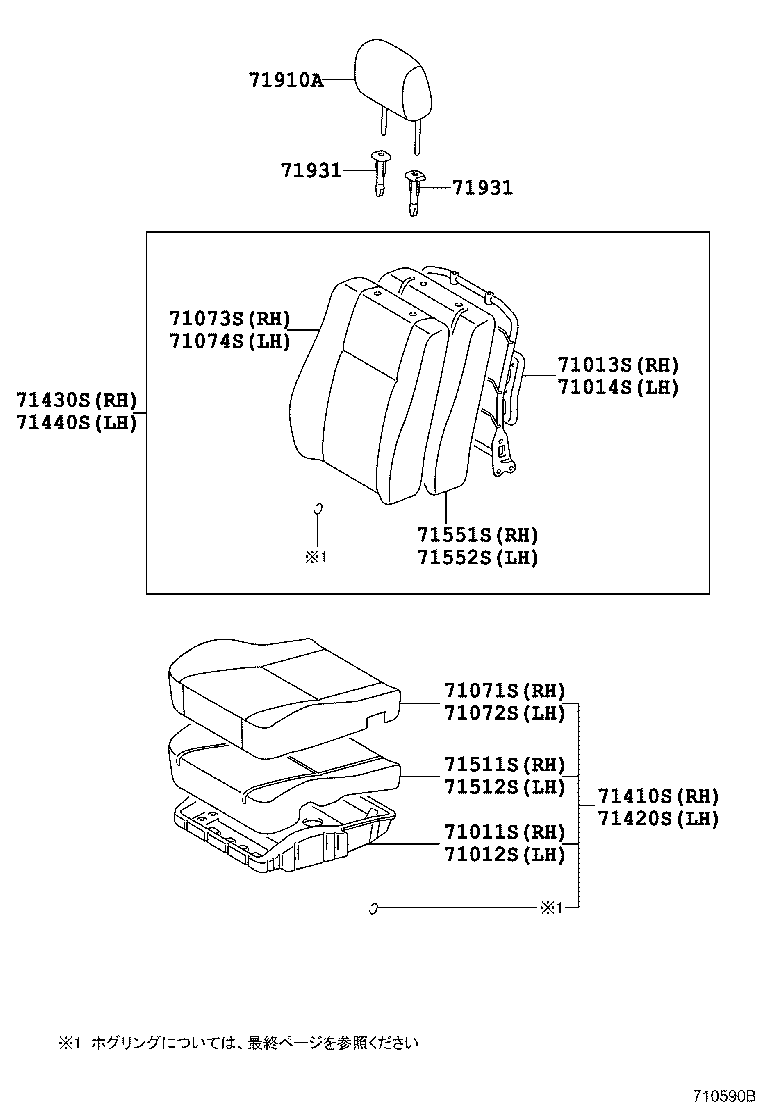

ILLUST NO. 1 OF 2(9705- )AE100,101,104,CE100,101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-20430 |
AE100,101,104,CE100,101..BZT,G |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-20440 |
AE100,101,104,CE100,101 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-12630 |
AE100,101,104,CE100 |
1 | ||
| 71013-12631 |
AE100,101,104,CE100,101 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-12631 |
AE100,101,104,CE100,101 |
1 | ||
| 71013-12630 |
AE100,101,104,CE100 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-13261B0 |
AE109,CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13460B0 |
AE100,104..G Gﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ *(K),SHADOW GRAY,TRIM1 |
1 | ||
| 71071-13252B2 |
AE100,104,CE100..G SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13320B0 |
CE108,EE104 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13360B1 |
CE106,108,109,EE103,104..GL,L SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13430B0 |
AE100,104,CE100,101..G DK. CHARCOAL,TRIM1# |
1 | ||
| 71071-13360B1 |
EE103,104..GL,L;CE107..DXJ..05S;EE102..3FC..05S SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13261B1 |
AE109,CE102,105,106,107,108,109,EE10#..DX,L ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-13211B0 |
CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13261B0 |
AE109,CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13430B0 |
AE100,104..G Gﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ *(K),SHADOW GRAY,TRIM1 |
1 | ||
| 71072-13270B0 |
CE108,EE104 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13261B1 |
AE109,CE102,105,106,107,108,109,EE10#..DX,L ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13202B2 |
AE100,104,CE100..G SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13310B1 |
EE103,104..GL,L;CE107..DXJ..05S;EE102..3FC..05S SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13310B1 |
CE106,108,109,EE103,104..GL,L SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13400B0 |
AE100,104,CE100,101..G DK. CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-13191B0 |
AE109,CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K321B1 |
AE100,104,CE100..G SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13440B0 |
AE100,104..G Gﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ *(K),SHADOW GRAY,TRIM1 |
1 | ||
| 71073-1K091B2 |
CE108,EE104 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13410B0 |
AE100,104,CE100..G DK. CHARCOAL,TRIM1# |
1 | ||
| 71073-13310B1 |
CE106,108,109,EE103,104..GL,L SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13310B1 |
EE103,104..GL,L;CE107..DXJ..05S;EE102..3FC..05S SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13411B0 |
AE100,104,CE100,101..G DK.CHARCOAL,TRIM1# |
1 | ||
| 71073-13191B1 |
AE109,CE102,105,106,107,108,109,EE10#..DX,L ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-13161B0 |
AE109,CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H111B1 |
AE100,104,CE100..G SHADOW GRAY,TRIM1# |
1 | ||
| 71074-13390B0 |
AE100,104..G Gﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ *(K),SHADOW GRAY,TRIM1 |
1 | ||
| 71074-1H031B1 |
CE108,EE104 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-13360B0 |
AE100,104,CE100..G DK. CHARCOAL,TRIM1# |
1 | ||
| 71074-13161B1 |
AE109,CE102,105,106,107,108,109,EE10#..DX,L ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-13280B1 |
CE106,108,109,EE103,104..GL,L SHADOW GRAY,TRIM1# |
1 | ||
| 71074-13361B0 |
AE100,104,CE100,101..G DK.CHARCOAL,TRIM1# |
1 | ||
| 71074-13280B1 |
EE103,104..GL,L;CE107..DXJ..05S;EE102..3FC..05S SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-13242B2 |
AE100,104,CE100..G ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13271B0 |
AE109,CE106,108,109,EE102,103,104..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13510B0 |
AE100,104..G Gﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ *(K),SHADOW GRAY,TRIM1 |
1 | ||
| 71410-13430B0 |
AE100,104,CE100,101..G ***,DK. CHARCOAL,TRIM1# |
1 | ||
| 71410-13450B0 |
CE106,108,109,EE103,104..GL,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13271B1 |
AE109,CE102,105,106,107,108,109,EE10#..DX,L ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13300B1 |
CE108,EE104 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13450B0 |
EE103,104..GL,L;CE107..DXJ..05S;EE102..3FC..05S ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-13490B0 |
AE100,104..G Gﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ *(K),SHADOW GRAY,TRIM1 |
1 | ||
| 71420-13221B0 |
AE109,CE106,108,109,EE102,103,104..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13192B3 |
AE100,104,CE100..G ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13430B0 |
CE106,108,109,EE103,104..GL,L ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13221B1 |
AE109,CE106,108,109,EE10#..DX,L ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13250B0 |
CE108,EE104 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13410B0 |
AE100,104,CE100..G ***,DK. CHARCOAL,TRIM1# |
1 | ||
| 71420-13520B0 |
AE100,104,CE101..G ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-13540B0 |
CE102,EE104 ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13550B0 |
CE102,EE104 ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼｰﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-13211B0 |
AE109,CE106,108,109,EE102,103,104..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13480B0 |
AE100,104..G Gﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ *(K),SHADOW GRAY,TRIM1 |
1 | ||
| 71430-1L021B2 |
AE100,104,CE100..G ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K371B1 |
CE108,EE104 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13430B0 |
AE100,104,CE100..G ***,DK. CHARCOAL,TRIM1# |
1 | ||
| 71430-13211B1 |
CE107..4FC..DX;AE109,CE102,105,106,108,109,EE10#..DX,L ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13450B0 |
CE108,EE104 ***,L ｴｸｽﾄﾗ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13212B2 |
AE109,CE10#,EE10#..DX,L ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13431B0 |
AE100,104,CE100,101..G ***,DK.CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-13201B0 |
AE109,CE106,108,109,EE102,103,104..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13490B0 |
AE100,104..G Gﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ *(K),SHADOW GRAY,TRIM1 |
1 | ||
| 71440-1K301B1 |
CE108,EE104 ***,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K361B2 |
AE100,104,CE100..G ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13440B0 |
AE100,104,CE100..G ***,DK. CHARCOAL,TRIM1# |
1 | ||
| 71440-13460B0 |
CE108,EE104 ***,L ｴｸｽﾄﾗ OR L ｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13201B1 |
CE107..4FC..DX;AE109,CE102,105,106,108,109,EE10#..DX,L ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13202B2 |
AE109,CE10#,EE10#..DX,L ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13441B0 |
AE100,104,CE100,101..G ***,DK.CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12760 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 71511-12800 |
AE100,104,CE100,104,EE101..G,XE |
1 | ||
| 71511-12760 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ |
1 | ||
| 71511-1A010 |
AE100,104,CE100,101..G |
1 | ||
| 71511-12760 |
AE109,CE10#,EE10# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12760 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ |
1 | ||
| 71511-12760 |
AE109,CE106,108,109,EE10# |
1 | ||
| 71511-12800 |
AE100,104,CE100,104,EE101..G,XE |
1 | ||
| 71052-12040 |
AE100,104 |
1 | ||
| 71052-13010 |
EE104 |
1 | ||
| 71511-12890 |
AE100,104,CE100 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12610 |
AE100,104,CE100,101 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12610 |
AE100,104,CE100,101 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-13041B1 |
AE100,104,CE100..G SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A321B2 |
CE108,EE104 L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A321B4 |
CE102,105,106,107,108,109,EE103,104..GL,L SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A321B4 |
CE105..GL;AE109,CE102,107,EE10# SHADOW GRAY,TRIM1# |
2 | ||
| 71910-13150B0 |
AE100,104,CE100,101..G DARK CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040B0 |
CE106,109,EE103,107..GL;AE10#,CE100,104,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AE100,104,CE100,106,109,EE103..G,GL,LT ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE100,104,CE100,106,109,EE103..G,GL,LT ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE101,CE102,105,106,107,108,109,EE103,104..BZT,GL,L ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CE108,EE104 ﾛｯｸ付,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
CE106,108,109,EE103,104..GL,L ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CE108,EE104 ﾛｯｸ無,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B2 |
AE100,104,CE100,101 ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020P2 |
AE100,104,CE100,101 ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71930-44010B1 |
CE105..GL;EE102..5F;CE107..02S;EE102..3FC..02S;AE109,CE102,107,EE103,104..DX,GL,L ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040B0 |
CE106,109,EE103,107..GL;AE10#,CE100,104,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AE100,104,CE100,106,109,EE103..G,GL,LT ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE100,104,CE100,106,109,EE103..G,GL,LT ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE101,CE102,105,106,107,108,109,EE103,104..BZT,GL,L ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CE108,EE104 ﾛｯｸ付,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
CE106,108,109,EE103,104..GL,L ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CE108,EE104 ﾛｯｸ無,L ｴｸｽﾄﾗ(FQ16/QH16),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B2 |
AE100,104,CE100,101 ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020P2 |
AE100,104,CE100,101 ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71930-44010B1 |
CE105..GL;EE102..5F;CE107..02S;EE102..3FC..02S;AE109,CE102,107,EE103,104..DX,GL,L ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||

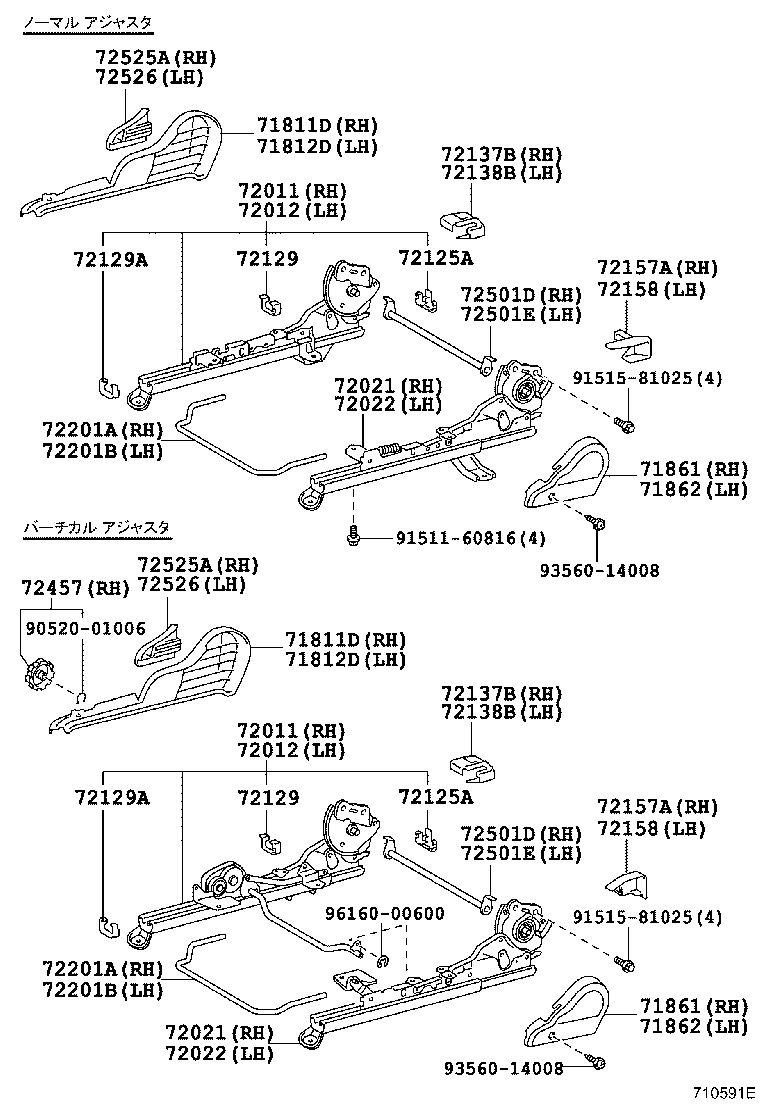

ILLUST NO. 2 OF 2(9705- )AE100,101,104,CE100,101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280P0 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12260P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B9 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71811-12260P0 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX SHADOW GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280P0 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12260P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B9 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71811-12260P0 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12220P0 |
AE10#,CE10#,EE10#..4DS,V,WG SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16190B9 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-12220P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12220P0 |
AE10#,CE10#,EE10#..4DS,V,WG SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16190B9 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-12220P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12220P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20130B7 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71861-12220P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12220P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20130B7 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71861-12220P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12210P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20130B7 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12210P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20130B7 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12590 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72010-12610 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72011-12260 |
AE100,101,104,CE100,101..BZT,G |
1 | ||
| 72010-12590 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12590 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72010-12610 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72011-12260 |
AE100,101,104,CE100,101..BZT,G |
1 | ||
| 72010-12590 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12560 |
CE102,108,EE104 |
1 | ||
| 72020-12560 |
AE100,101,104,CE100,104,108,EE101,104,108..4DS,WG |
1 | ||
| 72012-12210 |
AE100,101,104,CE100,101 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12560 |
CE102,108,EE104 |
1 | ||
| 72020-12560 |
AE100,101,104,CE100,104,108,EE101,104,108..4DS,WG |
1 | ||
| 72012-12210 |
AE100,101,104,CE100,101 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
AE100,101,104,CE100,101 |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
AE100,101,104,CE100,101 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
AE100,101,104,CE100,101 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
AE100,101,104,CE100,101 |
4 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20020 |
AE100,101,104,CE100,101 |
4 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20020 |
AE100,101,104,CE100,101 |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
CE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12030P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE10#,CE100,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE10#,CE100,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE100,101,104,CE100,101 BLACK,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
CE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12030P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE10#,CE100,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE10#,CE100,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE100,101,104,CE100,101 BLACK,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040C0 |
CE106,EE102..05S;AE10#,CE100,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE10#,CE100,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12080C0 |
AE100,101,104,CE100,101 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040C0 |
CE106,EE102..05S;AE10#,CE100,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE10#,CE100,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12080C0 |
AE100,101,104,CE100,101 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12030C0 |
CE108,EE103,104;CE106,EE102..05S BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
CE106,107,EE102..05S;AE100,101,CE100,101,102,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,EE101,103,104..BZT,DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12030C0 |
CE108,EE103,104;CE106,EE102..05S BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
CE106,107,EE102..05S;AE100,101,CE100,101,102,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,EE101,103,104..BZT,DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72158-12030C0 |
CE108,EE103,104;CE106,EE102..05S BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
CE106,107,EE102..05S;AE100,101,CE100,101,102,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,EE101,103,104..BZT,DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72158-12030C0 |
CE108,EE103,104;CE106,EE102..05S BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
CE106,107,EE102..05S;AE100,101,CE100,101,102,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,EE101,103,104..BZT,DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-12030 |
AE100,101,104,CE100,101 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-12030 |
AE100,101,104,CE100,101 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-12030 |
AE100,101,104,CE100,101 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-12030 |
AE100,101,104,CE100,101 |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020B1 |
AE100,101,104,CE100,104,EE101..BZT,G,GT,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010P3 |
AE100,104,CE100,101..G DK.CHARCOAL,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-12040 |
AE100,101,104,CE100,101 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-12040 |
AE100,101,104,CE100,101 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-12040 |
AE100,101,104,CE100,101 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-12040 |
AE100,101,104,CE100,101 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010P2 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 72525-12100P0 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010P2 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 72525-12100P0 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010P2 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010P2 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 2(9705- )AE109,CE102,105,106,107,108,109,EE10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280P0 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12280P0 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12260P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12260P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B9 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71811-16230B9 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71811-12260P0 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12260P0 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12220P0 |
AE10#,CE10#,EE10#..4DS,V,WG SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12220P0 |
AE10#,CE10#,EE10#..4DS,V,WG SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16190B9 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-16190B9 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71812-12220P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12220P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12220P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12220P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20130B7 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71861-20130B7 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71861-12220P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12220P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12210P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20130B7 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 71862-20130B7 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12590 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72010-12590 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72010-12610 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72010-12610 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72011-12260 |
AE100,101,104,CE100,101..BZT,G |
1 | ||
| 72011-12260 |
AE100,101,104,CE100,101..BZT,G |
1 | ||
| 72010-12590 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 72010-12590 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12560 |
CE102,108,EE104 |
1 | ||
| 72020-12560 |
CE102,108,EE104 |
1 | ||
| 72020-12560 |
AE100,101,104,CE100,104,108,EE101,104,108..4DS,WG |
1 | ||
| 72020-12560 |
AE100,101,104,CE100,104,108,EE101,104,108..4DS,WG |
1 | ||
| 72012-12210 |
AE100,101,104,CE100,101 |
1 | ||
| 72012-12210 |
AE100,101,104,CE100,101 |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010P0 |
CE106,109,EE106,107..DX,GL;AE10#,CE100,104,108,EE101,108..G,GT,L,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010P0 |
CE106,109,EE106,107..DX,GL;AE10#,CE100,104,108,EE101,108..G,GT,L,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010C0 |
AE10#,CE100,106,108,EE10# BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE10#,CE100,106,108,EE10# BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE109,CE102,105,106,107,108,109,EE10# BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE109,CE102,105,106,107,108,109,EE10# BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE10#,CE10#,EE10# BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE10#,CE10#,EE10# BLACK,TRIM1# |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12590 |
AE100,CE100,106,108,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72130-12590 |
AE100,CE100,106,108,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72130-12590 |
CE102,106,107,108,EE10# |
1 | ||
| 72130-12590 |
CE102,106,107,108,EE10# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
CE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12030P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE10#,CE100,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE10#,CE100,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE10#,CE100,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE10#,CE100,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE100,101,104,CE100,101 BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE100,101,104,CE100,101 BLACK,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040C0 |
CE106,EE102..05S;AE10#,CE100,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE10#,CE100,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE10#,CE100,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE10#,CE100,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104 BLACK,TRIM1# |
1 | ||
| 72138-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12080C0 |
AE100,101,104,CE100,101 BLACK,TRIM1# |
1 | ||
| 72138-12080C0 |
AE100,101,104,CE100,101 BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12500 |
AE100,101,CE100,108,EE101,104,108..4DS,WG |
1 | ||
| 72140-12500 |
AE100,101,CE100,108,EE101,104,108..4DS,WG |
1 | ||
| 72140-12500 |
CE102,108,EE104 |
1 | ||
| 72140-12500 |
CE102,108,EE104 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12030P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12030C0 |
CE108,EE103,104;CE106,EE102..05S BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
CE108,EE103,104;CE106,EE102..05S BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
CE106,107,EE102..05S;AE100,101,CE100,101,102,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
CE106,107,EE102..05S;AE100,101,CE100,101,102,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,EE101,103,104..BZT,DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,EE101,103,104..BZT,DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72158-12030P0 |
AE100,101,CE100,106,108,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72158-12030C0 |
CE108,EE103,104;CE106,EE102..05S BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
CE108,EE103,104;CE106,EE102..05S BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
CE106,107,EE102..05S;AE100,101,CE100,101,102,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
CE106,107,EE102..05S;AE100,101,CE100,101,102,108,EE103,104 BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,EE101,103,104..BZT,DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,EE101,103,104..BZT,DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72301-12160 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72301-12090 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72301-12090 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72301-12160 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 72301-12160 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AE10#,CE100,104,108,EE101,104,108..4DS,WG |
1 | ||
| 72301-12160 |
AE10#,CE100,104,108,EE101,104,108..4DS,WG |
1 | ||
| 72301-12160 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 72301-12160 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 72301-12160 |
AE10#,CE10#,EE10# |
1 | ||
| 72301-12160 |
AE10#,CE10#,EE10# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010P2 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 72525-16010P2 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 72525-12100P0 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100P0 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040P0 |
AE109,CE102,105,106,107,108,109,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010P2 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| 72526-16010P2 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08970 | ||||
| 90119-10229 | ||||
| 90119-10769 | ||||
| 90167-40044 | ||||
| 90386-12046 | ||||
| 93249-54006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
