Toyota Corolla EE103 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
COROLLA
EE103V-AXHDK (1994)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

EE103V-AXHDK (1994)

Toyota Corolla

Production Jan 1994 - Jun 2002

Engine 5EFE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

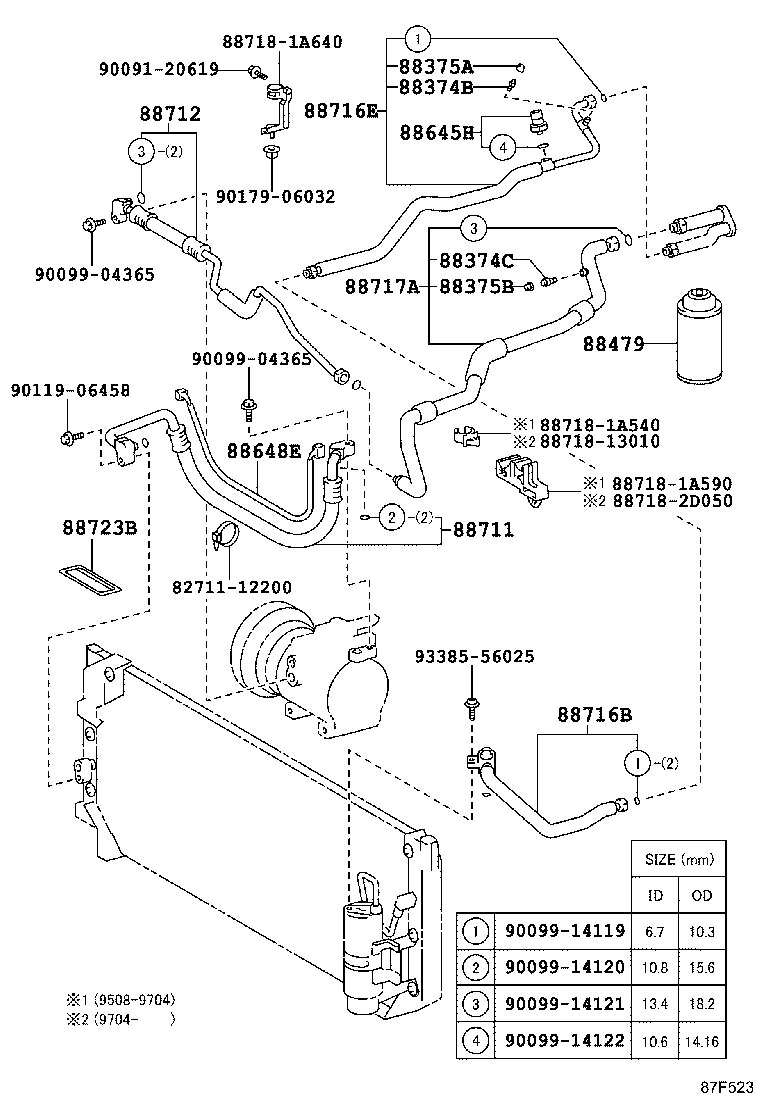

ILLUST NO. 2 OF 2(9106-9508)EE10#

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AE10#,CE10#,EE10#	08/1995 - 12/2999	1
88374-30010	CE108..4FC;AE10#,CE100,104,106,109,EE10#	01/1994 - 08/1995	1
88374C - VALVE, SERVICE, NO.2
88374-12020	AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE	06/1991 - 05/1992	1
88374-30010	CE108..4FC;AE100,104,CE100,104,106,109,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE	01/1994 - 08/1994	1
88374-30010	CE108..4FC;AE10#,CE100,104,106,109,EE10#	08/1994 - 08/1995	1
88374-30010	AE10#,CE10#,EE10#	08/1995 - 05/1997	1
88374-30010	AE10#,CE102,105,106,107,108,109,EE10#	05/1997 - 12/2999	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-24010	AE10#,CE10#,EE10#	06/1991 - 05/1993	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270	CE100,104;AE100,104,CE106,108,109,EE10#..CTD,DX,GL,L,LT,LX,XE	06/1991 - 05/1992	1
88375-30290	AE10#,CE10#,EE10#	08/1994 - 12/2999	1
88470B - BOLT, FUSE
88475-12020	AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE	06/1991 - 05/1992	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE 250G	06/1991 - 05/1992	3
88645H - SWITCH, PRESSURE NO.1
88645-50010	AE10#,CE10#,EE10#	06/1991 - 05/1993	1
88648E - WIRING, COOLER
88648-12550	EE10#	04/1997 - 12/2999	1
88648-12550	EE10#	06/1991 - 05/1992	1
88648-12550	EE102,103;EE104..3FC	08/1995 - 04/1997	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12630	EE10#	06/1991 - 05/1993	1
88711-1A110	EE102,103;EE104..3FC	08/1995 - 04/1997	1
88711-1A110	EE10#	04/1997 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12830	EE10#	06/1991 - 05/1993	1
88712-1A440	EE102,103;EE104..3FC	09/1995 - 04/1997	1
88712-1A440	EE10#	08/1995 - 09/1995	1
88712-1A440	EE10#	04/1997 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A020	AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE	06/1991 - 05/1992	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A530	AE109,EE10#	04/1997 - 12/2999	1
88716-12890	EE104..3FC;AE109,EE102,103	08/1995 - 04/1997	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-13020	AE109,EE10#	04/1997 - 05/1997	1
88717-13020	AE10#,EE10#	05/1997 - 12/2999	1
88717-1A020	AE10#,EE10#	08/1995 - 04/1997	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-12550	AE10#,EE10#	06/1991 - 05/1993	1
88717-12740	EE10#	05/1995 - 08/1995	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12050	AE10#,CE10#,EE10# ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1993	1
88723-12110	CE106..4FC;AE10#,CE100,108,EE10# ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1995 - 04/1997	1
88723-12110	AE100,101,104,CE10#,EE10#	05/1997 - 12/2999	1
88723-12110	CE106,108,109,EE10#	04/1997 - 05/1997	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12050	AE10#,CE10#,EE10# ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1993	1
88723-12110	CE106..4FC;AE10#,CE100,108,EE10# ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1995 - 04/1997	1
88723-12110	AE100,101,104,CE10#,EE10#	05/1997 - 12/2999	1
88723-12110	CE106,108,109,EE10#	04/1997 - 05/1997	1
Common parts
82711-12200
88467-14070
88569-16050
88688-12881
88688-12891
88688-1A520
88718-1A450
90091-20609
90099-14044
90099-14045
90099-14046
90099-14056
90099-14119
90099-14120
90099-14121
90099-14122
90099-32130
90119-06336
90119-06458
90179-06032
90179-08191
90467-07043C0
91651-60835
93385-56025

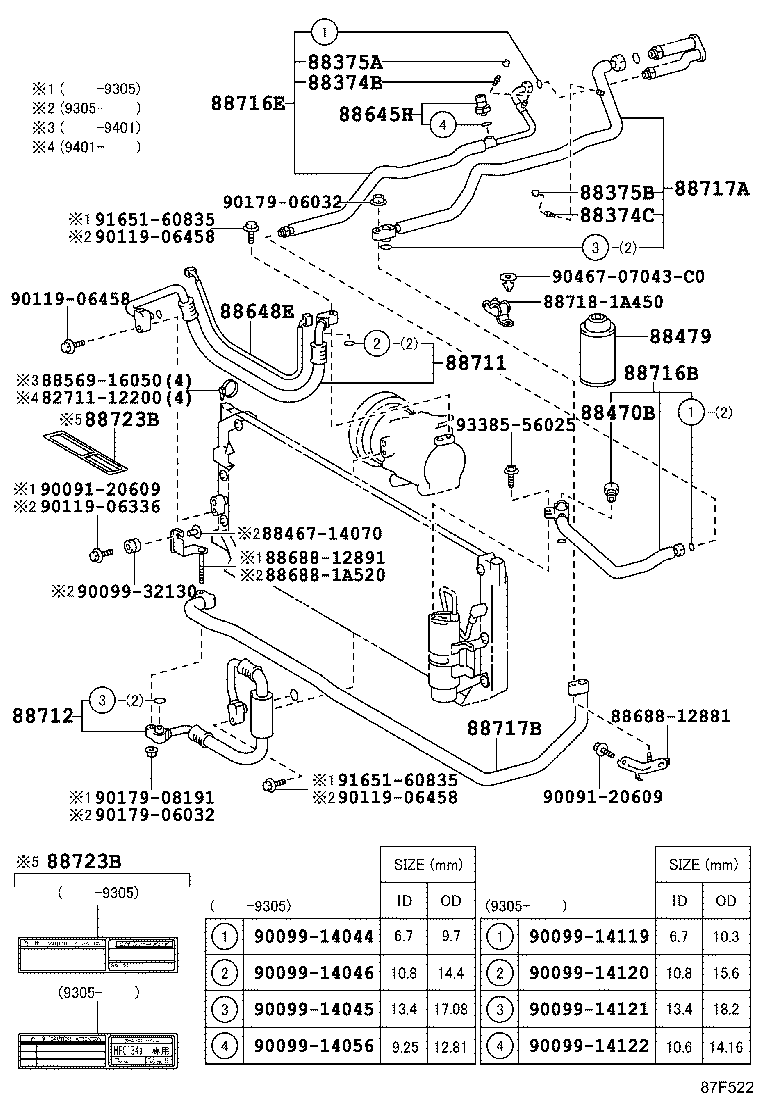

ILLUST NO. 2 OF 2(9508- )EE10#

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AE10#,CE10#,EE10#	08/1995 - 12/2999	1
88374-30010	CE108..4FC;AE10#,CE100,104,106,109,EE10#	01/1994 - 08/1995	1
88374C - VALVE, SERVICE, NO.2
88374-12020	AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE	06/1991 - 05/1992	1
88374-30010	CE108..4FC;AE100,104,CE100,104,106,109,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE	01/1994 - 08/1994	1
88374-30010	CE108..4FC;AE10#,CE100,104,106,109,EE10#	08/1994 - 08/1995	1
88374-30010	AE10#,CE10#,EE10#	08/1995 - 05/1997	1
88374-30010	AE10#,CE102,105,106,107,108,109,EE10#	05/1997 - 12/2999	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-24010	AE10#,CE10#,EE10#	06/1991 - 05/1993	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270	CE100,104;AE100,104,CE106,108,109,EE10#..CTD,DX,GL,L,LT,LX,XE	06/1991 - 05/1992	1
88375-30290	AE10#,CE10#,EE10#	08/1994 - 12/2999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE 250G	06/1991 - 05/1992	3
88645H - SWITCH, PRESSURE NO.1
88645-50010	AE10#,CE10#,EE10#	06/1991 - 05/1993	1
88648E - WIRING, COOLER
88648-12550	EE10#	04/1997 - 12/2999	1
88648-12550	EE10#	06/1991 - 05/1992	1
88648-12550	EE102,103;EE104..3FC	08/1995 - 04/1997	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12630	EE10#	06/1991 - 05/1993	1
88711-1A110	EE102,103;EE104..3FC	08/1995 - 04/1997	1
88711-1A110	EE10#	04/1997 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12830	EE10#	06/1991 - 05/1993	1
88712-1A440	EE102,103;EE104..3FC	09/1995 - 04/1997	1
88712-1A440	EE10#	08/1995 - 09/1995	1
88712-1A440	EE10#	04/1997 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A020	AE100,104,EE10#..CTD,DX,GL,L,LT,LX,XE	06/1991 - 05/1992	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A530	AE109,EE10#	04/1997 - 12/2999	1
88716-12890	EE104..3FC;AE109,EE102,103	08/1995 - 04/1997	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-13020	AE109,EE10#	04/1997 - 05/1997	1
88717-13020	AE10#,EE10#	05/1997 - 12/2999	1
88717-1A020	AE10#,EE10#	08/1995 - 04/1997	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12050	AE10#,CE10#,EE10# ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1993	1
88723-12110	CE106..4FC;AE10#,CE100,108,EE10# ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	08/1995 - 04/1997	1
88723-12110	AE100,101,104,CE10#,EE10#	05/1997 - 12/2999	1
88723-12110	CE106,108,109,EE10#	04/1997 - 05/1997	1
Common parts
82711-12200
88718-13010
88718-1A540
88718-1A590
88718-1A640
88718-2D050
90091-20619
90099-04365
90099-14119
90099-14120
90099-14121
90099-14122
90119-06458
90179-06032
93385-56025
