EE103V-AXHDK (1994)
Toyota Corolla

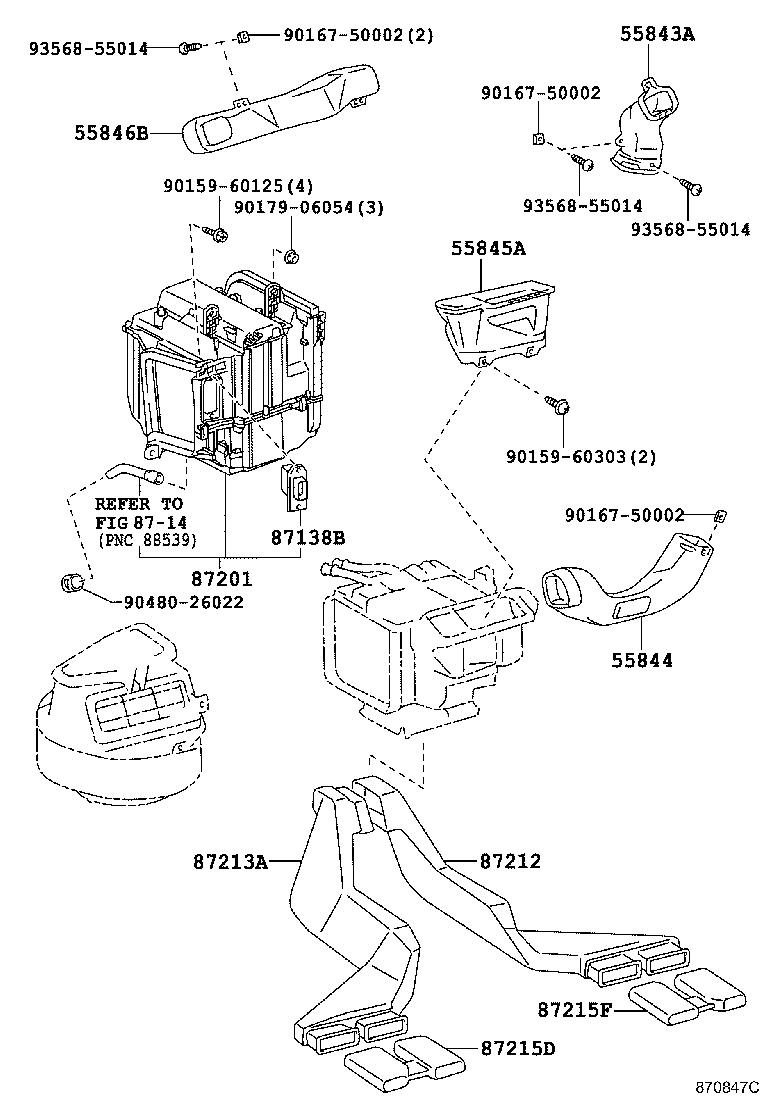

ILLUST NO. 2 OF 3(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12210 |
AE10#,CE10#,EE10# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12290 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55844-12440 |
EE103..GL;AE109,EE104;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55844-12290 |
AE109,CE106,108,109,EE10# ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12150 |
AE10#,CE10#,EE10# |
1 | ||
| 55845-12210 |
AE10#,CE10#,EE10# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 55845-12150 |
EE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE109,CE102,105,106,107,108,109,EE104 ｱﾘ(*80) |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12240 |
AE10#,CE10#,EE10# |
1 | ||
| 55846-12150 |
AE109,CE102,105,106,107,108,109,EE10# ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55846-12150 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-12130 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 87138-12140 |
CE106,108,109,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87138-12130 |
CE106,108,109,EE10# |
1 | ||
| 87138-12130 |
AE100..3FC..(DX,LX);AE100..(4FC,5F)..(DX,LT,LX,XE);AE104,CE10#,EE10#..CTD,DX,GL,L,LX,XE |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12340 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 87201-12350 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201-12470 |
CE106,108,109,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201-12580 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 87201-12560 |
CE106,108,109,EE10# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12080 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 87213A - DUCT, AIR REAR NO.2 | ||||
| 87213-12050 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-12010 |
CE106,EE102,106..05S;AE10#,CE100,101,102,104,105,107,108,109,EE101,103,104,107,108 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12020 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90167-50002 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 3(9106-9508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12210 |
AE10#,CE10#,EE10# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12290 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55844-12440 |
EE103..GL;AE109,EE104;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55844-12290 |
AE109,CE106,108,109,EE10# ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12150 |
AE10#,CE10#,EE10# |
1 | ||
| 55845-12210 |
AE10#,CE10#,EE10# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 55845-12150 |
EE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE109,CE102,105,106,107,108,109,EE104 ｱﾘ(*80) |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12240 |
AE10#,CE10#,EE10# |
1 | ||
| 55846-12150 |
AE109,CE102,105,106,107,108,109,EE10# ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55846-12150 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-12130 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 87138-12140 |
CE106,108,109,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87138-12130 |
CE106,108,109,EE10# |
1 | ||
| 87138-12130 |
AE100..3FC..(DX,LX);AE100..(4FC,5F)..(DX,LT,LX,XE);AE104,CE10#,EE10#..CTD,DX,GL,L,LX,XE |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12340 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 87201-12350 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201-12470 |
CE106,108,109,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201-12580 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 87201-12560 |
CE106,108,109,EE10# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12080 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 87213A - DUCT, AIR REAR NO.2 | ||||
| 87213-12050 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-12010 |
CE106,EE102,106..05S;AE10#,CE100,101,102,104,105,107,108,109,EE101,103,104,107,108 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12020 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-12110 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90167-50002 | ||||
| 90480-26022 | ||||
| 93568-55014 | ||||
