EE103V-AXHDK (1994)

Toyota Corolla

Production Jan 1994 - Jun 2002
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

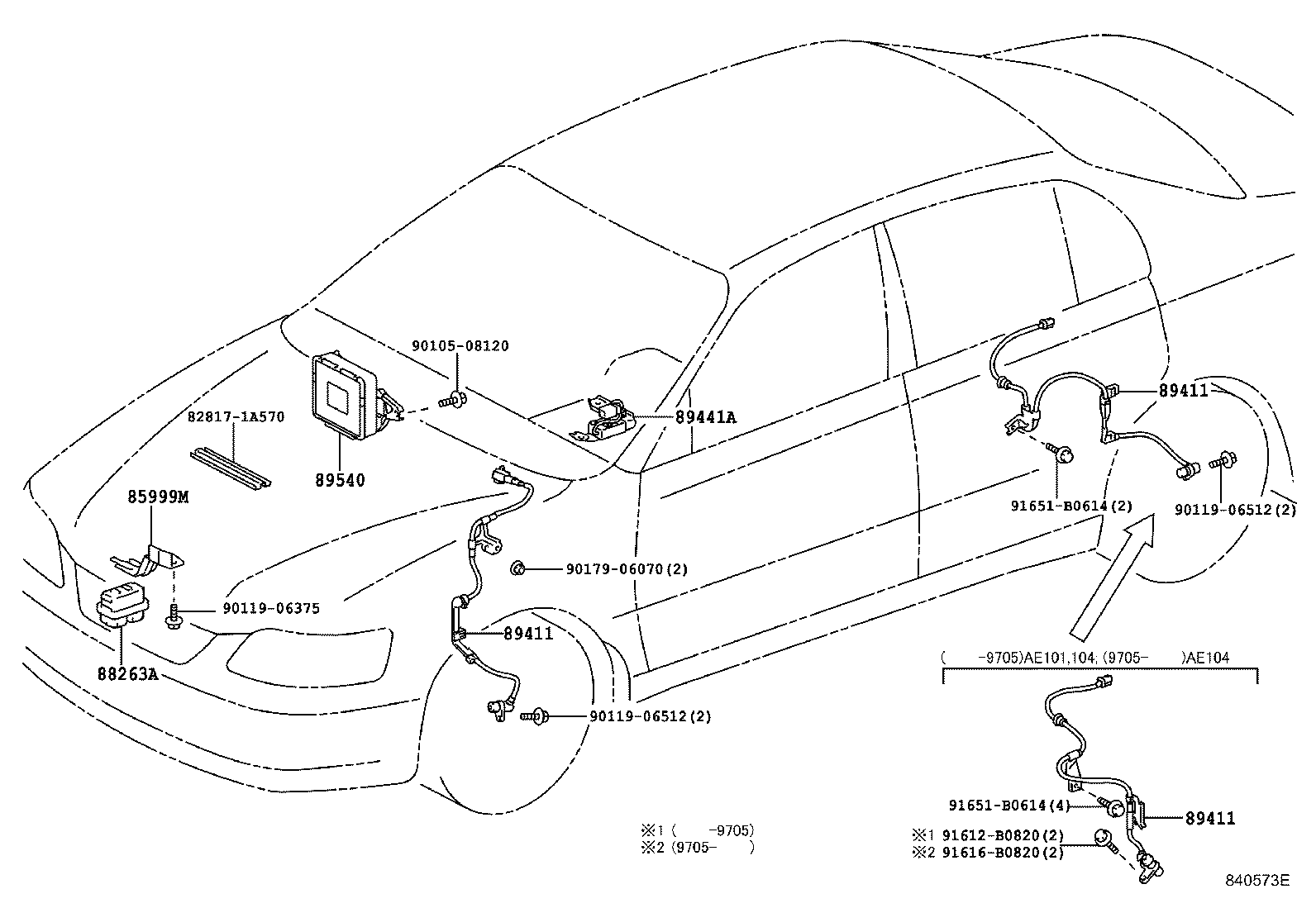

(9505-9804) ; (9804- )AE100,101,104,CE101

Click highlighted areas on diagram

diagram 828171A570 85999M 88263A 89411 89411 89411 89441A 89540 9010508120 9011906375 9011906512 9011906512 9017906070 91612B0820 91616B0820 91651B0614 91651B0614
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-12320

AE109,CE102,105,107,EE10#

 1
88263A - RELAY, SKID CONTROL
88263-32060

AE109,CE102,105,107,EE10#

 1
89411 - SENSOR, SPEED
89546-12050

CE102,107,EE10#

REAR LH

 1
89545-12050

CE102,107,EE10#

REAR RH

 1
89546-12051

CE102,107,EE10#

REAR LH

 1
89543-12040

AE10#,CE10#,EE10#

FRONT LH

 1
89542-12040

AE10#,CE10#,EE10#

FRONT RH

 1
89545-12051

CE102,107,EE10#

REAR RH

 1
89411 - SENSOR, SPEED
89546-12050

CE102,107,EE10#

REAR LH

 1
89545-12050

CE102,107,EE10#

REAR RH

 1
89546-12051

CE102,107,EE10#

REAR LH

 1
89543-12040

AE10#,CE10#,EE10#

FRONT LH

 1
89542-12040

AE10#,CE10#,EE10#

FRONT RH

 1
89545-12051

CE102,107,EE10#

REAR RH

 1
89411 - SENSOR, SPEED
89546-12050

CE102,107,EE10#

REAR LH

 1
89545-12050

CE102,107,EE10#

REAR RH

 1
89546-12051

CE102,107,EE10#

REAR LH

 1
89543-12040

AE10#,CE10#,EE10#

FRONT LH

 1
89542-12040

AE10#,CE10#,EE10#

FRONT RH

 1
89545-12051

CE102,107,EE10#

REAR RH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-12480

CE102,107,EE10#

 1
Common parts
82817-1A570
90105-08120
90119-06375
90119-06512
90179-06070
91612-B0820
91616-B0820
91651-B0614

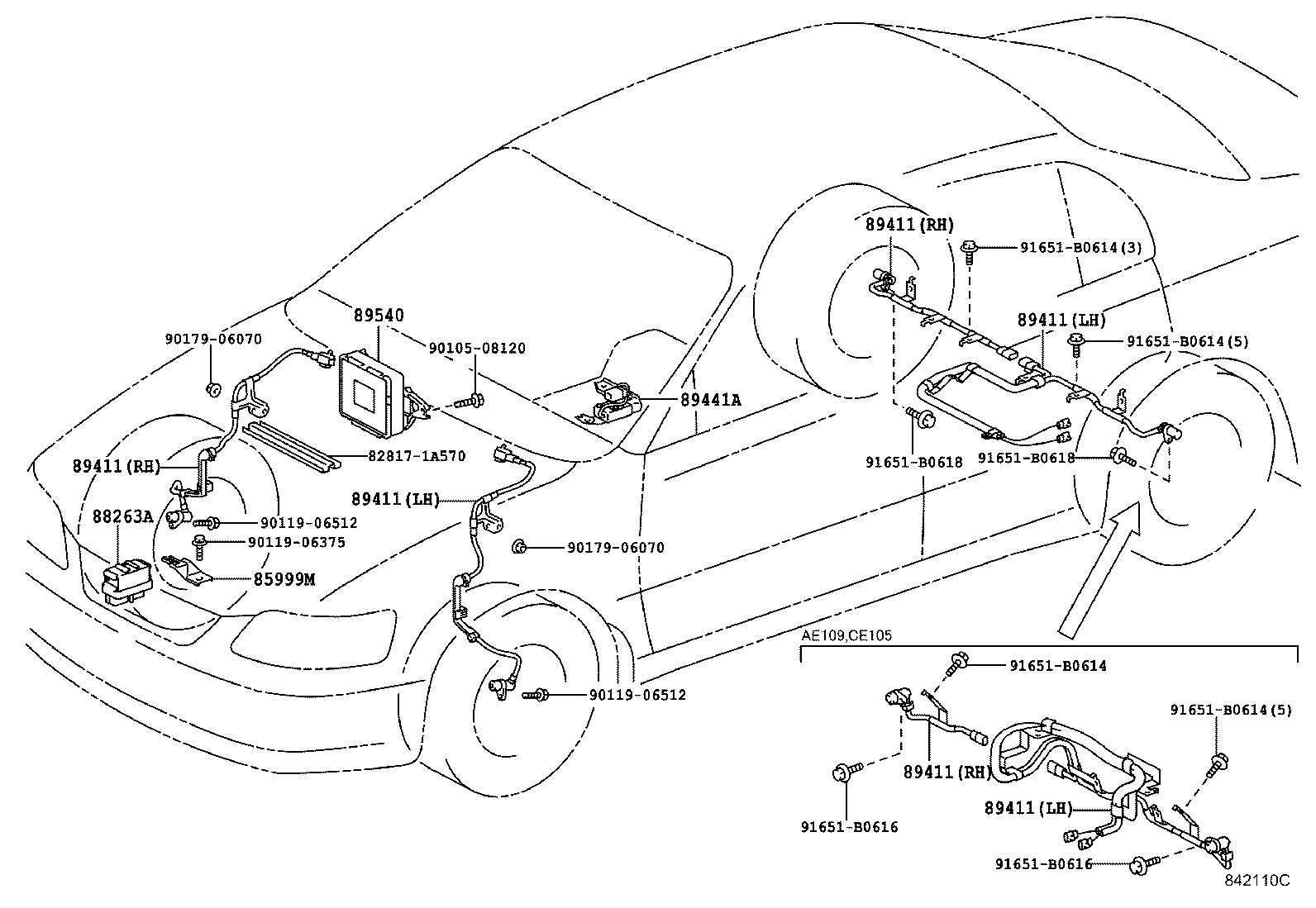

(9804- )AE109,CE102,105,107,EE10#

Click highlighted areas on diagram

diagram 828171A570 85999M 88263A 89411 89411 89411 89411 89411 89411 89441A 89540 9010508120 9011906375 9011906512 9011906512 9017906070 9017906070 91651B0614 91651B0614 91651B0614 91651B0614 91651B0616 91651B0616 91651B0618 91651B0618
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-12320

AE109,CE102,105,107,EE10#

 1
88263A - RELAY, SKID CONTROL
88263-32060

AE109,CE102,105,107,EE10#

 1
89411 - SENSOR, SPEED
89546-12050

CE102,107,EE10#

REAR LH

 1
89545-12050

CE102,107,EE10#

REAR RH

 1
89546-12051

CE102,107,EE10#

REAR LH

 1
89543-12040

AE10#,CE10#,EE10#

FRONT LH

 1
89542-12040

AE10#,CE10#,EE10#

FRONT RH

 1
89545-12051

CE102,107,EE10#

REAR RH

 1
89411 - SENSOR, SPEED
89546-12050

CE102,107,EE10#

REAR LH

 1
89545-12050

CE102,107,EE10#

REAR RH

 1
89546-12051

CE102,107,EE10#

REAR LH

 1
89543-12040

AE10#,CE10#,EE10#

FRONT LH

 1
89542-12040

AE10#,CE10#,EE10#

FRONT RH

 1
89545-12051

CE102,107,EE10#

REAR RH

 1
89411 - SENSOR, SPEED
89546-12050

CE102,107,EE10#

REAR LH

 1
89545-12050

CE102,107,EE10#

REAR RH

 1
89546-12051

CE102,107,EE10#

REAR LH

 1
89543-12040

AE10#,CE10#,EE10#

FRONT LH

 1
89542-12040

AE10#,CE10#,EE10#

FRONT RH

 1
89545-12051

CE102,107,EE10#

REAR RH

 1
89411 - SENSOR, SPEED
89546-12050

CE102,107,EE10#

REAR LH

 1
89545-12050

CE102,107,EE10#

REAR RH

 1
89546-12051

CE102,107,EE10#

REAR LH

 1
89543-12040

AE10#,CE10#,EE10#

FRONT LH

 1
89542-12040

AE10#,CE10#,EE10#

FRONT RH

 1
89545-12051

CE102,107,EE10#

REAR RH

 1
89411 - SENSOR, SPEED
89546-12050

CE102,107,EE10#

REAR LH

 1
89545-12050

CE102,107,EE10#

REAR RH

 1
89546-12051

CE102,107,EE10#

REAR LH

 1
89543-12040

AE10#,CE10#,EE10#

FRONT LH

 1
89542-12040

AE10#,CE10#,EE10#

FRONT RH

 1
89545-12051

CE102,107,EE10#

REAR RH

 1
89411 - SENSOR, SPEED
89546-12050

CE102,107,EE10#

REAR LH

 1
89545-12050

CE102,107,EE10#

REAR RH

 1
89546-12051

CE102,107,EE10#

REAR LH

 1
89543-12040

AE10#,CE10#,EE10#

FRONT LH

 1
89542-12040

AE10#,CE10#,EE10#

FRONT RH

 1
89545-12051

CE102,107,EE10#

REAR RH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-12480

CE102,107,EE10#

 1
Common parts
82817-1A570
90105-08120
90119-06375
90119-06512
90179-06070
91651-B0614
91651-B0616
91651-B0618
