EE103V-AXHDK (1994)
Toyota Corolla

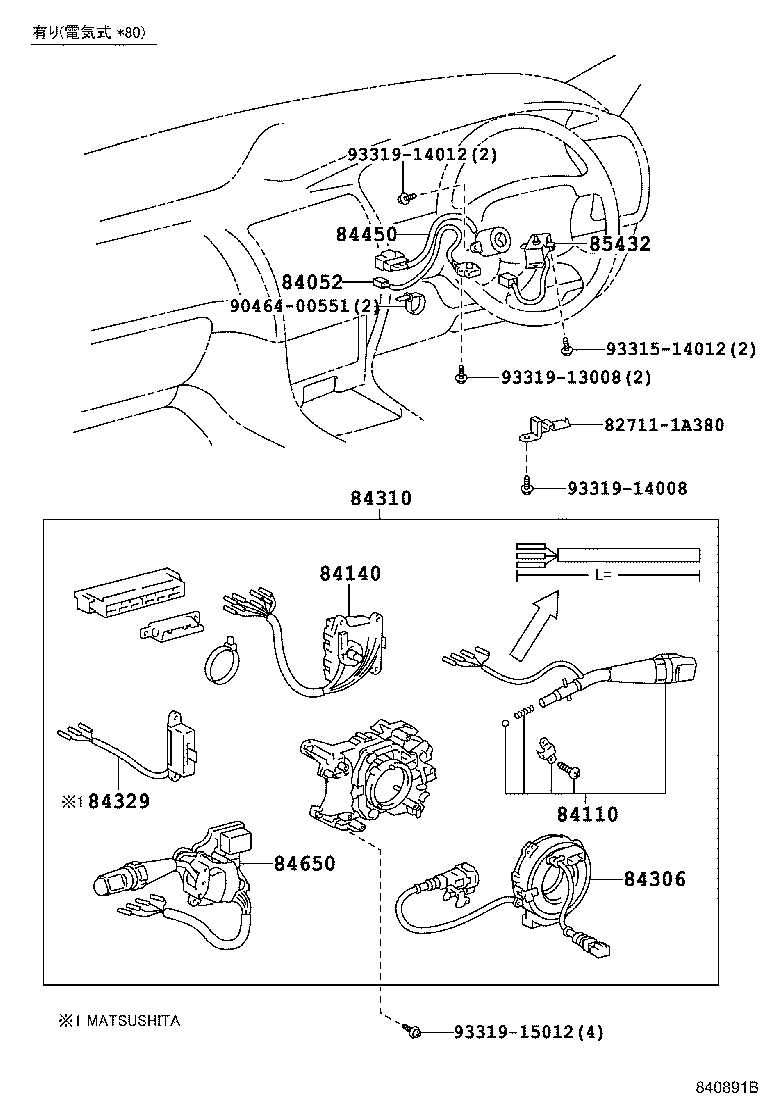

ILLUST NO. 6 OF 8(9610- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-16020 |
AE10#,CE10#,EE10# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80078 |
AE10#,CE10#,EE10#..CTD,DX,G,L,LT,LX,SJ L=450:ｲﾗｽﾄ参照 |
1 | ||
| 84112-80078 |
AE109,CE106,109,EE102,103..CTD,DX,DXJ L=450:ｲﾗｽﾄ参照 |
1 | ||
| 84112-80141 |
AE109,CE106,109,EE102,103..CTD,DX,DXJ ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),L=460:ｲﾗｽﾄ参照 |
1 | ||
| 84112-80216 |
AE109,CE105,106,107,109,EE102,103 ｱﾘ(*80),L=425:ｲﾗｽﾄ参照 |
1 | ||
| 84112-80211 |
AE109,CE106,108,109,EE10# ｱﾘ(ｷｶｲｼｷ *80),L=450:ｲﾗｽﾄ参照 |
1 | ||
| 84112-80216 |
AE10#,CE100,106,109,EE102,103 ｱﾘ(ﾃﾞﾝｷｼｷ *80),L=425:ｲﾗｽﾄ参照 |
1 | ||
| 84112-80078 |
AE109,CE105,106,107,109,EE102,103 L=450:ｲﾗｽﾄ参照 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12290 |
EE102..3FC..02S;EE103..(3FC,5F)..DX;CE105,107,EE102..4FC,5F |
1 | ||
| 84140-12290 |
AE101..3DS..GT;AE10#,CE10#,EE10#..CTD,DX,G,L,LT,LX,SEG,SJ |
1 | ||
| 84140-12290 |
AE109,CE106,108,109,EE10# |
1 | ||
| 84140-12420 |
AE10#,CE100,106,109,EE102,103 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84140-12290 |
AE10#,CE10#,EE10# |
1 | ||
| 84140-12420 |
AE109,CE105,106,107,109,EE102,103 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12090 |
AE109,CE106,108,109,EE10# |
1 | ||
| 84306-12090 |
AE10#,CE10#,EE10# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1E450 |
AE109,CE106,108,109,EE10# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-1A470 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX |
1 | ||
| 84310-1A530 |
AE109,CE106,109,EE102,103..CTD,DX,DXJ ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-1A470 |
AE109,CE105,106,107,109,EE102,103..CTD,DX,DXJ |
1 | ||
| 84310-1A700 |
AE109,CE105,106,107,109,EE102,103..CTD,DX,DXJ ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-1E570 |
AE109,CE105,106,107,109,EE102,103 ｱﾘ(*80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-1E120 |
AE109,CE106,108,109,EE10#..CTD,DX,DXJ,L ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 84310-1E560 |
AE109,CE105,106,107,109,EE102,103..CTD,DX,DXJ ｱﾘ(*80) |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12040 |
AE101..3DS..GT;AE10#,CE10#,EE10#..CTD,DX,G,L,LT,LX,SEG,SJ |
1 | ||
| 84329-12040 |
AE10#,CE10#,EE10# |
1 | ||
| 84329-12090 |
EE103..GL;EE102..4F..02S;AE109,CE105,106,107,109;EE102,103..(3FC,4F)..(DX,DXJ)..05S ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84329-12090 |
AE10#,CE100,106,109,EE102,103 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 84329-12040 |
CE105,107,EE102,103 |
1 | ||
| 84329-12040 |
AE109,CE106,108,109,EE10# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12180 |
AE10#,CE10#,EE10# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A080 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX |
1 | ||
| 84652-1A180 |
AE109,CE106,109,EE102,103..CTD,DX,DXJ ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-1A270 |
AE109,CE105,106,107,109,EE102,103..CTD,DX,DXJ ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-1A080 |
AE109,CE105,106,107,109,EE102,103..CTD,DX,DXJ |
1 | ||
| 84652-1A730 |
AE109,CE106,108,109,EE10# ｱﾘ(ｷｶｲｼｷ *80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-1A670 |
AE109,CE105,106,107,109,EE102,103..CTD,DX,DXJ ｱﾘ(ﾃﾞﾝｷｼｷ *80 & ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-1A660 |
AE109,CE105,106,107,109,EE102,103..CTD,DX,DXJ ｱﾘ(ﾃﾞﾝｷｼｷ *80) |
1 | ||
| 84652-1A570 |
AE109,CE106,108,109,EE10#..CTD,DX,DXJ,L ｱﾘ(ｷｶｲｼｷ *80) |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12010 |
AE10#,CE100,106,108,EE10#..ATM |
1 | ||
| 85432-20050 |
AE10#,CE100,101,102,106,107,108,EE10#..ATM |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
