EE103V-AXHDK (1994)
Toyota Corolla

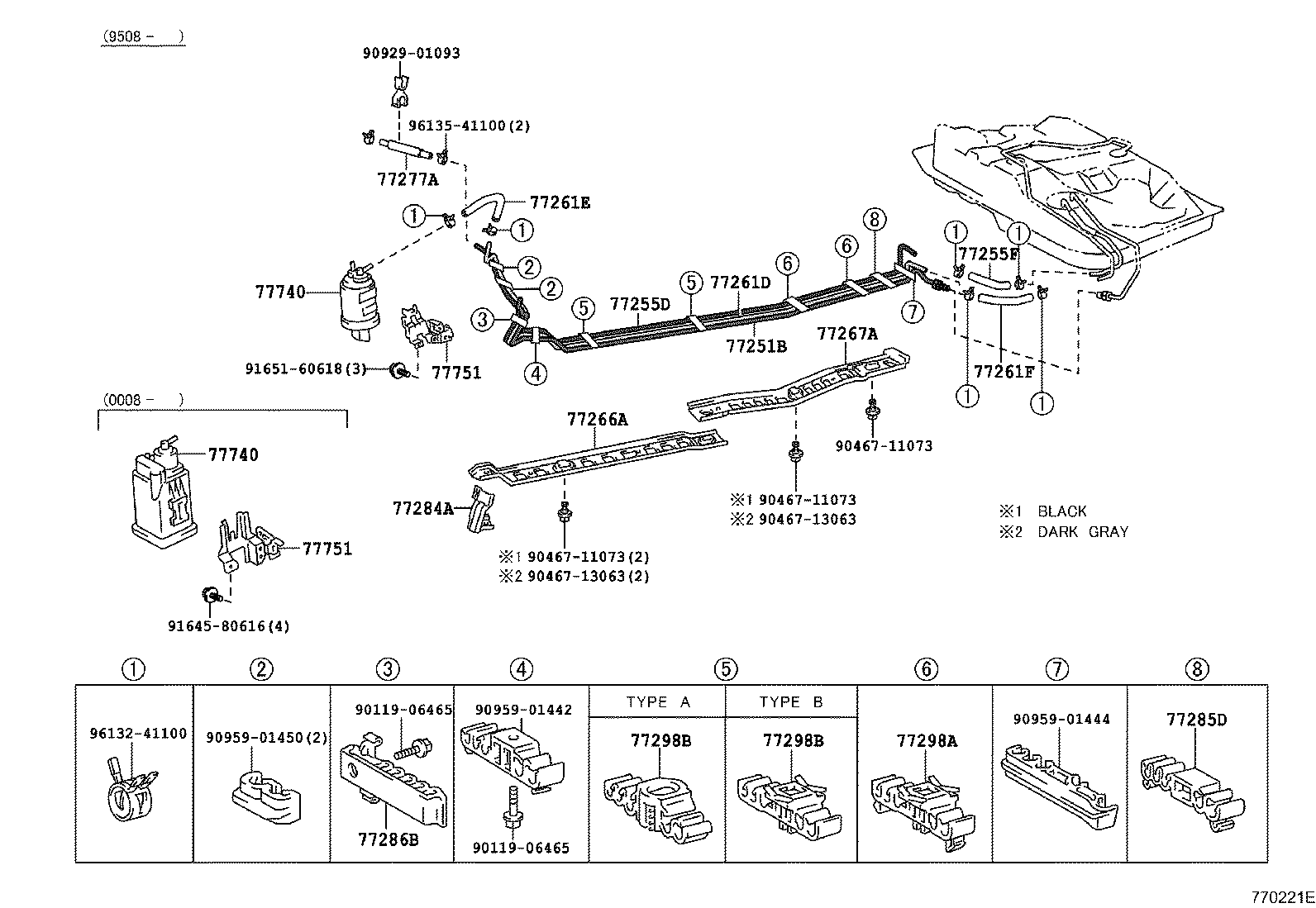

ILLUST NO. 2 OF 2(9508- )EE10#
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12520 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12460 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12380 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE100,101,104,CE100,101,102,104,106,107,108,EE101,102,103,104 *H,L=160 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE100,101,CE100,106,108,EE10# *H,L=120 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12080 |
AE10#,CE10#,EE10# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12100 |
AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77267-12130 |
AE10#,CE100,106,108,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77267-12130 |
AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12132 |
EE101,102,103,104 長さ=380 |
1 | ||
| 90447-12150 |
EE10# 長さ=330 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-12040 |
AE100,101,EE10# |
2 | ||
| 77285-12040 |
AE101,CE100,106,108,EE10# |
2 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12040 |
AE10#,CE10#,EE10# |
1 | ||
| 77286-12020 |
AE10#,CE10#,EE101,102,103,104 |
1 | ||
| 77286-12040 |
CE100,106,108,EE10# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12030 |
AE101..4FC,6F;AE100,104,EE10# |
2 | ||
| 77298-12030 |
AE10#,CE100,106,108,EE10# |
2 | ||
| 77298-12030 |
AE10#,CE10#,EE10# |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12050 |
AE10#,CE100,106,108,EE10# ﾀｲﾌﾟ B |
2 | ||
| 77298-12040 |
AE10#,CE10#,EE10# ﾀｲﾌﾟ A |
2 | ||
| 77298-12050 |
AE10#,CE10#,EE10# ﾀｲﾌﾟ B |
2 | ||
| 77298-12040 |
AE10#,CE100,106,108,EE10# ﾀｲﾌﾟ A |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12050 |
AE10#,CE100,106,108,EE10# ﾀｲﾌﾟ B |
2 | ||
| 77298-12040 |
AE10#,CE10#,EE10# ﾀｲﾌﾟ A |
2 | ||
| 77298-12050 |
AE10#,CE10#,EE10# ﾀｲﾌﾟ B |
2 | ||
| 77298-12040 |
AE10#,CE100,106,108,EE10# ﾀｲﾌﾟ A |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12610 |
AE10#,EE101,102,103,104 |
1 | ||
| 77740-12690 |
EE10# |
1 | ||
| 77740-12610 |
AE104,109,EE10# |
1 | ||
| 77740-10140 |
AE101..4FC,6F;AE100,104,109,EE10# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12610 |
AE10#,EE101,102,103,104 |
1 | ||
| 77740-12690 |
EE10# |
1 | ||
| 77740-12610 |
AE104,109,EE10# |
1 | ||
| 77740-10140 |
AE101..4FC,6F;AE100,104,109,EE10# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-12160 |
EE10# |
1 | ||
| 77750-12080 |
AE10#,EE101,102,103,104 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-12160 |
EE10# |
1 | ||
| 77750-12080 |
AE10#,EE101,102,103,104 |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90467-11073 | ||||
| 90467-13063 | ||||
| 90929-01093 | ||||
| 90959-01442 | ||||
| 90959-01444 | ||||
| 90959-01450 | ||||
| 91645-80616 | ||||
| 91651-60618 | ||||
| 96132-41100 | ||||
| 96135-41100 | ||||
ILLUST NO. 2 OF 2(9106-9505)AE100,101,EE101 ; (9401-9508)EE102,103,104
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12520 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12460 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12380 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE100,101,104,CE100,101,102,104,106,107,108,EE101,102,103,104 *H,L=160 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE100,101,CE100,106,108,EE10# *H,L=120 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12080 |
AE10#,CE10#,EE10# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12100 |
AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77267-12130 |
AE10#,CE100,106,108,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77267-12130 |
AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12132 |
EE101,102,103,104 長さ=380 |
1 | ||
| 90447-12150 |
EE10# 長さ=330 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-12020 |
AE10#,CE104,109,EE101,102,103,104 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12040 |
AE10#,CE10#,EE10# |
1 | ||
| 77286-12020 |
AE10#,CE10#,EE101,102,103,104 |
1 | ||
| 77286-12040 |
CE100,106,108,EE10# |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-12020 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77412-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12610 |
AE10#,EE101,102,103,104 |
1 | ||
| 77740-12690 |
EE10# |
1 | ||
| 77740-12610 |
AE104,109,EE10# |
1 | ||
| 77740-10140 |
AE101..4FC,6F;AE100,104,109,EE10# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-12160 |
EE10# |
1 | ||
| 77750-12080 |
AE10#,EE101,102,103,104 |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06635 | ||||
| 90467-11073 | ||||
| 90467-13063 | ||||
| 90480-01606 | ||||
| 90929-01093 | ||||
| 90959-01442 | ||||
| 90959-01443 | ||||
| 90959-01444 | ||||
| 90959-01448 | ||||
| 90959-01450 | ||||
| 91645-80616 | ||||
| 96132-41100 | ||||
| 96135-41100 | ||||
