EE103V-AXHDK (1994)
Toyota Corolla

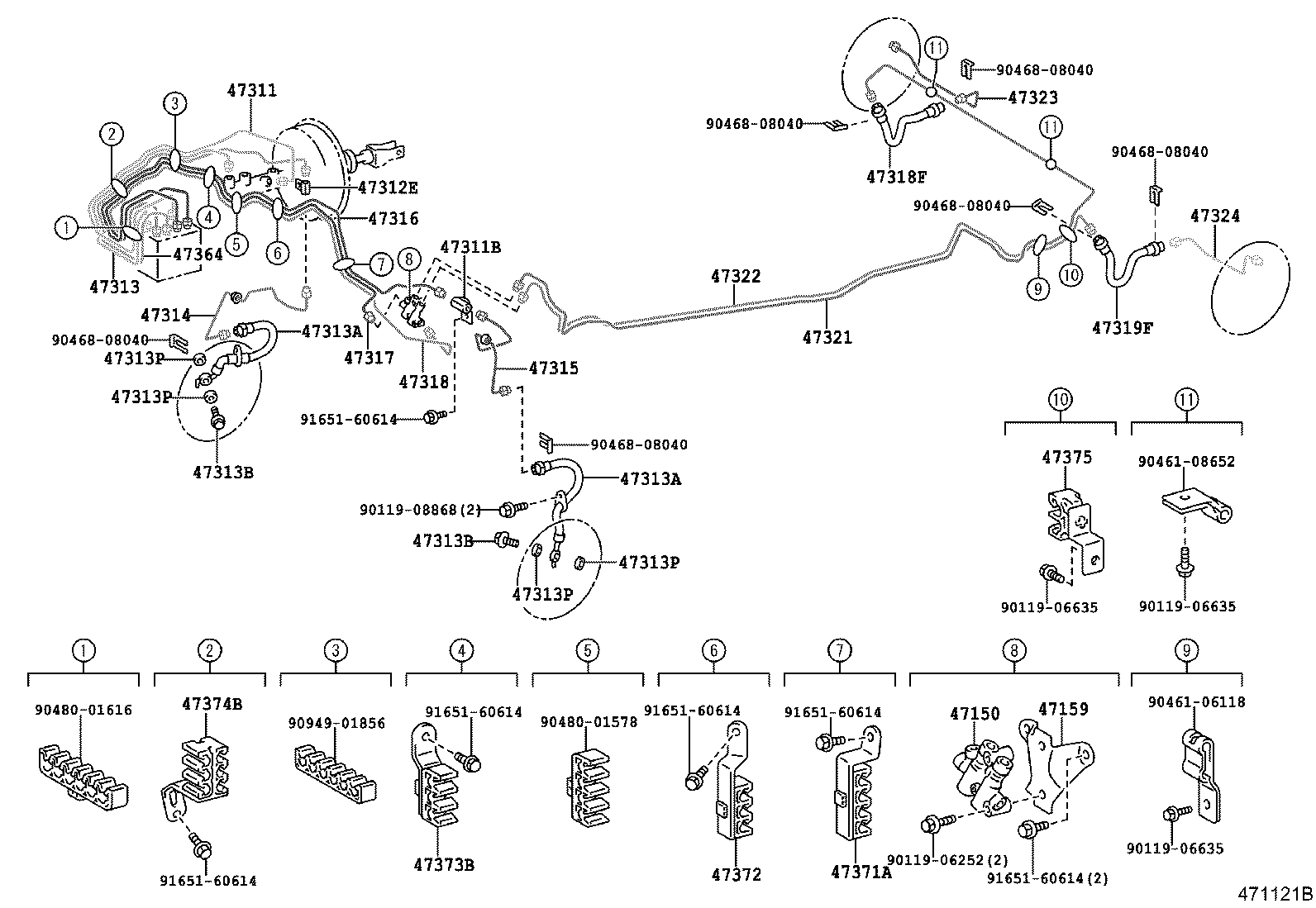

ILLUST NO. 1 OF 2(9804- )CE102,107,EE10#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-16050 |
AE101,CE106,EE102,103,106,107..(4DS,V)..(CTD,DX,DXJ,GL,GT) |
1 | ||
| 47150-13020 |
EE102,103 ｱﾘ(ABS) |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12450 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47311-12540 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47311-12560 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47311-12540 |
CE106,108,109,EE10# |
1 | ||
| 47311-12620 |
AE109,CE102,105,107,EE10# ｱﾘ(ABS) |
1 | ||
| 47311-12560 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F |
1 | ||
| 47311-12560 |
AE10#,CE10#,EE10# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10116 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| 90413-10262 |
AE10#,CE10#,EE10# |
1 | ||
| 47391-12010 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 90412-10116 |
AE10#,CE10#,EE10#..3FC,4FC,5F,6F ｱﾘ(ABS) |
1 | ||
| 47391-12010 |
AE104..WG;AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12007 |
AE10#,CE10#,EE10# |
1 | ||
| 90904-12007 |
AE10#,CE10#,EE10#..3FC,4FC,5F,6F |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12340 |
CE106,108,109,EE10# |
1 | ||
| 47313-12340 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47313-12260 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47313-12430 |
AE109,CE102,105,107,EE10# ｱﾘ(ABS) |
1 | ||
| 47313-12370 |
AE10#,CE10#,EE10# |
1 | ||
| 47313-12370 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47313-12430 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F ｱﾘ(ABS) |
1 | ||
| 47313-12370 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02798 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02799 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02910 |
AE100,101,CE100,101,102,106,107,108,EE10# 右側 |
1 | ||
| 90947-02659 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02910 |
CE106,108,EE10# 右側 |
1 | ||
| 90947-02913 |
CE106,108,EE10# 左側 |
1 | ||
| 90947-02913 |
AE100,101,CE100,101,102,106,107,108,EE10# 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02798 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02799 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02910 |
AE100,101,CE100,101,102,106,107,108,EE10# 右側 |
1 | ||
| 90947-02659 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02910 |
CE106,108,EE10# 右側 |
1 | ||
| 90947-02913 |
CE106,108,EE10# 左側 |
1 | ||
| 90947-02913 |
AE100,101,CE100,101,102,106,107,108,EE10# 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE10#,CE10#,EE10# |
2 | ||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE10#,CE10#,EE10# |
2 | ||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47389-50020 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47389-50020 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47389-50020 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47389-50020 |
AE10#,CE10#,EE10# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12400 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47314-12320 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47314-12400 |
CE106,108,109,EE10# |
1 | ||
| 47314-12290 |
AE10#,CE10#,EE10# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE10#,CE10#,EE10# |
1 | ||
| 47315-12450 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| 47315-12450 |
AE10#,CE10#,EE10#..3FC,4FC,5F,6F ｱﾘ(ABS) |
1 | ||
| 47315-12460 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-12320 |
AE109,CE102,105,107,EE10# |
1 | ||
| 47316-12320 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12170 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F |
1 | ||
| 47317-12170 |
AE109,CE102,105,107,EE10# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12310 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F |
1 | ||
| 47318-12310 |
AE109,CE102,105,107,EE10# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02908 |
CE102,106,107,108,EE10# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02908 |
CE102,106,107,108,EE10# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-13150 |
CE102,107,EE10# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-13150 |
CE102,107,EE10# |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-12160 |
AE109,CE102,105,107,EE10# |
1 | ||
| 47364-12160 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 47371-12100 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47371-12090 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90461-06119 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 90461-06119 |
AE10#,CE10#,EE10# |
1 | ||
| 47372-12060 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-12010 |
AE10#,CE10#,EE10# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-12030 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90461-06118 | ||||
| 90461-08652 | ||||
| 90468-08040 | ||||
| 90480-01578 | ||||
| 90480-01616 | ||||
| 90949-01856 | ||||
| 91651-60614 | ||||

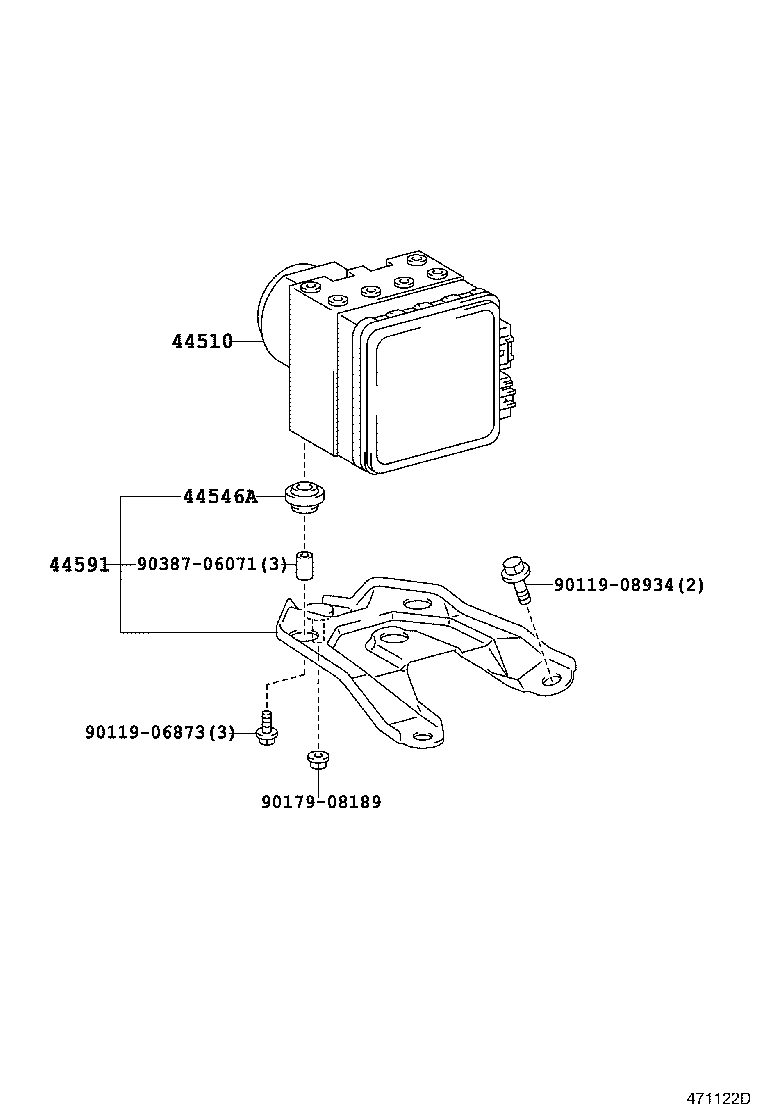

ILLUST NO. 2 OF 2(9804- )AE109,CE102,105,107,EE10#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12050 |
CE102,107,EE10# |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
AE109,CE102,105,107,EE10# |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-12030 |
AE109,CE102,105,107,EE10# |
1 | ||
| 44590-12040 |
AE109,CE102,105,107,EE10# |
1 | ||
| Common parts | ||||
| 90119-06873 | ||||
| 90119-08934 | ||||
| 90179-08189 | ||||
| 90387-06071 | ||||

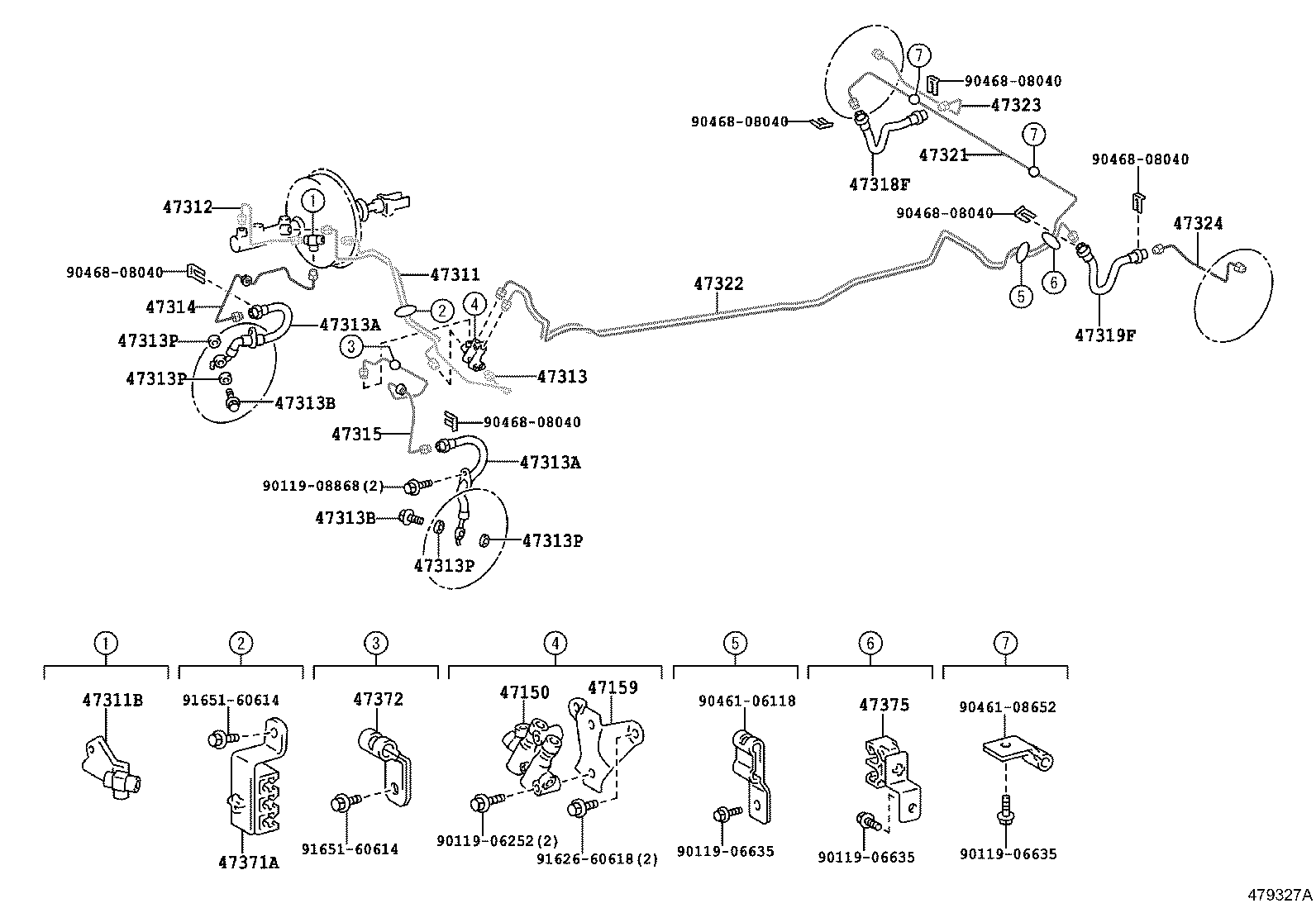

(9106-9704)CE106,108,EE102,103,104,106,107,108
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-16050 |
AE101,CE106,EE102,103,106,107..(4DS,V)..(CTD,DX,DXJ,GL,GT) |
1 | ||
| 47150-13020 |
EE102,103 ｱﾘ(ABS) |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12450 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47311-12540 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47311-12560 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47311-12540 |
CE106,108,109,EE10# |
1 | ||
| 47311-12620 |
AE109,CE102,105,107,EE10# ｱﾘ(ABS) |
1 | ||
| 47311-12560 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F |
1 | ||
| 47311-12560 |
AE10#,CE10#,EE10# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10116 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| 90413-10262 |
AE10#,CE10#,EE10# |
1 | ||
| 47391-12010 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 90412-10116 |
AE10#,CE10#,EE10#..3FC,4FC,5F,6F ｱﾘ(ABS) |
1 | ||
| 47391-12010 |
AE104..WG;AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12330 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47312-12330 |
AE104..WG;AE100,101,CE100,106,108,109,EE10# |
1 | ||
| 47312-12290 |
AE100,101,CE100,106,108,109,EE10# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12340 |
CE106,108,109,EE10# |
1 | ||
| 47313-12340 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47313-12260 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47313-12430 |
AE109,CE102,105,107,EE10# ｱﾘ(ABS) |
1 | ||
| 47313-12370 |
AE10#,CE10#,EE10# |
1 | ||
| 47313-12370 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47313-12430 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F ｱﾘ(ABS) |
1 | ||
| 47313-12370 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02798 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02799 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02910 |
AE100,101,CE100,101,102,106,107,108,EE10# 右側 |
1 | ||
| 90947-02659 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02910 |
CE106,108,EE10# 右側 |
1 | ||
| 90947-02913 |
CE106,108,EE10# 左側 |
1 | ||
| 90947-02913 |
AE100,101,CE100,101,102,106,107,108,EE10# 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02798 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02799 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02910 |
AE100,101,CE100,101,102,106,107,108,EE10# 右側 |
1 | ||
| 90947-02659 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02910 |
CE106,108,EE10# 右側 |
1 | ||
| 90947-02913 |
CE106,108,EE10# 左側 |
1 | ||
| 90947-02913 |
AE100,101,CE100,101,102,106,107,108,EE10# 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE10#,CE10#,EE10# |
2 | ||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47389-50020 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47389-50020 |
AE10#,CE10#,EE10# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12400 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47314-12320 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47314-12400 |
CE106,108,109,EE10# |
1 | ||
| 47314-12290 |
AE10#,CE10#,EE10# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE10#,CE10#,EE10# |
1 | ||
| 47315-12450 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| 47315-12450 |
AE10#,CE10#,EE10#..3FC,4FC,5F,6F ｱﾘ(ABS) |
1 | ||
| 47315-12460 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02830 |
CE106,108,EE10# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02830 |
CE106,108,EE10# |
2 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-13150 |
CE102,107,EE10# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-13150 |
CE102,107,EE10# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 47371-12100 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47371-12090 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90461-06119 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 90461-06119 |
AE10#,CE10#,EE10# |
1 | ||
| 47372-12060 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91651-40616 | ||||
(9704- )CE102,106,107,108,EE10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-16050 |
AE101,CE106,EE102,103,106,107..(4DS,V)..(CTD,DX,DXJ,GL,GT) |
1 | ||
| 47150-13020 |
EE102,103 ｱﾘ(ABS) |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12450 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47311-12540 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47311-12560 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47311-12540 |
CE106,108,109,EE10# |
1 | ||
| 47311-12620 |
AE109,CE102,105,107,EE10# ｱﾘ(ABS) |
1 | ||
| 47311-12560 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F |
1 | ||
| 47311-12560 |
AE10#,CE10#,EE10# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10116 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| 90413-10262 |
AE10#,CE10#,EE10# |
1 | ||
| 47391-12010 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 90412-10116 |
AE10#,CE10#,EE10#..3FC,4FC,5F,6F ｱﾘ(ABS) |
1 | ||
| 47391-12010 |
AE104..WG;AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12330 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47312-12330 |
AE104..WG;AE100,101,CE100,106,108,109,EE10# |
1 | ||
| 47312-12290 |
AE100,101,CE100,106,108,109,EE10# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12340 |
CE106,108,109,EE10# |
1 | ||
| 47313-12340 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47313-12260 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47313-12430 |
AE109,CE102,105,107,EE10# ｱﾘ(ABS) |
1 | ||
| 47313-12370 |
AE10#,CE10#,EE10# |
1 | ||
| 47313-12370 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47313-12430 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F ｱﾘ(ABS) |
1 | ||
| 47313-12370 |
AE109,CE102,105,107,EE10#..3FC,4FC,5F |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02798 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02799 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02910 |
AE100,101,CE100,101,102,106,107,108,EE10# 右側 |
1 | ||
| 90947-02659 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02910 |
CE106,108,EE10# 右側 |
1 | ||
| 90947-02913 |
CE106,108,EE10# 左側 |
1 | ||
| 90947-02913 |
AE100,101,CE100,101,102,106,107,108,EE10# 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02798 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02799 |
AE100,101,CE100,106,108,EE10# 左側 |
1 | ||
| 90947-02910 |
AE100,101,CE100,101,102,106,107,108,EE10# 右側 |
1 | ||
| 90947-02659 |
AE100,101,CE100,106,108,EE10# 右側 |
1 | ||
| 90947-02910 |
CE106,108,EE10# 右側 |
1 | ||
| 90947-02913 |
CE106,108,EE10# 左側 |
1 | ||
| 90947-02913 |
AE100,101,CE100,101,102,106,107,108,EE10# 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE10#,CE10#,EE10# |
2 | ||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE10#,CE10#,EE10# |
2 | ||
| 90401-10015 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47389-50020 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47389-50020 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47389-50020 |
AE10#,CE10#,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE10#,EE10# |
4 | ||
| 47389-50020 |
AE10#,CE10#,EE10# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12400 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47314-12320 |
AE100,101,CE100,106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 47314-12400 |
CE106,108,109,EE10# |
1 | ||
| 47314-12290 |
AE10#,CE10#,EE10# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE10#,CE10#,EE10# |
1 | ||
| 47315-12450 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| 47315-12450 |
AE10#,CE10#,EE10#..3FC,4FC,5F,6F ｱﾘ(ABS) |
1 | ||
| 47315-12460 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02908 |
CE102,106,107,108,EE10# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02908 |
CE102,106,107,108,EE10# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-13150 |
CE102,107,EE10# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-13150 |
CE102,107,EE10# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12100 |
AE10#,CE10#,EE10# |
1 | ||
| 47371-12100 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 47371-12090 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90461-06119 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 90461-06119 |
AE10#,CE10#,EE10# |
1 | ||
| 47372-12060 |
AE10#,CE10#,EE10# ｱﾘ(ABS) |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90461-06118 | ||||
| 90461-08652 | ||||
| 90468-08040 | ||||
| 91626-60618 | ||||
| 91651-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
