EE103V-AXHDK (1994)

Toyota Corolla

Production Jan 1994 - Jun 2002
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )EE10#

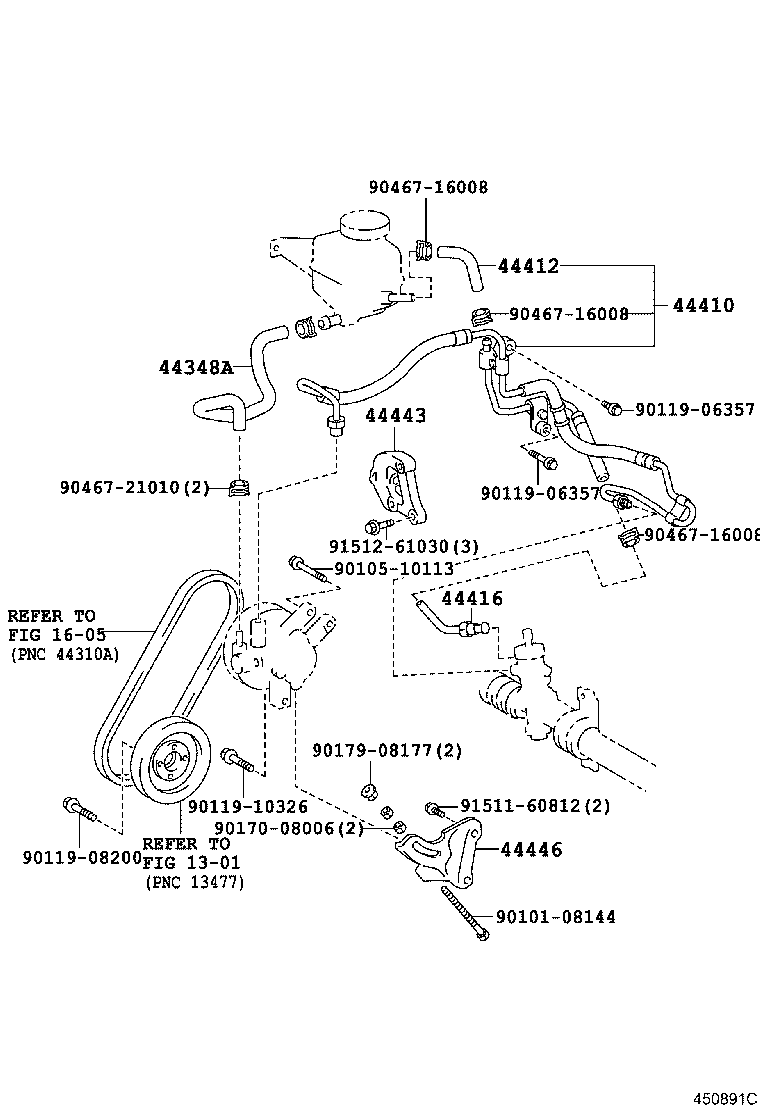

Click highlighted areas on diagram

diagram 1301 1605 44348A 44410 44412 44416 44443 44446 9010108144 9010510113 9011906357 9011906357 9011908200 9011910326 9017008006 9017908177 9046716008 9046716008 9046716008 9046721010 9151160812 9151261030
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-12070

EE10#

 1
44410 - TUBE ASSY, PRESSURE FEED
44040-12080

EE10#

 1
44040-12191

EE10#

 1
44412 - HOSE, RETURN
44412-12200

AE101,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEL,XE

 1
44443 - BRACKET, PUMP
44443-10030

EE101,102,103,104

 1
44446 - STRUT, ADJUSTING
44446-16051

EE103,104

 1
Common parts
90101-08144
90105-10113
90119-06357
90119-08200
90119-10326
90170-08006
90179-08177
90467-16008
90467-21010
91511-60812
91512-61030
Linked diagrams
1301
1605
