EE103V-AXHDK (1994)

Toyota Corolla

Production Jan 1994 - Jun 2002
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9704- )4EFE,5EFE

Click highlighted areas on diagram

diagram 1603 1603 2182125180 22210 22215 22270 22271 23250 23250B 23250C 23280 23280E 23291 23300P 23300T 23300T 23300U 23801F 23801G 23801H 23801H 23801P 23802C 23802D 23802D 23807 23807V 7701 8404 9007911003 9011908145 9012608015 9017908054 9151160840 91511J0840 9162160612 9162160612 9165160625
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-11370

5EFE..EE103,104..3FC

 1
22210-11650

4EFE,5EFE..EE10#..3FC

 1
22210-11600

4EFE,5EFE..EE10#..3FC

 1
22215 - GASKET, THROTTLE BODY COVER
22215-11110

4EFE,5EFE..EE101,102,103,104

 1
22215-74400

4EFE,5EFE..EE10#

 1
22215-74400

4EFE,5EFE..EE10#..3FC

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-11020

4EFE,5EFE..EE10#

 1
22271 - GASKET, THROTTLE BODY
22271-11030

4EFE,5EFE..EE10#

 1
22271-11020

4EFE,5EFE..EE101,102,103,104

 1
23250 - INJECTOR ASSY, FUEL
23209-11050

4EFE,5EFE..EE101,102,103,104

 4
23209-11130

5EFE..EE103,104

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

4EFE,5EFE..EE101,102,103,104

 4
90301-07024

4EFE,5EFE..EE10#

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

4EFE,5EFE..EE101,102,103,104

 4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-11040

4EFE,5EFE..EE101,102,103,104

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07024

4EFE,5EFE..EE10#

 1
90301-07001

4EFE,5EFE..EE101,102,103,104

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

4EFE,5EFE..EE101,102,103,104

 4
23300P - FILTER, FUEL(FOR EFI)
23300-19295

4EFE,5EFE..EE101,102,103,104

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4EFE,5EFE..EE101,102,103,104

 1
23801F - HOSE, FUEL, NO.1
23271-11130

4EFE,5EFE..EE101,102,103,104

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12029

4EFE,5EFE..EE101,102,103,104

 1
90401-12033

5EFE..EE103,104

 1
90401-12033

4EFE,5EFE..EE10#

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23279-74010

4EFE,5EFE..EE10#

 2
23279-74010

5EFE..EE103,104

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23279-74010

4EFE,5EFE..EE10#

 2
23279-74010

5EFE..EE103,104

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-11120

4EFE,5EFE..EE10#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-11030

4EFE,5EFE..EE101,102,103,104

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-11020

5EFE..EE103,104

 2
23890-11010

4EFE,5EFE..EE101,102,103,104

 2
23891-11020

4EFE,5EFE..EE10#

 2
Common parts
21821-25180
90079-11003
90119-08145
90126-08015
90179-08054
91511-60840
91511-J0840
91621-60612
91651-60625
Linked diagrams
1603
7701
8404

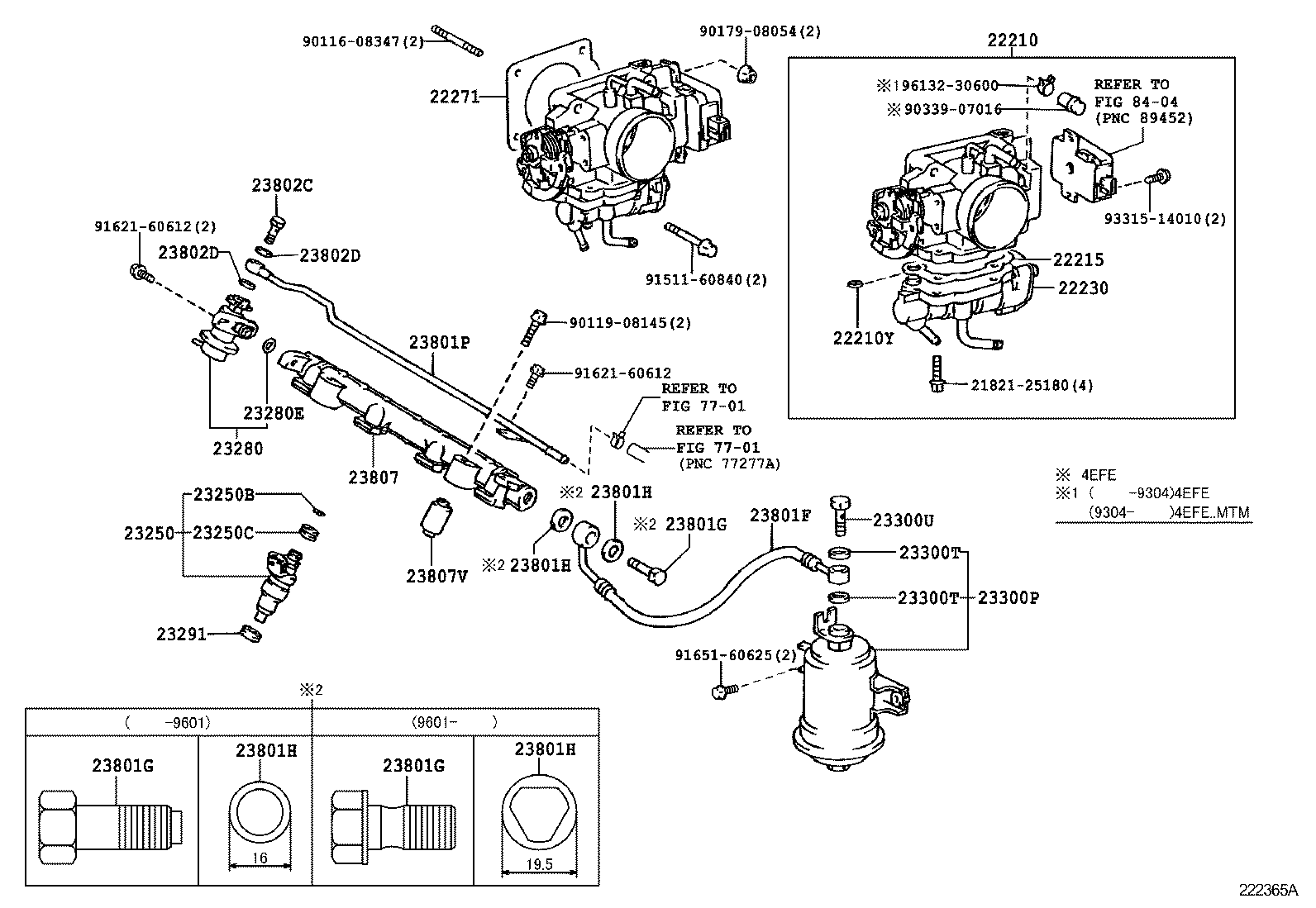

ILLUST NO. 1 OF 3(9106-9704)4EFE,5EFE

Click highlighted areas on diagram

diagram 2182125180 22210 22210Y 22215 22230 22271 23250 23250B 23250C 23280 23280E 23291 23300P 23300T 23300T 23300U 23801F 23801G 23801G 23801G 23801H 23801H 23801H 23801H 23801P 23802C 23802D 23802D 23807 23807V 7701 7701 8404 9011608347 9011908145 9017908054 9033907016 9151160840 9162160612 9162160612 9165160625 9331514010 9613230600
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-11370

5EFE..EE103,104..3FC

 1
22210-11650

4EFE,5EFE..EE10#..3FC

 1
22210-11600

4EFE,5EFE..EE10#..3FC

 1
22210Y - RING, O(FOR AIR TUBE)
96711-19009

4EFE,5EFE..EE101,102,103,104

 1
22215 - GASKET, THROTTLE BODY COVER
22215-11110

4EFE,5EFE..EE101,102,103,104

 1
22215-74400

4EFE,5EFE..EE10#

 1
22215-74400

4EFE,5EFE..EE10#..3FC

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-11080

4EFE,5EFE..EE101,102,103,104..3FC

 1
22271 - GASKET, THROTTLE BODY
22271-11030

4EFE,5EFE..EE10#

 1
22271-11020

4EFE,5EFE..EE101,102,103,104

 1
23250 - INJECTOR ASSY, FUEL
23209-11050

4EFE,5EFE..EE101,102,103,104

 4
23209-11130

5EFE..EE103,104

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

4EFE,5EFE..EE101,102,103,104

 4
90301-07024

4EFE,5EFE..EE10#

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

4EFE,5EFE..EE101,102,103,104

 4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-11040

4EFE,5EFE..EE101,102,103,104

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07024

4EFE,5EFE..EE10#

 1
90301-07001

4EFE,5EFE..EE101,102,103,104

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

4EFE,5EFE..EE101,102,103,104

 4
23300P - FILTER, FUEL(FOR EFI)
23300-19295

4EFE,5EFE..EE101,102,103,104

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4EFE,5EFE..EE101,102,103,104

 1
23801F - HOSE, FUEL, NO.1
23271-11130

4EFE,5EFE..EE101,102,103,104

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12029

4EFE,5EFE..EE101,102,103,104

 1
90401-12033

5EFE..EE103,104

 1
90401-12033

4EFE,5EFE..EE10#

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12029

4EFE,5EFE..EE101,102,103,104

 1
90401-12033

5EFE..EE103,104

 1
90401-12033

4EFE,5EFE..EE10#

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12029

4EFE,5EFE..EE101,102,103,104

 1
90401-12033

5EFE..EE103,104

 1
90401-12033

4EFE,5EFE..EE10#

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23279-74010

4EFE,5EFE..EE10#

 2
23279-74010

5EFE..EE103,104

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23279-74010

4EFE,5EFE..EE10#

 2
23279-74010

5EFE..EE103,104

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23279-74010

4EFE,5EFE..EE10#

 2
23279-74010

5EFE..EE103,104

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23279-74010

4EFE,5EFE..EE10#

 2
23279-74010

5EFE..EE103,104

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-11120

4EFE,5EFE..EE10#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-11030

4EFE,5EFE..EE101,102,103,104

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-11020

5EFE..EE103,104

 2
23890-11010

4EFE,5EFE..EE101,102,103,104

 2
23891-11020

4EFE,5EFE..EE10#

 2
Common parts
21821-25180
90116-08347
90119-08145
90179-08054
90339-07016
91511-60840
91621-60612
91651-60625
93315-14010
96132-30600
Linked diagrams
7701
8404
