EE103V-AXHDK (1994)

Toyota Corolla

Production Jan 1994 - Jun 2002
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )4EFE,5EFE

Click highlighted areas on diagram

diagram 19100P 19500 19500 19539 19539 19539 19539 19901 19901B 19901C 19901D 19901E 19941 19946 19968 9011906595 9017908054 9164380620 9164380620 9164580822 9164580822 9211280818
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01164

4EFE,5EFE..EE101,102,103,104

K16R−U11

 4
90919-01192

4EFE,5EFE..EE10#

K16TR11

 4
19500 - COIL ASSY, IGNITION
90919-02220

4EFE,5EFE..EE10#

NO.2,3

 1
90919-02226

4EFE,5EFE..EE10#

NO.1,4

 1
19500 - COIL ASSY, IGNITION
90919-02220

4EFE,5EFE..EE10#

NO.2,3

 1
90919-02226

4EFE,5EFE..EE10#

NO.1,4

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE,5EFE..EE101,102,103,104

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

NO.1,2

 2
19539-11030

4EFE,5EFE..EE10#

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

 4
19539-50010

4EFE,5EFE..EE101,102,103,104

NO.1,2

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE,5EFE..EE101,102,103,104

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

NO.1,2

 2
19539-11030

4EFE,5EFE..EE10#

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

 4
19539-50010

4EFE,5EFE..EE101,102,103,104

NO.1,2

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE,5EFE..EE101,102,103,104

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

NO.1,2

 2
19539-11030

4EFE,5EFE..EE10#

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

 4
19539-50010

4EFE,5EFE..EE101,102,103,104

NO.1,2

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE,5EFE..EE101,102,103,104

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

NO.1,2

 2
19539-11030

4EFE,5EFE..EE10#

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

 4
19539-50010

4EFE,5EFE..EE101,102,103,104

NO.1,2

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22373

4EFE,5EFE..EE10#

 1
90919-22325

4EFE,5EFE..EE10#

TYPE B:ｲﾗｽﾄ参照

 1
90919-22399

4EFE,5EFE..EE101,102,103,104

TYPE A:ｲﾗｽﾄ参照

 1
90919-22395

4EFE,5EFE..EE10#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15543

4EFE,5EFE..EE101,102,103,104

TYPE A:ｲﾗｽﾄ参照

 1
90919-15423

4EFE,5EFE..EE10#

 1
90919-15510

4EFE,5EFE..EE10#

 1
90919-15199

4EFE,5EFE..EE10#

TYPE B:ｲﾗｽﾄ参照

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15424

4EFE,5EFE..EE10#

 1
90919-15200

4EFE,5EFE..EE10#

TYPE B:ｲﾗｽﾄ参照

 1
90919-15544

4EFE,5EFE..EE101,102,103,104

TYPE A:ｲﾗｽﾄ参照

 1
90919-15511

4EFE,5EFE..EE10#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15545

4EFE,5EFE..EE101,102,103,104

TYPE A:ｲﾗｽﾄ参照

 1
90919-15425

4EFE,5EFE..EE10#

 1
90919-15201

4EFE,5EFE..EE10#

TYPE B:ｲﾗｽﾄ参照

 1
90919-15512

4EFE,5EFE..EE10#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15513

4EFE,5EFE..EE10#

 1
90919-15550

4EFE,5EFE..EE101,102,103,104

TYPE A:ｲﾗｽﾄ参照

 1
90919-15202

4EFE,5EFE..EE10#

TYPE B:ｲﾗｽﾄ参照

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01258

4EFE,5EFE..EE101,102,103,104

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00561

4EFE,5EFE..EE101,102,103,104

 1
19968 - BRACKET, IGNITION COIL
19968-11030

4EFE,5EFE..EE10#

 1
Common parts
90119-06595
90179-08054
91643-80620
91645-80822
92112-80818

(9106-9704)4EFE,5EFE

Click highlighted areas on diagram

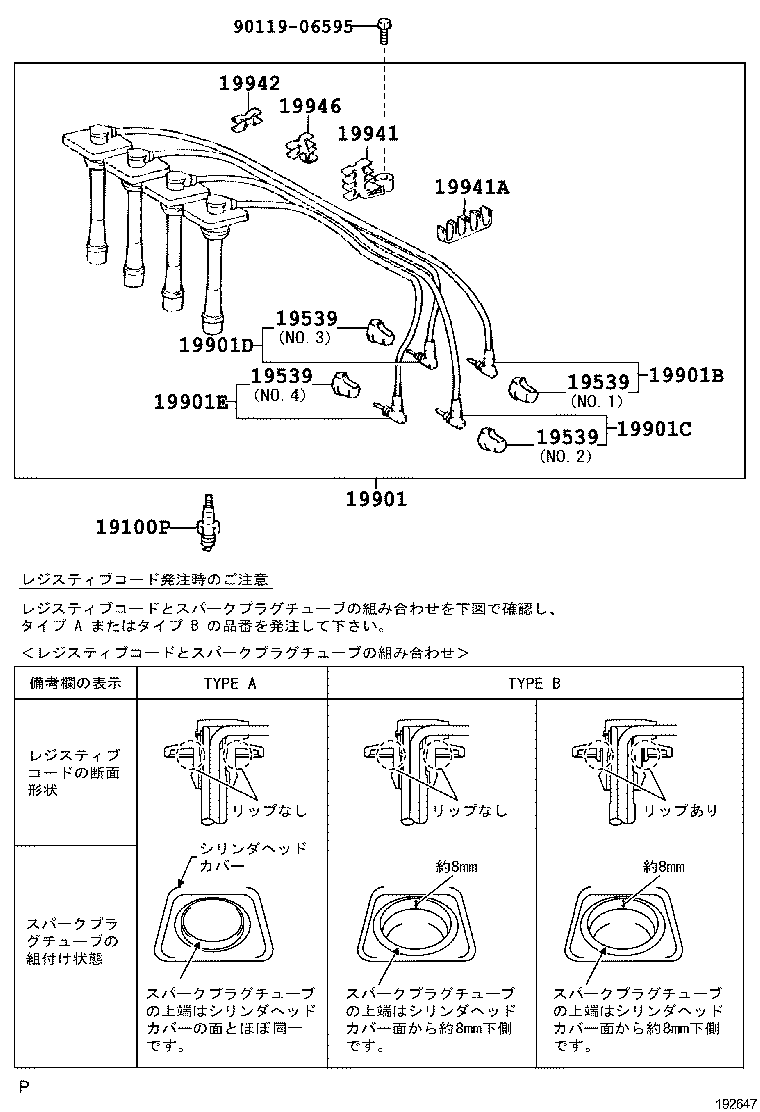

diagram 19100P 19539 19539 19539 19539 19901 19901B 19901C 19901D 19901E 19941 19941A 19942 19946 9011906595
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01164

4EFE,5EFE..EE101,102,103,104

K16R−U11

 4
90919-01192

4EFE,5EFE..EE10#

K16TR11

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE,5EFE..EE101,102,103,104

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

NO.1,2

 2
19539-11030

4EFE,5EFE..EE10#

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

 4
19539-50010

4EFE,5EFE..EE101,102,103,104

NO.1,2

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE,5EFE..EE101,102,103,104

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

NO.1,2

 2
19539-11030

4EFE,5EFE..EE10#

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

 4
19539-50010

4EFE,5EFE..EE101,102,103,104

NO.1,2

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE,5EFE..EE101,102,103,104

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

NO.1,2

 2
19539-11030

4EFE,5EFE..EE10#

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

 4
19539-50010

4EFE,5EFE..EE101,102,103,104

NO.1,2

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE,5EFE..EE101,102,103,104

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

NO.1,2

 2
19539-11030

4EFE,5EFE..EE10#

NO.3,4

 2
19539-11020

4EFE,5EFE..EE10#

 4
19539-50010

4EFE,5EFE..EE101,102,103,104

NO.1,2

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22373

4EFE,5EFE..EE10#

 1
90919-22325

4EFE,5EFE..EE10#

TYPE B:ｲﾗｽﾄ参照

 1
90919-22399

4EFE,5EFE..EE101,102,103,104

TYPE A:ｲﾗｽﾄ参照

 1
90919-22395

4EFE,5EFE..EE10#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15543

4EFE,5EFE..EE101,102,103,104

TYPE A:ｲﾗｽﾄ参照

 1
90919-15423

4EFE,5EFE..EE10#

 1
90919-15510

4EFE,5EFE..EE10#

 1
90919-15199

4EFE,5EFE..EE10#

TYPE B:ｲﾗｽﾄ参照

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15424

4EFE,5EFE..EE10#

 1
90919-15200

4EFE,5EFE..EE10#

TYPE B:ｲﾗｽﾄ参照

 1
90919-15544

4EFE,5EFE..EE101,102,103,104

TYPE A:ｲﾗｽﾄ参照

 1
90919-15511

4EFE,5EFE..EE10#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15545

4EFE,5EFE..EE101,102,103,104

TYPE A:ｲﾗｽﾄ参照

 1
90919-15425

4EFE,5EFE..EE10#

 1
90919-15201

4EFE,5EFE..EE10#

TYPE B:ｲﾗｽﾄ参照

 1
90919-15512

4EFE,5EFE..EE10#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15513

4EFE,5EFE..EE10#

 1
90919-15550

4EFE,5EFE..EE101,102,103,104

TYPE A:ｲﾗｽﾄ参照

 1
90919-15202

4EFE,5EFE..EE10#

TYPE B:ｲﾗｽﾄ参照

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01258

4EFE,5EFE..EE101,102,103,104

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00559

4EFE,5EFE..EE101,102,103,104

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00560

4EFE,5EFE..EE101,102,103,104

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00561

4EFE,5EFE..EE101,102,103,104

 1
Common parts
90119-06595
