EE103V-AXHDK (1994)

Toyota Corolla

Production Jan 1994 - Jun 2002
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

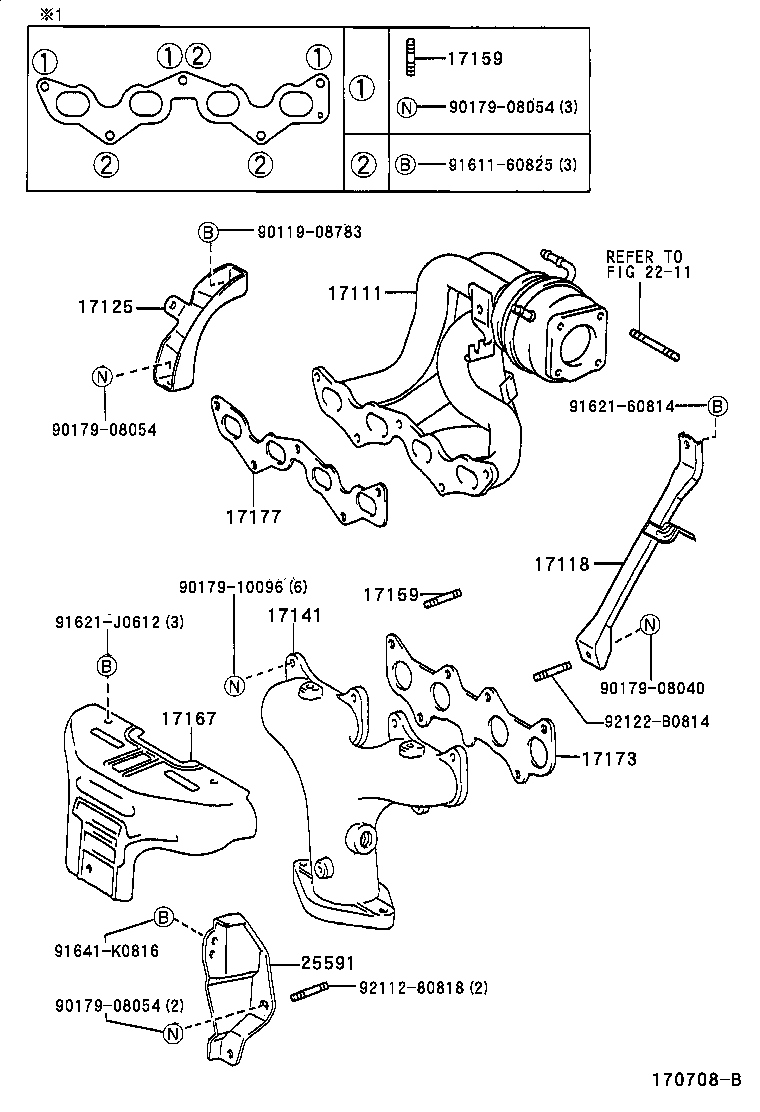

(9704- )4EFE,5EFE

Click highlighted areas on diagram

diagram 17111 17118 17125 17141 17159 17159 17167 17173 17177 2211 25591 9011908783 9017908040 9017908054 9017908054 9017908054 9017910096 9161160825 9162160814 91621J0612 91641K0816 9211280818 92122B0814
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-11380

5EFE..EE103,104

 1
17101-11261

5EFE..EE103,104

 1
17101-11262

5EFE..EE103,104

 1
17118 - STAY, MANIFOLD
17118-11290

5EFE..EE103,104

 1
17118-11180

5EFE..EE103,104

 1
17125 - STAY, SURGE TANK, NO.1
17125-11060

4EFE,5EFE..EE10#

 1
17125-11030

4EFE,5EFE..EE101,102,103,104

 1
17125-11060

5EFE..EE103,104

 1
17141 - MANIFOLD, EXHAUST
17141-11300

4EFE,5EFE..EE10#

 1
17141-11340

4EFE,5EFE..EE10#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

4EFE,5EFE..EE10#

EXHAUST MANIFOLD

 6
92132-60825

5EFE..EE103..GL;4EFE..EE102..4F..02S;4EFE,5EFE..EE101,104;4EFE,5EFE..EE102,103..(3FC,4F)..(DX,DXJ)..05S

INTAKE MANIFOLD

 3
90116-10196

4EFE,5EFE..EE10#

EXHAUST MANIFOLD

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

4EFE,5EFE..EE10#

EXHAUST MANIFOLD

 6
92132-60825

5EFE..EE103..GL;4EFE..EE102..4F..02S;4EFE,5EFE..EE101,104;4EFE,5EFE..EE102,103..(3FC,4F)..(DX,DXJ)..05S

INTAKE MANIFOLD

 3
90116-10196

4EFE,5EFE..EE10#

EXHAUST MANIFOLD

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-11310

4EFE,5EFE..EE10#

 1
17167-11320

4EFE,5EFE..EE10#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11050

5EFE..EE103,104

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11021

4EFE,5EFE..EE10#

 1
17177-11020

4EFE,5EFE..EE101,102,103,104

 1
17177-11070

4EFE,5EFE..EE10#

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-11080

4EFE,5EFE..EE10#

 1
25591-11090

4EFE,5EFE..EE10#

 1
Common parts
90119-08783
90179-08040
90179-08054
90179-10096
91611-60825
91621-60814
91621-J0612
91641-K0816
92112-80818
92122-B0814
Linked diagrams
2211

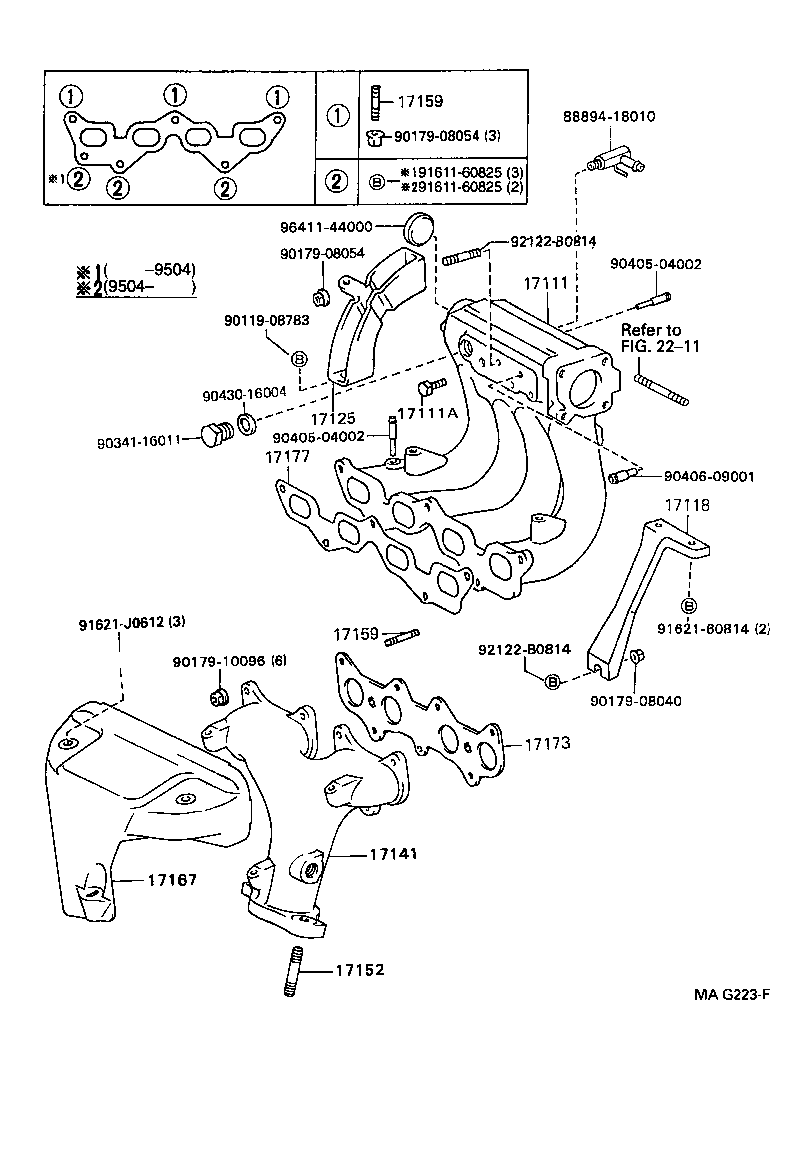

(9401-9704)5EFE

Click highlighted areas on diagram

diagram 17111 17111A 17118 17125 17141 17152 17159 17159 17167 17173 17177 2211 8889418010 9011908783 9017908040 9017908054 9017908054 9017910096 9034116011 9040504002 9040504002 9040609001 9043016004 9161160825 9161160825 9162160814 91621J0612 92122B0814 92122B0814 9641144000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-11380

5EFE..EE103,104

 1
17101-11261

5EFE..EE103,104

 1
17101-11262

5EFE..EE103,104

 1
17111A - PLUG, NO.1
90345-51006

5EFE..EE103,104

 1
17118 - STAY, MANIFOLD
17118-11290

5EFE..EE103,104

 1
17118-11180

5EFE..EE103,104

 1
17125 - STAY, SURGE TANK, NO.1
17125-11060

4EFE,5EFE..EE10#

 1
17125-11030

4EFE,5EFE..EE101,102,103,104

 1
17125-11060

5EFE..EE103,104

 1
17141 - MANIFOLD, EXHAUST
17141-11300

4EFE,5EFE..EE10#

 1
17141-11340

4EFE,5EFE..EE10#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

4EFE,5EFE..EE10#

EXHAUST MANIFOLD

 6
92132-60825

5EFE..EE103..GL;4EFE..EE102..4F..02S;4EFE,5EFE..EE101,104;4EFE,5EFE..EE102,103..(3FC,4F)..(DX,DXJ)..05S

INTAKE MANIFOLD

 3
90116-10196

4EFE,5EFE..EE10#

EXHAUST MANIFOLD

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

4EFE,5EFE..EE10#

EXHAUST MANIFOLD

 6
92132-60825

5EFE..EE103..GL;4EFE..EE102..4F..02S;4EFE,5EFE..EE101,104;4EFE,5EFE..EE102,103..(3FC,4F)..(DX,DXJ)..05S

INTAKE MANIFOLD

 3
90116-10196

4EFE,5EFE..EE10#

EXHAUST MANIFOLD

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-11310

4EFE,5EFE..EE10#

 1
17167-11320

4EFE,5EFE..EE10#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11050

5EFE..EE103,104

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11021

4EFE,5EFE..EE10#

 1
17177-11020

4EFE,5EFE..EE101,102,103,104

 1
17177-11070

4EFE,5EFE..EE10#

 1
Common parts
88894-18010
90119-08783
90179-08040
90179-08054
90179-10096
90341-16011
90405-04002
90406-09001
90430-16004
91611-60825
91621-60814
91621-J0612
92122-B0814
96411-44000
Linked diagrams
2211
