EE102V-AXHDK (1994)

Toyota Corolla

Production Jan 1994 - Jun 2002
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9705- )AE100,101,104,CE100,101,102

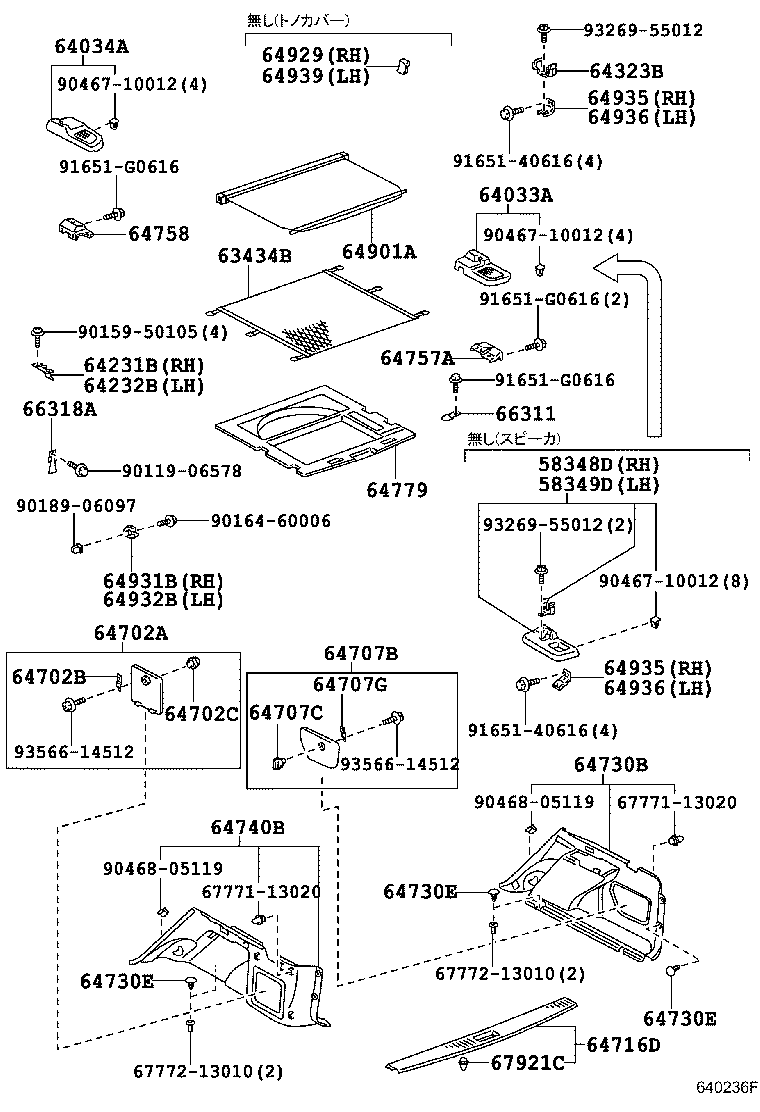

Click highlighted areas on diagram

diagram 58348D 58349D 63434B 64033A 64034A 64231B 64232B 64323B 64702A 64702B 64702C 64707B 64707C 64707G 64716D 64730B 64730E 64730E 64730E 64740B 64757A 64758 64779 64901A 64929 64931B 64932B 64935 64935 64936 64936 64939 66311 66318A 6777113020 6777113020 6777213010 6777213010 67921C 9011906578 9015950105 9016460006 9018906097 9046710012 9046710012 9046710012 9046805119 9046805119 9165140616 9165140616 91651G0616 91651G0616 91651G0616 9326955012 9326955012 9356614512 9356614512
Part # Description Qty Price
64702C - KNOB, WASHER TANK COVER
64982-13010B0

CE106,EE102..05S;AE109,CE108,109,EE103,104

SHADOW GRAY,TRIM1#

 1
64982-13010B0

CE106,EE102..05S;CE108,109,EE103,104

SHADOW GRAY,TRIM1#

 1
64982-13010B0

CE106,107,EE102..05S;AE101,109,CE102,105,108,109,EE103,104

SHADOW GRAY,TRIM1#

 1
64707B - COVER SUB-ASSY, QUARTER TRIM JACK
64707-13080B1

AE101,109,CE102,105,106,107,108,109,EE10#

SHADOW GRAY,TRIM1#

 1
64707-13080B1

AE10#,CE100,106,108,109,EE102,103,104..V,WG

SHADOW GRAY,TRIM1#

 1
64707-13080B1

AE109,CE106,108,109,EE10#

SHADOW GRAY,TRIM1#

 1
64707C - KNOB, JACK COVER
64982-13010B0

AE10#,CE10#,EE10#

SHADOW GRAY,TRIM1#

 1
64982-13010B0

AE101,109,CE102,105,106,107,108,109,EE10#

SHADOW GRAY,TRIM1#

 1
64982-13010B0

CE106,108,109,EE10#

SHADOW GRAY,TRIM1#

 1
Common parts
67771-13020
67772-13010
90119-06578
90159-50105
90164-60006
90189-06097
90467-10012
90468-05119
91651-40616
91651-G0616
93269-55012
93566-14512
