EE101-AEKNK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9704) ; (9704-9705)AE100,101,104,CE100 ; (9704- )AE109,CE102,105,106,107,1

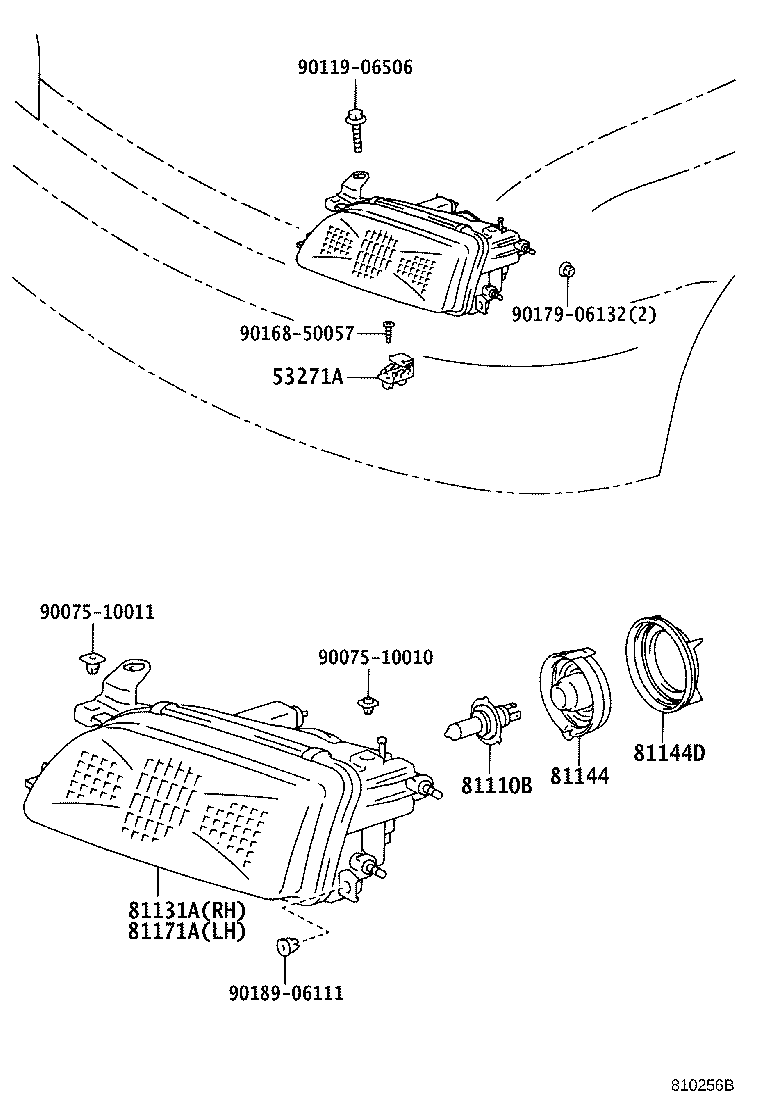

Click highlighted areas on diagram

diagram 53271A 81110B 81131A 81144 81144D 81171A 9007510010 9007510011 9011906506 9016850057 9017906132 9018906111
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12040

AE10#,CE10#,EE10#

 2
53271-12060

AE10#,CE10#,EE10#

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AE10#,CE10#,EE10#

12V 60/55W,*HAL *WH

 2
90981-22004

AE10#,CE10#,EE10#

12V 60/55W,*HAL *WH

 2
81131A - UNIT, HEADLAMP, RH
81130-1E180

AE10#,CE10#,EE10#

 1
81144 - COVER, HEADLAMP, NO.1
90075-99058

AE10#,CE10#,EE10#

 2
81144D - CAP, HEADLAMP LOCKING
90075-99057

AE10#,CE10#,EE10#

 2
81171A - UNIT, HEADLAMP, LH
81170-1A440

AE10#,CE10#,EE10#

 1
Common parts
90075-10010
90075-10011
90119-06506
90168-50057
90179-06132
90189-06111
