EE101-AEKNK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9704)AE100,101,CE100,EE101..4DS

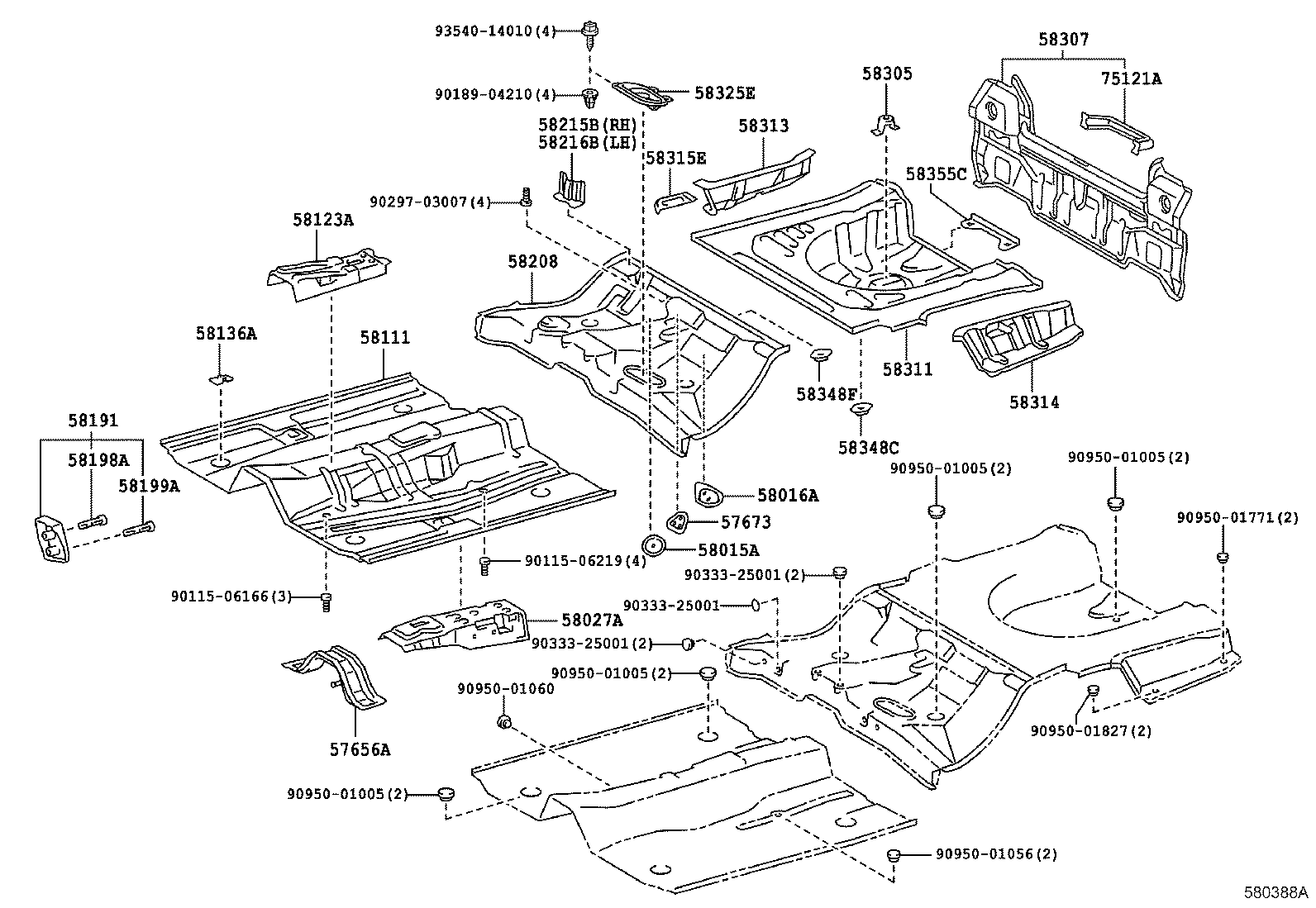

Click highlighted areas on diagram

diagram 57656A 57673 58015A 58016A 58027A 58111 58123A 58136A 58191 58198A 58199A 58208 58215B 58216B 58305 58307 58311 58313 58314 58315E 58325E 58348C 58348F 58355C 75121A 9011506166 9011506219 9018904210 9029703007 9033325001 9033325001 9033325001 9095001005 9095001005 9095001005 9095001005 9095001056 9095001060 9095001771 9095001827 9354014010
Part # Description Qty Price
57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1
57656-12070

AE100,101,CE100,106,108,EE10#

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-12040

AE100,101,104,CE100,101,104,EE101

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-12010

AE100,101,104,CE100,101,104,EE101

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-12120

AE100,101,CE100,106,108,EE10#..4DS,V,WG

 1
58111 - PAN, FRONT FLOOR
58111-12260

AE100,101,CE100,106,108,EE10#

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-12020

AE100,101,CE100,106,108,EE10#

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-12020

AE10#,CE10#,EE10#

 2
58136-12030

AE10#,CE10#,EE10#

 2
58208 - PAN, CENTER FLOOR
58211-12340

AE100,101,CE100,EE101..DX,LX,SEG,SEL,XE

 1
58215B - BRACKET, REAR SEAT MOUNTING, RH
58215-12040

AE10#,CE100,104,EE101..4DS

 1
58216B - BRACKET, REAR SEAT MOUNTING, LH
58216-12040

AE10#,CE100,104,EE101..4DS

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AE10#,CE100,104,EE101

 1
58351-12040

AE10#,CE100,104,EE101..3DS,4DS

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-1A230

AE10#,CE100,104,EE101..4DS

 1
58311 - PAN, REAR FLOOR
58311-12210

AE100,101,104,CE100,101,104,EE101..4DS,WG

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-12900

AE10#,CE100,104,EE101..4DS

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-12250

AE10#,CE100,104,EE101..4DS

 1
58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58315-12070

AE100,101,104,CE100,101,104,EE101

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-12080

AE10#,CE10#,EE10#

 1
58348C - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58348-12020

AE10#,CE100,104,EE101..4DS,WG

 1
58348F - BRACKET, CENTER FLOOR HEAR INSULATOR, NO.3
58348-12020

AE10#,CE100,104,EE101

 2
58355C - BRACKET, REAR BUMPER ARM
58355-12040

AE10#,CE100,104,EE101..3DS,4DS

 1
75121A - BRACKET, REAR LICENSE PLATE
75121-12030

AE10#,CE100,104,EE101..4DS

 1
Common parts
90115-06166
90115-06219
90189-04210
90297-03007
90333-25001
90950-01005
90950-01056
90950-01060
90950-01771
90950-01827
93540-14010
