EE101-AEKNK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9403)AE10#,CE100,EE101 ; (9403- )AE100,101,104,CE100,101..WG

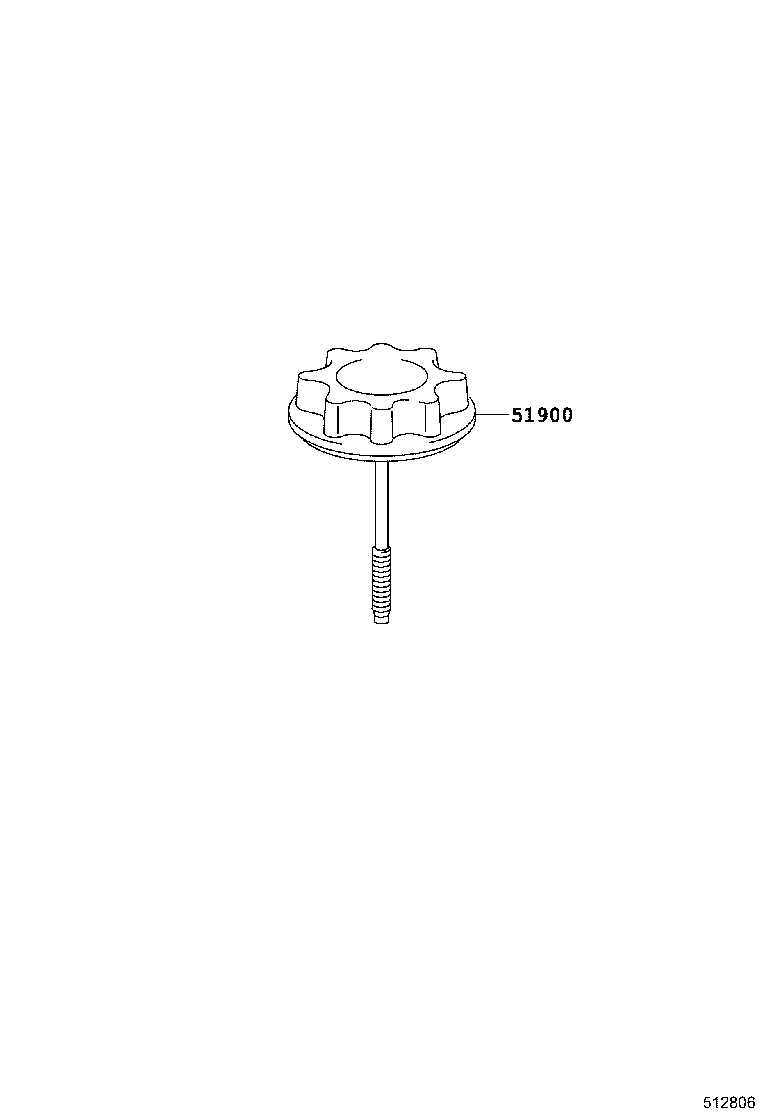

Click highlighted areas on diagram

diagram 51900
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-17020

AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,SJ,XE

ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)

 1
51931-12020

AE10#,CE100,104,EE101

ｱﾘ(ﾌﾂｳ ﾀｲﾔ)

 1
51931-12010

AE10#,CE100,104,EE101

 1
51900-12050

AE10#,CE100,104,EE101..3DS,4DS

 1
51900-12060

AE10#,CE100,104,EE101..3DS,4DS

ｱﾘ(ﾌﾂｳ ﾀｲﾔ)

 1
51900-12070

AE10#,CE100,104,EE101..GT,SEG,SEL,SJ,XE

ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)

 1

(9403-9505)3DS,4DS

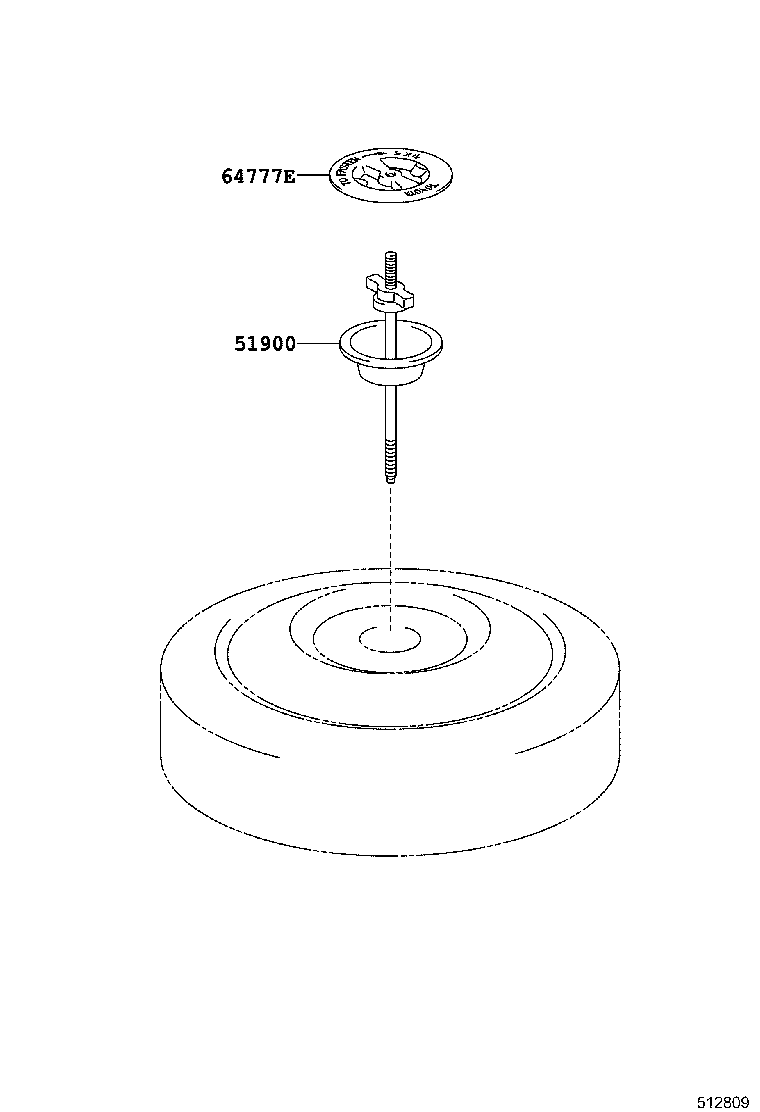

Click highlighted areas on diagram

diagram 51900 64777E
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-17020

AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,SJ,XE

ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)

 1
51931-12020

AE10#,CE100,104,EE101

ｱﾘ(ﾌﾂｳ ﾀｲﾔ)

 1
51931-12010

AE10#,CE100,104,EE101

 1
51900-12050

AE10#,CE100,104,EE101..3DS,4DS

 1
51900-12060

AE10#,CE100,104,EE101..3DS,4DS

ｱﾘ(ﾌﾂｳ ﾀｲﾔ)

 1
51900-12070

AE10#,CE100,104,EE101..GT,SEG,SEL,SJ,XE

ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)

 1
64777E - CLAMP, SPARE WHEEL COVER
64777-12010

AE10#,CE100,104,EE101..3DS,4DS

ﾌﾞﾗｯｸ

 1
64777-12020

AE10#,CE100,104,EE101..GT,SEG,SEL,SJ,XE

ﾎﾜｲﾄ

 1
