EE101-AEKDK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)4DS

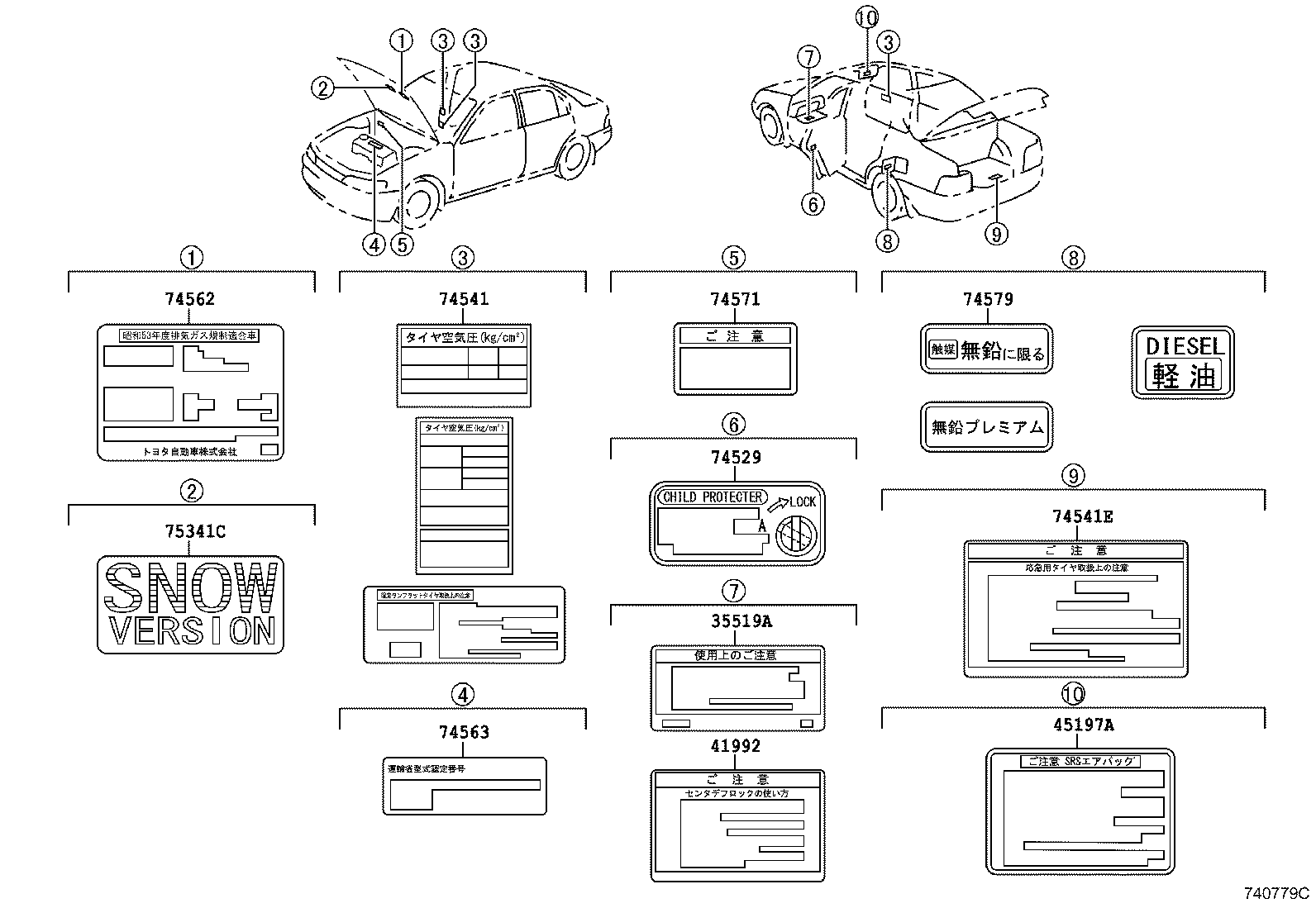

Click highlighted areas on diagram

diagram 35519A 41992 45197A 74529 74541 74541E 74562 74563 74571 74579 75341C
Part # Description Qty Price
45197A - LABEL, AIR BAG CAUTION
45197-32030

AE10#,CE10#,EE10#

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-32010

EE102..(3FC,5F)..02S;CE106,107,EE102,106..05S;AE10#,CE100,101,102,104,105,108,109,EE101,103,104,107,108..4DS,V,WG

右側

 1
69349-32010

EE102..(3FC,5F)..02S;CE106,107,EE102,106..05S;AE10#,CE100,101,102,104,105,108,109,EE101,103,104,107,108..4DS,V,WG

左側

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-1A340

AE100,CE100,EE101..DX,LX

ｱﾘ(*66)

 1
42661-1A180

AE100,CE100,EE101..DX,LX

 1
42661-1A620

AE100,CE100,EE101..DX,LX

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-32010

AE100,101,104,CE100,101,104,EE101

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-12520

EE101

 1
74562-12540

EE101

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-32010

AE10#,CE10#,EE10#

 1
74579 - PLATE, UNLEADED FUEL CAUTION
74579-30011

AE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE

 1
75341C - PLATE, HOOD NAME
75341-20060

AE10#,EE101;CE100..SEL,XE;CE100..4FC..(DX,LX)

ﾕｷｸﾞﾆ ｼﾖｳ

 1
75341-20060

EE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..3FC,4F,4FC,5F

ﾕｷｸﾞﾆ ｼﾖｳ

 1
