EE101-AEKDK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )AE10#,EE10#..MTM

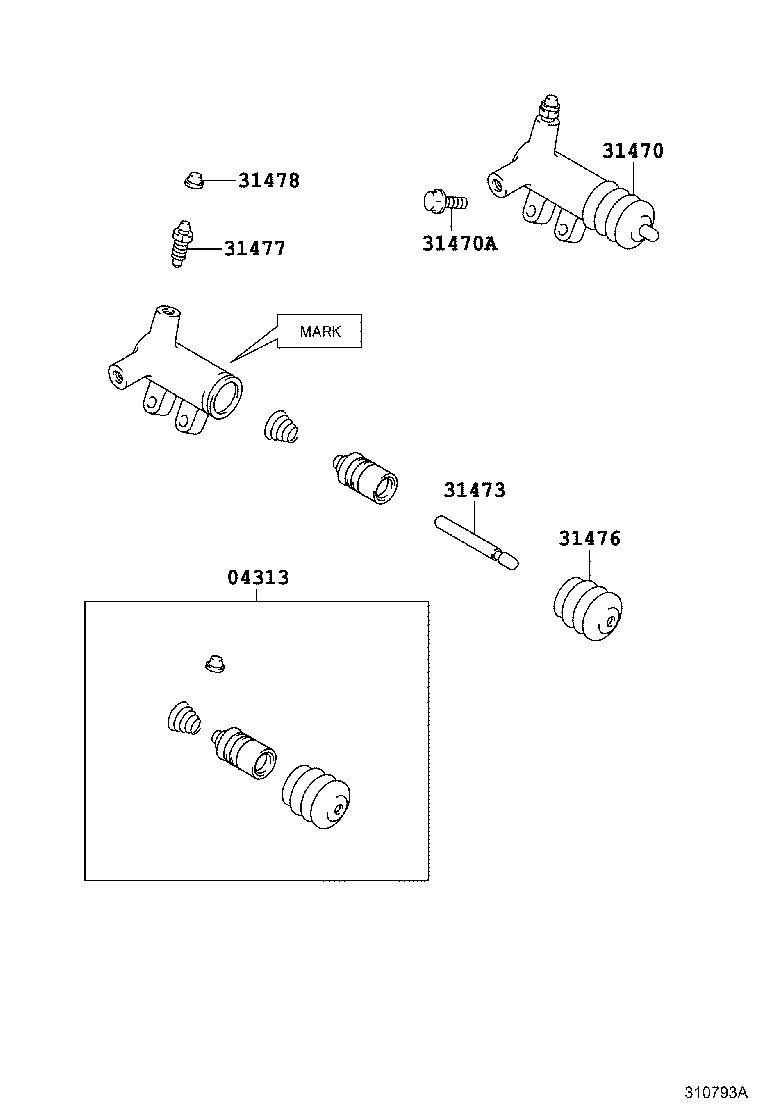

Click highlighted areas on diagram

C40,C50,C52,C56,C160,E55F,E55F5

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-12030

CE10#,EE10#..MTM

 1
04313-12030

AE10#,CE10#,EE10#..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-10012

EE10#..MTM

ｲﾗｽﾄ ｻﾝｼﾖｳ,MARK = 13/16

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60822

AE10#,CE104,109,EE10#..MTM

*8−1.25PX22−22

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-32010

AE10#,CE10#,EE10#..MTM

 1
31473-22010

CE10#,EE10#..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

AE10#,CE10#,EE10#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-20010

AE10#,CE10#,EE10#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

AE10#,CE10#,EE10#..MTM

 1
