EE101-AEKDK (1991)
Toyota Corolla
(9106- )2E,3E ; (9106- )4EFE..EE101..4F
12V 50A,70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-11120 |
4EFE..EE101..4F;2E,3E..EE106,107,108..3FC 12V 70A,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 27060-11270 |
4EFE..EE101..4F;2E,3E..EE106,107,108..3FC 12V 70A,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15170 |
2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM |
1 | ||
| 27039-73020 |
2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16103 |
4EFE..EE101..4F;2E,3E..EE106,107,108..3FC |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
4EFE..EE101..4F;2E,3E..EE106,107,108..3FC |
2 | ||
| 90099-10178 |
2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM |
1 | ||
| 27312-70200 |
4EFE..EE101..4F;2E,3E..EE106,107,108..3FC |
2 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
2E,3E..EE106,107,108..3FC;4AFE,5AFE,4EFE..AE10#,EE101..MTM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4AFE,5AFE,4EFE..AE10#,EE101;4AGE,2E,3E..AE101,EE106,107,108..ATM |
1 | ||
| 90099-10140 |
2E,3E..EE106,107,108..3FC;4AFE,5AFE,4EFE..AE10#,EE101 |
1 | ||
| 90099-10140 |
2E,3E..EE106,107,108..3FC;4AFE,5AFE,2C,4EFE..AE10#,CE100,104,EE101 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
4EFE..EE101..4F;2E,3E..EE106,107,108..3FC |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54450 |
2E,3E..EE106,107,108;4AGE,4EFE..AE101,EE101..MTM |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
2C..CE100..WG..5F;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE101,102,106,107,108,EE10#..MTM |
2 | ||
| 27371-70300 |
2E,3E..EE106,107,108;4A#,5AFE,4EFE..AE10#,EE101..MTM |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2C..CE100..WG..5F;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE101,102,106,107,108,EE10#..MTM |
2 | ||
| 27372-63020 |
2E,3E..EE106,107,108;4A#,5AFE,4EFE..AE10#,EE101..MTM |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-65010 |
4EFE..EE101..4F;2E,3E..EE106,107,108..3FC |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4A#,5AFE,2E,3E,4EFE..AE10#,EE10# |
1 | ||
| 27443-63020 |
4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE10#,EE10# |
1 | ||
| 27443-63020 |
4A#,5AFE,2C,2E,3E,4EFE..AE10#,CE100,104,EE10# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-11070 |
2E,3E..EE106,107..3FC;3E,4EFE..EE101,108..3FC,4F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 27700-11030 |
2E,3E..EE106,107..3FC;3E,4EFE..EE101,108..3FC,4F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 27700-11070 |
4EFE..EE101..4F;2E,3E..EE106,107,108..3FC |
1 | ||
| Common parts | ||||
| 27387-10080 | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00159 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04330 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10102 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 93319-14025 | ||||

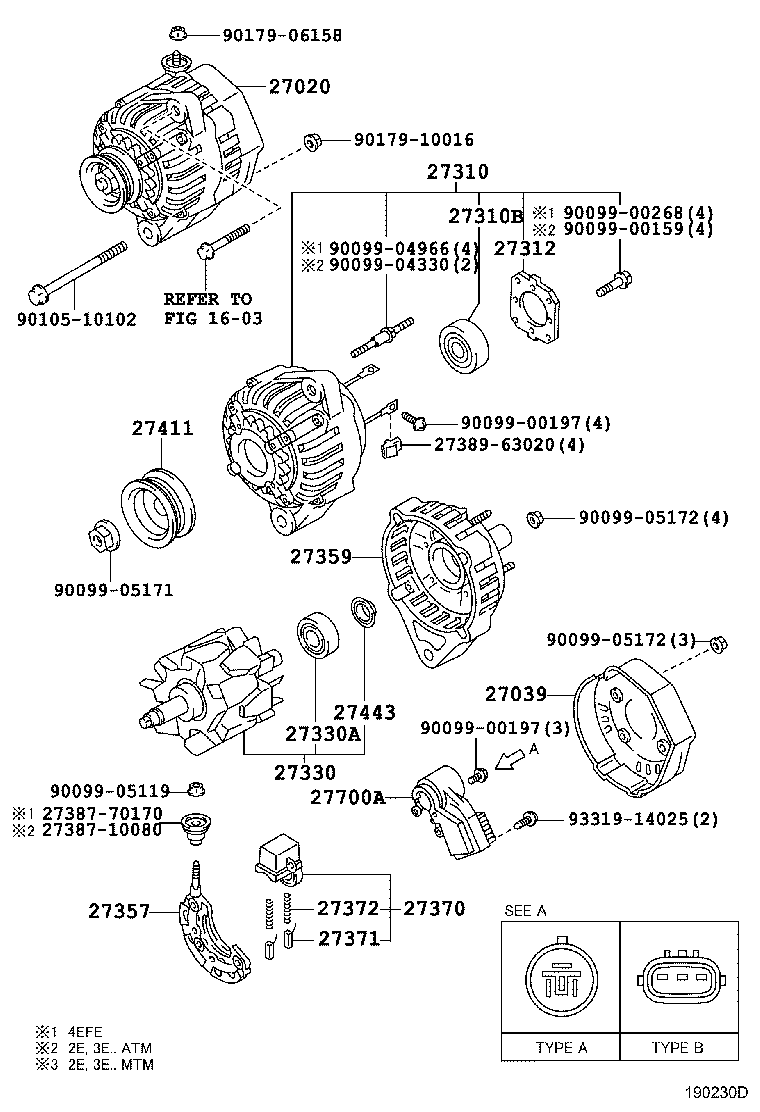

| Linked diagrams | ||||
| 1603 | ||||
