EE101-AEKBK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )EE101,102,103,104

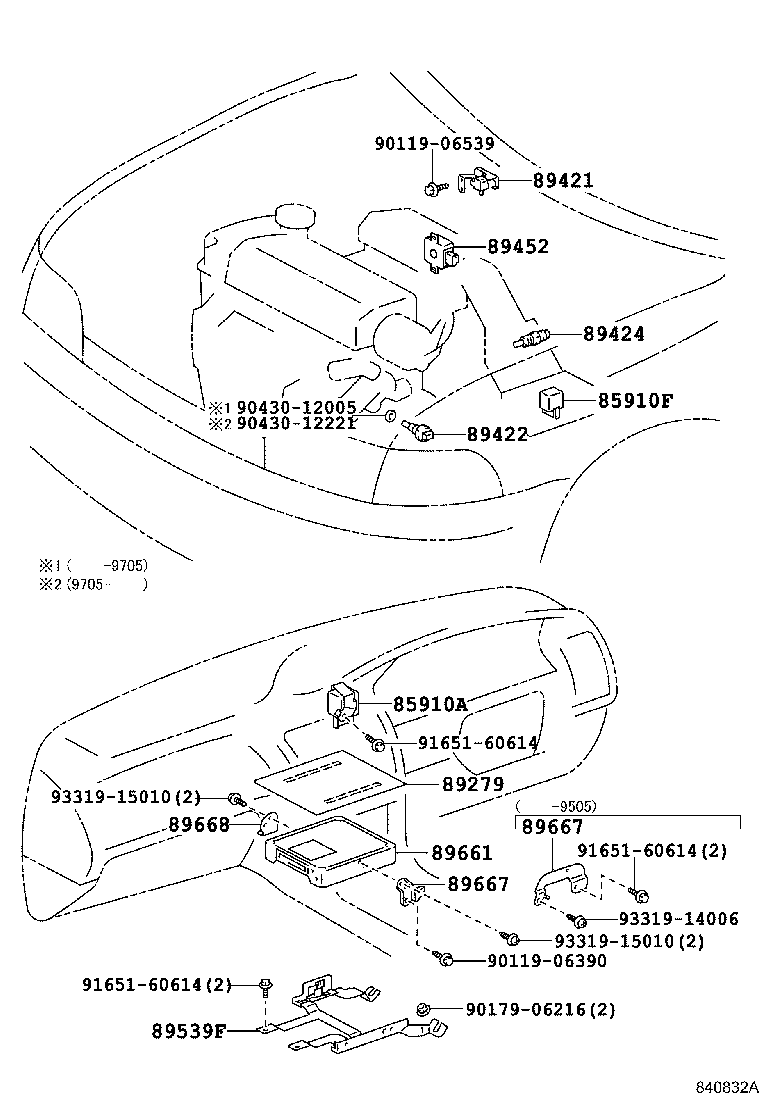

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89421 89422 89424 89452 89539F 89661 89667 89667 89668 9011906390 9011906539 9017906216 9043012005 9043012221 9165160614 9165160614 9165160614 9331914006 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12020

AE10#,EE101,102,103,104..BZT,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

AE10#,EE101,102,103,104

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12110

AE101..5F;AE101..4FC..GT;AE100,104,EE10#

 1
89279-12080

AE101..5F;AE101..4FC..GT;AE100,104,EE101,102,103,104

 1
89279-12110

EE10#

 1
89279-12080

AE10#,EE101

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-12070

EE101

NIPPONDENSO

 1
89420-12070

AE10#,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

NIPPONDENSO

 1
89420-12060

AE10#,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

FUJI

 1
89420-12060

EE101

FUJI

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

EE101,102,103,104

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AE10#,EE101,102,103,104..BZT,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12060

EE101,102,103,104

 1
89539F - BRACKET, COMPUTER
89539-12050

AE10#,EE101,102,103,104

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12700

EE101

FUJITSU TEN

 1
89661-1A200

EE101

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12110

AE10#,EE101,102,103,104

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12110

AE10#,EE101,102,103,104

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12050

AE10#,EE101,102,103,104

 1
Common parts
90119-06390
90119-06539
90179-06216
90430-12005
90430-12221
91651-60614
93319-14006
93319-15010
