Toyota Corolla EE101 HEATING & AIR CONDITIONING - COMPRESSOR

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-1A010	EE101 ECON ｽｲﾂﾁｱﾘ	06/1991 - 05/1992	1
88412-1A090	EE10#	05/1993 - 12/2999	1
88412-16050	EE106..3FC;AE101,EE101,107,108..DX,GL,GT,L,LX,XE ECON ｽｲﾂﾁﾅｼ	06/1991 - 05/1992	1
88412-1A010	AE101,EE10#..CTD,DX,GL,GT,L,LX,XE	05/1992 - 05/1993	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-16021	AE101,EE10#..CTD,DX,GL,GT,L,LX,XE	06/1991 - 05/1992	1
88411-1A040	AE10#,CE10#,EE10#	05/1993 - 12/2999	1
88411-1A010	AE10#,CE10#,EE10#	05/1992 - 05/1993	1
88411-1A010	EE101 ECON ｽｲﾂﾁｱﾘ	06/1991 - 05/1992	1
88320 - COMPRESSOR ASSY, COOLER
88320-1A040	AE104..SEL;AE100,101..DX,G,LX,SEG,SEL	08/1991 - 05/1992	1
88320-1A060	EE101..LX,XE ECON ｽｲﾂﾁﾅｼ	06/1991 - 05/1992	1
88320-1A090	EE101..LX,XE ECON ｽｲﾂﾁｱﾘ	06/1991 - 05/1992	1
88320-1A280	EE101..LX,XE ECON ｽｲﾂﾁﾅｼ	05/1992 - 05/1993	1
88320-1A230	EE101..LX,XE ECON ｽｲﾂﾁｱﾘ	05/1992 - 05/1993	1
88320-1A320	EE101..LX,XE ECON ｽｲﾂﾁｱﾘ	05/1993 - 09/1994	1
88320-1A350	AE104..SEL,XE;AE100,101..G,LT,LX,SEG,SEL,SJ,XE	05/1993 - 08/1993	1
88320-1A370	EE101..LX,XE ECON ｽｲﾂﾁﾅｼ	05/1993 - 09/1994	1
88320-1A290	CE105,106,107,109..DX,DXJ,GL;CE100,101,102,104,108..G,L,LT,SEL,XE ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ)	05/1993 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	CE100,104..DX,LX,XE;AE10#,CE106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 3個ｾｯﾄ	06/1991 - 05/1992	1
90099-01554	CE100,104..DX,LX,XE;AE10#,CE106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 厚さ=0.3	06/1991 - 05/1992	1
90099-01555	CE100,104..DX,LX,XE;AE10#,CE106,108,109,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 厚さ=0.5	06/1991 - 05/1992	1
90099-01553	EE108..3FC;CE100,104,EE107..(3FC,4FC,5F)..(DX,GL,LX,XE);AE10#,CE106,108,109,EE101..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 厚さ=0.1	06/1991 - 05/1992	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-1A010	EE101..LX,XE ECON ｽｲﾂﾁｱﾘ	06/1991 - 05/1992	1
88403-16011	CE100..4FC..LX;AE104,CE100,104..DX,SEL;AE100,101,CE106,108,109,EE106,107,108..CTD,DX,G,GL,GT,L,LX,SEG,SEL	08/1991 - 05/1992	1
88403-1A010	EE101;AE100,101,CE108,EE108..G,GT,L,LT,LX,SEG,SEL,SJ,XE;AE104,CE100,104,106,109,EE106,107..CTD,DX,GL,SEL,XE	05/1993 - 08/1993	1
88403-1A010	EE101;AE100,101,CE108,EE108..G,GT,L,LX,SEG,SEL,SJ,XE;AE104,CE100,104,106,109,EE106,107..CTD,DX,GL,SEL,XE	05/1992 - 05/1993	1
88403-16011	EE101..LX,XE ECON ｽｲﾂﾁﾅｼ	06/1991 - 05/1992	1
88410 - CLUTCH ASSY, MAGNET
88410-1A010	AE101,EE10#..CTD,DX,GL,GT,L,LX,XE ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=447300-****	05/1992 - 05/1993	1
88410-10210	EE101 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=047300-****;ECON ｽｲﾂﾁﾅｼ	06/1991 - 05/1992	1
88410-1A010	EE101 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=047300-****	06/1991 - 05/1992	1
88410-1A150	EE10#	05/1993 - 12/2999	1
88410-1A050	AE104..SEL,XE;AE100,101..G,LT,LX,SEG,SEL,SJ,XE	05/1993 - 08/1993	1
88410-1A030	AE104..SEL,XE;AE100,101..G,LX,SEG,SEL,SJ,XE ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=447300-****	05/1992 - 05/1993	1
Common parts
88718-22420
90099-04349
90099-07065
90099-07114
93319-15008

Part #	Description	Period	Qty

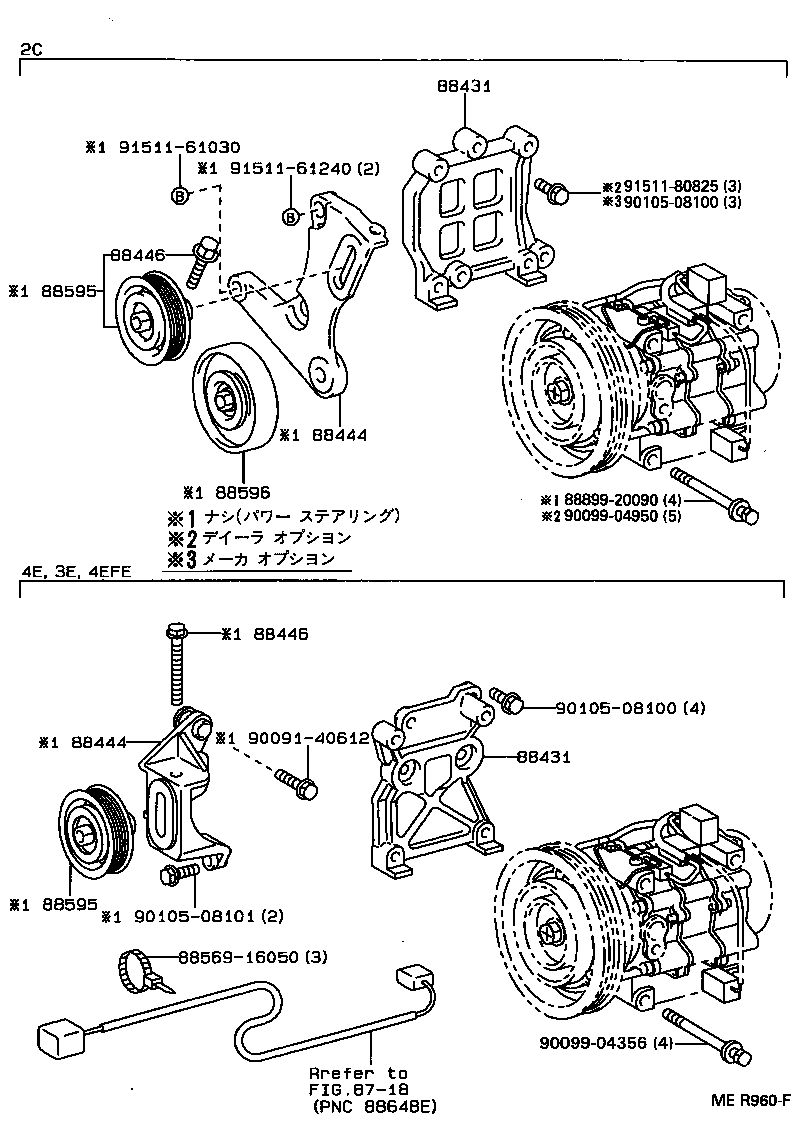

88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12370	EE10# MARK 791	06/1991 - 05/1993	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12370	EE10# MARK 791	06/1991 - 05/1993	1
Common parts
88569-16050
88899-20090
90091-40612
90099-04356
90099-04950
90105-08100
90105-08101
91511-61030
91511-61240
91511-80825
Linked diagrams
8718

EE101-AEHDK (1991)

ILLUST NO. 2 OF 2(9106- )

ILLUST NO. 1 OF 2(9106- )CE10#,EE10#
