EE101-AEHDK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

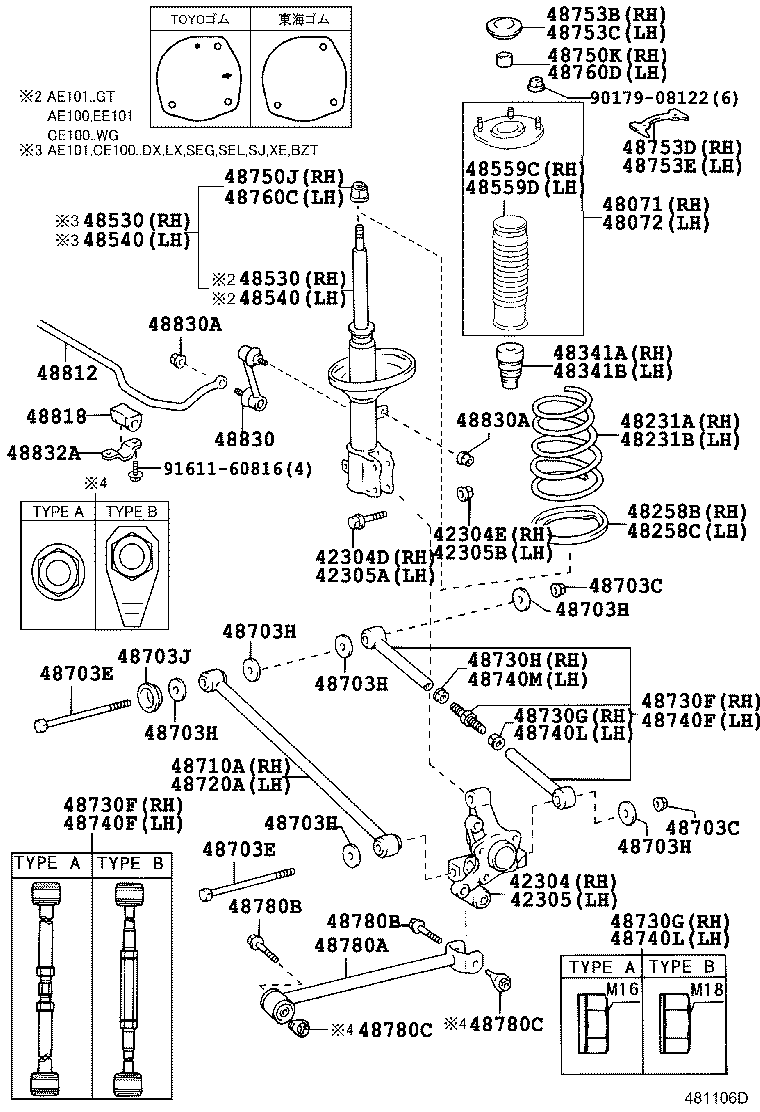

ILLUST NO. 2 OF 2(9109- )CE102,106,107,108,EE10#

Click highlighted areas on diagram

diagram 48210 48210C 48210C 48220 48247 48284
Part # Description Qty Price

(9106-9505)AE100,101,CE100,EE101 ; (9505- )AE101

Click highlighted areas on diagram

diagram 42304 42304D 42304E 42305 42305A 42305B 48071 48072 48231A 48231B 48258B 48258C 48341A 48341B 48530 48530 48540 48540 48559C 48559D 48703C 48703C 48703E 48703E 48703H 48703H 48703H 48703H 48703H 48703H 48703J 48710A 48720A 48730F 48730F 48730G 48730G 48730H 48740F 48740F 48740L 48740L 48740M 48750J 48750K 48753B 48753C 48753D 48753E 48760C 48760D 48780A 48780B 48780B 48780C 48780C 48812 48818 48830 48830A 48830A 48832A 9017908122 9161160816
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-12090

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

ｱﾘ(ABS)

 1
42304-12130

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
42304D - BOLT (FOR REAR AXLE CARRIER RH)
90105-12102

AE100,101,CE100,101,EE101

 2
42304E - NUT (FOR REAR AXLE CARRIER RH)
90179-12025

AE100,101,CE100,101,EE101

 2
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-12130

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
42305-12090

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

ｱﾘ(ABS)

 1
42305A - BOLT (FOR REAR AXLE CARRIER LH)
90105-12102

AE100,101,CE100,101,EE101

 2
42305B - NUT (FOR REAR AXLE CARRIER LH)
90179-12025

AE100,101,CE100,101,EE101

 2
48071 - SUPPORT SUB-ASSY, REAR SUSPENSION, RH
48071-12080

AE10#,CE100,104,EE101

 1
48072 - SUPPORT SUB-ASSY, REAR SUSPENSION, LH
48072-12080

AE10#,CE100,104,EE101

 1
48231A - SPRING, COIL, REAR RH
48231-1E260

EE101

 1
48231B - SPRING, COIL, REAR LH
48231-1E260

EE101

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-12030

AE10#,CE100,104,EE101

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-12030

AE10#,CE100,104,EE101

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-12120

AE100,EE101

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-12120

AE100,EE101

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-12550

CE100..WG;AE100,EE101

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-12550

CE100..WG;AE100,EE101

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-12490

CE100..WG;AE100,EE101

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-12490

CE100..WG;AE100,EE101

 1
48559C - COVER, REAR SHOCK ABSORBER DUST, RH NO.1
48559-12070

AE10#,CE100,104,EE101

 1
48559D - COVER, REAR SHOCK ABSORBER DUST, LH NO.1
48559-12070

AE10#,CE100,104,EE101

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

AE100,101,CE100,EE101

 4
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

AE100,101,CE100,EE101

 4
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-14083

AE100,101,CE100,EE101

*14−1.50PX225−32

 4
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-14083

AE100,101,CE100,EE101

*14−1.50PX225−32

 4
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AE100,101,CE100,EE101

 12
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AE100,101,CE100,EE101

 12
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AE100,101,CE100,EE101

 12
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AE100,101,CE100,EE101

 12
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AE100,101,CE100,EE101

 12
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AE100,101,CE100,EE101

 12
48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM)
90209-15002

AE100,101,CE100,101,EE101

 2
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-12190

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-12190

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-12060

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
48730-12090

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-12060

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
48730-12090

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)
90179-16022

AE100,101,CE100,EE101

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)
90179-16022

AE100,101,CE100,EE101

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48730H - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)
90179-16021

AE100,101,CE100,EE101

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48730-12060

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
48730-12090

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48730-12060

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
48730-12090

AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 1
48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)
90179-16022

AE100,101,CE100,EE101

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)
90179-16022

AE100,101,CE100,EE101

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48740M - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)
90179-16021

AE100,101,CE100,EE101

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90179-14015

AE100,101,104,CE100,101,104,EE101

 1
48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90387-15012

AE10#,CE100,104,EE101

 1
48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753-12010

AE10#,CE100,104,EE101

 1
48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48753-12010

AE10#,CE100,104,EE101

 1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90179-14015

AE100,101,104,CE100,101,104,EE101

 1
48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90387-15012

AE10#,CE100,104,EE101

 1
48780A - ROD ASSY, STRUT, REAR
48780-12010

AE10#,CE100,104,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 2
48780B - BOLT(FOR STRUT ROD)
90119-12152

AE100,101,104,CE100,104,EE101

 4
48780B - BOLT(FOR STRUT ROD)
90119-12152

AE100,101,104,CE100,104,EE101

 4
48780C - NUT(FOR STRUT ROD)
90179-12062

AE10#,CE100,104,EE101

ｷﾔﾘｱ ｻｲﾄﾞ

 2
90179-12063

AE104..4DS;AE100,101,CE100,104,EE101

ﾎﾞﾃﾞｰ側

 2
48780C - NUT(FOR STRUT ROD)
90179-12062

AE10#,CE100,104,EE101

ｷﾔﾘｱ ｻｲﾄﾞ

 2
90179-12063

AE104..4DS;AE100,101,CE100,104,EE101

ﾎﾞﾃﾞｰ側

 2
48812 - BAR, STABILIZER, REAR
48812-12170

AE100,101,CE100,EE101..DX,LX,SEG,SEL,SJ,XE

 1
48818 - BUSH, STABILIZER, REAR
48818-12150

AE100,101,CE100,EE101..DX,LX,SEG,SEL,SJ,XE

 2
48818-12150

AE100,101,CE100,EE101..DX,LX,SEG,SEL,SJ,XE

 2
48830 - LINK ASSY, REAR STABILIZER
48830-20010

AE100,101,CE100,EE101

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10183

AE100,101,104,CE100,101,104,EE101

 4
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10183

AE100,101,104,CE100,101,104,EE101

 4
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-20030

AE104..WG;AE100,101,CE100,101,EE101

 2
Common parts
90179-08122
91611-60816

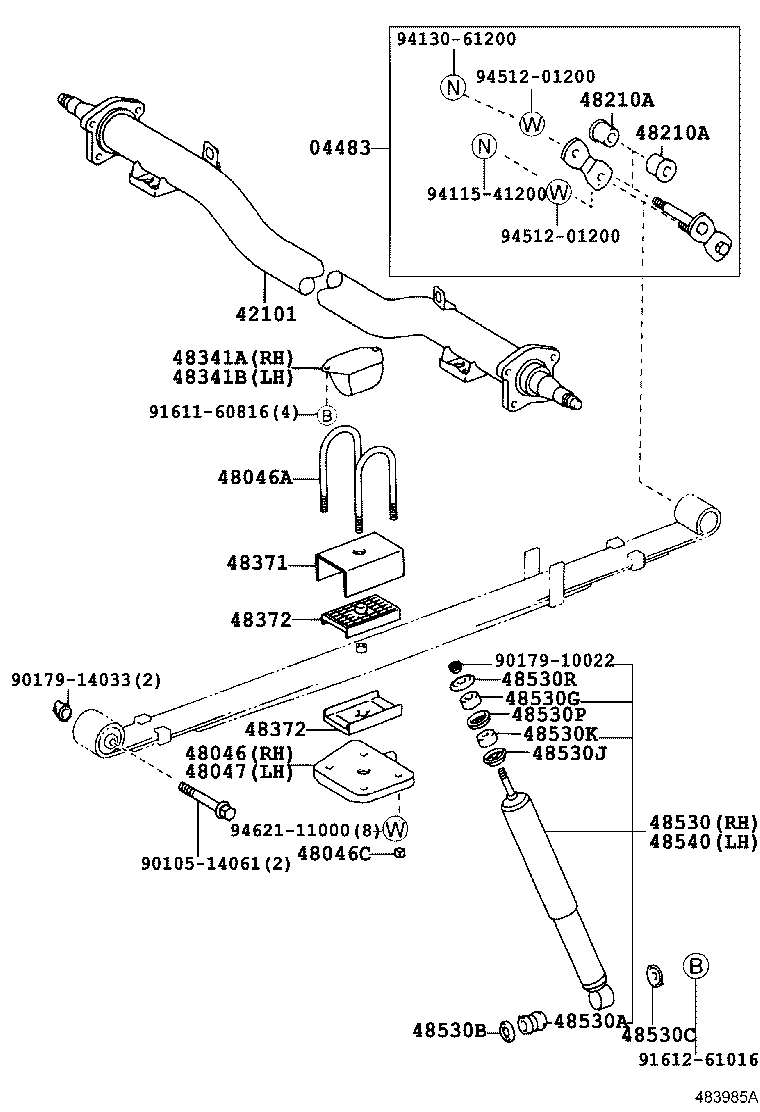

ILLUST NO. 1 OF 2(9109-9401)CE106,108,EE10# ; (9401- )CE102,106,107,108,EE10#

Click highlighted areas on diagram

diagram 04483 42101 48046 48046A 48046C 48047 48210A 48210A 48341A 48341B 48371 48372 48372 48530 48530A 48530B 48530C 48530G 48530J 48530K 48530P 48530R 48540 9010514061 9017910022 9017914033 9161160816 9161261016 9411541200 9413061200 9451201200 9451201200 9462111000
Part # Description Qty Price
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-12120

AE100,EE101

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-12120

AE100,EE101

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-12550

CE100..WG;AE100,EE101

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001

AE109,CE102,105,106,107,108,109,EE10#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-12490

CE100..WG;AE100,EE101

 1
Common parts
90105-14061
90179-10022
90179-14033
91611-60816
91612-61016
94115-41200
94130-61200
94512-01200
94621-11000
