EE101-AEHDK (1991)
Toyota Corolla
(9106- )EE10#

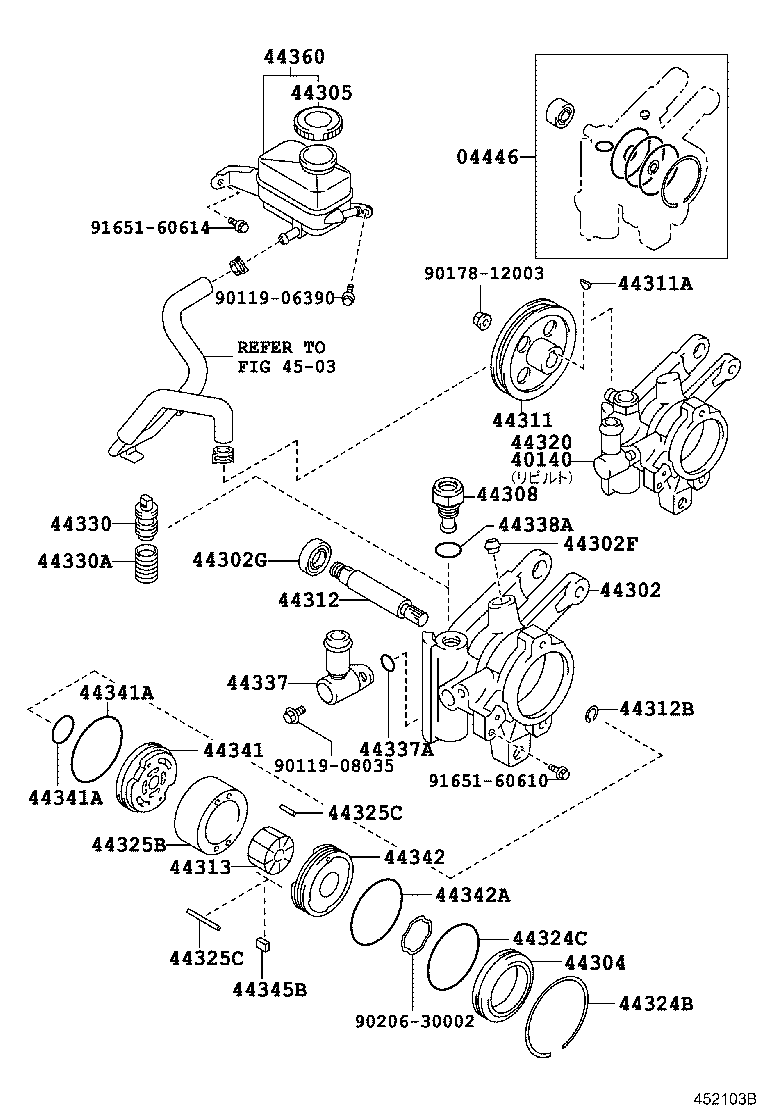

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-20030 |
CE10#,EE10# |
1 | ||
| 04446-20120 |
EE10# |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-12241 |
EE10# TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12110 |
EE10# |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
EE10# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 90311-18007 |
CE10#,EE10# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-12031 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 44324-12031 |
CE10#,EE10# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-12030 |
AE101,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEL,XE |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-12050 |
EE10# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12110 |
EE10# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
CE10#,EE10# |
1 | ||
| 90280-05008 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 44312-12030 |
CE10#,EE10# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE ﾏｰｸ無し |
1 | ||
| 44313-22060 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE ﾏｰｸ 2 |
1 | ||
| 44313-22040 |
CE10#,EE10# ﾏｰｸ無し |
1 | ||
| 44313-22080 |
CE10#,EE10# ﾏｰｸ 4 |
1 | ||
| 44313-22080 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE ﾏｰｸ 4 |
1 | ||
| 44313-22050 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE ﾏｰｸ 1 |
1 | ||
| 44313-22070 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE ﾏｰｸ 3 |
1 | ||
| 44313-22070 |
CE10#,EE10# ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
CE10#,EE10# ﾏｰｸ 1 |
1 | ||
| 44313-22060 |
CE10#,EE10# ﾏｰｸ 2 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-12241 |
EE10# |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 90521-62002 |
CE10#,EE10# |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53006 |
CE10#,EE10# |
1 | ||
| 90301-52001 |
CE10#,EE10# |
1 | ||
| 90301-52001 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 44325B - RING, VANE PUMP CAM | ||||
| 44325-12140 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE ﾏｰｸ 3 |
1 | ||
| 44325-12130 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE ﾏｰｸ 2 |
1 | ||
| 44325-12120 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE ﾏｰｸ 1 |
1 | ||
| 44325-12110 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE ﾏｰｸ無し |
1 | ||
| 44325-12110 |
CE10#,EE10# ﾏｰｸ無し |
1 | ||
| 44325-12150 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE ﾏｰｸ 4 |
1 | ||
| 44325-12130 |
CE10#,EE10# ﾏｰｸ 2 |
1 | ||
| 44325-12140 |
CE10#,EE10# ﾏｰｸ 3 |
1 | ||
| 44325-12150 |
CE10#,EE10# ﾏｰｸ 4 |
1 | ||
| 44325-12120 |
CE10#,EE10# ﾏｰｸ 1 |
1 | ||
| 44325C - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 長さ=28,外径=4.0 |
1 | ||
| 90250-04047 |
CE10#,EE10# 長さ=28,外径=4.0 |
1 | ||
| 90250-04049 |
CE10#,EE10# 長さ=43,外径=4.0 |
1 | ||
| 90250-04049 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 長さ=43,外径=4.0 |
1 | ||
| 44325C - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 長さ=28,外径=4.0 |
1 | ||
| 90250-04047 |
CE10#,EE10# 長さ=28,外径=4.0 |
1 | ||
| 90250-04049 |
CE10#,EE10# 長さ=43,外径=4.0 |
1 | ||
| 90250-04049 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 長さ=43,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12361 |
EE10# ﾏｰｸ F |
1 | ||
| 44330-12331 |
EE10# ﾏｰｸ C |
1 | ||
| 44330-12311 |
EE10# ﾏｰｸ A |
1 | ||
| 44330-12341 |
EE10# ﾏｰｸ D |
1 | ||
| 44330-12321 |
EE10# ﾏｰｸ B |
1 | ||
| 44330-12351 |
EE10# ﾏｰｸ E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 90501-12103 |
CE10#,EE10# |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12060 |
EE10# |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 44341-32010 |
CE10#,EE10# |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 外側 |
1 | ||
| 90301-25001 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 内側 |
1 | ||
| 90301-25001 |
CE10#,EE10# 内側 |
1 | ||
| 90301-52001 |
CE10#,EE10# 外側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 外側 |
1 | ||
| 90301-25001 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 内側 |
1 | ||
| 90301-25001 |
CE10#,EE10# 内側 |
1 | ||
| 90301-52001 |
CE10#,EE10# 外側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
CE10#,EE10# |
1 | ||
| 44342-32010 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE |
1 | ||
| 90301-52001 |
CE10#,EE10# |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12030 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 長さ=14.993 |
10 | ||
| 44345-12010 |
CE10#,EE10# 長さ=14.997 |
10 | ||
| 44345-12010 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 長さ=14.997 |
10 | ||
| 44345-12020 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 長さ=14.995 |
10 | ||
| 44345-12040 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 長さ=14.991 |
10 | ||
| 44345-12020 |
CE10#,EE10# 長さ=14.995 |
10 | ||
| 44345-12050 |
CE10#,EE10# 長さ=14.989 |
10 | ||
| 44345-12050 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,XE 長さ=14.989 |
10 | ||
| 44345-12040 |
CE10#,EE10# 長さ=14.991 |
10 | ||
| 44345-12030 |
CE10#,EE10# 長さ=14.993 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-12050 |
AE101,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEL,XE |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08035 | ||||
| 90178-12003 | ||||
| 90206-30002 | ||||
| 91651-60610 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 4503 | ||||
