EE101-AEHDK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9305)4EFE

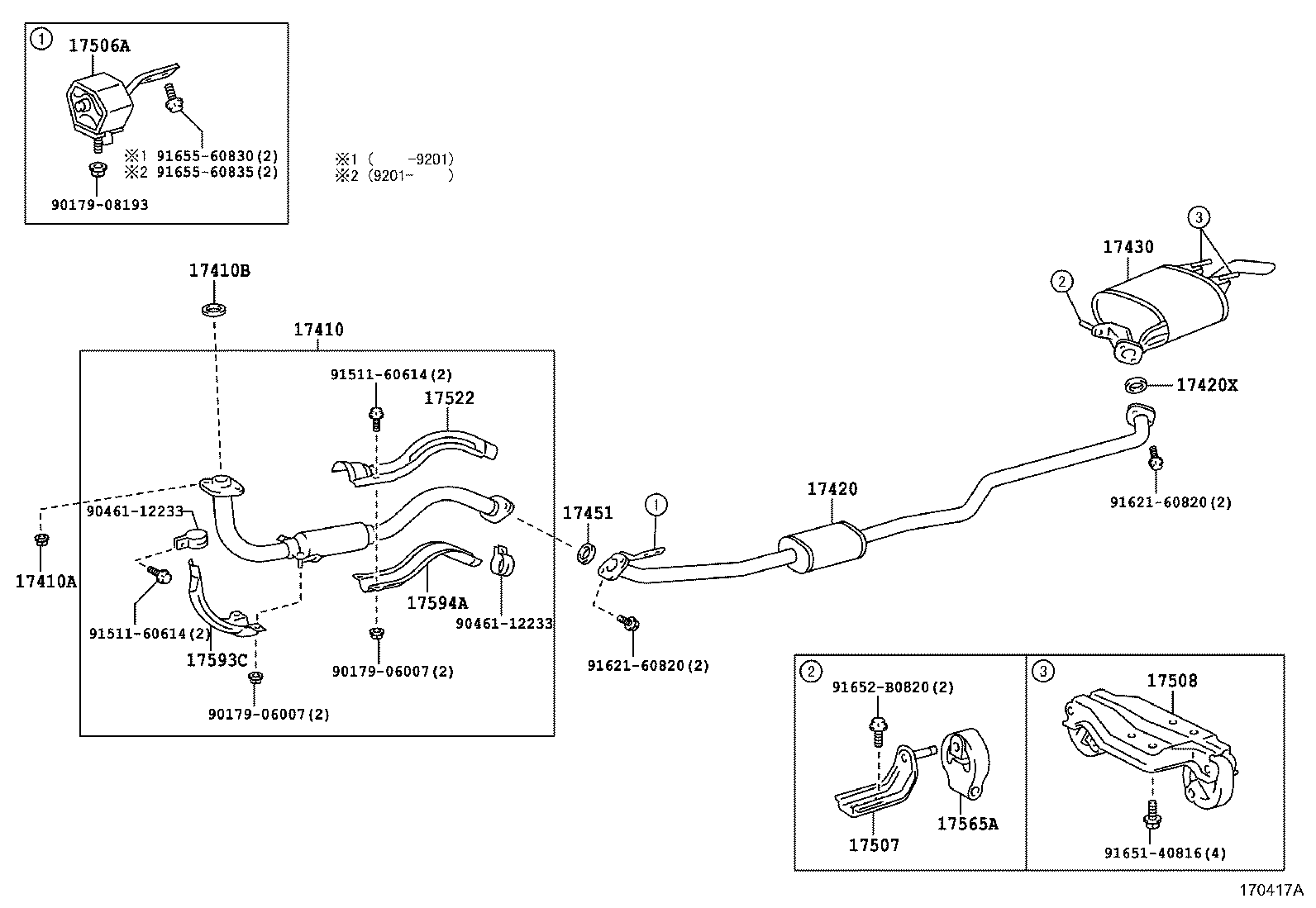

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420X 17430 17451 17506A 17507 17508 17522 17565A 17593C 17594A 9017906007 9017906007 9017908193 9046112233 9046112233 9151160614 9151160614 9162160820 9162160820 9165140816 91652B0820 9165560830 9165560835
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-15241

4EFE..EE101

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4EFE..EE101

 1
90179-10070

5AFE,2C,2E,3E,4EFE,5EFE..AE100,CE10#,EE10#

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

2C,2E,3E,4EFE..CE104,106,108,109,EE10#

 1
90917-06061

2C,2E,3E,4EFE..CE10#,EE10#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-15150

5AFE,4EFE..AE100,EE101

 1
17420-11210

4EFE..EE101

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06060

5AFE,2E,3E,4EFE,5EFE..AE100,EE10#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-15540

5AFE,4EFE..AE100,EE101

 1
17451 - GASKET, EXHAUST PIPE
90917-06039

2C,4EFE..CE104,109,EE101

 1
90917-06044

5AFE,2E,3E,4EFE,5EFE..AE100,EE10#

ﾌﾛﾝﾄ

 1
90917-06045

5AFE,2E,3E,4EFE,5EFE..AE100,EE10#

ﾘﾔ

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-15070

4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE100,101,CE100,106,108,EE10#

 1
17506-16120

4AGE..AE101..4DS;4AFE,5AFE,2C,4EFE,5EFE..AE100,101,CE100,106,108,EE10#

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-15040

4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-15050

4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101..4DS,WG

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-15130

4EFE..EE101

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16230

4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-15090

4EFE..EE101

 1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17594-15140

4EFE..EE101

 1
Common parts
90179-06007
90179-08193
90461-12233
91511-60614
91621-60820
91651-40816
91652-B0820
91655-60830
91655-60835

(9305-9505)4EFE..EE101

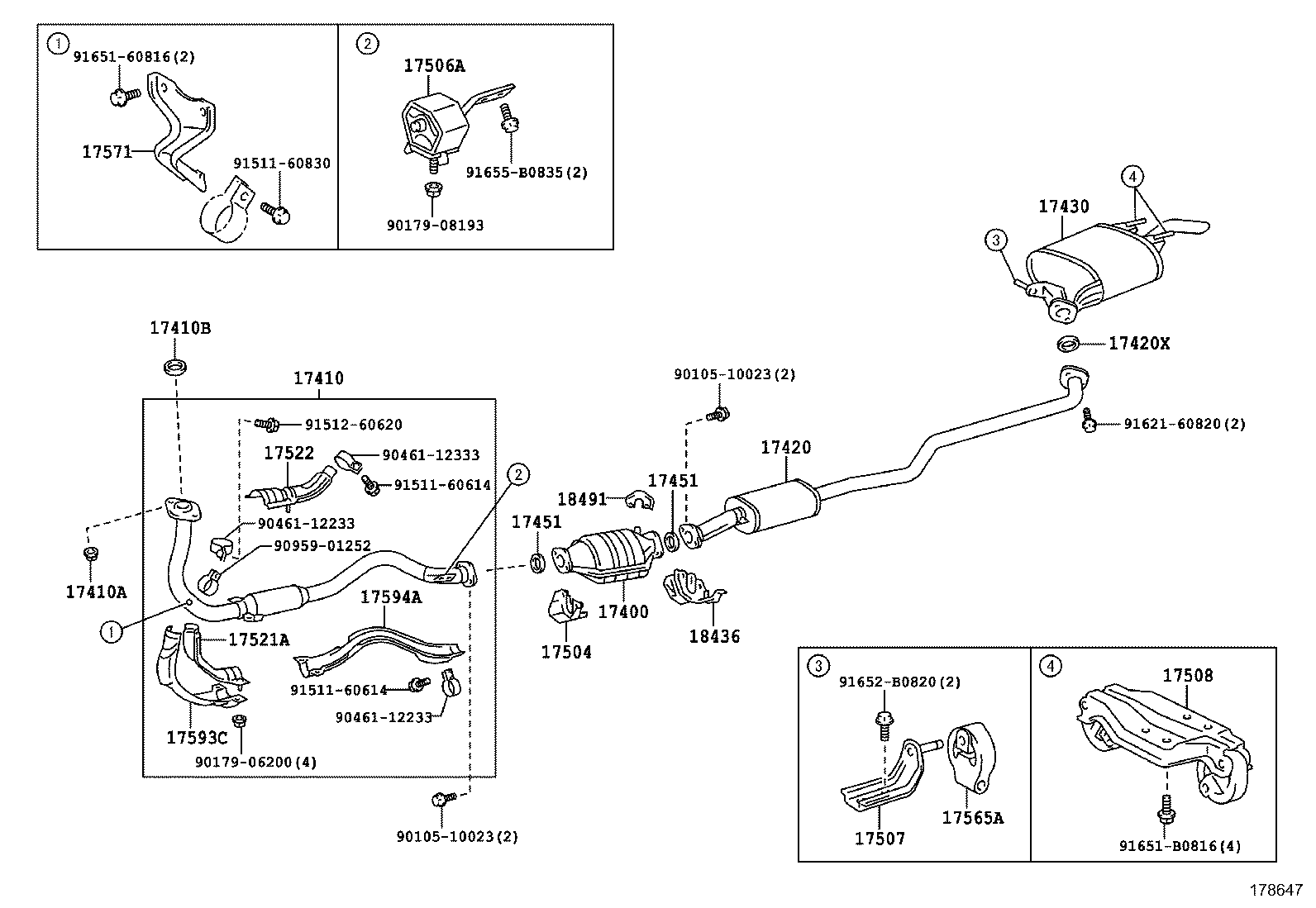

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17420 17420X 17430 17451 17451 17504 17506A 17507 17508 17521A 17522 17565A 17571 17593C 17594A 18436 18491 9010510023 9010510023 9017906200 9017908193 9046112233 9046112233 9046112333 9095901252 9151160614 9151160614 9151160830 9151260620 9162160820 9165160816 91651B0816 91652B0820 91655B0835
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-11150

5AFE,4EFE..AE100,EE101

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-15241

4EFE..EE101

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4EFE..EE101

 1
90179-10070

5AFE,2C,2E,3E,4EFE,5EFE..AE100,CE10#,EE10#

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

2C,2E,3E,4EFE..CE104,106,108,109,EE10#

 1
90917-06061

2C,2E,3E,4EFE..CE10#,EE10#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-15150

5AFE,4EFE..AE100,EE101

 1
17420-11210

4EFE..EE101

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06060

5AFE,2E,3E,4EFE,5EFE..AE100,EE10#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-15540

5AFE,4EFE..AE100,EE101

 1
17451 - GASKET, EXHAUST PIPE
90917-06039

2C,4EFE..CE104,109,EE101

 1
90917-06044

5AFE,2E,3E,4EFE,5EFE..AE100,EE10#

ﾌﾛﾝﾄ

 1
90917-06045

5AFE,2E,3E,4EFE,5EFE..AE100,EE10#

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
90917-06039

2C,4EFE..CE104,109,EE101

 1
90917-06044

5AFE,2E,3E,4EFE,5EFE..AE100,EE10#

ﾌﾛﾝﾄ

 1
90917-06045

5AFE,2E,3E,4EFE,5EFE..AE100,EE10#

ﾘﾔ

 1
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-16020

5AFE,2E,3E,4EFE,5EFE..AE100,EE10#

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-15070

4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE100,101,CE100,106,108,EE10#

 1
17506-16120

4AGE..AE101..4DS;4AFE,5AFE,2C,4EFE,5EFE..AE100,101,CE100,106,108,EE10#

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-15040

4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-15050

4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101..4DS,WG

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-15130

4EFE..EE101

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16230

4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-15090

4EFE..EE101

 1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17594-15140

4EFE..EE101

 1
18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1
17504-11010

5AFE,4EFE,5EFE..AE100,EE101,102,103,104

 1
18491 - FLANGE, THERMOSENSOR INLET
18491-16010

4A#,5AFE,2E,3E,4EFE,5EFE..AE100,101,EE10#

 1
Common parts
90105-10023
90179-06200
90179-08193
90461-12233
90461-12333
90959-01252
91511-60614
91511-60830
91512-60620
91621-60820
91651-60816
91651-B0816
91652-B0820
91655-B0835
