EE101-AEHBK (1991)
Toyota Corolla

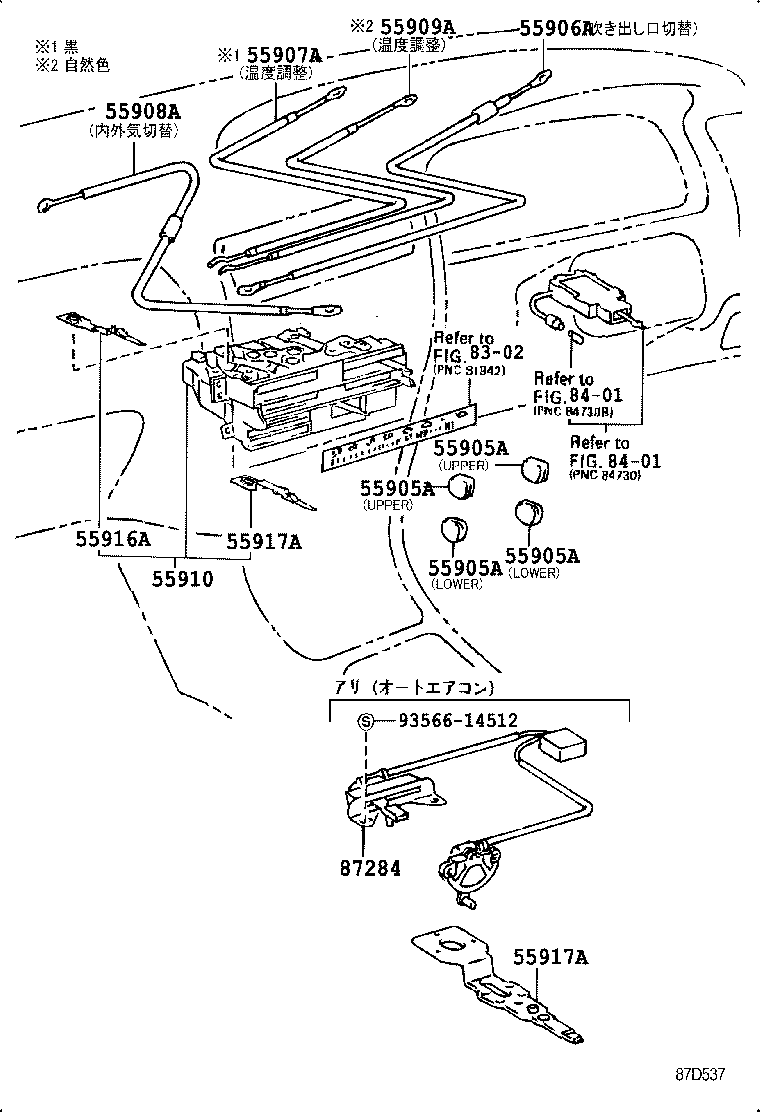

ILLUST NO. 1 OF 3(9106- )CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12150 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE LOWER |
2 | ||
| 55905-12140 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE UPPER |
2 | ||
| 55905-12140 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE UPPER |
2 | ||
| 55905-12150 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE LOWER |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12150 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE LOWER |
2 | ||
| 55905-12140 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE UPPER |
2 | ||
| 55905-12140 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE UPPER |
2 | ||
| 55905-12150 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE LOWER |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12150 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE LOWER |
2 | ||
| 55905-12140 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE UPPER |
2 | ||
| 55905-12140 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE UPPER |
2 | ||
| 55905-12150 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE LOWER |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12150 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE LOWER |
2 | ||
| 55905-12140 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE UPPER |
2 | ||
| 55905-12140 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE UPPER |
2 | ||
| 55905-12150 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE LOWER |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-12350 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE |
1 | ||
| 55906-12330 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 55906-12330 |
AE10#,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,SJ,XE |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12360 |
AE10#,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,SJ,XE ﾌﾞﾗﾂｸ |
1 | ||
| 55907-12360 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ﾌﾞﾗﾂｸ |
1 | ||
| 55907-12361 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE ﾌﾞﾗﾂｸ |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-12280 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE |
1 | ||
| 55908-12260 |
AE10#,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,SJ,XE |
1 | ||
| 55908-12260 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12240 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ｼｾﾞﾝｼﾖｸ |
1 | ||
| 55909-12240 |
AE10#,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,SJ,XE ｼｾﾞﾝｼﾖｸ |
1 | ||
| 55909-12270 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE ｼｾﾞﾝｼﾖｸ |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12550 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 55910-12610 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE |
1 | ||
| 55910-12551 |
AE10#,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,SJ,XE |
1 | ||
| 55910-12550 |
AE10#,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,SJ,XE |
1 | ||
| 55916A - LEVER, COOLER CONTROL | ||||
| 55916-12050 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SEL,SJ,XE |
1 | ||
| Common parts | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(9106-9508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12210 |
AE10#,CE10#,EE10# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12290 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12150 |
AE10#,CE10#,EE10# |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12150 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-12130 |
AE104,CE10#,EE10#;AE100..3FC..(DX,LX);AE100..(4FC,5F)..(DX,LT,LX,SEL,XE) |
1 | ||
| 87138-12130 |
AE100..3FC..(DX,LX);AE100..(4FC,5F)..(DX,LT,LX,XE);AE104,CE10#,EE10#..CTD,DX,GL,L,LX,XE |
1 | ||
| 87138-12130 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12340 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE |
1 | ||
| 87201-12350 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201-12350 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX,XE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201-12340 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX,XE |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12080 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 87213A - DUCT, AIR REAR NO.2 | ||||
| 87213-12050 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-12010 |
CE106,EE102,106..05S;AE10#,CE100,101,102,104,105,107,108,109,EE101,103,104,107,108 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12020 |
CE106,EE102,106..05S;AE100,101,CE100,101,102,107,108,EE101,103,104,107,108 |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-12110 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX,XE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88539-12110 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90167-50002 | ||||
| 90480-26022 | ||||
| 93568-55014 | ||||

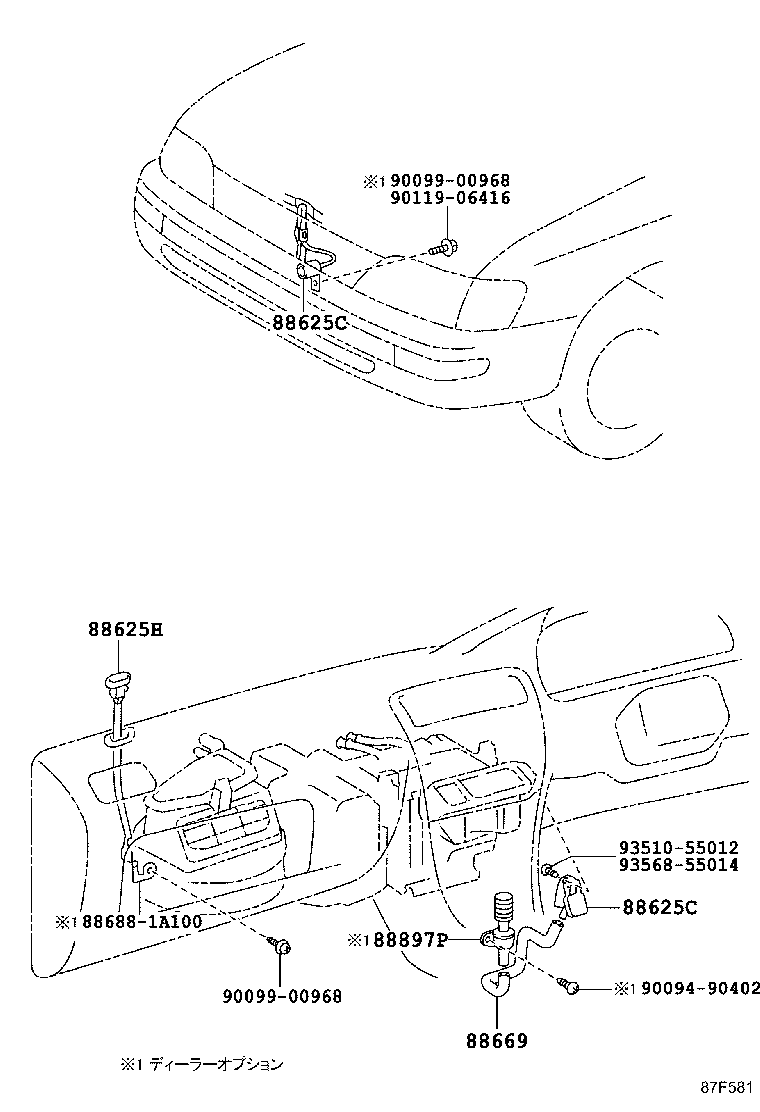

ILLUST NO. 3 OF 3(9106- )AE100,101,104,CE101,104 ; (9106- )CE100,EE101..G,LT,LX,SEL,XE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-12260 |
AE100,101,104,CE101,104;CE100,EE101..G,LT,LX,SEL,XE AMBIENT TEMP |
1 | ||
| 88790-12020 |
AE100,101,104,CE101,104;CE100,EE101..G,LT,LX,SEL,XE ROOM TEMP |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-12260 |
AE100,101,104,CE101,104;CE100,EE101..G,LT,LX,SEL,XE AMBIENT TEMP |
1 | ||
| 88790-12020 |
AE100,101,104,CE101,104;CE100,EE101..G,LT,LX,SEL,XE ROOM TEMP |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-12250 |
AE100,101,104,CE101,104;CE100,EE101..G,LT,LX,SEL,XE |
1 | ||
| Common parts | ||||
| 88688-1A100 | ||||
| 90094-90402 | ||||
| 90099-00968 | ||||
| 90119-06416 | ||||
| 93510-55012 | ||||
| 93568-55014 | ||||
