Toyota Corolla EE101 WIRING & CLAMP

EE101-AEHBK (1991)

Toyota Corolla

Production Jun 1991 - May 1995

Engine 4EFE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 8 OF 9(9106- )

Click highlighted areas on diagram

ﾀﾞｲｵ-ﾄﾞ

Part #	Description	Period	Qty
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12030	AE10#,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12030	AE10#,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12030	AE10#,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1

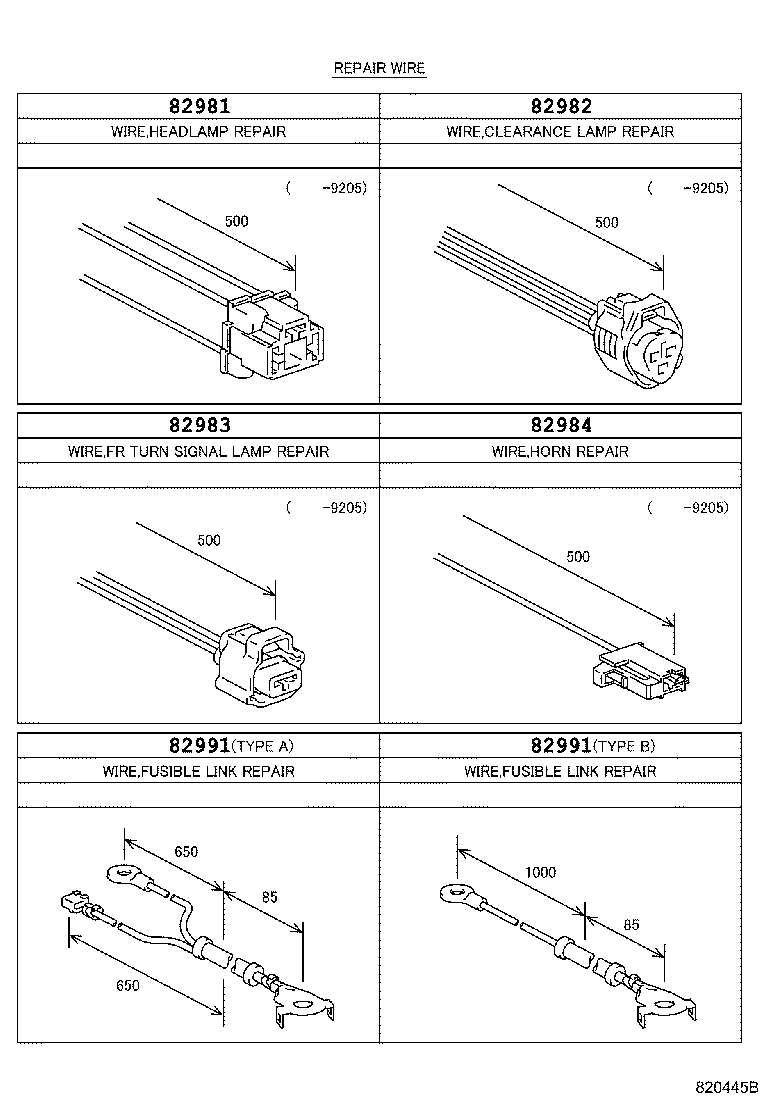

ILLUST NO. 9 OF 9(9106- )

Click highlighted areas on diagram

ﾘﾍﾟｱ

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-12050	AE10#,CE10#,EE10#	06/1991 - 05/1992	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-12100	AE10#,CE10#,EE10#	06/1991 - 05/1992	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-12090	AE10#,CE10#,EE10#	06/1991 - 05/1992	1
82984 - WIRE, HORN REPAIR
82984-12010	AE10#,CE10#,EE10#	06/1991 - 05/1992	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12060	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1992	1
82991-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1992	1
82991-12050	AE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1992 - 12/2999	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12060	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1992	1
82991-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1992	1
82991-12050	AE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1992 - 12/2999	1

ILLUST NO. 1 OF 9(9106- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1E770	AE100,101,EE101..4DS,WG ｱﾘ(*66)---ﾅｼ(ｸﾘｱﾗﾝｽｿﾅ-)	05/1993 - 09/1993	1
82111-1E410	AE10#,EE101..4DS,WG ｱﾘ(*66)---ﾅｼ(ｸﾘｱﾗﾝｽｿﾅ-)	06/1991 - 05/1993	1
82111-1E210	AE100,101..DX,LX,SEG,SEL,XE	06/1991 - 11/1994	1
82111-1E771	AE100,101,EE101..4DS,WG ｱﾘ(*66)---ﾅｼ(ｸﾘｱﾗﾝｽｿﾅ-)	09/1993 - 11/1994	1
82111-1E220	EE101;AE100,101..(4DS,WG)..(G,GT,LT)	06/1991 - 11/1994	1
82111-1E772	AE100,101,EE101..4DS,WG ｱﾘ(*66)---ﾅｼ(ｸﾘｱﾗﾝｽｿﾅ-)	11/1994 - 05/1995	1
82111-1E211	AE100,101..DX,LX,SEG,SEL,XE	11/1994 - 05/1995	1
82123 - WIRE, ENGINE, NO.3
82123-12190	AE100,EE10#..3FC	06/1991 - 05/1995	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08257	EE106,107,108..3FC;AE10#,CE101,102,105,107,EE101,102,103,104 40A,ｵｽ端子,緑	06/1991 - 12/2999	1
90982-08246	AE100,101,EE101;EE103,104,107,108..3FC;AE104,109,EE102,106..3FC,5F 100A,ｵｽ端子,青	06/1991 - 04/1997	1
90982-08228	AE10#,CE100,104,EE101 50A,ｵｽ端子,赤	06/1991 - 04/1998	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08257	EE106,107,108..3FC;AE10#,CE101,102,105,107,EE101,102,103,104 40A,ｵｽ端子,緑	06/1991 - 12/2999	1
90982-08246	AE100,101,EE101;EE103,104,107,108..3FC;AE104,109,EE102,106..3FC,5F 100A,ｵｽ端子,青	06/1991 - 04/1997	1
90982-08228	AE10#,CE100,104,EE101 50A,ｵｽ端子,赤	06/1991 - 04/1998	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A090	AE10#,CE10#,EE10#	06/1991 - 11/1994	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A090	AE10#,CE10#,EE10#	06/1991 - 11/1994	2
Common parts
90099-04337
90105-08096
90105-10122
90119-06390
90119-08063
91515-G0616
Linked diagrams
8401

ILLUST NO. 4 OF 9(9106- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82028 - WIRING SUB-ASSY, COWL
82028-12030	AE10#,CE10#,EE10#	06/1991 - 05/1992	1
82028-12050	AE10#,CE10#,EE10#	05/1992 - 11/1994	1
82141 - WIRE, INSTRUMENT PANEL
82141-12170	EE101..DX,LX	06/1991 - 10/1991	1
82141-12171	EE101..DX,LX	10/1991 - 05/1992	1
82141-12172	EE101..DX,LX	05/1992 - 05/1993	1
82141-1E060	EE101..DX,LX	05/1993 - 11/1994	1
82141-1E061	EE101..DX,LX	11/1994 - 05/1995	1
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12030	AE10#,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12030	AE10#,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
Common parts
82715-12160
82715-12260
90119-06053
90119-06657
90159-60080
90159-60081
90167-50002
91611-60612
91655-60616
93567-55014
93568-15014
93568-55014
Linked diagrams
8121
8401

ILLUST NO. 7 OF 9(9106- )

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	06/1991 - 01/1994	1
90980-07351	AE10#,EE10# FENDER-T/M	06/1991 - 01/1994	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	06/1991 - 01/1994	1
90980-07351	AE10#,EE10# FENDER-T/M	06/1991 - 01/1994	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	06/1991 - 01/1994	1
90980-07351	AE10#,EE10# FENDER-T/M	06/1991 - 01/1994	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	06/1991 - 01/1994	1
90980-07351	AE10#,EE10# FENDER-T/M	06/1991 - 01/1994	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	06/1991 - 01/1994	1
90980-07351	AE10#,EE10# FENDER-T/M	06/1991 - 01/1994	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	06/1991 - 01/1994	1
90980-07351	AE10#,EE10# FENDER-T/M	06/1991 - 01/1994	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
Common parts
90119-06311
90119-06375
90119-06390
91651-40816

ILLUST NO. 2 OF 9(9106- )EE101,102,103,104

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1H250	EE101..3FC	06/1991 - 05/1992	1
82121-1H360	EE101..3FC ｱﾘ(*66)	06/1991 - 05/1992	1
82121-1H361	EE101..3FC	05/1992 - 05/1993	1
82121-1K630	EE101..3FC	05/1993 - 11/1994	1
82121-1K631	EE101..3FC	11/1994 - 05/1995	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08257	EE106,107,108..3FC;AE10#,CE101,102,105,107,EE101,102,103,104 40A,ｵｽ端子,緑	06/1991 - 12/2999	1
90982-08246	AE100,101,EE101;EE103,104,107,108..3FC;AE104,109,EE102,106..3FC,5F 100A,ｵｽ端子,青	06/1991 - 04/1997	1
90982-08228	AE10#,CE100,104,EE101 50A,ｵｽ端子,赤	06/1991 - 04/1998	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08257	EE106,107,108..3FC;AE10#,CE101,102,105,107,EE101,102,103,104 40A,ｵｽ端子,緑	06/1991 - 12/2999	1
90982-08246	AE100,101,EE101;EE103,104,107,108..3FC;AE104,109,EE102,106..3FC,5F 100A,ｵｽ端子,青	06/1991 - 04/1997	1
90982-08228	AE10#,CE100,104,EE101 50A,ｵｽ端子,赤	06/1991 - 04/1998	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE10#,EE10# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1991 - 04/1997	4
90982-08257	EE106,107,108..3FC;AE10#,CE101,102,105,107,EE101,102,103,104 40A,ｵｽ端子,緑	06/1991 - 12/2999	1
90982-08246	AE100,101,EE101;EE103,104,107,108..3FC;AE104,109,EE102,106..3FC,5F 100A,ｵｽ端子,青	06/1991 - 04/1997	1
90982-08228	AE10#,CE100,104,EE101 50A,ｵｽ端子,赤	06/1991 - 04/1998	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12080	AE10#,EE101 ｱﾘ(*66)	06/1991 - 01/1992	1
82620-12080	AE100,101,EE101 ｱﾘ(*66)	01/1992 - 05/1992	1
82620-12150	EE107,108..3FC;AE100,101,EE101;AE104,EE106..3FC,5F	06/1991 - 01/1992	1
82620-12150	AE100,101,EE101;EE106,107,108..3FC	01/1992 - 05/1992	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	AE10#,CE10#,EE101	04/1994 - 11/1994	1
82824-20050	AE100,104,109,CE100,102,104,105,106,107,108,109,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE	11/1994 - 12/2999	1
82824-20050	AE10#,CE10#,EE10#	06/1991 - 04/1994	1
Common parts
90119-06595
90119-06604
Linked diagrams
8401

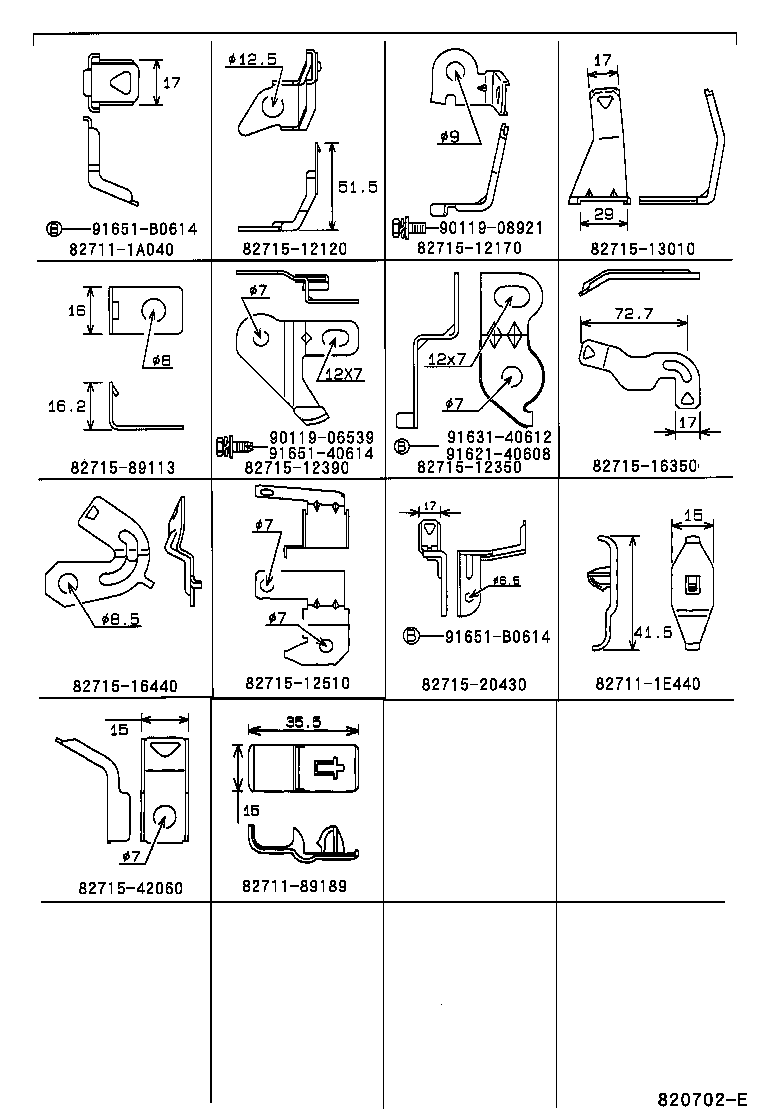

ILLUST NO. 3 OF 9(9106- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾜｲﾔｸﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
82711-1A040
82711-1E440
82711-89189
82715-12120
82715-12170
82715-12350
82715-12390
82715-12510
82715-13010
82715-16350
82715-16440
82715-20430
82715-42060
82715-89113
90119-06539
90119-08921
91621-40608
91631-40612
91651-40614
91651-B0614

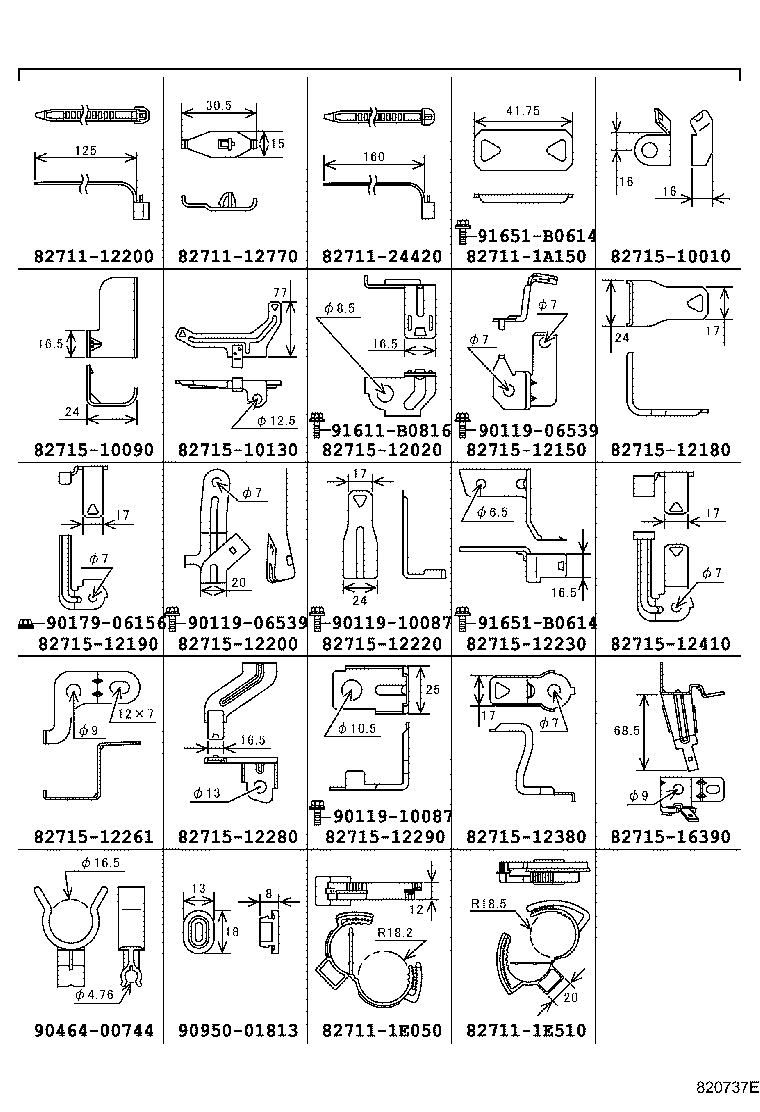

ILLUST NO. 3 OF 9(9106- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾜｲﾔｸﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12770
82711-1A150
82711-1E050
82711-1E510
82711-24420
82715-10010
82715-10090
82715-10130
82715-12020
82715-12150
82715-12180
82715-12190
82715-12200
82715-12220
82715-12230
82715-12261
82715-12280
82715-12290
82715-12380
82715-12410
82715-16390
90119-06539
90119-10087
90179-06156
90464-00744
90950-01813
91611-B0816
91651-B0614

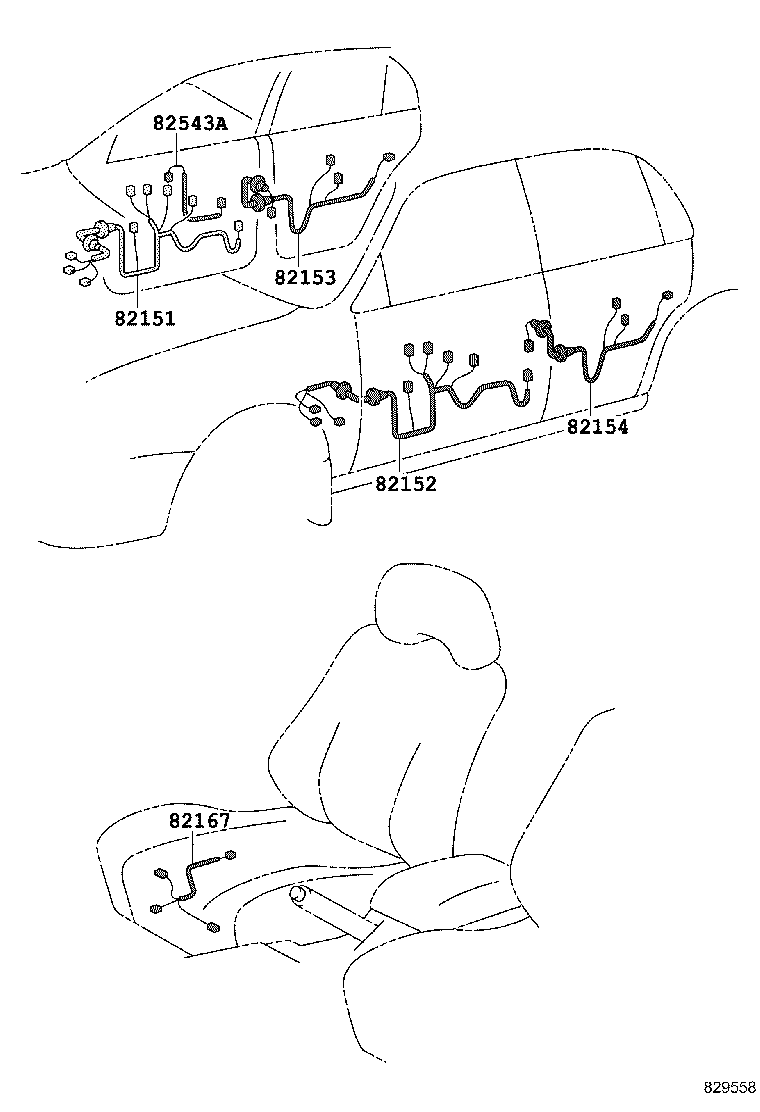

ILLUST NO. 5 OF 9(9106- )

Click highlighted areas on diagram

ﾄﾞｱ & ｼ-ﾄ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-12810	AE100,104,CE100,104,108,EE101,108..DX,L,LX	06/1991 - 10/1991	1
82151-12810	AE100,CE100,108,EE101,108..DX,L	10/1991 - 01/1994	1
82151-12810	AE100,CE100,EE101..DX	01/1994 - 05/1995	1
82152 - WIRE, FRONT DOOR, LH
82151-12810	AE100,104,CE100,104,108,EE101,108..DX,L,LX	06/1991 - 10/1991	1
82151-12810	AE100,CE100,108,EE101,108..DX,L	10/1991 - 01/1994	1
82151-12810	AE100,CE100,EE101..DX	01/1994 - 05/1995	1

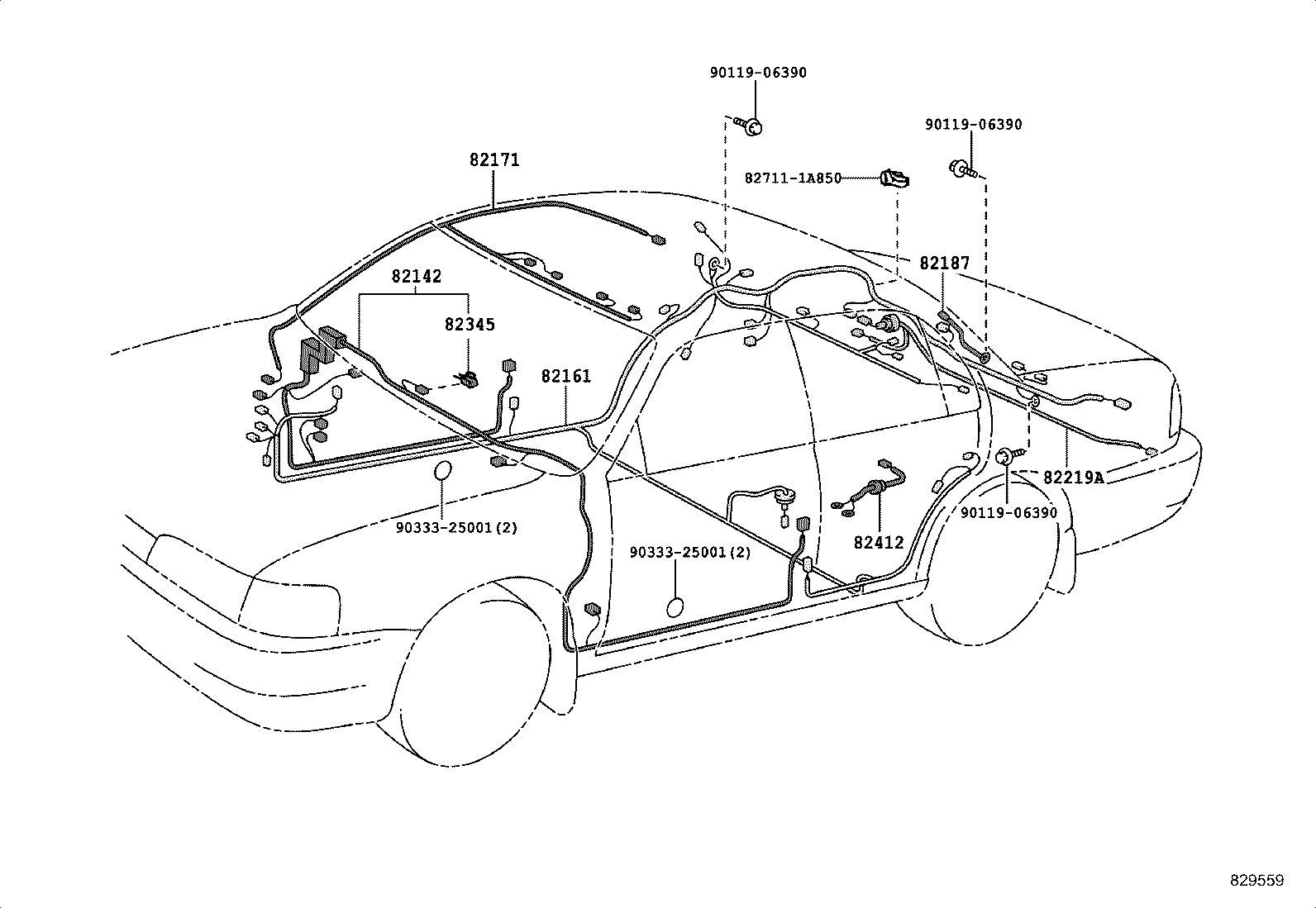

ILLUST NO. 6 OF 9(9106- )4DS

Click highlighted areas on diagram

ﾌﾛｱ & ﾙ-ﾌ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-1K060	AE100,CE100,EE101..DX,LX ｱﾘ(*66)	06/1991 - 05/1993	1
82161-1K280	AE100,CE100,EE101..DX,LX	06/1991 - 11/1994	1
82161-1K740	AE100,CE100,EE101..DX,LX ｱﾘ(*66)	05/1993 - 11/1994	1
82161-1K741	AE100,CE100,EE101..DX,LX ｱﾘ(*66)	11/1994 - 05/1995	1
82161-1K281	AE100,CE100,EE101..DX,LX	11/1994 - 05/1995	1
82171 - WIRE, ROOF, NO.1
82171-12440	AE10#,CE100,104,EE101..3DS,4DS	06/1991 - 05/1995	1
82187 - WIRE, REAR WINDOW, NO.2
82187-12150	AE100,CE100,EE101..DX,LX	06/1991 - 08/1991	1
82187-12150	AE100,EE101..DX,LX,SEL;AE104,CE100,104..DX,LX	08/1991 - 05/1993	1
82187-12150	AE100,EE101..4DS;AE104,CE100,104..DX,LX,XE	05/1993 - 05/1995	1
82345 - DIODE
82345-32020	AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12030	AE10#,CE10#,EE10# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
82345-12050	AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	1
Common parts
82711-1A850
90119-06390
90333-25001
