EE101-AEHBK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )

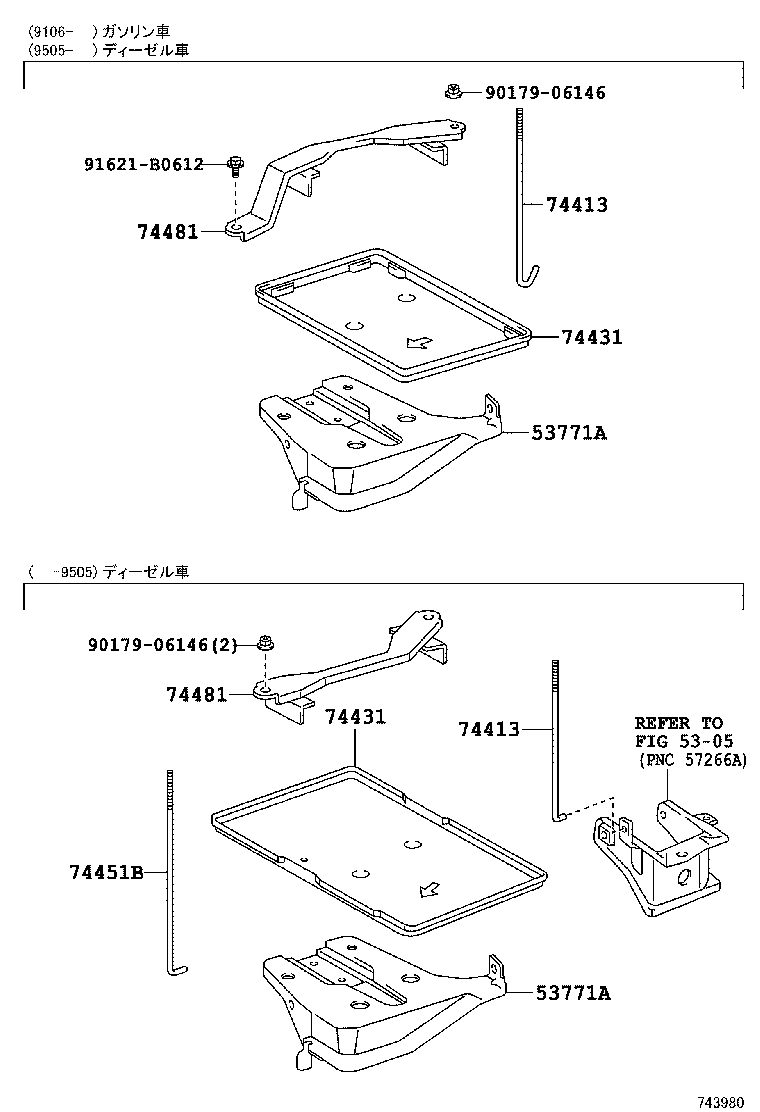

Click highlighted areas on diagram

diagram 5305 53771A 53771A 74413 74413 74431 74431 74451B 74481 74481 9017906146 9017906146 91621B0612
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-12090

AE10#,EE10#

 1
53771A - SUPPORT, BATTERY CARRIER
53771-12090

AE10#,EE10#

 1
74413 - BOLT, BATTERY CLAMP
74451-12060

AE10#,EE10#

 1
74451-12061

AE10#,EE10#

 1
74413 - BOLT, BATTERY CLAMP
74451-12060

AE10#,EE10#

 1
74451-12061

AE10#,EE10#

 1
74431 - TRAY, BATTERY
74431-12060

EE106..3FC;AE10#,EE101,102,103,104,107,108

ｶﾝﾚｲﾁ ｼﾖｳ

 1
74431-12020

EE106,107,108..MTM;AE10#,EE101,102,103,104

 1
74431 - TRAY, BATTERY
74431-12060

EE106..3FC;AE10#,EE101,102,103,104,107,108

ｶﾝﾚｲﾁ ｼﾖｳ

 1
74431-12020

EE106,107,108..MTM;AE10#,EE101,102,103,104

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-12330

EE106..3FC;AE10#,EE101,102,103,104,107,108

ｶﾝﾚｲﾁ ｼﾖｳ

 1
74404-12290

EE106,107,108..MTM;AE10#,EE101,102,103,104

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-12330

EE106..3FC;AE10#,EE101,102,103,104,107,108

ｶﾝﾚｲﾁ ｼﾖｳ

 1
74404-12290

EE106,107,108..MTM;AE10#,EE101,102,103,104

 1
Common parts
90179-06146
91621-B0612
Linked diagrams
5305
