EE101-AEHBK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )4DS,V,WG

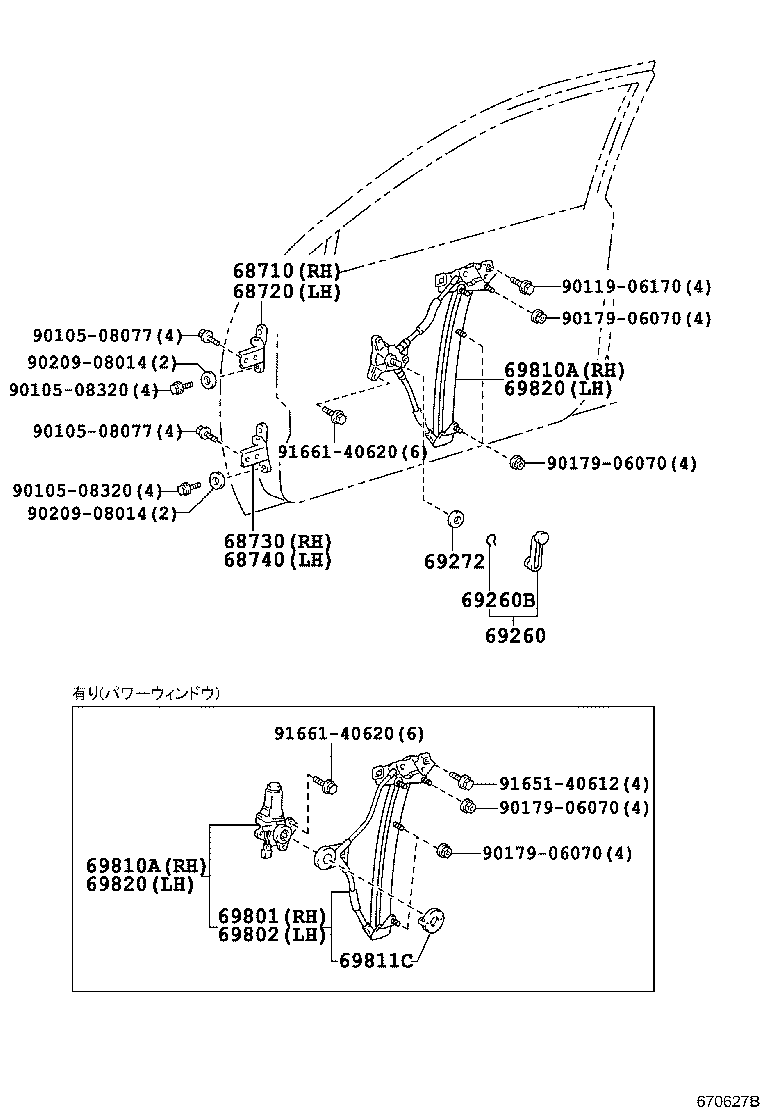

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69810A 69810A 69811C 69820 69820 9010508077 9010508077 9010508320 9010508320 9011906170 9017906070 9017906070 9017906070 9017906070 9020908014 9020908014 9165140612 9166140620 9166140620
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12130

AE10#,CE10#,EE10#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12130

AE10#,CE10#,EE10#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12090

AE10#,CE10#,EE10#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12090

AE10#,CE10#,EE10#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004043

AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX,SJ

GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

AE100,104,109,CE100,102,104,105,106,107,108,109,EE10#..CTD,DX,DXJ,GL,L,LX

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-20020

AE100,104,109,CE100,102,104,105,106,107,108,109,EE10#..CTD,DX,DXJ,GL,L,LX

 2
69268-20020

AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX,SJ

 2
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-12380

AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-12380

AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-12380

AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-12380

AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE

 1
Common parts
90105-08077
90105-08320
90119-06170
90179-06070
90209-08014
91651-40612
91661-40620
