EE101-AEHBK (1991)
Toyota Corolla

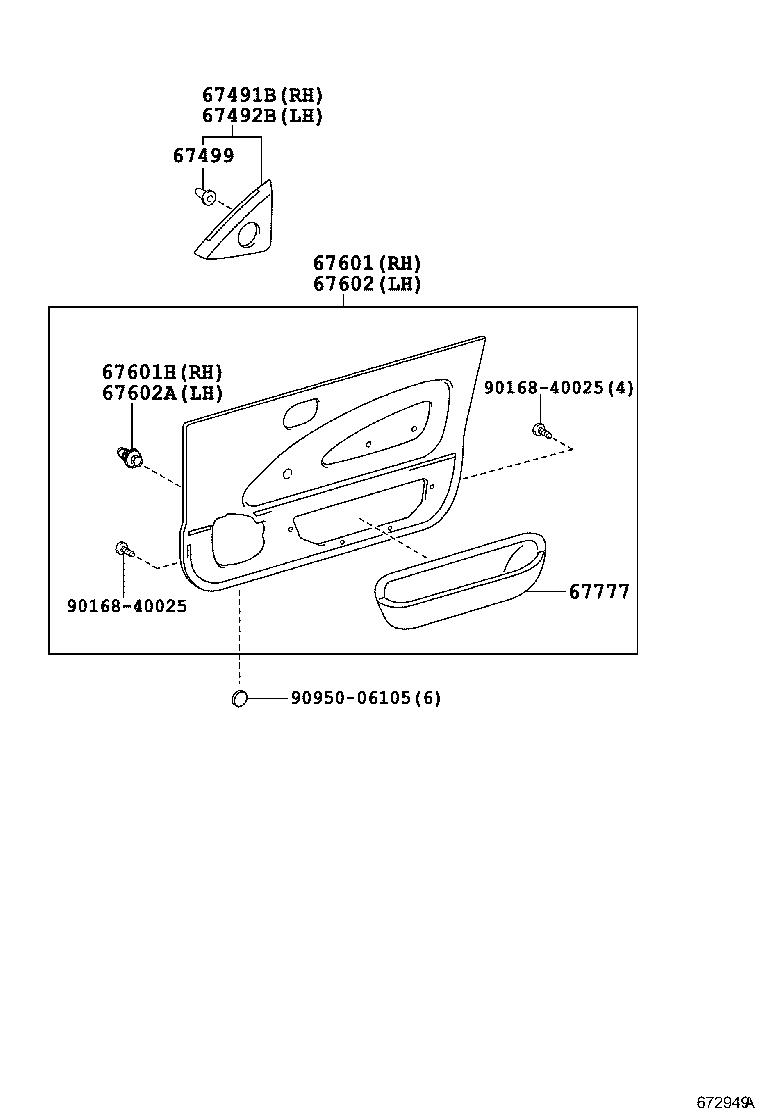

ILLUST NO. 1 OF 2(9106- )4DS,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,EE101 |
4 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,EE101 |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1E550B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E260B0 |
AE100,CE100,EE101..DX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H870B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
3 | ||
| 90467-08179 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ｲｴﾛｰ |
4 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
7 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
6 | ||
| 67771-13030 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ﾌﾞﾗｳﾝ,PLANT NO.K-21 |
6 | ||
| 67771-16170 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ｾ-ﾌﾞﾙ,PLANT A31,A32 |
6 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1K630B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L810B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K340B0 |
AE100,CE100,EE101..DX;CE106,109,EE103,107..GL SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
3 | ||
| 90467-08179 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ｲｴﾛｰ |
4 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
7 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
6 | ||
| 67771-13030 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ﾌﾞﾗｳﾝ,PLANT NO.K-21 |
6 | ||
| 67771-16170 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ｾ-ﾌﾞﾙ,PLANT A31,A32 |
6 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-12020B0 |
CE105,107..GL;AE100,104,CE100,102,104,EE101..DX,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-12030B0 |
CE105,107..GL;AE100,104,CE100,102,104,EE101..DX,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 68171-12160 |
CE105,106,107,109,EE103..GL;AE100,101,104,CE100,101,104,EE101..4DS,WG |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68172-12050 |
CE105,106,107,109,EE103..GL;AE100,101,104,CE100,101,104,EE101..4DS,WG |
1 | ||
| 68172-12050 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,108,EE101,108..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,108,EE101,108..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90183-03092 | ||||
| 90189-04127 | ||||
| 90950-06105 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
(9106-9505)3DS,4DS

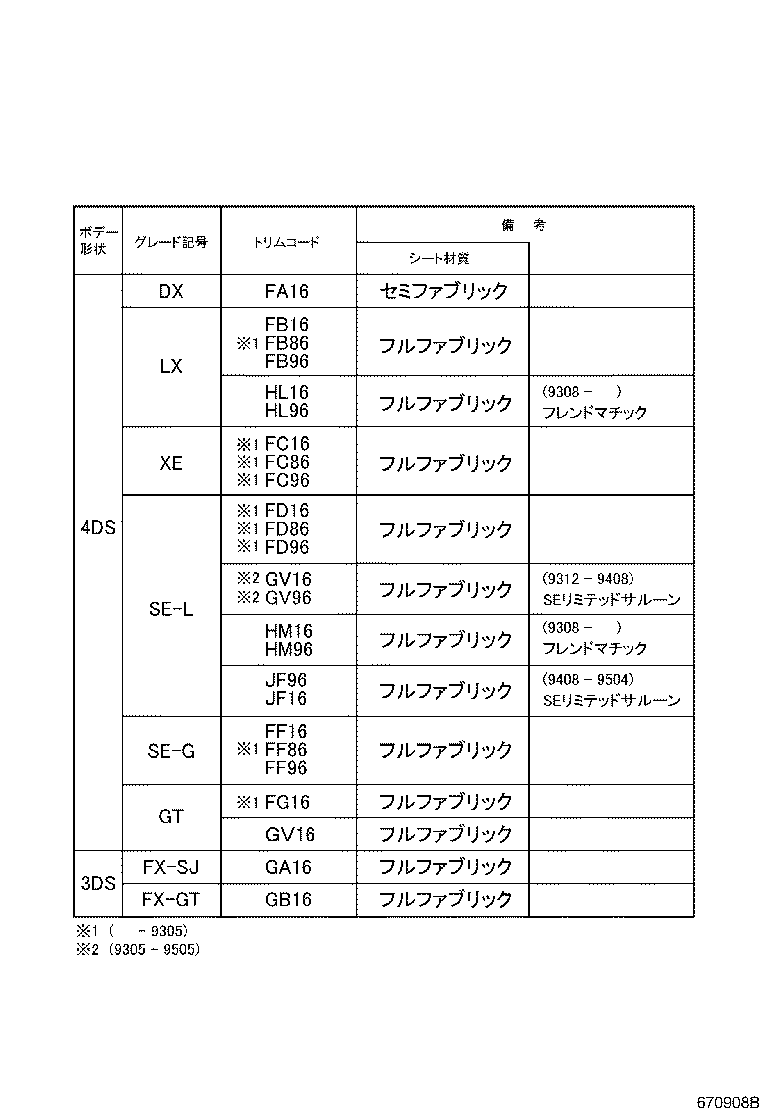

TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|

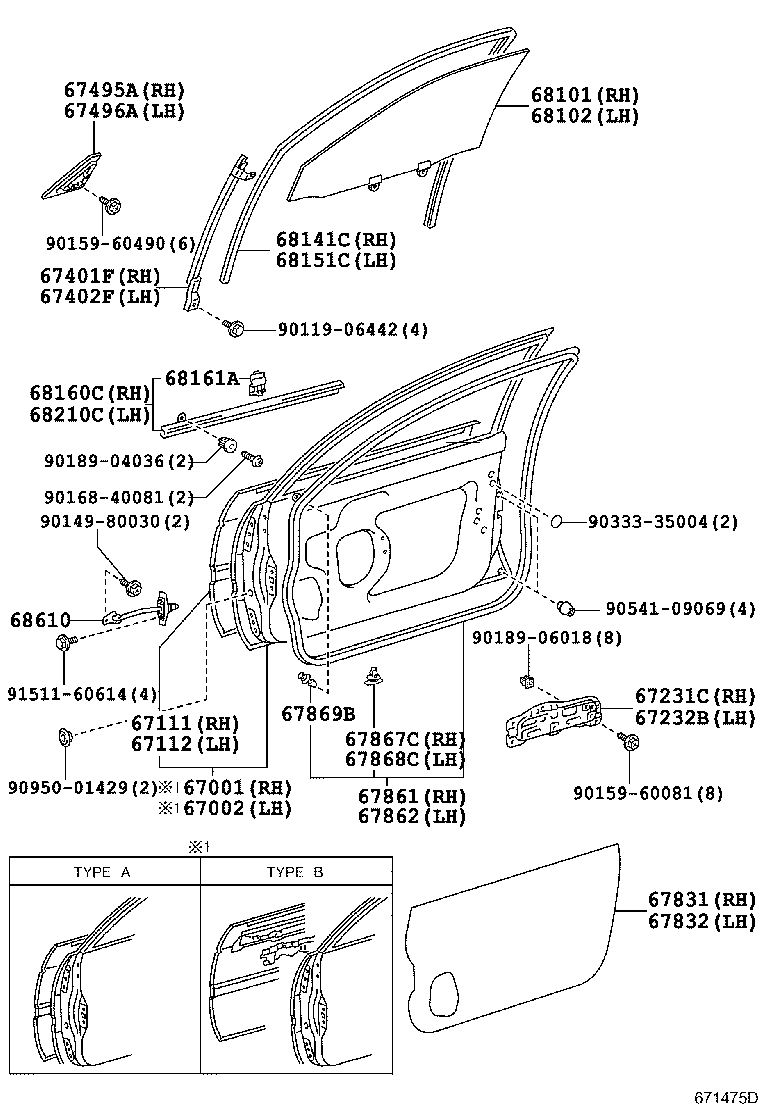

ILLUST NO. 2 OF 2(9106- )4DS,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A530 |
AE10#,CE10#,EE10#..(4DS,V,WG)..(BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ) |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A510 |
AE10#,CE10#,EE10#..(4DS,V,WG)..(BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12610 |
AE10#,CE10#,EE10#..(4DS,V,WG)..(DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12460 |
AE10#,CE10#,EE10#..(4DS,V,WG)..(DX,G,GL,GT,L,LT,LX,SEG,SEL,XE) |
1 | ||
| 67231C - SUPPORT, DOOR TRIM, RH | ||||
| 67231-12010 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 67232B - SUPPORT, DOOR TRIM, LH | ||||
| 67232-12010 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12320 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12340 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-12160 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-12160 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12480 |
AE10#,CE100,104,EE101..4DS,WG ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67831-12480 |
AE100,104,CE100,104,EE101..DX,LX ｱﾘ(ｽﾋﾟ-ｶ-) |
1 | ||
| 67831-12470 |
CE106,109,EE103,107..GL;AE100,104,CE100,102,104,105,107,EE101..DX,GL,L,LX |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12280 |
AE10#,CE100,104,EE101..4DS,WG ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67832-12270 |
CE105,106,107,109,EE103,107..GL;AE100,104,CE100,104,EE101..DX,LX |
1 | ||
| 67832-12280 |
AE100,104,CE100,104,EE101..DX,LX ｱﾘ(ｽﾋﾟ-ｶ-) |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12820 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12780 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE10#,CE10#,EE10#..4DS,V,WG YELLOW OR RED |
16 | ||
| 67867-12150 |
AE10#,CE10#,EE10#..4DS,V,WG |
16 | ||
| 67868-20140 |
AE10#,CE10#,EE10#..4DS,V,WG PURPLE |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20140 |
AE10#,CE10#,EE10# PURPLE |
16 | ||
| 67868-12050 |
AE10#,CE10#,EE10#..4DS,V,WG YELLOW OR RED |
16 | ||
| 67867-12150 |
AE10#,CE10#,EE10#..4DS,V,WG |
16 | ||
| 67868-20150 |
AE10#,CE10#,EE10#..4DS,V,WG GREEN |
16 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AE10#,CE10#,EE10# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12800 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,108,EE101,104,108..4DS,WG *TT,厚さ=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12800 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,108,EE101,104,108..4DS,WG *TT,厚さ=3.5 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12330 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12050 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-12190 |
AE100,109,CE100,102,105,106,107,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12160 |
AE100,109,CE100,102,105,106,107,108,109,EE10#..CTD,DX,DXJ,L |
12 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-12130 |
AE100,109,CE100,102,105,106,107,108,109,EE10#..CTD,DX,DXJ,L |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12081 |
AE10#,CE10#,EE10#..4DS,V,WG 右側 |
1 | ||
| 68620-12011 |
AE10#,CE10#,EE10#..4DS,V,WG 左側 |
1 | ||
| 68620-12010 |
AE10#,CE10#,EE10#..4DS,V,WG 左側 |
1 | ||
| 68610-12080 |
AE10#,CE10#,EE10#..4DS,V,WG 右側 |
1 | ||
| Common parts | ||||
| 90119-06442 | ||||
| 90149-80030 | ||||
| 90159-60081 | ||||
| 90159-60490 | ||||
| 90168-40081 | ||||
| 90189-04036 | ||||
| 90189-06018 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
| 90950-01429 | ||||
| 91511-60614 | ||||
ILLUST NO. 1 OF 2(9106- )4DS,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,EE101 |
4 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,EE101 |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1E550B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E260B0 |
AE100,CE100,EE101..DX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H870B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1E550B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E260B0 |
AE100,CE100,EE101..DX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H870B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
3 | ||
| 90467-08179 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ｲｴﾛｰ |
4 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
7 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
6 | ||
| 67771-13030 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ﾌﾞﾗｳﾝ,PLANT NO.K-21 |
6 | ||
| 67771-16170 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ｾ-ﾌﾞﾙ,PLANT A31,A32 |
6 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
3 | ||
| 90467-08179 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ｲｴﾛｰ |
4 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
7 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
6 | ||
| 67771-13030 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ﾌﾞﾗｳﾝ,PLANT NO.K-21 |
6 | ||
| 67771-16170 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ｾ-ﾌﾞﾙ,PLANT A31,A32 |
6 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1K630B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L810B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K340B0 |
AE100,CE100,EE101..DX;CE106,109,EE103,107..GL SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1K630B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L810B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K340B0 |
AE100,CE100,EE101..DX;CE106,109,EE103,107..GL SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
3 | ||
| 90467-08179 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ｲｴﾛｰ |
4 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
7 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
6 | ||
| 67771-13030 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ﾌﾞﾗｳﾝ,PLANT NO.K-21 |
6 | ||
| 67771-16170 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ｾ-ﾌﾞﾙ,PLANT A31,A32 |
6 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
3 | ||
| 90467-08179 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ｲｴﾛｰ |
4 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
7 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
6 | ||
| 67771-13030 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ﾌﾞﾗｳﾝ,PLANT NO.K-21 |
6 | ||
| 67771-16170 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ｾ-ﾌﾞﾙ,PLANT A31,A32 |
6 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-12020B0 |
CE105,107..GL;AE100,104,CE100,102,104,EE101..DX,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-12020B0 |
CE105,107..GL;AE100,104,CE100,102,104,EE101..DX,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-12030B0 |
CE105,107..GL;AE100,104,CE100,102,104,EE101..DX,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-12030B0 |
CE105,107..GL;AE100,104,CE100,102,104,EE101..DX,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 68171-12160 |
CE105,106,107,109,EE103..GL;AE100,101,104,CE100,101,104,EE101..4DS,WG |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 68171-12160 |
CE105,106,107,109,EE103..GL;AE100,101,104,CE100,101,104,EE101..4DS,WG |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68172-12050 |
CE105,106,107,109,EE103..GL;AE100,101,104,CE100,101,104,EE101..4DS,WG |
1 | ||
| 68172-12050 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68172-12050 |
CE105,106,107,109,EE103..GL;AE100,101,104,CE100,101,104,EE101..4DS,WG |
1 | ||
| 68172-12050 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,108,EE101,108..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,108,EE101,108..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,108,EE101,108..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,108,EE101,108..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90168-40025 | ||||
| 90183-03092 | ||||
| 90189-04127 | ||||
| 90950-06105 | ||||
ILLUST NO. 1 OF 2(9106- )4DS,V,WG
ｾﾐ ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,EE101 |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1E550B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E260B0 |
AE100,CE100,EE101..DX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H870B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
3 | ||
| 90467-08179 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ｲｴﾛｰ |
4 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
7 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
6 | ||
| 67771-13030 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ﾌﾞﾗｳﾝ,PLANT NO.K-21 |
6 | ||
| 67771-16170 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ｾ-ﾌﾞﾙ,PLANT A31,A32 |
6 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1K630B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L810B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K340B0 |
AE100,CE100,EE101..DX;CE106,109,EE103,107..GL SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
3 | ||
| 90467-08179 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ｲｴﾛｰ |
4 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
7 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
6 | ||
| 67771-13030 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ﾌﾞﾗｳﾝ,PLANT NO.K-21 |
6 | ||
| 67771-16170 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ｾ-ﾌﾞﾙ,PLANT A31,A32 |
6 | ||
| Common parts | ||||
| 90168-40025 | ||||
| 90950-06105 | ||||
ILLUST NO. 1 OF 2(9305- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-12230 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,EE101 |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1E550B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E260B0 |
AE100,CE100,EE101..DX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H870B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
3 | ||
| 90467-08179 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ｲｴﾛｰ |
4 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
7 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
6 | ||
| 67771-13030 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ﾌﾞﾗｳﾝ,PLANT NO.K-21 |
6 | ||
| 67771-16170 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ｾ-ﾌﾞﾙ,PLANT A31,A32 |
6 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1K630B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L810B0 |
AE100,CE100,EE101..DX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K340B0 |
AE100,CE100,EE101..DX;CE106,109,EE103,107..GL SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX ｵﾚﾝｼﾞ |
3 | ||
| 90467-08179 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ｲｴﾛｰ |
4 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
7 | ||
| 67771-12070 |
CE106,109,EE107..GL;AE100,104,CE100,104,EE101..DX,LX ﾎﾜｲﾄ |
6 | ||
| 67771-13030 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ﾌﾞﾗｳﾝ,PLANT NO.K-21 |
6 | ||
| 67771-16170 |
CE106,109,EE103..GL;AE100,104,CE100,104,EE101..DX,LX ｾ-ﾌﾞﾙ,PLANT A31,A32 |
6 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-12020B0 |
CE105,107..GL;AE100,104,CE100,102,104,EE101..DX,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-12030B0 |
CE105,107..GL;AE100,104,CE100,102,104,EE101..DX,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 68171-12160 |
CE105,106,107,109,EE103..GL;AE100,101,104,CE100,101,104,EE101..4DS,WG |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68172-12050 |
CE105,106,107,109,EE103..GL;AE100,101,104,CE100,101,104,EE101..4DS,WG |
1 | ||
| 68172-12050 |
CE106,109,EE107..GL;AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,108,EE101,108..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
CE106,109,EE107..GL;AE10#,CE100,104,108,EE101,108..4DS,WG SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90168-40025 | ||||
| 90333-20001 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
