EE101-AEHBK (1991)
Toyota Corolla
(9106- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-12120B0 |
AE100,104,CE100,104,EE101;AE101,CE106,EE102,106..(3FC,4F,5F)..(BZT,CTD,DXJ,GT,SEG,SJ) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),SHADOW GRAY,TRIM1# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002003 |
AE100,104,CE100,104,EE101;AE101,CE106,EE106..(3FC,4F,5F)..(CTD,GT,SEG,SJ) SHADOW GRAY,TRIM1# |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-12060P0 |
AE10#,CE100,106,108,EE10#..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-12230P0 |
CE106,EE102,106..05S;AE100,CE100,108,EE101,103,104,107,108..DX,GL,L SHADOW GRAY,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-12230P0 |
CE106,EE102,106..05S;AE100,CE100,108,EE101,103,104,107,108..DX,GL,L SHADOW GRAY,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-12230P0 |
CE106,EE102,106..05S;AE100,CE100,108,EE101,103,104,107,108..DX,GL,L SHADOW GRAY,TRIM1# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12090 |
AE100,109,CE100,106,108,109,EE10#..CTD,DX,DXJ,GL,L |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12090 |
AE100,109,CE100,106,108,109,EE10#..CTD,DX,DXJ,GL,L |
1 | ||
| Common parts | ||||
| 90119-06692 | ||||
| 90119-08413 | ||||
| 90119-08848 | ||||
| 90149-80023 | ||||
| 90164-45013 | ||||
| 90164-50040 | ||||
| 90467-10130 | ||||
| 90541-03006 | ||||
| 91631-40612 | ||||
| 91661-40612 | ||||
| 93520-53012 | ||||
| 93540-54010 | ||||
| 93567-54512 | ||||
| 93567-55012 | ||||
| 93567-55014 | ||||
| 93568-55016 | ||||

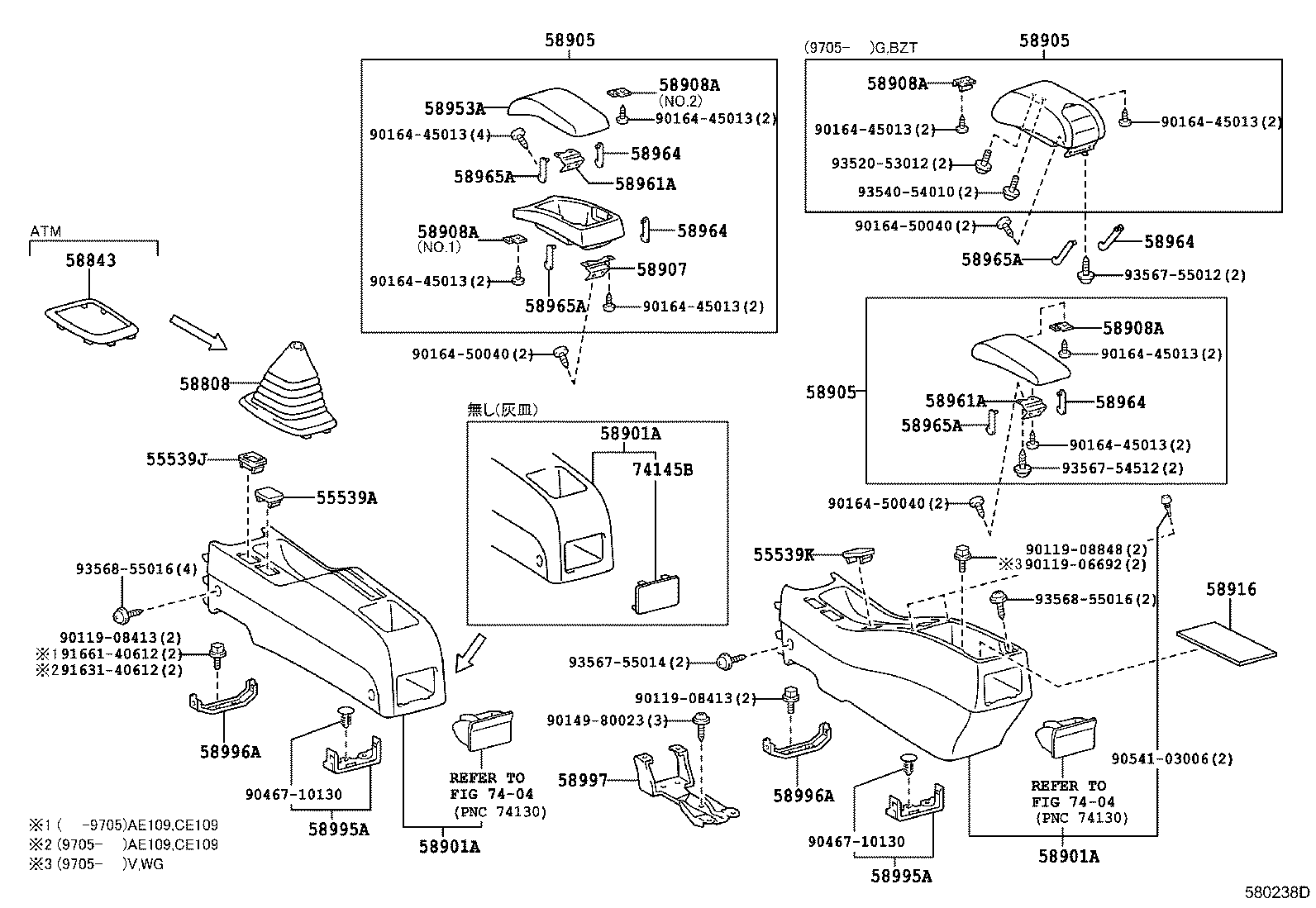

| Linked diagrams | ||||
| 7404 | ||||
