EE101-AEHBK (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9705)4EFE,5EFE

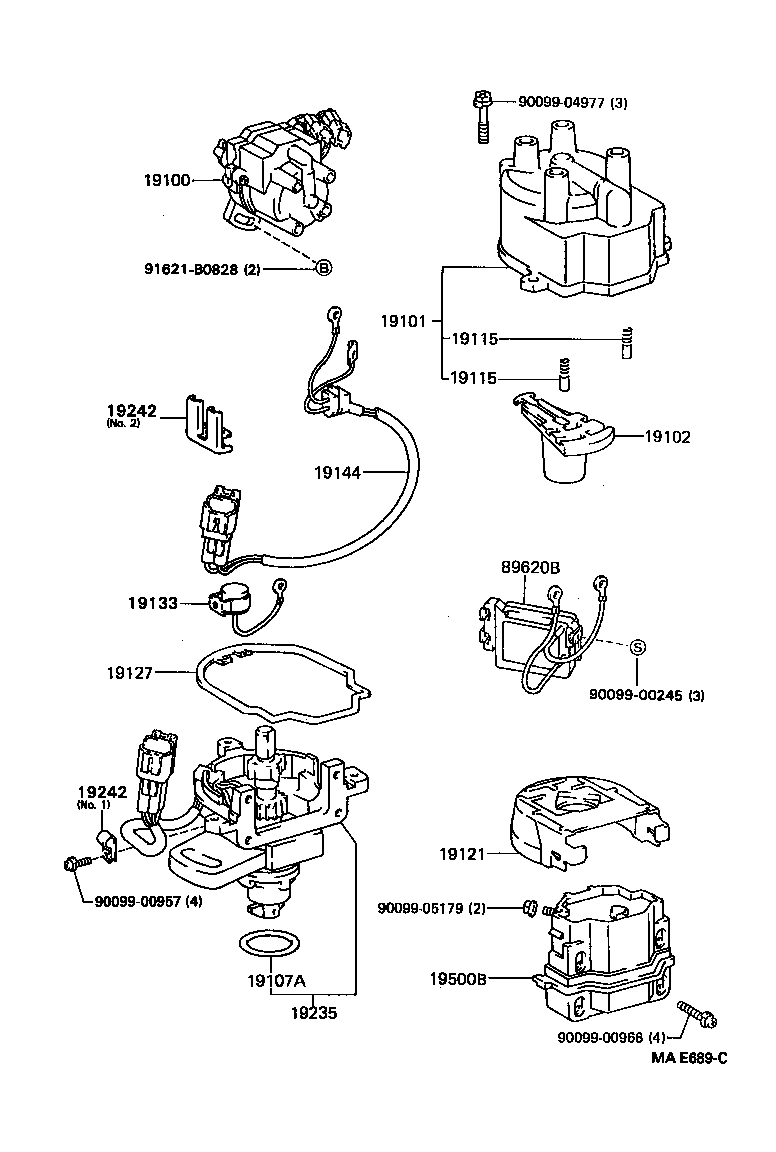

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19115 19121 19127 19133 19144 19235 19242 19242 19500B 89620B 9009900245 9009900957 9009900966 9009904977 9009905179 91621B0828
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19020-11340

4EFE,5EFE..EE101,102,103,104

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11060

4EFE,5EFE..EE101,102,103,104

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031

2E,3E,4EFE,5EFE..EE10#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14088

4EFE,5EFE..EE101,102,103,104

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

2E,3E,4EFE,5EFE..EE10#

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

2E,3E,4EFE,5EFE..EE10#

 2
19121 - COVER, DUST PROOF
19121-11080

2E,3E,4EFE,5EFE..EE10#

 1
19127 - PACKING, DUST PROOF
19127-15120

2E,3E,4EFE,5EFE..EE10#

 1
19133 - CONDENSER, DISTRIBUTOR
19133-16240

4EFE,5EFE..EE101,102,103,104

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-11350

4EFE,5EFE..EE101,102,103,104

 1
19235 - HOUSING, DISTRIBUTOR
19235-11340

4EFE,5EFE..EE101,102,103,104

 1
19242 - CLAMP, CORD
19242-11350

4EFE,5EFE..EE101,102,103,104

NO.2

 1
19242-11190

4EFE,5EFE..EE101,102,103,104

NO.1

 1
19242 - CLAMP, CORD
19242-11350

4EFE,5EFE..EE101,102,103,104

NO.2

 1
19242-11190

4EFE,5EFE..EE101,102,103,104

NO.1

 1
19500B - COIL ASSY, IGNITION
90919-02164

2E,3E,4EFE,5EFE..EE10#

 1
89620B - IGNITER ASSY
89620-12420

EE101,102,103,104

 1
Common parts
90099-00245
90099-00957
90099-00966
90099-04977
90099-05179
91621-B0828
