CE97G-AWMNS (1987)

Toyota Corolla

Production Aug 1987 - Aug 1989
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CE96,97,EE96,97,98

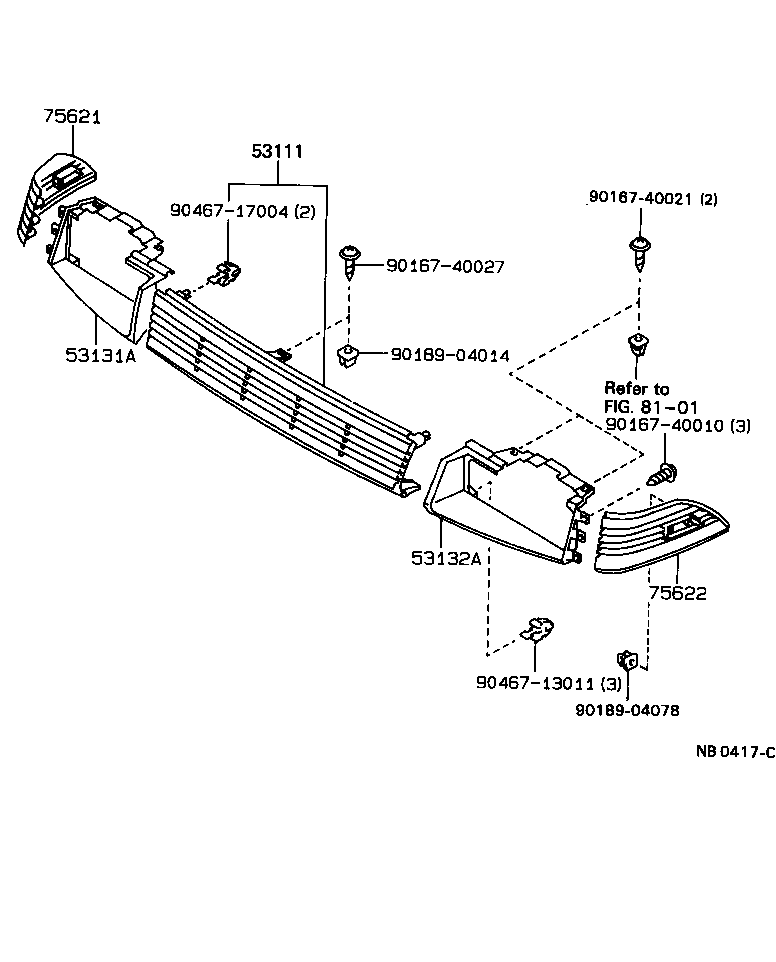

Click highlighted areas on diagram

diagram 53111 53131A 53132A 75621 75622 8101 9016740010 9016740021 9016740027 9018904014 9018904078 9046713011 9046717004
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-13010

CE96,97,EE96,97,98

 1
53131A - DOOR, HEADLAMP, RH
53131-13020

CE96,97,EE96,97,98

 1
53132A - DOOR, HEADLAMP, LH
53132-13020

CE96,97,EE96,97,98

 1
75621 - GARNISH FRONT FENDER, RH
75621-13010

CE96,97,EE96,97,98

 1
75622 - GARNISH FRONT FENDER, LH
75622-13010

CE96,97,EE96,97,98

 1
Common parts
90167-40010
90167-40021
90167-40027
90189-04014
90189-04078
90467-13011
90467-17004
Linked diagrams
8101
